Carrillo Connecting rods were founded by Fred Carrillo in 1963. Fred approached the challenges of manufacturing with the idea of no compromise. He knew the never ending quest for speed would require the same desire in component manufacturing. This Carrillo philosophy is as evident today as it was at Carrillo’s conception in 1963.
Quality and pride go hand-in-hand at CP-Carrillo. Manufacturing a CP-Carrillo Porsche rod is much more than cutting and forging, meeting production goals and shipping deadlines. The design of the Porsche connecting rods has evolved into a collaboration of skilled specialists. Every connecting rod is a symphony of precision: material specialist, forging precision, production craftsman, design engineers and engine specialists each contribute know-how and artistry.
Cp-carrillo's fastener assembly lube is molybdenum based lubrication grease with enhanced properties.
This product offers an improved clamp load repeatability, greater resistance to high pressure and temperature (range -22f to 1200f), and no oil contamination. The coefficient of friction stays unchanged, even after several connecting rod bolt re-tightening and loosening processes.
We highly recommend lubricating the connecting rod bolt head and thread with this lubricant.
Be sure to add it to your order if you are replacing your rod bolts.
Sold individually.
SET OF 6
Fits:
Porsche 911 2.4L
Porsche 911 2.7L

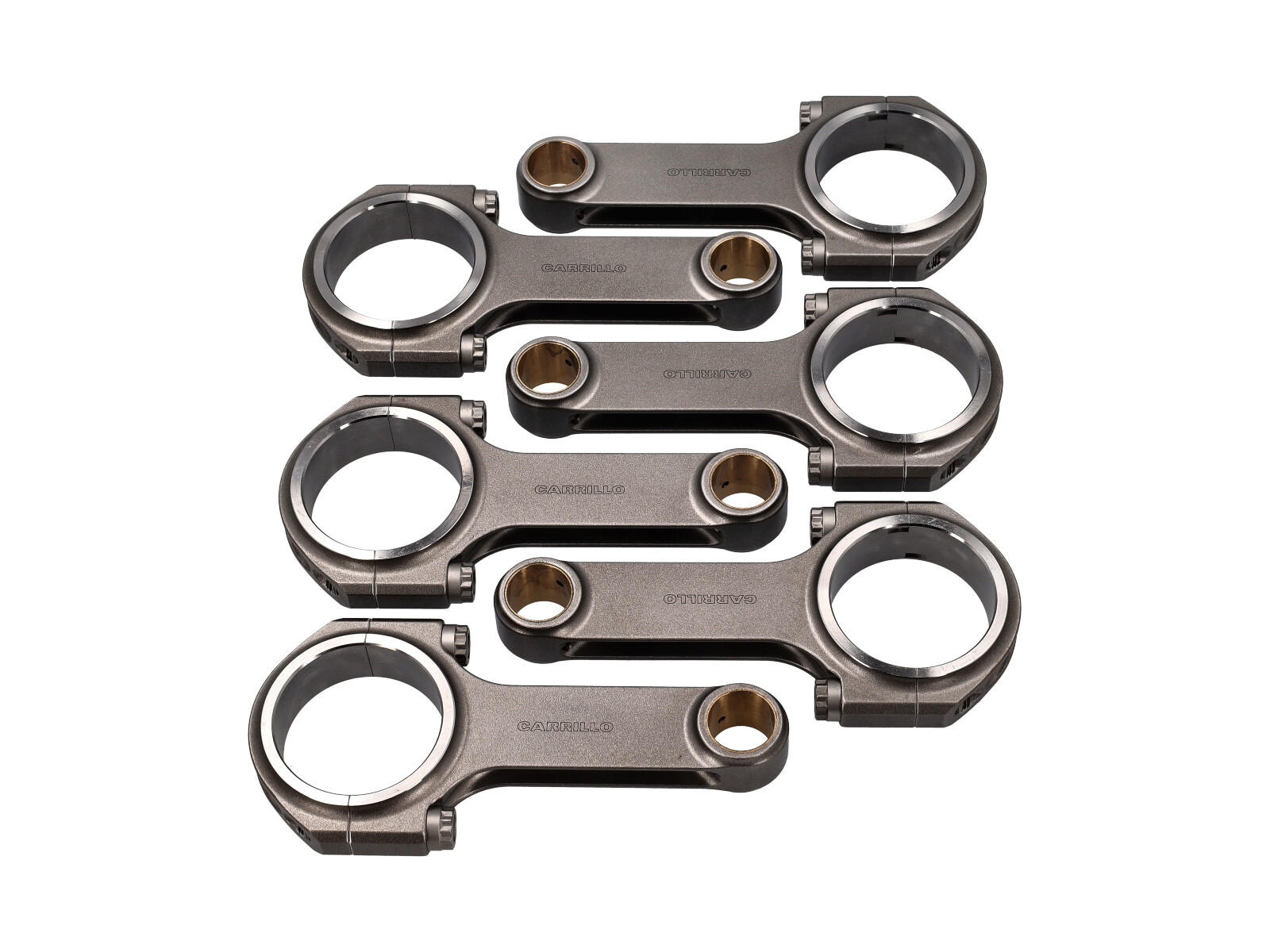

CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners

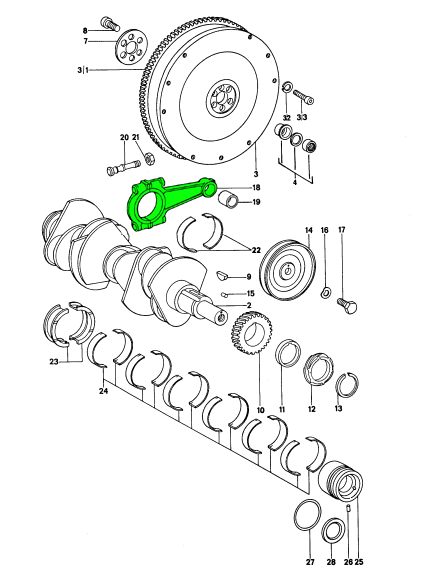

Click picture for large parts diagram.
Diagram Ref No 18.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91110395900
The product you are viewing cross references to these numbers
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
Bore: 102 mm
Size / STD: 2 mm
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 12.5
Dome Height: 0.445
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5023
The product you are viewing cross references to these numbers
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 993 (911) RS 1994-97
Bore: 102 mm
Size / STD: 2 mm
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.039
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5022
The product you are viewing cross references to these numbers
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 993 (911) RS 1994-97
Bore: 100 mm
Size / STD: std
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 12.5
Dome Height: 0.445
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5021
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Bore: 100 mm
Size / STD: std
Stroke: 76.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.205
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5020
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Bore: 98 mm
Size / STD: 3 mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.490
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5015
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Bore: 98 mm
Size / STD: 3 mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 10.5
Dome Height: 0.382
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5014
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Bore: 98 mm
Size / STD: 3 mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 9.5
Dome Height: 0.288
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5013
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Bore: 95 mm
Size / STD: std mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 11.5
Dome Height: 0.520
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5012
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Bore: 95 mm
Size / STD: std mm
Stroke: 74.4 mm
Rod C-C: 127 mm
Comp Height: 1.290 in
Comp Ratio: 10.5
Dome Height: 0.440
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 23 mm
Pin Length: 2.250
Pin Wall: 0.160
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5011
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Bore: 98 mm
Size / STD: 3 mm
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 10.5
Dome Height: 0.440
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5003
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Bore: 98 mm
Size / STD: 3 mm
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 9.5
Dome Height: 0.215
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5002
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Bore: 95 mm
Size / STD: std
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 10.5
Dome Height: 0.510
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5001
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Bore: 95 mm
Size / STD: std
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 9.5
Dome Height: 0.385
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5000
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
Price is Each
Click 'Zoom in' for large parts diagram.
Diagram ref no 10.
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Boxster 987 MKII 2.9L 2009-2012
- Porsche Boxster S 987 MKII 3.4L 2009-2012
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche 997 TURBO 2007>>
- Porsche 997 GT3 2007>>
- Porsche 997 GT2 2007>>
- Porsche 997 MKII Carrera C2 3.6L 2009>>
- Porsche 997 MKII Carrera C4 3.6L 2009>>
- Porsche 997 MKII Carrera C2S 3.8L 2009>>
- Porsche 997 MKII Carrera C4S 3.8L 2009>>
- Porsche 997 MKII GT3 2010>>
- Porsche 997 MKII Turbo 2009>>
- Porsche 997 MKII GT2 RS 2011>>
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
SET OF 6
Fits:
Porsche 964 3.6L Carrera
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 10
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9641030205X
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
SET OF 6
Fits:
Porsche 997 3.8L Turbo
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 14.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A110391703
The product you are viewing cross references to these numbers
- Porsche 997 MKII Turbo 2009>>
SET OF 6
Fits:
Porsche 997 3.6L / 3.8L
Porsche 987 3.4L
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 14.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A110391402
The product you are viewing cross references to these numbers
- Porsche Boxster S 987 MKII 3.4L 2009-2012
- Porsche 997 MKII Carrera C2 3.6L 2009>>
- Porsche 997 MKII Carrera C4 3.6L 2009>>
- Porsche 997 MKII Carrera C2S 3.8L 2009>>
- Porsche 997 MKII Carrera C4S 3.8L 2009>>
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
SET OF 6
Fits:
Porsche 997 3.6L Turbo
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 14.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99710392070
The product you are viewing cross references to these numbers
- Porsche 997 TURBO 2007>>
SET OF 6
Fits:
Porsche 911 1984-89 3.2L
Porsche 911 1978-89 3.3L Turbo
Porsche 964 3.3L Turbo
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 16.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010397501
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) TURBO 3.3L 1991-93
SET OF 4
Fits:
Porsche 944 / 944 Turbo
Porsche 968
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94410300802
The product you are viewing cross references to these numbers
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988>>
- Porsche 968 3.0L 1992-94
- Porsche 968 Sport 3.0L 1994-95
- Porsche 968 CS 3.0L 1993-95
- Porsche 968 Turbo S 3.0L 1993-94
SET OF 6
Fits:
Porsche 996 3.6L
Porsche 997 3.6L
Porsche 997 3.8L
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 9.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610398502
The product you are viewing cross references to these numbers
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
SET OF 6
Fits:
Porsche Boxster 986 2.5L 1997-99
Porsche Boxster 986 2.7L 1999-02
Porsche Boxster S 986 3.2L 1999-02
Porsche Boxster 986 2.7L 2003-04
Porsche Boxster S 986 3.2L 2003-04
Porsche Boxster 987 2.7L 2005 -08/08
Porsche Boxster 987 3.2/3.4L 2005-08/08
Porsche 996 C2 3.4L 1997-08/01
Porsche 996 C4 3.4L 1997-08/01
Porsche Cayman 2.7L 987C 2006-08
Porsche Cayman S 3.4L 987C 2005-08
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 9.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610397502
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
SET OF 6
Fits:
Porsche 993 Carrera
Porsche 993 Turbo
Porsche 996 Turbo
Porsche 997 Turbo * as long as customer is using 993 and 996 bearings.
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 10
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610397570
The product you are viewing cross references to these numbers
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 996 TURBO 2000-05
- Porsche 997 TURBO 2007>>
SET OF 6
Fits:
Porsche 911 1984-89 3.2L
Porsche 911 1978-89 3.3L Turbo
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 16.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010397500
The product you are viewing cross references to these numbers
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) TURBO 3.3L 1991-93
SET OF 6
Fits:
Porsche 911 1978-83 3.0L
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Click picture for large parts diagram.
Diagram Ref No 16.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010397400
The product you are viewing cross references to these numbers
- Porsche 911 1978-1983 3.0L / SC
SET OF 4
Fits:
Porsche 912
Porsche 356
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
61610301203CARR
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 356 1950-55
- Porsche 356A 1955-59
- Porsche 356B 1959-63
- Porsche 356C 1963-65
SET OF 6
Fits:
Porsche 911 2.0L
Porsche 911 2.2L
CP-Carrillo connecting rods are fully machined from a proprietary 4330m alloy forging for strength and durability. Rods are available with 2 types of bolts: The standard WMC-H7 (H11) bolt with a UTS of 220ksi and our upgraded CARR-S7 (MP35N) bolt with a UTS of 285ksi. The CARR upgraded bolt is a good choice if planning on revving the engine higher than 8500rpm.
All our bolts are manufactured with asymmetrical threads, each thread has a slightly different design than the previous giving the bolts an evenly distributed thread engagement. This helps increasing the clamp load and fatigue life of the fasteners.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91110301321
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Price is Each
Click 'Zoom in' for large parts diagram.
Diagram Ref No 10.
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Boxster 987 MKII 2.9L 2009-2012
- Porsche Boxster S 987 MKII 3.4L 2009-2012
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche 997 TURBO 2007>>
- Porsche 997 GT3 2007>>
- Porsche 997 GT2 2007>>
- Porsche 997 MKII Carrera C2 3.6L 2009>>
- Porsche 997 MKII Carrera C4 3.6L 2009>>
- Porsche 997 MKII Carrera C2S 3.8L 2009>>
- Porsche 997 MKII Carrera C4S 3.8L 2009>>
- Porsche 997 MKII GT3 2010>>
- Porsche 997 MKII Turbo 2009>>
- Porsche 997 MKII GT2 RS 2011>>
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
