Crankcase housing / Individual parts - 9720, 9721, 9722 - 987C.1 Cayman 2.7L / 3.4L 2006-08 - PORSCHE

Click the image numbers to view product info

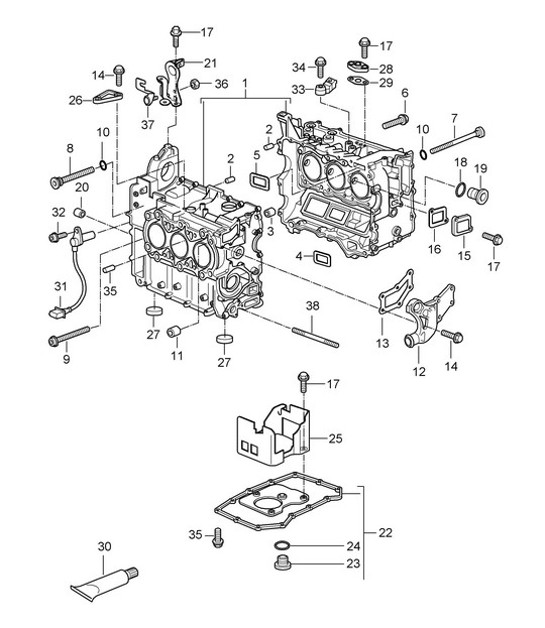

Diagram 101-005 Porsche Cayman 987C/981C (2005-2016) Engine SKU: 98710190100, crankcase housing,SKU: 98710190101, crankcase housing d - mj 2007>> SKU: 99901204900, cylinder pin 12 m 6 x 22 SKU: 99901204900, cylinder pin 12 m 6 x 22 SKU: 99610125351, dowel sleeve SKU: 99610136151, seal SKU: 99610136350, seal SKU: 9A700812900, torx screw m 6 x 35,SKU: 99938500401, torx screw bm 6 x 35 SKU: 99610121953, screw 9 x 150 SKU: 99610122901, screw m 9 x 94 SKU: 99610120301, screw 9 x 94 SKU: 99970178940, o-ring 12 x 2 also use: 999 917 788 00 SKU: 99970178940, o-ring 12 x 2 also use: 999 917 788 00 SKU: 99909504301, dowel sleeve 17m 6 x 18,5 SKU: 99610102103, end cap SKU: 99610133151, seal SKU: N10124306, flat round head bolt m 6 x 20 SKU: N10124306, flat round head bolt m 6 x 20 SKU: 99610101600, end cap SKU: 9A700812500, seal SKU: 90038500909, torx screw bm 6 x 16 SKU: 90038500909, torx screw bm 6 x 16 SKU: 90038500909, torx screw bm 6 x 16 SKU: 90038500909, torx screw bm 6 x 16 SKU: 90012314730, seal ring a 27 x 32 SKU: 90021901730, sealing plug m 27 x 2 SKU: 014301153B, dowel sleeve 13 x 16 x13,5 SKU: -, see illustration: 107-005 SKU: 99610703160, oil sump SKU: 90021900930, sealing plug m 18 x 1,5 SKU: 90012310630, seal ring a 18 x 24 SKU: 99710724300, filler plate SKU: 99611314053, end cap SKU: 99903600501, end cap b 50,SKU: 90003602903, end cap b 16 SKU: 99903600501, end cap b 50,SKU: 90003602903, end cap b 16 SKU: 99610161351, bracket,SKU: 99711334000, end cap SKU: 90037701001, hexagon nut m 6,SKU: 99611321351, seal SKU: 00004330560, sealant loctite 5900 SKU: 98660611204, impulse sender SKU: N10546403, hexagon socket head bolt m 6 x 16 SKU: 0PB905377B, knock sensor SKU: 90038509004, torx screw bm 8 x 35 SKU: 90038501902, screw bm 6 x 20 SKU: 90038501902, screw bm 6 x 20 101-005
