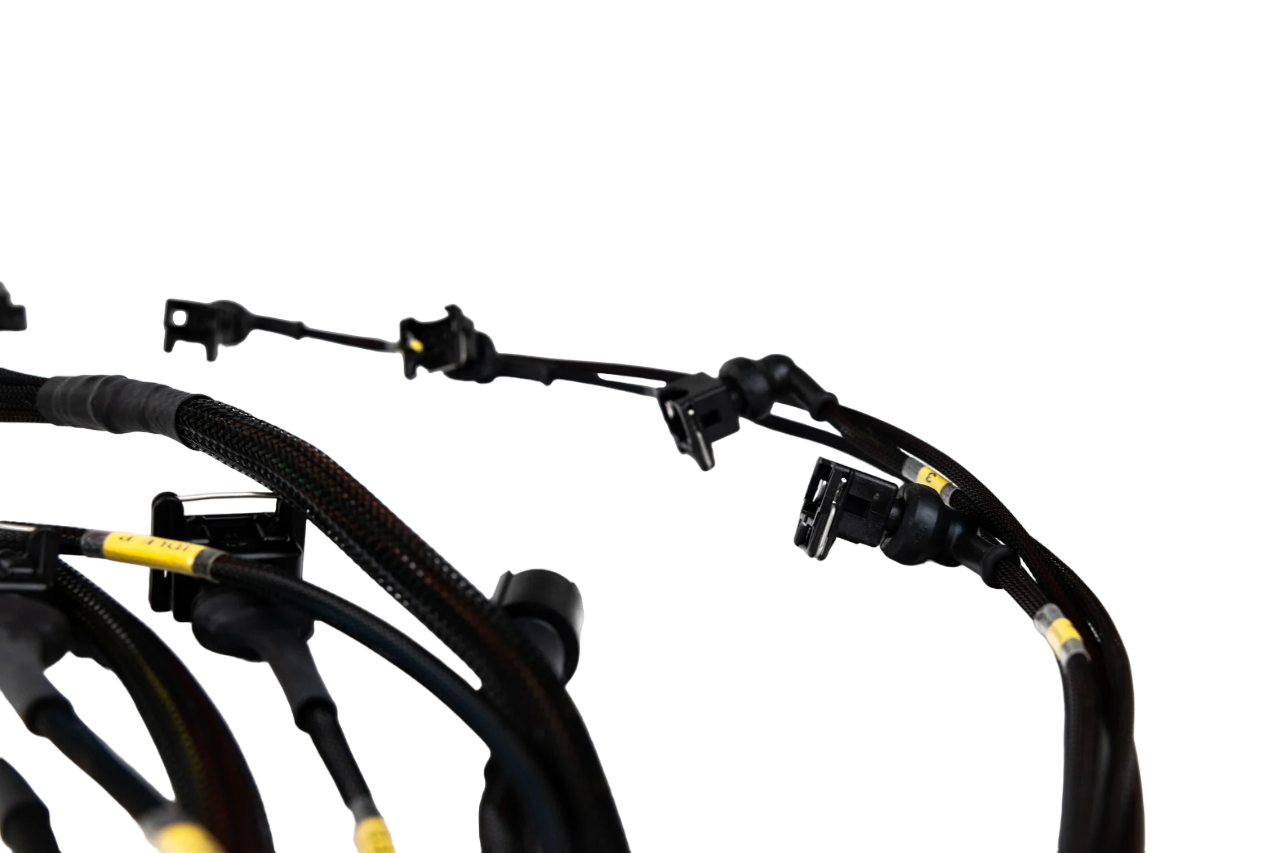

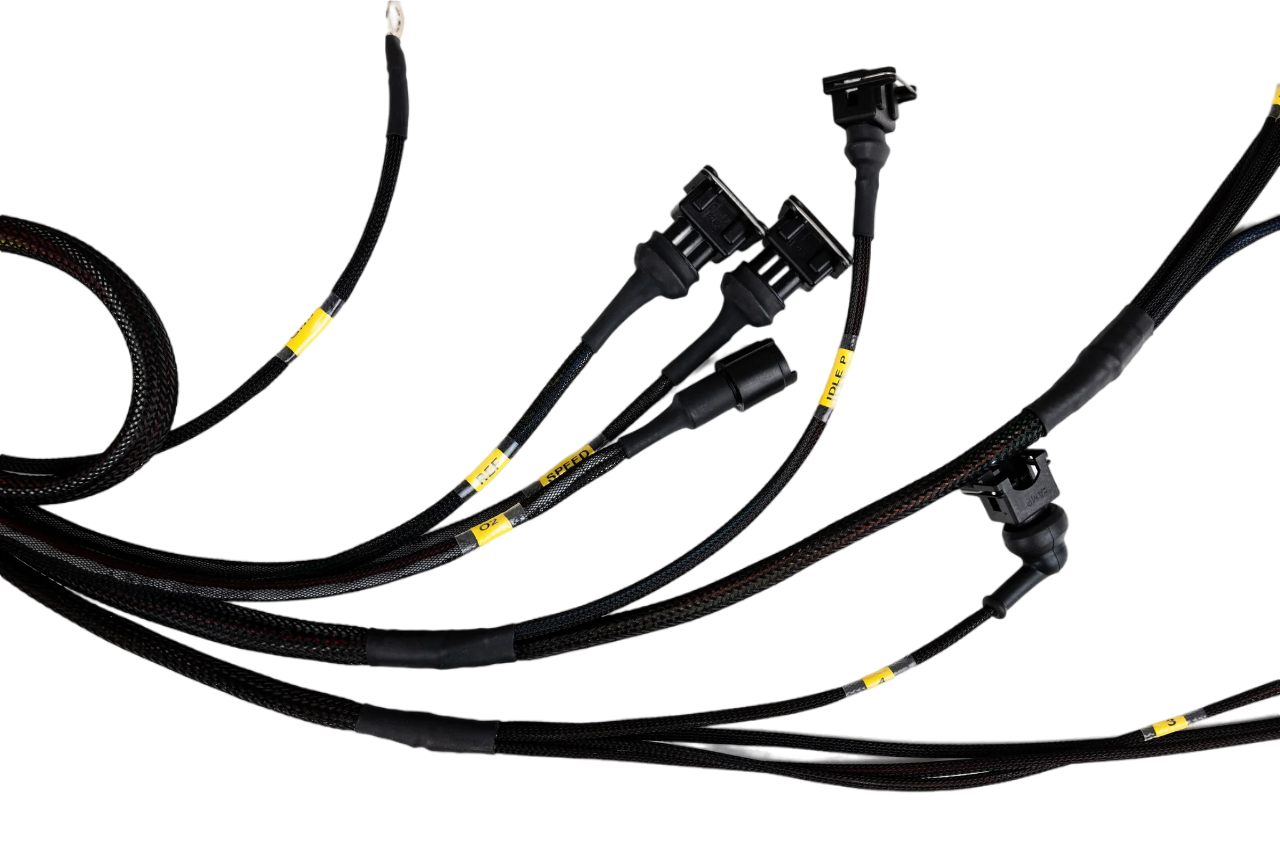

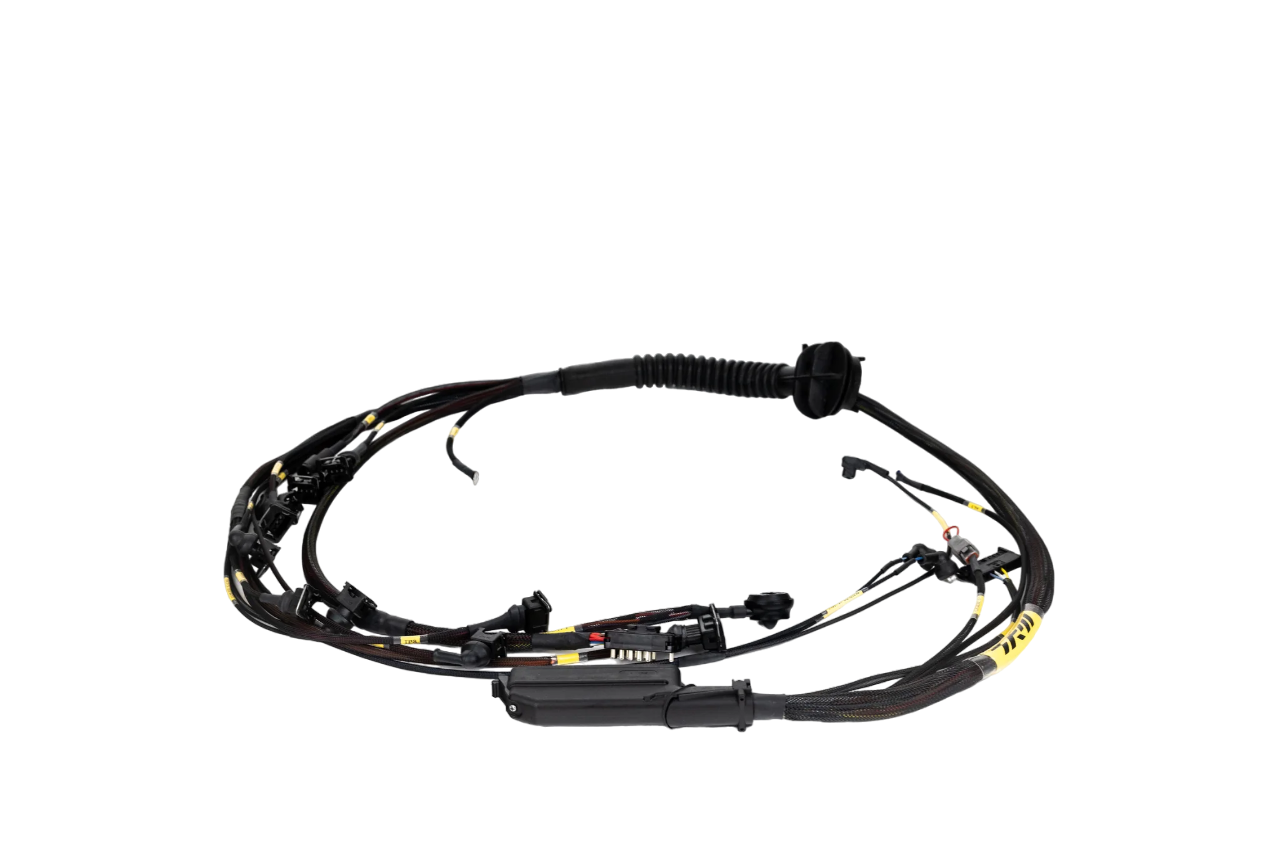

DME engine wiring harness. Porsche 944 2.5ltr late dash

DME engine wiring harness - Street Sport



Fits:
Porsche 944 2.5ltr  - 1985 to 1988 Late dash
For LHD (Left Hand Drive) cars and RHD (Right Hand Drive)

Complete engine harness

Connectors:

• Female 35 pin connector to DME Motronic ECU
• 4 x Injector
• Air Flow Sensor
• Altitude Compensation Switch
• Auxiliary Air Valve
• Code Plug
• Diagnosis
• DME Connection Plug
• Firewall 14 Pin Connector
• Idle Positioner
• Oil Level Switch
• Oil Pressure Send
• Oil Pressure Warn
• Oxygen Sensor
• Reference Mark Sensor
• Speed Transmitter
• Temperature Sensor
• Throttle Valve Switch
• Water Temperature Sensor
• Water Temperature Send
• Water Temperature Warn

Materials
TXL Wires (Temperature Rating to +125 C)
Polyethylene Terephthalate (PET) Loom (Temperature Rating to +125 C)
New Rubber Elephant Boot
TRW Street Sport Harness Total Weight - 1.54lbs
OEM Harness Total Weight - 1.88lbs

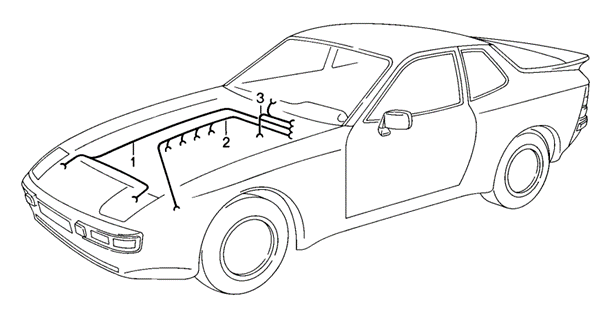

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94460702101

The product you are viewing cross references to these numbers
