Wiring Harness / Cables

Alternator wiring harness

This newly manufactured replacement provides the electrical connections required between the alternator, regulator circuit and associated charging-system components.

Fits

• Porsche 914 1970–76



What This Product Does

The harness carries charging-system current and electrical signals through the generator and regulator circuit. It replaces ageing original wiring where insulation, terminals or protective grommets have deteriorated through decades of heat, vibration and use.

Functions

• Connects the alternator to the associated charging circuit
• Provides the required generator and regulator wiring connections
• Protects routed cables where they pass through surrounding panels
• Helps maintain secure electrical contact within the charging system

Technical Details

• New reproduction alternator wiring harness
• Supplied with both protective grommets
• Includes the necessary electrical connectors for direct installation
• Diagram description: generator and regulator line set
• Quantity required: one per vehicle

Symptoms of Fault

• Intermittent or weak battery charging
• Battery warning light remaining illuminated
• Voltage drop across the alternator circuit
• Brittle, cracked or heat-damaged wire insulation
• Corroded terminals or damaged connector housings
• Electrical operation changing when the harness is moved
• Exposed conductors or signs of overheating near connections

Why Replacement Matters

Old alternator wiring may develop internal breaks, excessive resistance or unreliable terminal contact. Replacing a deteriorated harness can restore the intended electrical route and reduce intermittent charging faults. Battery condition, earth connections, belt tension, alternator output and regulator operation should also be checked before installation.

FAQs

• Does the harness include connectors and grommets?
  Yes. It is supplied with the necessary connectors and two protective grommets.
• How many harnesses are needed?
  One alternator wiring harness is required per vehicle.
• Can damaged wiring cause charging problems?
  Yes. Corrosion, fractured conductors and increased resistance may cause intermittent or insufficient charging.
• Should the alternator be tested before replacing the harness?
  Charging voltage, battery condition, earth points and regulator operation should be tested so that the source of the fault is confirmed.
• What should be inspected during fitting?
  Check the terminals, connector seating, cable routing and grommet position, ensuring that the harness is kept away from abrasion and excessive heat.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

021971349D

The product you are viewing cross references to these numbers

Pipe Clamp B20x18 – Multi-Position Clamp
Sold each

High-quality pipe clamp B20x18 designed for a wide range of securing applications across Porsche 911, 924S, 928, and 914 models.

This versatile clamp is used in multiple locations including air conditioning pipes, wiring looms, power steering lines, clutch cables, and heating system components, making it an essential part for maintaining correct routing and system integrity throughout the vehicle.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 924S 2.5L 1986-87
• Porsche 924S 2.5L 1988
• Porsche 928S4 5.0L 1987-92
• Porsche 928GT 5.0L 1989-91
• Porsche 928GTS 5.4L 1992-95
• Porsche 914 (1970-1976)

Manufactured to OEM specifications, this clamp ensures secure fitment, durability, and resistance to corrosion. Supplied individually, it allows flexible replacement for maintenance, repair, or restoration projects.

Key Features

• Pipe clamp size B20x18
• Suitable for Porsche 911, 924S, 928, and 914
• Part number 99951107602
• Multi-use: AC pipes, wiring looms, steering, clutch, heating
• Ensures secure mounting and routing
• Durable and corrosion-resistant construction
• OEM-style fit and performance
• Sold individually

Function and Purpose

This clamp is designed to secure various components across the vehicle.

It helps to:
• Hold pipes, hoses, and cables firmly in place
• Maintain correct routing and alignment
• Prevent vibration-related wear and damage
• Protect sensitive components such as wiring looms
• Support long-term system reliability

Why Replace Pipe Clamps

Clamps can degrade over time due to heat and environmental exposure.

Common issues include:
• Loss of clamping strength
• Corrosion or fatigue
• Movement of pipes or cables
• Increased risk of wear or failure

Replacing worn clamps ensures proper securing and protects system components.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99951107602

The product you are viewing cross references to these numbers

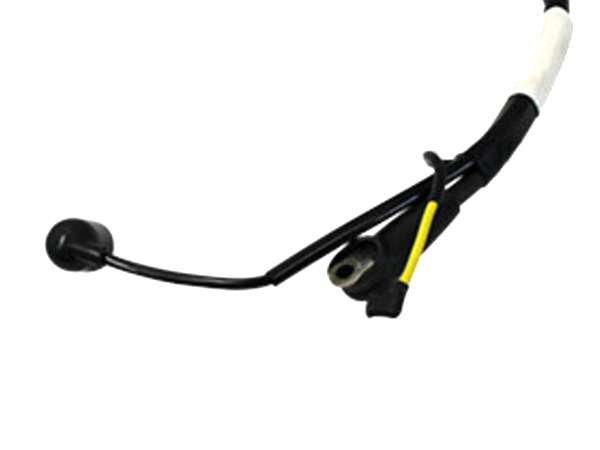

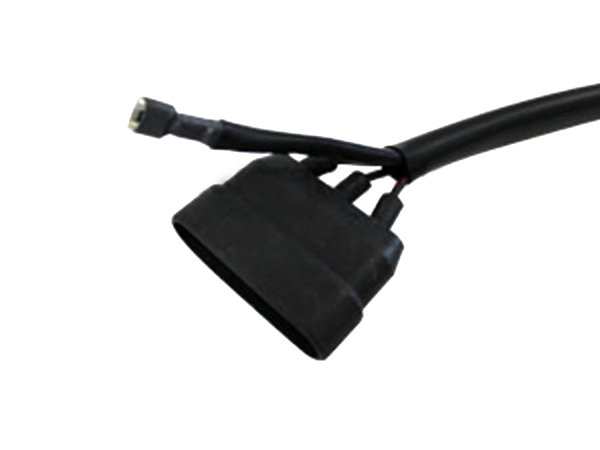

The OE Match complete engine harness for Porsche 914/6 connects the engine wiring to the 14-pole male connector on the control board, it features correct wiring colours, taping and rubber sleeves for the intended application. Made in Canada

Fits

• Porsche 914 (1970–1976)

  The engine application is the 914/6; check the control-board connection and existing wiring arrangement rather than relying on the broader 914 model listing alone. Check fitment for your specific vehicle (model, year, engine) before ordering.

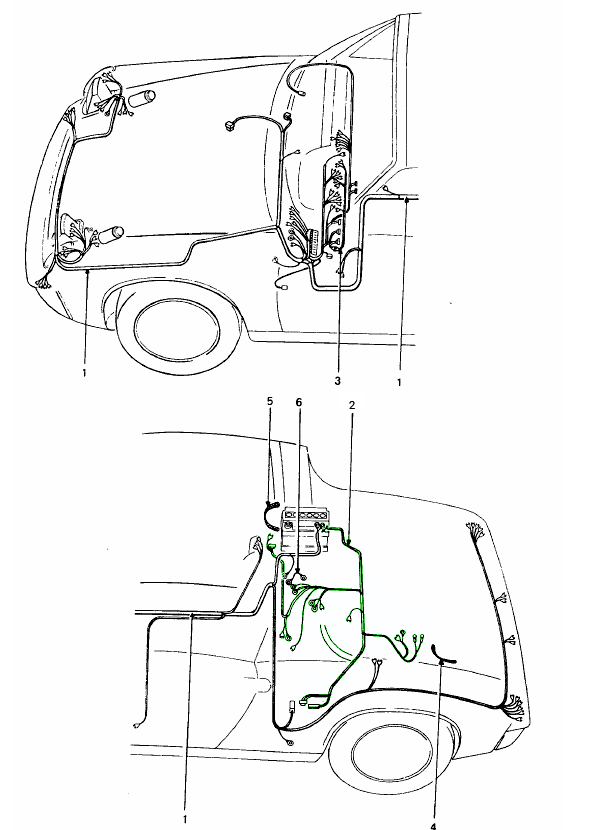

  Diagram ref no 2

  What Is This Part?

This is the engine wiring loom that links the engine electrical connections with the control board. It groups the relevant wires into a routed assembly, with colour identification to help distinguish circuits during installation and fault-finding. Taping keeps the wiring together, while rubber sleeves cover the associated terminal connections. It is a replacement option for repairing deteriorated engine wiring or renewing an aged loom during restoration or engine work.

What Does This Part Do?

• Connects the engine and control board: Provides the wiring link to the existing 14-pole male connector.
• Carries electrical circuits: Provides conductive paths between the connected engine equipment and the control board.
• Organises the wiring: Groups the wires into a loom so they can be routed together around the engine.
• Identifies individual wires: Correct wiring colours assist connection checks against the appropriate wiring information.
• Covers terminal connections: Rubber sleeves provide insulation around the associated connections.

  Why Replace This Part?

Engine wiring can deteriorate through age, heat, vibration, moisture or abrasion. Insulation may become brittle or split, terminals can corrode, and conductors can fracture where wiring has repeatedly flexed. Previous alterations or poorly made joins can also leave connections that are difficult to inspect and unreliable in use.

Replacement may be appropriate when damage affects several branches or the existing loom can no longer be repaired reliably. An isolated wiring fault may be repairable without replacing the complete harness. Before ordering, check the battery, earth connections, control-board connector and affected electrical components so that a fault elsewhere is not mistaken for harness damage.

When to Replace This Part?

• Cracked insulation: Brittle, split or missing insulation exposes the conductors.
• Heat damage: Melted covering, discoloured terminals or hardened sleeves require investigation.
• Corroded connections: Green deposits, damaged terminals or moisture inside connections warrant inspection.
• Broken or chafed wiring: Damaged branches or exposed strands need repair or replacement.
• Confirmed intermittent faults: Testing identifies a wiring interruption or excessive resistance associated with starting or running problems.
• Extensive previous repairs: Multiple unsuitable joins or altered connections make dependable repair impractical.

  Where Is This Part Fitted?

Location: At the engine, linking its electrical connections to the control board through the 14-pole male connector. During fitting, check the existing supports and routing so the loom is not stretched, trapped or left against hot or moving components.

Technical Details

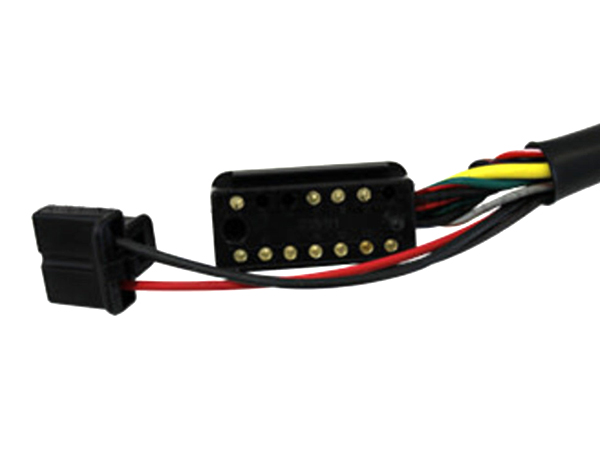

• Connection: Connects to a 14-pole male control-board connector.
• Wiring: Correct wiring colours and taping.
• Connection covering: Rubber sleeves.
• Country of manufacture: Canada.

  FAQs

• Can wiring faults appear only when the engine is hot?
  Yes. Heat and vibration can affect damaged wires or marginal connections, so testing may need to reproduce the conditions in which the fault occurs.
• Should every intermittent starting fault lead to harness replacement?
  No. Check the battery, earths, connectors and relevant components first, then confirm whether the harness has a fault.
• Can the existing harness be repaired instead?
  A localised defect may be repairable. Widespread insulation damage, corrosion or unsuitable previous repairs can make replacement more appropriate.

  Product Summary

• Product: Complete engine harness.
• Brand: OE Match.
• Purpose: Connects the engine electrical wiring to the control board.
• Connection: 14-pole male control-board connector.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91461204610

The product you are viewing cross references to these numbers

This complete OE Match ignition harness is intended for a 3-pin CD1/HK2 ignition box, providing replacement wiring for the ignition assembly. It includes connector boots, PVC sheathing, high-grade automotive wire, a flat braided earth cable and contacts made to the original specifications.

Fits

• Porsche 911 1965–73
• Porsche 914/6 1971–75

  For the specified 3-pin ignition-box arrangement. The general compatibility is for cars up to 1973; the Porsche 914/6 application is listed separately as 1971–75. Confirm the ignition equipment fitted, particularly on converted or modified vehicles.


Check fitment for your specific vehicle (model, year, engine) before ordering.

Diagram ref no 20

What Is This Part?

This is the wiring harness serving the capacitor-discharge ignition assembly. Its wires and contacts provide the electrical connections required by the ignition equipment, while the boots and sheathing cover and organise those connections. The flat braided earth cable forms part of the harness assembly. It is relevant when repairing deteriorated ignition wiring or renewing an extensively repaired loom during restoration.

What Does This Part Do?

• Connects the ignition equipment: Provides wiring for the specified 3-pin ignition-box installation.
• Groups the wiring: Keeps the ignition connections together as a dedicated harness.
• Covers connections: Includes connector boots and PVC sheathing around the relevant wiring and terminals.
• Provides an earth connection: Includes a flat braided earth cable as part of the assembly.

  Why Replace This Part?

Replacement may be appropriate when inspection finds cracked insulation, damaged conductors, corroded contacts or unreliable previous repairs. Heat, vibration and age can affect wiring and connections, so an ignition fault should be traced to its source before replacing either the harness or the ignition control unit.

A complete harness can be a practical repair where deterioration affects several branches or connections rather than one isolated terminal. During restoration, assess the existing loom before refitting it; removal alone does not make replacement necessary.

When to Replace This Part?

• Damaged insulation: Cracking, abrasion, melting or exposed conductors are visible.
• Poor terminal condition: Contacts are corroded, loose or physically damaged.
• Broken protection: Connector boots or sheathing no longer cover the wiring properly.
• Damaged earth cable: The braid or its end connections show deterioration.
• Confirmed wiring fault: Testing traces intermittent starting, misfiring or cutting out to the ignition harness.
• Unsatisfactory repairs: Multiple joins or altered connections prevent a dependable installation.

  Where Is This Part Fitted?

Location: At the engine ignition assembly, serving the 3-pin ignition box and associated ignition wiring. Follow the vehicle-specific wiring arrangement when identifying connections and routing the replacement harness.

Technical Details

• Ignition-box connection: 3-pin CD1/HK2.
• Includes all connector boots and PVC sheathing.
• High-grade automotive wire.
• Flat braided earth cable.
• Contacts made to the original specifications.

  FAQs

• Should the ignition box be replaced first? No. Check the power supply, earth connections, terminals and harness condition before deciding which component has failed.
• Can an intermittent fault come from the harness? Yes. Damaged wiring or marginal connections can produce intermittent operation; testing should confirm the cause.
• Is a local repair sufficient? An isolated defect may be repairable. More widespread insulation damage, corrosion or previous alterations may justify replacing the harness.

  Product Summary

• Product: Complete 3-pin ignition harness.
• Brand: OE Match.
• Purpose: Replacement wiring and connections for the specified ignition assembly.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161205000

The product you are viewing cross references to these numbers

The OE Match complete wiring harness for Porsche 914/6 provides the interconnected wiring assembly used when renewing a deteriorated or extensively modified loom. It features correct wiring colours, connectors, tape and rubber sleeving for the application.

Fits

• Porsche 914 (1970–1976)

  This harness is specified for the 914/6 within the 914 model family. Check fitment for your specific vehicle (model, year, engine) before ordering.

  Diagram ref no 1

  What Is This Part?

A wiring harness, also called a wiring loom, brings multiple electrical circuits together into an organised assembly. Its wires and connectors provide electrical paths between the components connected to it, while the insulation, tape and sleeving keep the wiring separated and bundled. Correct wire colours help identify circuits when comparing connections with the vehicle's wiring information. For a restoration or extensive electrical repair, replacing a deteriorated loom can address damage spread across several branches rather than leaving numerous separate repairs.

What Does This Part Do?

• Connects electrical circuits: Provides wiring paths between the electrical components served by the harness.
• Organises the wiring: Groups individual wires into branches that can be routed through their intended installation positions.
• Supports circuit identification: Correct wiring colours help with tracing connections during installation and fault-finding.
• Insulates and covers wiring: Tape and rubber sleeving form part of the harness covering and terminal protection.

  Why Replace This Part?

Replacement may be appropriate when insulation has become brittle, conductors are damaged, or corrosion has spread beyond an isolated connection. Heat damage, abrasion and repeated alterations can leave several areas of an old loom needing attention. Extensive undocumented joins can also make it difficult to establish whether each circuit is connected correctly.

A complete harness should not be the automatic response to an intermittent electrical fault. First establish whether the problem lies in the loom, a connector, an earth connection or the component itself. An isolated defect may be repairable; widespread deterioration provides a stronger reason to renew the assembly.

When to Replace This Part?

• Cracked insulation: Wiring coverings split or expose conductors during inspection.
• Heat damage: Sections of the loom or connector housings show melting, scorching or distortion.
• Physical damage: Wires are chafed, cut, crushed or damaged by rodents.
• Extensive corrosion: Deterioration affects terminals or extends beneath the wire insulation.
• Unreliable previous repairs: Numerous altered connections or poorly secured joins require assessment.
• Confirmed wiring faults: Testing traces intermittent operation, excessive voltage drop or repeated short circuits to the harness.

  Technical Details

• Correct wiring colours for the application.
• Application-specific connectors.
• Tape and rubber sleeving.

  FAQs

• Should an old harness always be replaced during restoration?
  No. Inspect its insulation, conductors, terminals and previous repairs, then assess whether local repair or replacement is appropriate.
• What should be checked before installation?
  Compare the connections with the vehicle's wiring information and inspect the routing points, clips and grommets. Resolve any cause of previous overheating or abrasion before fitting.

  Product Summary

• Product: Complete wiring harness.
• Brand: OE Match.
• Purpose: Replacement wiring assembly for electrical repair and restoration.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91461201910

The product you are viewing cross references to these numbers

This fuel injection wiring harness from OE Match provides a replacement option when the existing injection loom has deteriorated or suffered damage.

Fits

• Porsche 914 2.0L
• Model listing: 914 (1970-1976)



Check fitment for your specific vehicle (model, year, engine) before ordering. Confirm the injection-system specification and connector arrangement against the original harness; the model listing alone does not establish compatibility with every engine version.

What This Product Does

The harness groups the wiring serving the fuel-injection system, providing electrical connections between its associated components. Sound wiring and secure terminal contact allow those circuits to carry their intended electrical signals. This is a wiring component rather than a fuel-delivery hose or injector.

Functions

• Connects associated fuel-injection electrical components.
• Carries electrical signals through the injection wiring circuits.
• Groups individual wires into a harness assembly.



Technical Details

• Brand: OE Match.
• Product reference: 039791761.
• Component type: fuel-injection wiring harness.



Symptoms of Fault

• Starting difficulties that occur intermittently.
• Uneven idling, misfiring or engine stalling.
• Running faults that change when wiring moves.
• Cracked insulation or exposed conductors.
• Corroded terminals or damaged connector housings.
• Recurring electrical problems despite replacement of connected components.



These signs are not conclusive evidence of harness failure. Check the battery, earth connections, terminals and relevant circuits before deciding which component requires replacement.

Why Replacement Matters

Age, engine-bay heat and vibration can leave insulation brittle, damage conductors or weaken connections. Renewing a confirmed faulty harness addresses deteriorated wiring rather than repeatedly replacing components affected by an unreliable connection. Replacement may also be appropriate during restoration where extensive corrosion or numerous previous repairs make local repairs unsuitable.

FAQs

Can wiring problems resemble a failed injection component?
Yes. A damaged wire or poor terminal connection can interrupt a circuit and produce similar running symptoms. Test the wiring as well as the connected component.

Should a damaged section be repaired or the harness replaced?
An isolated defect may be repairable using suitable methods. Widespread insulation damage, corrosion or unreliable joins can justify harness replacement after inspection.

What should be checked before fitting?
Compare the original loom, connector layout and vehicle specification. Inspect adjoining connections and earth points so that existing faults are not left unresolved.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

039791761

The product you are viewing cross references to these numbers

Ground Strap Alternator and Intercooler.

Fits:
Porsche 911 - 1965 to 1973 - (alternator)

Porsche 911 turbo - 1987 to 1989  (intercooler)
Porsche 914 - 1970 to 1976

Click 'Zoom in' for large parts diagram.
Diagram ref no 18 or 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90161211000

The product you are viewing cross references to these numbers

OE Match ignition wiring harness this component is the engine regulator plate harness.

Fits

• Porsche 914 2.0L



Check fitment for your specific vehicle (model, year, engine) before ordering.

Diagram ref no 2

What This Product Does

This harness groups the wiring associated with the engine regulator plate assembly. It provides the electrical connections needed by the circuits it serves, supporting ignition-related engine operation without replacing the connected electrical components themselves.

Functions

• Connects the relevant engine electrical circuits.
• Groups associated wires into a single harness assembly.
• Provides a replacement for deteriorated or damaged wiring in its specified application.



Technical Details

• Brand: OE Match.
• Part number: 91461200715.
• Engine regulator plate wiring harness.



Symptoms of Fault

• Starting difficulties or intermittent failure to start.
• Misfiring, uneven idle or unexpected stalling.
• Electrical interruptions that change when the wiring moves.
• Cracked, brittle or melted insulation.
• Corroded terminals or damaged connections.



These symptoms can have several causes and do not, by themselves, confirm a defective harness. Inspect the wiring and connected components before deciding which part requires renewal.

Why Replacement Matters

Renewal may be appropriate when insulation has deteriorated, conductors have fractured, terminals have corroded or earlier repairs have left unreliable joints. Replacing a confirmed faulty harness addresses the damaged wiring rather than repeatedly changing components connected to it. OE Match focuses on Porsche replacement applications; check the original reference and vehicle details when selecting the correct version.

FAQs

What should be checked before replacement?
Inspect battery connections, earth straps, terminals and heat-exposed wiring. Electrical testing should establish whether the fault lies in the harness or a connected component.

Can damaged wiring cause intermittent symptoms?
Yes. Heat, vibration and movement can expose a weak connection or an internally fractured wire.

Should the wiring be repaired or replaced?
A localised defect may be repairable, whereas widespread insulation damage, corrosion or unreliable previous repairs can justify harness replacement.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91461200715

The product you are viewing cross references to these numbers

OE Match D-Jetronic ignition loom, Intended for replacement of deteriorated or damaged engine wiring during repair or restoration.

Fits

• Porsche 914 (1973)



Check fitment for your specific vehicle (model, year, engine) before ordering.

Diagram ref no 2

What This Product Does

The loom groups the electrical connections serving its engine circuits into a single assembly. Internal conductor damage, deteriorated insulation or poor terminal contact can interrupt those connections, even when the connected components remain serviceable.

Functions

• Provides electrical paths between the relevant engine connections.
• Keeps associated wiring organised within one loom.
• Replaces wiring affected by deterioration or unreliable previous repairs.



Technical Details

• Supplied reference: 91461200713.
• Brand: OE Match.
• Specified application: D-Jetronic



Symptoms of Fault

• Starting difficulties or uneven engine operation that occur intermittently.
• Electrical behaviour changing when wiring is gently moved during testing.
• Hardened, split or heat-damaged cable insulation.
• Corroded terminals, damaged plugs or unreliable repair joints.



Why Replacement Matters

Where inspection confirms widespread deterioration, renewing the loom addresses damaged wiring rather than repeatedly replacing connected components. Check earth connections and adjoining terminals at the same time: a poor connection elsewhere can produce similar symptoms. OE Match focuses on Porsche replacement applications, making accurate identification against the vehicle specification important.

FAQs

Does rough running prove the harness is faulty?
No. Establish whether wiring continuity, terminal contact or another engine-system fault is responsible before replacing the loom.

Can a local repair be sufficient?
An isolated defect may be repairable. Extensive insulation damage, corrosion or multiple previous joins can make complete loom replacement more appropriate.

What should be checked before fitting?
Confirm the production year, D-Jetronic specification, reference and connection arrangement. Inspect the surrounding wiring and earth points before reconnecting the assembly.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91461200713

The product you are viewing cross references to these numbers
