Inter Coolers

Intercooler Upgrade EVO2 Kit for:
Porsche 996 (911) Turbo 309KW/420PS (2000-2006)
Porsche 996 (911) Turbo S 331KW/450PS (2004-2006)

Kit comes with:
2x Intercooler black
4x Carbon air shrouds
4x Silicone Hoses
4x Hose Clamps
1x Mounting Material
2x Aluminum Adapter

The Wagner Tuning Porsche 996 911 Turbo (S) Intercooler Kit EVO2 has the following core size (2 x [330mm x 222mm x 145mm] = 21.244cm³), providing 77% more volume compared to the stock mounted intercooler. Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties. This intercooler Kit uses our award winning Wagner Tuning Competition Intercooler Core which is made specifically for this application. It is one of the highest quality Tube Fin cores available on the market. The intercooler has just a weight of 2x 6,7kg. Flow analyses and simulations were created to optimise the design for best possible Internal Airflow. The Intercooler Kit also includes a suitable carbon air shroud to ensure optimum airflow to the intercooler. As well as additional silicone hoses with an enlarged cross-section. This intercooler kit is the best choice when it comes to performance gains and low intake temperatures. Anti Corrosion protective Coating with perfect thermal heat dissipating character. Optimal cooling with clearly more power. Kit is ready for installation. Fitment is easy, replacing the OEM intercooler. All of our products undergo rigorous quality control and are also tested by compressive strength of up to 6 bar. This intercooler kit is suitable for racing.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

200001078

The product you are viewing cross references to these numbers

Performance intercoolers & pressure hoses kit.



To Fit:
Porsche 911 (996 Turbo), GT2 manual and auto 1999 to 2005

Significant advantages with do88's Porsche Performance Intercoolers & Silicone Hoses:

• Equivalent OEM numbers, 997.110.639.00, 997.110.640.00 (ref only)

• Core Volume: 6825 cm³ (4821 cm³), do88 41% larger!
• Lower post Intercooler Air Temperature at same conditions: OEM 50°C (122°F), do88 34°C (93°F)

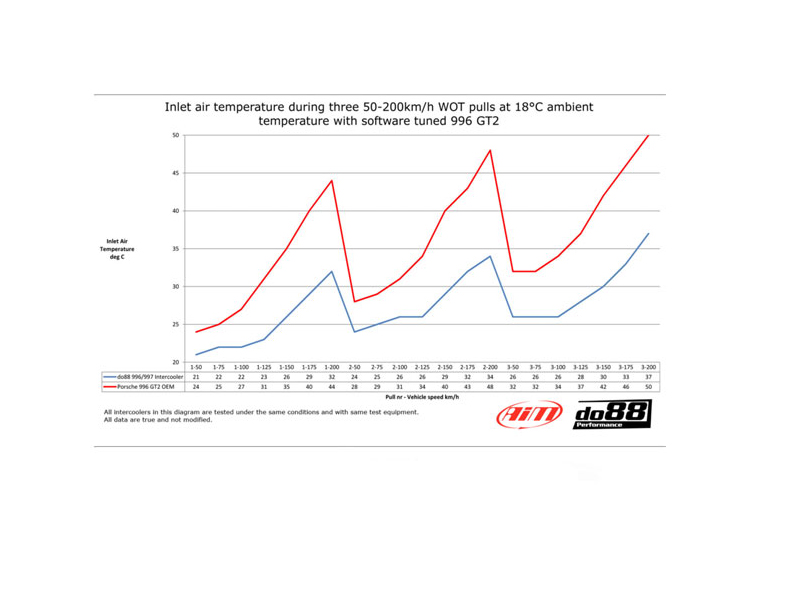

• See enlarged images for test data results!

These Intercoolers are constructed to deliver the best cooling efficiency during tough conditions. Exclusively manufactured in aluminium with continuous welds, they guarantees reliability and endurance when you really need it. The increased core volume improves cooling efficiency and lowers the intake air temperature. Do88 have undergone thorough testing under severe and continuous conditions to ensure the absolute best performance! These Intercoolers are immensely optimized to allow the maximum core size in the given space without compromising on easy drop-in-fitment. This is the undoubted choice for the inspired enthusiast or the race car driver demanding reliability at the limit.

This package is supplied with everything you need for fitment, including Silicone Hoses, Screws, Brackets and Clamps.

The Boost Pressure Hoses included in this Kit are Silicone reinforced 4 ply polyester fabric for optimum airflow, performance and reliability!

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

ICM-200-996

The product you are viewing cross references to these numbers

DesignTek introduces high performance Porsche 996 Turbo and 996 Turbo GT2 intercoolers.



The intercoolers control the side to side flow design that flows along it's 16inch length. This IC will be more than sufficient for any highly tuned 996TTs or GT2s cars to applications of upto 900hp. DesignTek Porsche intercoolers produces high-flow rate and dramatic temperature reduction which are mainly contributed by two key factors. Firstly, the great temperature reduction is accomplished by a 40% larger than stock sized intercooler cores in which each core has the capacity flow rate of 750 CFM. Secondly, which in our opinion is the most important element of an IC; the inlet/outlet end-tanks. Our end-tanks are a one piece cast aluminium construction design, formed with little to no corners and are also fully polished on the insides to increase air velocity; therefore minimizes welding points and greatly increases air flow and reduction in pressure drop which yields to improved efficiency. Also please note that all of our intercoolers come only in high polished finished for that uncompromised appearance.

The specifications:
- Dimensions Core Thickness: 3.5"
- Core Volume vs. Stock: 40% larger
- Performance Efficiency: 85%
- Flow rate: 620 CFM / side
- Leak Tested: @ 30 PSI
- Pressure Drop: less than 1%

Fits:
Porsche 996 Turbo 2000-05
Porsche 996 GT2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99611063000

The product you are viewing cross references to these numbers

Fits:
Porsche 996 Turbo 2000-05
Porsche 996 GT2

The Wagner Tuning Porsche 996 TT Intercooler Kit is a high performance redesign of the original OEM intercooler designed specifically for the 996TT Tuning Enthusiast.

Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.

Constructed of the highest quality Tube Fin intercooler cores combined with cast aluminium and then CNC end tanks for reliable high performance air to air charge cooling.

The Wagner Tuning Porsche 996 TT Intercooler Kit features:
• High-performance 355mm x 220mm x 90mm, 7.029cm³ capacity (per cooler)
• CAD / FEM optimized cast aluminium end tanks
• Intercooler is mounted plug and play instead of the original radiator
• 63.5 mm input and output
• Black silicone tubing in flow-optimized design
• CNC machined aluminium hose adapter and clamps included
• 100% Factory Replacement
• OEM Mounting Points , Simple Installation

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

200001020

The product you are viewing cross references to these numbers
