Control Arms Front

Adjustable caster arms with anti-dive and anti-squat.



Fits
Porsche 986 Boxster - Front Only
Porsche 987 Boxster and Cayman - Front Only
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear

Set of 2 x Adjustable caster arms - 1 pair, required per axle

Elephant Racing caster arms provide adjustable caster and anti-dive ability when used on the front, and adjustable wheel base, weight distribution, and anti-squat when used on the rear.

Front Suspension

Threaded double-adjuster makes it easy to extend or shorten the arm.

This makes for easy caster adjustment – an important adjustment the factory left out. A must-have for cars with GT3 style extendable style lower control arms to correct for un-intended caster increase that is caused by the extended LCAs.

Anti-dive behavior can also be adjusted. Lowering the front of the arm using the provided spacers reduces front dive under braking. Adjustable in 2mm increments.

Rear Suspension

Adjustable Caster Arms can reduce rear overhang and rear weight bias. A must-have for cars with GT3 style extendable style lower control arms. Adjust the length of the caster arms to correct the position of the rear wheels that have been drawn forward by aggressive camber settings. Even over-compensate for less rear weight bias than stock.

With the heavy mass of the engine cantilevered behind the rear axle, even small changes in wheel base make significant changes in weight distribution. Shortening the overhang reduces the famous 911 "pendulum" effect in corners.

Anti-squat behavior can also be adjusted. Raising the front of the caster arm using the provided spacers reduces rear squat under acceleration. Adjustable in 2mm increments.

Fully weather sealed> – Proper boots at the heim joint keep water and contaminant out for extended life.

If not using Adjustable Lower Control Arms

1999-2012 996, Boxster, Cayman, & GT3 Front: Bolt on if replacing the lower control arm central bushing with 2290022 / 2290014 rubber bushings, or our 2180011 camber adjusters.

1999-2012 996, 997 & GT3 Rear: Straight bolt on.

2006-2018 997, Boxster, Cayman, & 991 Front: Requires fitment of our part number 2290022 or 2290014 LCA central bushings or 2180011 solid caster bushing kit

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180005

The product you are viewing cross references to these numbers

Adjustable caster bushing kit.
1 kit required per axle



Fits
Porsche 986 Boxster - Front and Rear
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Porsche 981 Boxster and Cayman -Front Only
Porsche 991 -Front Only

Caster Tuning
Our Caster Adjuster allows you to tune this important setting that the factory left out. A must-have for cars that have extended lower control arms (GT3 control arms or eccentric monoballs) to correct for un-intended caster change that is caused by the extended arms.

Caster is also a great tuning aid for adjusting out understeer. Our Caster Adjusters let you tune the caster you need.

Two eccentric mounting points increase range of adjustment by up to 25mm. Choose from the inner bore for minor caster adjustments or the outer bore for extreme adjustments.

Rear Weight Bias
For the rear suspension, our Caster Adjuster can reduce rear overhang and rear weight bias. Cars with aggressive rear camber actually draw the wheels forward, increasing rear weight bias. Use our Caster Adjuster to compensate and even over-compensate for less rear weight bias than stock

Maintain Proper Alignment
Our Caster Adjuster is solid aluminum to hold alignment settings precisely. Stock rubber bushings compress under load, allowing alignment to wander and making the car less predictable. Our solid design eliminates compression, improves precision and maintains geometry true.

Functional Design Built To Last
Available for factory type lower control arms (wishbones) front and rear, including stock type arms and GT3 arms

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180011

The product you are viewing cross references to these numbers

Adjustable control arm, Replacement for OE 99634104306, 99733104301,
Motorsport Product

Fits:
Porsche 996 1998-04 FRONT & REAR
Porsche 997 2005>> FRONT & REAR
Porsche 986 Boxster 1997-05 FRONT only
Porsche 987 Boxster 2005>> FRONT only
Porsche 987 Cayman 2005>> FRONT only

FEATURES:

These are direct replacements for the factory thrust arms, and will improve handling in addition adding precision caster adjustability.

Spacers included for setting stock or anti-squat and anti-dive configurations.

A precision Teflon lined spherical rod end replaces the compliant factory rubber bushing for improved suspension response and feedback. The result is improved stability and control.

The adjusting link has a left and right hand thread on each end. Rotating the link will precisely increase or decrease the overall length of the arm.

Two links required per car for 986/987/996/997/981/991 front, and two for 996/997/986/987/981 rear suspensions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

996010

The product you are viewing cross references to these numbers

Featuring an analogue (no fiddly shims used here) range of additional camber adjustment of ±2°. The camber settings can be simply achieved with the arm pre-fitted to the vehicle and adjusted without the need for any special tools.



PRICE IS FOR A SET OF 2.

Currently these arms fit the following models
• 996 FRONT OR REAR (inc GT3)
• 986 FRONT
• 997 FRONT*
• 997 REAR
• 987 / 981 FRONT*
• 987 / 981 REAR

* Please note: You will require spacer shims 5.72612K if you want to reuse your existing trailing arms. If you get Eibach adjustable arms 572630K the additional spacers are not required.

• Made from Forged 6061-T6 aluminium for maximum strength and at a minimum weight point.
• Fitted with a fully rebuildable balljoint which is greasable too. It can also be preloaded to your desired amount of torque at the balljoint.
• The arms also feature already built in provision for the ride height sensor on Litronic equipped cars.

For the vehicles fitted with Hydraulic bushes (987/981/997 front arms) the central bush can be replaced with a suitable Aftermarket item to accommodate this fitment.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

572610K

The product you are viewing cross references to these numbers

Adjustable lower control arms (lower wishbone)



Fits
Porsche 986 Boxster - Front and Rear
Porsche 996, 997 - Front and Rear
Porsche 991 - Front Only
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 981 Boxster and Cayman - Front and Rear
Porsche 718 Boxster and Cayman - Front and Rear

Set of 2 x Adjustable lower control arms - 1 pair, required per axle

Elephant Racing adjustable lower control arms provide the camber, caster and precision you need. Length adjustable similar to the factory GT3 control arms, but without the need for shims.

Quick and Easy Adjustments – No need to keep a stock of shims on hand, length is easily adjusted by rotating the center hex head. Rotate clockwise to expand or counter-clockwise to contract the arm length.Adjustments can be made within minutes. No shims to mess with. Perfect setup to make quick changes for the track.

Widen Track – Use in combination with our camber plates on the front, or our adjustable length arms upper control arms on the rear to widen the track. This allows you to achieve a wider track without altering the scrub radius as happens when using wheel spacers.

Heim Joint – Our spherical bearings eliminate the deflection associated with rubber bushings. These bearings maintain stable suspension alignment, and improve feedback.

Fully Weather Sealed – Proper boots at both the ball joint and heim joint ends to keep water and contaminants out for extended life. These arms are suitable for extended road and track use.

Camber Adjustment – Extended range of adjustment lets you achieve aggressive camber. Or you can dial it back to get a factory street alignment on lowered cars.

Caster Adjustment – Our Caster Adjuster allows you to tune this important setting that the factory left out. A must-have for cars that have extended lower control arms to correct for un-intended caster change that is caused by the extended arms. Rotate the center puck and bolt down to secure the setting.

The arms are fully rebuildable with replaceable heim and ball joints.

On 996, 997, & 991 Cars:
Center puck can be also used as a wheelbase adjuster on the rear to draw the wheels back to improve weight distribution. It is a great tuning aid for adjusting out understeer

Litronic Bracket – This bracket is required for cars that are originally equipped with the litronic headlights. This adapter bracket attaches to the headlight angle sensor.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180001

The product you are viewing cross references to these numbers

Featuring an analogue (no fiddly shims used here) The settings can be simply achieved with the arm pre-fitted to the vehicle and adjusted without the need for any special tools.

Caster adjustment range of ±1.25° on the front, and ±13mm Setback on the rear.



PRICE IS FOR A SET OF 2.

Currently these arms fit the following models
• 996 FRONT OR REAR (inc GT3)
• 986 FRONT
• 997 FRONT OR REAR


• Made from Forged 6061-T6 aluminium for maximum strength and at a minimum weight point.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

572630K

The product you are viewing cross references to these numbers

RSS Lower control arm kit for Porsche Models.
Type: None Adjustable Thrust Arm Bushing



RSS Tarmac Series Motorsport Lower Control Arms are specifically engineered for use on lowered vehicles that have reduced travel struts/dampers such as PASM or M030 option. Alternatively if the car is equipped with high quality aftermarket or motorsport coilover kits ie Bilstein PSS10, KW V3 or Ohlins etc.

The Lower Control Arms are NOT COMPATIBLE with "Base Model Suspension" (long travel struts/dampers) or "Base Model struts/dampers with lowering springs."
Caution: Do not install on vehicles with Base Model struts/dampers as it may result in an unsafe driving condition with possibility of suspension bind when struts/dampers are fully extended or in full drop.

Price: Set of Two Control Arms plus 2 x 1mm/2mm/3mm/7mm Shims.

RSS Tarmac Series Control Arms are manufactured from 6061 aerospace grade billet aluminum. This allows for a more uniform molecular structure
at every point of the arm over the cast motorsports arm giving the customer a more durable and inherently stronger part. Manufacturing from billet
aluminum rather than casting results in less impurities in the metal.

• Completely serviceable - for the extreme, repetitive track-day participant, our high-strength steel alloy spherical bearings (with a friction reducing /longevity increasing Teflon liner) can be replaced unlike the motorsports arm, in which case the customer will have to buy a new set of arms if the spherical bearings are worn.
Additionally, anodized surfaces and zinc-plated steel parts allow for better corrosion resistance against the elements.

• Adjustable suspension geometry - adjust dynamic camber values and roll center heights with our unique zinc-plated steel bushings.

• Solid monoball control arm ends offer a more responsive suspension over the factory one-piece rubber-injected control arm (also uses the same high
strength steel alloy spherical bearing found in our control arm monoball kit).

• Unique design provides more gusseting over the motorsports arms for added strength and aesthetically appealing looks.

Please Check Fitting Guide Before Ordering Click Here

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

356

The product you are viewing cross references to these numbers

Track control arms with adjustable bushings.



Fitted with Black 95A material for both bushes for ultimate performance and is supplied with an offset outer sleeve and CNC machined inner sleeve to allow for on-car adjustment of both caster and camber, for quick and easy optimisation of your wheel alignment.  (tools or spanner not included)  These arm features suspension geometry tuning, with a caster increase of up to 0.4° and camber adjustment of +/- 0.75°

OEM Part Number: 98133105301, 99733104180, 99634105319

Fits:

FRONT
Porsche 997 GT2, GT3 & GT3RS
Porsche 986 Boxster (1997-2004)
Porsche 996 (1997-2005)

REAR
Porsche 997 GT2, GT3 & GT3RS
Porsche 997 incl. Turbo
Porsche 718 Boxster/Cayman
Porsche 981 Boxster/Cayman
Porsche 986 Boxster (1997-2004)
Porsche 987 Boxster (2005-2012)
Porsche 987C Cayman (2005 - 2012)
Porsche 996 (1997-2005)

Please note: you will need 997 front fork arms to accommodate the adjustable bushes as they are wider than standard bush.
When you add this item to the basket you will be prompted with mandatory product you will need to add as well.

Both Adjustable and Non-Adjustable bush options are available to suit differing driving and performance requirements.

Please click 'Zoom in' to view the diagram (No 21)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3602409961G

The product you are viewing cross references to these numbers

BBi Autosport Front & Rear Adjustable Thrust Arm Bushing Kit for Porsche 996 / 997



Features :

•   Provides two eccentric mounting points
•   Used to adjust for increasing or decreasing wheelbase, and adjustable caster.
•   A must-have for extended lower control arms (GT3 control arms or eccentric monoballs) to correct for unintended caster change
•   Compatible with all stock Porsche 996 and 997 lower control arms (including Porsche
Motorsport Cup arms)
•   Complete set of 4 (2 front & 2 rear)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

BBITHRUSTBUSH9697

The product you are viewing cross references to these numbers

BBi Autosport Front & Rear Adjustable Thrust Arm Kit for Porsche 996 / 997 / 986 / 987



Fits
996 and 997 Front and Rear
986 and 987 Front Only

Features :

•   Connects the Lower Control Arm to the subframe
•   Provides precision caster adjustability
•   Spacers included for setting stock or anti-squat and anti-dive configurations
•   Each Kit Includes Pair of 2 Links
•   Fits both front and rear axles

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

BBITHRUST9697

The product you are viewing cross references to these numbers

BBi Autosport front lower control arm M-Track kit for Porsche 996 turbo / 997 Turbo



Product Description:
Finally, a complete solution to properly widen the front track width of a Porsche 996 and 997 Turbo.
To help increase front end grip, this kit allows full negative camber adjustment without binding the axles and fitment of wider wheel/tire combinations and GT3 Cup Car fenders.
Each kit includes lower control arms, thrust arms, axle spacers, upper mounts, and camber shims.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

BBILOWRCNTRL9697M

The product you are viewing cross references to these numbers

Tarett Engineering is proud to be able to provide these new Motorsport style tie rods. Inspired by the Porsche Motorsport design. This no compromise design is hands down the best tie rod kit on the market.



Sold as a single unit, two required per car.

Fits all Porsche 986/996/987/997/981/718 models.

Pinch Style Locking Design: Provides easy alignment compared to the typical jamb nut designs that tend to shift when you lock them down. Several tedious iterations are usually needed to get it right. The pinch style design allows you to simply set toe and lock it down with no shifting and resetting required. It also allows for a significantly increased adjustment range.

Bump Steer Optimized & Adjustable: The attachment to the wheel carrier is raised more than any other kit on the market, thus maximizing bumpsteer reduction. Spacers can be added as needed to adjust bump steer, but most applications require raising the attachment point to reduce bumpsteer.

High Quality Rod Ends: Precision grade 3-piece Teflon lined spherical rod ends replace the compliant factory rubber bushing for improved suspension response and feedback, and also reduces toe changes under acceleration and deceleration. The result is improved rear end stability and control. The rod ends are oversized for high strength and long life, and have a fine thread for more precise adjustability. The Teflon liner is self-lubricating for smooth and quiet operation, and long life.



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

991.008.CLAMP

The product you are viewing cross references to these numbers

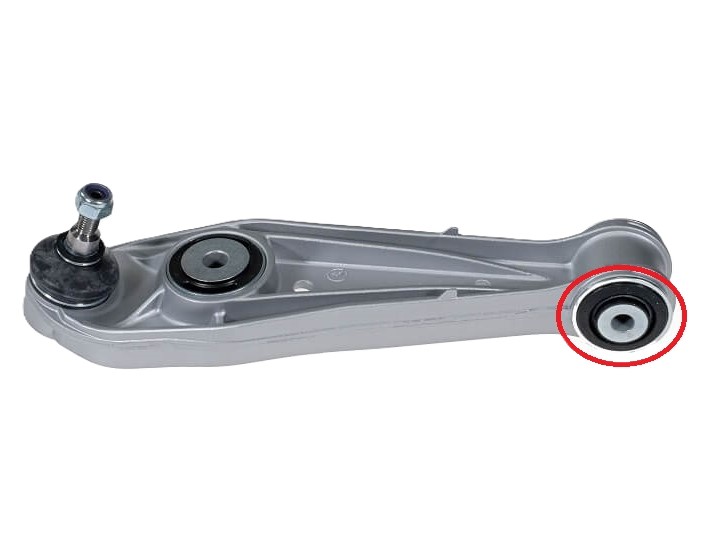

PFF57-502G Front Track Control Arm Caster Offset Outer Bush uses our usual Purple 80A material combined with an offset bore sleeve to allow up to 0.4° of Caster increase from OE, allowing for steering pull correction or a more aggressive steering axis angle for increased steering feel and in-corner camber gain.

Sold as a pair (both arms)



OEM Part Number: 996341053 / 996341941 / 997341041
OEM Part Number: 997341042 / 997341041
OEM Part Number: 997331053

Fits:
Fits the front of all 996 and Boxster 986 models, and the front of the 997 GT2, GT3 & GT3RS models only, all other models of 997 models use PFF57-802G.

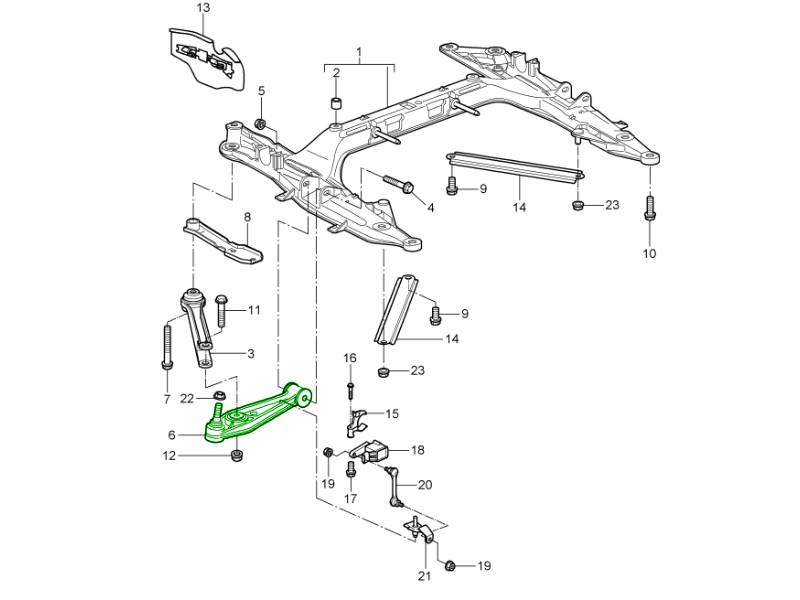

Diagram ref no 2

Powerflex. Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:

- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsive steering
- Longer service life of suspension components

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-502G

The product you are viewing cross references to these numbers

Powerflex Black Series Front Track control arm caster offset outer bush uses our usual 95A shore material combined with an offset bore sleeve to allow up to 0.4° of Caster increase from OE, allowing for steering pull correction or a more aggressive steering axis angle for increased steering feel and in-corner camber gain.

Sold as a pair (both arms)

OEM Part Number: 996341053 / 996341941 / 997341041
OEM Part Number: 997341042 / 997341041
OEM Part Number: 997331053

Fits:
Fits the front of all 996 and Boxster 986 models, and the front of the 997 GT2, GT3 & GT3RS models only, all other models of 997 models use PFF57-802G.

Diagram ref no 2

Powerflex Black Series - Designed for the Track - Ready to Race - Engineered to be the best.

Powerflex Black Series bushes are manufactured using a 95 Shore A compound to provide maximum control of chassis geometry. This compound can be up to 80% more resistant to load than standard rubber and 25% stiffer than our purple performance material.

If your requirements are purely for the ultimate in handling and chassis performance then Powerflex Black Series are unique, offering the most precise and accurate alignment for your chassis.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-502GBLK

The product you are viewing cross references to these numbers

Powerflex Front track control arm outer bush.
Sold as a pair (both arms)

OEM Part Number: 997.341.244.00
OEM Part Number: 996.341.341.08

Fits:
Porsche 997 inc. Turbo
Porsche 911 991 (2012 - 2019)
Porsche 981 Boxster/Cayman (2012 - 2016)
Porsche 982 (718) Boxster/Cayman (2016 on)
Porsche 987 Boxster (2005-2012)
Porsche 987C Cayman (2005 - 2012)


Powerflex. Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:

- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsive steering
- Longer service life of suspension components.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-804

The product you are viewing cross references to these numbers

Powerflex Black Series Front track control arm outer bush.
Sold as a pair (both arms)

OEM Part Number: 997.341.244.00
OEM Part Number: 996.341.341.08

Fits:
Porsche 997 inc. Turbo
Porsche 911 991 (2012 - 2019)
Porsche 981 Boxster/Cayman (2012 - 2016)
Porsche 982 (718) Boxster/Cayman (2016 on)
Porsche 987 Boxster (2005-2012)
Porsche 987C Cayman (2005 - 2012)


Powerflex Black Series - Designed for the Track - Ready to Race - Engineered to be the best.

Powerflex Black Series bushes are manufactured using a 95 Shore A compound to provide maximum control of chassis geometry. This compound can be up to 80% more resistant to load than standard rubber and 25% stiffer than our purple performance material.

If your requirements are purely for the ultimate in handling and chassis performance then Powerflex Black Series are unique, offering the most precise and accurate alignment for your chassis.

Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:

- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsive steering
- Longer service life of suspension components

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-804BLK

The product you are viewing cross references to these numbers

GT3 ERX Inner lower control arm (LCA), Rubber Bushing Module.



Fits:
Porsche 996, 997, 991, 992 W/ GT3 Style Control Arms (Front/Rear),
Porsche Boxster, Cayman 1999>> W/ GT3 Style Control Arms (Front Only)

Elephant Racing has developed GT3 type inner lower control arms.
These are readily available and dimensionally identical to the factory parts. They can be mix-matched with the factory type inner/outer lower control arm and shims.
The Elephant Racing inner arm is offered in two flavors, GT3 Street Inner Lower Control Arm and GT3 Cup Inner Lower Control Arm. GT3 street is equipped with a rubber bushed central bushing and the GT3 Cup is equipped with a solid caster adjustable central bushing.
Our GT3 Street Inner Lower Control Arm has sport-hardness rubber bushings to provide upgraded control and driver feedback while still offering good road noise isolation.
Our GT3 Cup Inner Lower Control Arms uses weather sealed spherical bearings. These deliver superior precision, control, and performance. They will transmit a bit more road noise than rubber bushings.

These can be paired with a choice of GT3 outer control lower arms:
– Elephant Racing GT3 Street Outer Lower Control Arms
– Elephant Racing GT3 Cup Outer Lower Control Arms
– Factory GT3 Street Outer Lower Control Arms

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180039

The product you are viewing cross references to these numbers

Litronic Bracket for adjustable control arms.



Fits
Porsche 996 - Front & Rear with Litronic headlights
Porsche 997 - Front & Rear with Litronic headlights
Porsche 991 - Front & Rear with Litronic headlights

Porsche 986 - Front Only with Litronic headlights
Porsche 987 - Front Only with Litronic headlights
Porsche 981 - Front Only with Litronic headlights,

Price is for 1 and 2 Required per axle

This bracket is required for cars that are originally equipped with the Litronic headlights. This adapter bracket attaches to the headlight angle sensor.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180009

The product you are viewing cross references to these numbers

PowerFlex Lower Arm Bush Repair Kit.  (Metal arm not included)

Replacement bush kit for Porsche lower arms in polyurethane.

This kit fits ONE lower arm front or rear.
Includes 1 x Centre Bush & 1 x Rear Arm Bush.
Please note these parts should be fitted by an engineer.

Fits:
Front or Rear Arms
Porsche 986 Boxster 1994-04
Porsche 996 1998-04
Set of 2 for ONE lower arm which can be fitted either at the front & rear arms. Please note these parts should be fitted by an engineer.

Fits:
Rear Arms Only:
Porsche 987 Boxster 05>>
Porsche 987C Cayman 05>>
Porsche 997 05>>
Set of 2 for ONE lower arm which ONLY FITS REAR arms on 987 / 997 models. Please note these parts should be fitted by an engineer.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-502

The product you are viewing cross references to these numbers

Powerflex Black Series Lower Arm Outer Bush "Caster Adjustable"

Front control arm outer bush comes with a lightweight aluminium adjustable sleeve allowing on-car caster adjustment, again in our unique polyurethane bushes.



Set of 2 for TWO lower arms.
Please note these parts should be fitted by an engineer.

Powerflex Black Series - Designed for the Track - Ready to Race - Engineered to be the best.

Powerflex Black Series bushes are manufactured using a 95 Shore A compound to provide maximum control of chassis geometry. This compound can be up to 80% more resistant to load than standard rubber and 25% stiffer than our purple performance material.

If your requirements are purely for the ultimate in handling and chassis performance then Powerflex Black Series are unique, offering the most precise and accurate alignment for your chassis.

Fits:
Porsche 987 Boxster 2006>>
Porsche 987C Cayman 2005>>
Porsche 997 2006>>

Please click 'Zoom in' to view the diagram.
Diagram re No 13.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-802BLK

The product you are viewing cross references to these numbers

PowerFlex Lower arm centre bush.



Fits:
Front or Rear Arms
Porsche 986 Boxster 1994-04
Porsche 996 1998-04
Set of 2 for TWO lower arms which can be fitted either at the front & rear arms. Please note these parts should be fitted by an engineer.

Fits:
Rear Arms Only:
Porsche 987 Boxster 05>>
Porsche 987C Cayman 05>>
Porsche 997 05>>
Set of 2 for TWO lower arms which ONLY FITS REAR arms on 987 / 997 models. Please note these parts should be fitted by an engineer.

SET OF 2 for TWO lower arms front & back
Please note these parts should be fitted by an engineer.

Diagram ref :
no. 2 - front / no. 5 - rear

OEM Part Number: 996341053 / 996341941 / 997341041
OEM Part Number: 997341042 / 997341041
OEM Part Number: 997331053

Powerflex. Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:

- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsitive steering
- Longer service life of suspension components



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-502

The product you are viewing cross references to these numbers

Powerflex Black Series PFF57-502BLK
Replacement motorsport lower arm centre polyurethane bushes.



Fits:
Front or Rear Arms
Porsche 986 Boxster 1994-04
Porsche 996 1998-04
Set of 2 for TWO lower arms which can be fitted either at the front & rear arms. Please note these parts should be fitted by an engineer.

Fits:
Rear Arms Only:
Porsche 987 Boxster 05>>
Porsche 987C Cayman 05>>
Porsche 997 05>>
Set of 2 for TWO lower arms which ONLY FITS REAR arms on 987 / 997 models. Please note these parts should be fitted by an engineer.

SET OF 2 for TWO lower arms front & back
Please note these parts should be fitted by an engineer.

Diagram ref:
no. 2 - front  /  no. 5 - rear

OEM Part Number: 996341053 / 996341941 / 997341041
OEM Part Number: 997341042 / 997341041
OEM Part Number: 997331053

Powerflex Black Series - Designed for the Track - Ready to Race - Engineered to be the best.

Powerflex Black Series bushes are manufactured using a 95 Shore A compound to provide maximum control of chassis geometry. This compound can be up to 80% more resistant to load than standard rubber and 25% stiffer than our purple performance material.

If your requirements are purely for the ultimate in handling and chassis performance then Powerflex Black Series are unique, offering the most precise and accurate alignment for your chassis.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-502BLK

The product you are viewing cross references to these numbers

Powerflex Lower Arm Outer Bush "Caster Adjustable"

Front control arm outer bush comes with a lightweight aluminium adjustable sleeve allowing on-car caster adjustment, again in our unique polyurethane bushes.

Set of 2 for TWO lower arms.
Please note these parts should be fitted by an engineer.

Fits:
Porsche 987 Boxster 2006>>
Porsche 987C Cayman 2005>>
Porsche 997 2006>>

Please click 'Zoom in' to view the diagram.
Diagram re No 13.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-802

The product you are viewing cross references to these numbers

Powerflex Lower Arm Rear Bush "Camber Adjustable"

Front control arm inner bush gives the camber adjustment with its durable stainless steel adjustable sleeve which runs in our unique grease retaining polyurethane bush.

Set of 2 for TWO lower arms.
Please note these parts should be fitted by an engineer.

Fits:
Porsche 987 Boxster 2006>>
Porsche 987C Cayman 2005>>
Porsche 997 2006>>

Please click 'Zoom in' to view the diagram.
Diagram re No 13.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-801

The product you are viewing cross references to these numbers

Powerflex Black Series Lower Arm Rear Bush "Camber Adjustable"

Front control arm inner bush gives the camber adjustment with its durable stainless steel adjustable sleeve which runs in our unique grease retaining polyurethane bush.

Set of 2 for TWO lower arms.
Please note these parts should be fitted by an engineer.

Powerflex Black Series - Designed for the Track - Ready to Race - Engineered to be the best.

Powerflex Black Series bushes are manufactured using a 95 Shore A compound to provide maximum control of chassis geometry. This compound can be up to 80% more resistant to load than standard rubber and 25% stiffer than our purple performance material.

If your requirements are purely for the ultimate in handling and chassis performance then Powerflex Black Series are unique, offering the most precise and accurate alignment for your chassis.

Fits:
Porsche 987 Boxster 2006>>
Porsche 987C Cayman 2005>>
Porsche 997 2006>>

Please click 'Zoom in' to view the diagram.
Diagram re No 13.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-801BLK

The product you are viewing cross references to these numbers

PowerFlex Lower Arm Rear Bush

Replacement motorsport lower arm rear polyurethane bushes.

Set of 2 for TWO lower arms front & back
Please note these parts should be fitted by an engineer.

Fits:
Front or Rear Arms
Porsche 986 Boxster 1994-04
Porsche 996 1998-04
Set of 2 for TWO lower arms which can be fitted either at the front & rear arms. Please note these parts should be fitted by an engineer.

Fits:
Rear Arms Only:
Porsche 987 Boxster 05>>
Porsche 987C Cayman 05>>
Porsche 997 05>>
Set of 2 for TWO lower arms which ONLY FITS REAR arms on 987 / 997 models. Please note these parts should be fitted by an engineer.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PFF57-503

The product you are viewing cross references to these numbers

Lower wishbone central bushing removal and installation tool.

1 x tool required



Fits
Porsche 986 Boxster - Front and Rear
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Porsche 981 Boxster and Cayman -Front Only
Porsche 991 -Front Only

Simplify the installation process of Monoball products and replacement bushings.

Our two piece cup and piston tools allow for simple bushing extraction and insertion without removal of the wheel carriers or control arms. No need to use a shop press. The tools are designed to precisely fit the bushing circumference, preventing accidental damage to the bushing and ensuring proper installation.

We have tools for the LCA central bushings, the rear upright LCA bushings, and the rear upright shock mount bushings.

Front and rear control arms on the 996, 997, 986, 987, & 981
Front Lower Control Arm only on 991

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2260019

The product you are viewing cross references to these numbers

Lower control arm eccentric monoballs.
1 kit required per axle



Fits
Porsche 986 Boxster - Front and Rear
Porsche 987 Boxster and Cayman - Front and Rear
Porsche 996 - Front and Rear
Porsche 997 - Front and Rear
Porsche 981 - Front and Rear
Porsche 718 - Front and Rear
Porsche 991 - Front Only

Our Eccentric Control Arm Monoball Cartridges replace inner rubber bushings with spherical bearings, providing low friction and precisely holding camber settings.
The eccentric design allows increasing or decreasing camber, as needed.

Increasing Camber

Position the eccentric to maximize Lower Wishbone length, adding about .86 degree of negative camber on the 996/997 rear suspension, about .36 degree of negative camber on the Boxster rear suspension, and .39 degrees on the 996/997/Boxster front suspension.
Cost effective for cars that just want extra camber. For even more camber and ease of adjustment, see our GT3 type fully adjustable control arms.

Decreasing Camber

Position the eccentric to minimize Lower Wishbone length. Perfect for lowered cars that have too much negative camber and want to get back to factory camber settings to minimize tire wear on the street. Makes rear camber about .86 degrees more positive & front camber about .39 degrees positive for 996/997 while Boxsters will get about .39 degrees positive front and .36 degrees positive rear.



Made from hardened steel, plated and weather-sealed, these bearings are made to last. Fits the front or rear stock and GT3 type control arms.

Sized to fit factory original control arms. Not compatible with some aftermarket replacement control arms that use a larger non-stock size bushing.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2260006

The product you are viewing cross references to these numbers

BBi Autosport front/rear lower control arm kit for Porsche 996/997/991/987/981 except GT4
Fits cars with and without PASM



Features :

•   Improved two piece 996 GT3 lower control arm design
•   Stronger than cast motorsport Cup arms
•   Allows proper camber adjustment
•   Uses GT3 shims to adjust camber & lower control arm length (sold separately)
•   High-strength steel alloy spherical bearings, completely serviceable unlike the motorsports arms
•   Sealed monoball inner bearing
•   Allows easy access to inner arm hardware
•   Includes adjustable thrust arm bushings to adjust caster and wheelbase
•   A must have for all track and race enthusiast
•   Each kit includes pair of 2 arms
•   Fits both front and rear axles
•   Compatible with all 996/997/991/987/981 models except GT4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

BBILOWRCNTRL9697

The product you are viewing cross references to these numbers

Spacer kit for Eibach adjustable control arms 572610K.
This kit will allow the arms to be fitted onto cars with hydraulic bush.



PRICE IS FOR A SET OF 2.

Front or Rear Fitment:
Porsche 996
Porsche 986

Front Fitment only:
Porsche 997 GT2/GT3

Rear Fitment only:
Porsche 997 Carrera
Porsche 997 Turbo
Porsche 987
Porsche 981

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

5.72612K

The product you are viewing cross references to these numbers

RSS LCA Outer Arm (Large End) - Bolt On - Replacement Kit



Fits:
Porsche 997 C2  / C4 / GTS

NEW: RSS LCA Outer Arm (Large End) - Pre-Assembled “Bolt On Replacement Solution” Kit includes: 1 outer arm, 1 bearing kit, 1 ball joint kit. Simple plug and play, bolts on to inner monoball arm assembly.




Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3-379

The product you are viewing cross references to these numbers

RSS Lower Control Arm Kit for Porsche Models .
Type: None Adjustable Thrust Arm Bushing



RSS Tarmac Series Motorsport Lower Control Arms are specifically engineered for use on lowered vehicles that have reduced travel struts/dampers such as PASM or M030 option. Alternatively if the car is equipped with high quality aftermarket or motorsport coilover kits ie Bilstein PSS10, KW V3 or Ohlins etc.

The Lower Control Arms are NOT COMPATIBLE with "Base Model Suspension" (long travel struts/dampers) or "Base Model struts/dampers with lowering springs."
Caution: Do not install on vehicles with Base Model struts/dampers as it may result in an unsafe driving condition with possibility of suspension bind when struts/dampers are fully extended or in full drop.

Price: Set of Two Control Arms plus 2 x 1mm/2mm/3mm/7mm Shims.

RSS Tarmac Series Control Arms are manufactured from 6061 aerospace grade billet aluminum. This allows for a more uniform molecular structure
at every point of the arm over the cast motorsports arm giving the customer a more durable and inherently stronger part. Manufacturing from billet
aluminum rather than casting results in less impurities in the metal.

• Completely serviceable - for the extreme, repetitive track-day participant, our high-strength steel alloy spherical bearings (with a friction reducing /longevity increasing Teflon liner) can be replaced unlike the motorsports arm, in which case the customer will have to buy a new set of arms if the spherical bearings are worn.
Additionally, anodized surfaces and zinc-plated steel parts allow for better corrosion resistance against the elements.

• Adjustable suspension geometry - adjust dynamic camber values and roll center heights with our unique zinc-plated steel bushings.

• Solid monoball control arm ends offer a more responsive suspension over the factory one-piece rubber-injected control arm (also uses the same high
strength steel alloy spherical bearing found in our control arm monoball kit).

• Unique design provides more gusseting over the motorsports arms for added strength and aesthetically appealing looks.

Please Check Fitting Guide Before Ordering Click Here

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

357

The product you are viewing cross references to these numbers

RSS Lower Control Arm Kit for Porsche Models.
Type: None Adjustable Thrust Arm Bushing



RSS Tarmac Series Motorsport Lower Control Arms are specifically engineered for use on lowered vehicles that have reduced travel struts/dampers such as PASM or M030 option. Alternatively if the car is equipped with high quality aftermarket or motorsport coilover kits ie Bilstein PSS10, KW V3 or Ohlins etc.

The Lower Control Arms are NOT COMPATIBLE with "Base Model Suspension" (long travel struts/dampers) or "Base Model struts/dampers with lowering springs."
Caution: Do not install on vehicles with Base Model struts/dampers as it may result in an unsafe driving condition with possibility of suspension bind when struts/dampers are fully extended or in full drop.

Price: Set of Two Control Arms plus 2 x 1mm/2mm/3mm/7mm Shims.

RSS Tarmac Series Control Arms are manufactured from 6061 aerospace grade billet aluminum. This allows for a more uniform molecular structure
at every point of the arm over the cast motorsports arm giving the customer a more durable and inherently stronger part. Manufacturing from billet
aluminum rather than casting results in less impurities in the metal.

• Completely serviceable - for the extreme, repetitive track-day participant, our high-strength steel alloy spherical bearings (with a friction reducing /longevity increasing Teflon liner) can be replaced unlike the motorsports arm, in which case the customer will have to buy a new set of arms if the spherical bearings are worn.
Additionally, anodized surfaces and zinc-plated steel parts allow for better corrosion resistance against the elements.

• Adjustable suspension geometry - adjust dynamic camber values and roll center heights with our unique zinc-plated steel bushings.

• Solid monoball control arm ends offer a more responsive suspension over the factory one-piece rubber-injected control arm (also uses the same high
strength steel alloy spherical bearing found in our control arm monoball kit).

• Unique design provides more gusseting over the motorsports arms for added strength and aesthetically appealing looks.

Please Check Fitting Guide Before Ordering Click Here

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

358

The product you are viewing cross references to these numbers

This mono ball bush fits to the back of the lower arm "coffin" arm



Fits:
Porsche 986 Boxster
Porsche 987 Boxster
Porsche 987C Cayman
Porsche 996 1998-04
Porsche 997
Porsche 991
Porsche 981 Boxster
Porsche 981 Cayman

Sealed Monoball Cartridges - Front and Rear - Most Porsche owners today, especially those of us who take our cars to the track, have equipped our cars with tires much wider and stickier than stock, which allows higher g-forces to be achieved in cornering and braking. During that type of hard driving, rubber suspension bushings are compressed and flexed by the extreme loads being put on them, defeating your car's finely tuned alignment settings, thereby reducing your braking and cornering potential. Mono balls are a downside-free improvement; because they eliminate four important sources of suspension slop without making your car's ride harsher. Your Porsche will handle and brake with greater precision, predictability, and feedback to the driver. Rennline mono balls are equipped with FK Motorsports bearings, cadmium-plated and Sealed to prevent premature wear due to moisture or dirt contamination, ensuring long track or street life.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

S18SETOF2

The product you are viewing cross references to these numbers

Replacement ball joint for Eibach 572610K



Fits:
Porsche 987/981/997 (front arms)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

572613K

The product you are viewing cross references to these numbers

CASTOR ADJUSTABLE THRUST ARM BUSHING KIT (For vehicles equipped with Non-Hydraulic Thrust Arm Bushings Only) for Porsche 986/996/997 GT2-3 & RS
SET OF 4. FRONT AXLE ONLY



The RSS Adjustable Thrust Arm Bushing Kit will improve handling and response of the suspension system and allows for additional caster adjustments. Eliminates unwanted caster changes in both front and rear suspension under acceleration and deceleration

AVAILABLE FOR PORSCHE® 986, 996 & 997 GT3/RS, RS 4.0 & GT2/RS PLEASE NOTE YOUR YEAR MAKE & MODEL IN COMMENTS SECTION.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

318

The product you are viewing cross references to these numbers
