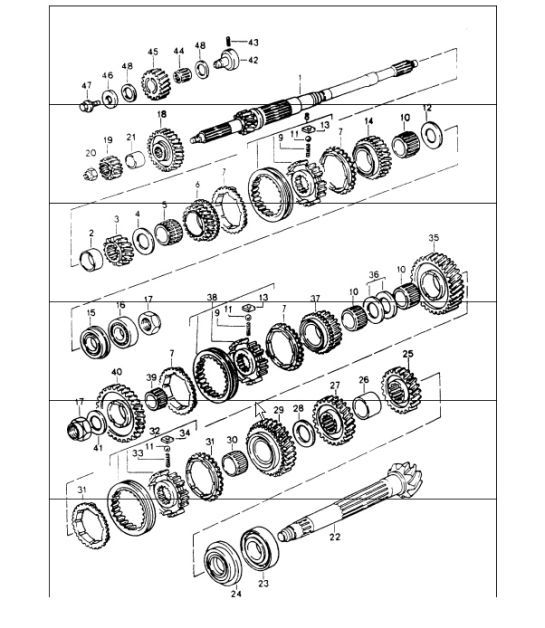

gears and shafts 964 G50.03/04/05 and G50.10/52 1989-94 - PORSCHE
Click the image numbers to view product info
SKU: 95030226601, bush fixed gear wheel 2nd gear
SKU: 95030229305, thrust washer
SKU: 99920125904, needle cage 38 x 50 x 32,2 loose gear wheel 3rd gear
SKU: 92830421105, synchroniser ring,SKU: 92830421130, synchroniser ring 3rd/4th gear
SKU: 92830421105, synchroniser ring,SKU: 92830421130, synchroniser ring 3rd/4th gear
SKU: 92830421105, synchroniser ring,SKU: 92830421130, synchroniser ring 3rd/4th gear
SKU: 92830421105, synchroniser ring,SKU: 92830421130, synchroniser ring 3rd/4th gear
SKU: 95030402106, guide sleeve 3rd/4th gear,SKU: 95030402130, guide sleeve 3rd/4th gear
SKU: 92830426101, compression spring
SKU: 92830426101, compression spring
SKU: 99920123902, needle cage 35 x 50 x 32,2
SKU: 99920123902, needle cage 35 x 50 x 32,2
SKU: 99920123902, needle cage 35 x 50 x 32,2
SKU: N0256532, ball $ = 6,5 mm
SKU: N0256532, ball $ = 6,5 mm
SKU: N0256532, ball $ = 6,5 mm
SKU: 95030229405, thrust washer
SKU: 92830425101, stone loose gear wheel 4th speed
SKU: 99905209800, four-point bearing
SKU: 99911011701, cylindrical-roller bearing 30 x 62 x 20
SKU: 99903403300, hexagon nutfixed gear wheel 5th gear reverse gear wheel
SKU: 99903403300, hexagon nutfixed gear wheel 5th gear reverse gear wheel
SKU: 95030228101, lock nut
SKU: 95030226802, bush pinion shaft
SKU: 99911011901, cylindrical-roller bearing 40 x 90 x 23
SKU: 99730229300, four-point bearing fixed gear wheel 4th speed
SKU: 95030226702, spacer sleevefixed gear wheel 3rd gear
SKU: 95030229200, thrust washer loose gear wheel 2nd gear
SKU: 99920122504, needle-roller bearing
SKU: 95030431102, synchroniser ring,SKU: 95030431130, synchroniser ring
SKU: 95030431102, synchroniser ring,SKU: 95030431130, synchroniser ring
SKU: 95030403131, guide sleeve 1st/2nd gear,SKU: 95030403130, guide sleeve 1st/2nd gear
SKU: 92830426100, compression spring
SKU: 95030435101, stone loose gear wheel 1st gear
SKU: 95030229509, thrust washer 1st gear 5th gear loose gear wheel 5th gear
SKU: 95030402105, guide sleeve 5-speed reverse gear
SKU: 99920125300, needle cage loose gear wheel reverse gear
SKU: 95030229607, thrust washer
SKU: 95030222803, bolt
SKU: N0133021, roll pin
SKU: 99920122702, needle cage reverse idler gear
SKU: 95030229710, thrust washer
SKU: 95030223000, screw plug
SKU: 95030229712, thrust washer
SKU: 95030229712, thrust washer
+
−
↺
303-10
