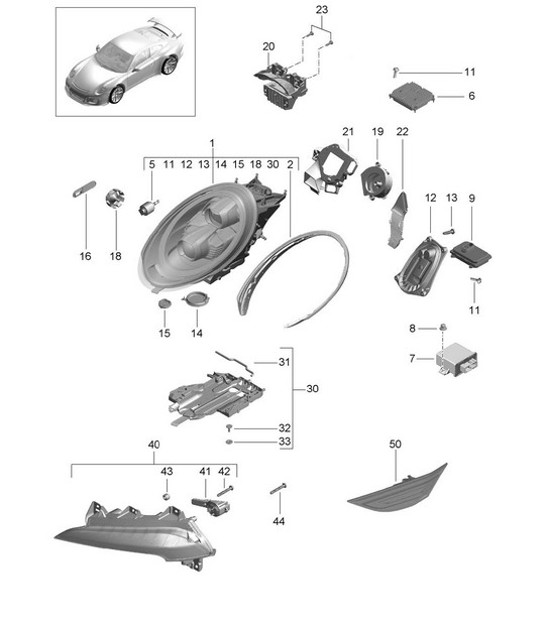

LED headlight / Additional headlight / Turn signal indicator / Side marker light / Turn signal repeater - PR:602,XEY - 991 R/GT3/RS 2014-17 - PORSCHE
Click the image numbers to view product info
SKU: 99163127124, led headlight d >> - 09.12.2013,SKU: 99163127124, led headlight d - 10.12.2013>> - 24.02.2014,SKU: 99163127125, led headlight d - 25.02.2014>> - 31.12.2016,SKU: 99163127126, led headlight d - 04.01.2017>>,SKU: 99163127224, led headlight d - 10.12.2013>> - 24.02.2014,SKU: 99163127225, led headlight d - 10.12.2013>> - 31.12.2016,SKU: 99163127226, led headlight d - 04.01.2017>>,SKU: 99163127305, led headlight d >> - 09.12.2013,SKU: 99163127305, led headlight d - 10.12.2013>> - 24.02.2014,SKU: 99163127313, led headlight d - 25.02.2014>> - 31.12.2016,SKU: 99163127326, led headlight d - 04.01.2017>>,SKU: 99163127405, led headlight d >> - 09.12.2013,SKU: 99163127405, led headlight d - 10.12.2013>> - 24.02.2014,SKU: 99163127425, led headlight d - 25.02.2014>> - 31.12.2016,SKU: 99163127426, led headlight d - 04.01.2017>>,SKU: 99163196364, led headlight d >> - mj 2016,SKU: 99163196365, led headlight d - mj 2017>>,SKU: 99163196464, led headlight d >> - mj 2016,SKU: 99163196465, led headlight d - mj 2017>>,SKU: 99163196564, led headlight d >> - mj 2016,SKU: 99163196565, led headlight d - mj 2017>>,SKU: 99163196664, led headlight d >> - mj 2016,SKU: 99163196665, led headlight d - mj 2017>>
SKU: 99163131502, seal,SKU: 99163131602, seal
SKU: 9P1941298, servomotor headlight range control
SKU: 7PP941472G, power module for dipped beam led module f a9-es183 576>> f 99-es181 562>>,SKU: 7PP941572BB, control unit led module f >> 99-es181 540 f >> a9-es183 576 f >> 99-es181 562
SKU: 9A790735700, control unit headlight range control
SKU: 99161819900, plastic nut
SKU: 7PP941329R, control unit for led headlight
SKU: 99991915909, fillister hd. bolt
SKU: 99991915909, fillister hd. bolt
SKU: 99163131700, protective hood,SKU: 99163131800, protective hood
SKU: 99163137700, screw
SKU: 99163131300, protective hood high beam
SKU: 99763126701, ventilation valve additional headlight
SKU: 99163110100, bungs
SKU: 99163139100, fan
SKU: 99163139700, led module
SKU: 99163139501, bracket fan,SKU: 99163139600, bracket fan
SKU: 99163139300, air guide channel led,SKU: 99163139400, air guide channel led
SKU: 99163130900, oval-head screw for led module
SKU: 99163120103, mounting for main beam headl.,SKU: 99163120203, mounting for main beam headl.
SKU: 99163140100, retainer bracket
SKU: 99163137300, screw
SKU: 99163137100, locknut
SKU: 99163115182, additional headlight,SKU: 99163115282, additional headlight
SKU: 99163125101, led module position light
SKU: 99763129700, screw
SKU: 98763129100, cover cap
SKU: 99991924601, fillister hd. bolt
SKU: 99163125507, turn signal repeater,SKU: 99163125607, turn signal repeater,SKU: 99163125582, turn signal repeater,SKU: 99163125682, turn signal repeater
+
−
↺
905-003
