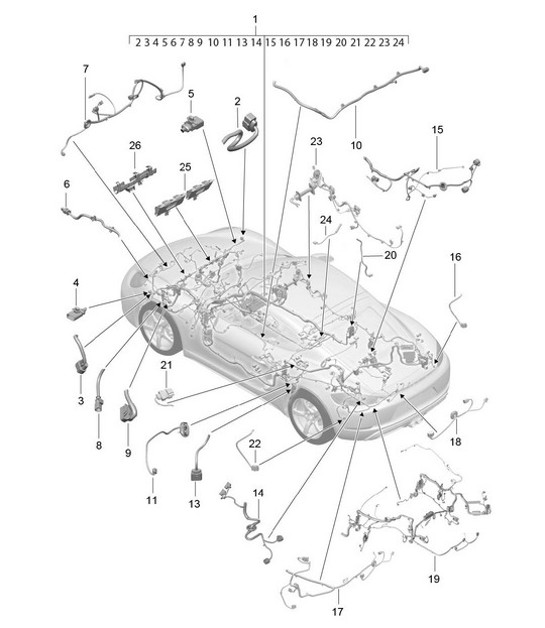

Wiring looms / Passenger compartment and part section wiring harness 718C (982C) Cayman 2017>> - PORSCHE
Click the image numbers to view product info
SKU: 99161290100, wire set passenger compartment * part number must be ordered * manually by indicating * vehicle id number.
SKU: 99161292003, wire setpart section wiring harnessheadlightsmodify in workshop,SKU: 99161292011, wire setpart section wiring harnessheadlightsmodify in workshop
SKU: 99161292101, wire setpart section wiring harnessfan radiatormodify in workshop
SKU: 99161292203, wire setpart section wiring harnessconnection point trimmodify in workshop,SKU: 99161292252, wire setpart section wiring harnessconnection point trimmodify in workshop,SKU: 99161292253, wire setpart section wiring harnessconnection point trimmodify in workshop
SKU: 99161293702, wire setpart section wiring harnessconnection point trimmodify in workshop
SKU: 99161292301, wire setpart section wiring harnesssensor airbagmodify in workshop
SKU: 99161292411, wire setpart section wiring harnessfront endmodify in workshop,SKU: 99161292453, wire setpart section wiring harnessfront endmodify in workshop,SKU: 99161293811, wire setpart section wiring harnessfront endmodify in workshop,SKU: 99161293853, wire setpart section wiring harnessfront endmodify in workshop
SKU: 99161292600, wire setpart section wiring harnessconnection point ront axlemodify in workshop
SKU: 99161294002, wire setpart section wiring harnesscontrol unit hydraulic unitmodify in workshop
SKU: 99161292503, wire setpart section wiring harnesscontrol unit tyre pressure control systemmodify in workshop,SKU: 99161292511, wire setpart section wiring harnesscontrol unit tyre pressure control systemmodify in workshop
SKU: 98161292812, wire setpart section wiring harnessaerial wheel housingmodify in workshop
SKU: 99161293001, wire setpart section wiring harnessconnection point rear axlemodify in workshop
SKU: 98161293602, wire setpart section wiring harness- pdk - gearbox with: connector control unitmodify in workshop
SKU: 98161295801, wire setpart section wiring harnessmanual gearbox with connector control unitmodify in workshop,SKU: 98161295802, wire setpart section wiring harnessmanual gearbox with connector control unitmodify in workshop
SKU: 98161293300, wire setpart section wiring harnessrear lightmodify in workshop
SKU: 98161293403, wire setpart section wiring harnessrear light and trim rear endmodify in workshop
SKU: 98161293530, wire setpart section wiring harnesstrim rear end and rear spoilermodify in workshop
SKU: 99161295103, wire setpart section wiring harnessrear end electronics
SKU: 98161292902, wire setpart section wiring harnesslevel sensor electronics
SKU: 99161295601, wire setpart section wiring harnesscontrol unit vts vehicle trackingmodify in workshop
SKU: 99161295000, wire setpart section wiring harnesscontrol unit parking aidmodify in workshop
SKU: 99161295202, wire setpart section wiring harnesscontrol unit tvmodify in workshop
SKU: 99161295402, wire setpart section wiring harnessamplifiers bosemodify in workshop,SKU: 99161295502, wire setpart section wiring harnessamplifiers burmestermodify in workshop
SKU: 99161023301, cable guide filler plate
SKU: 99161023401, cable guide filler plate
+
−
↺
902-010
