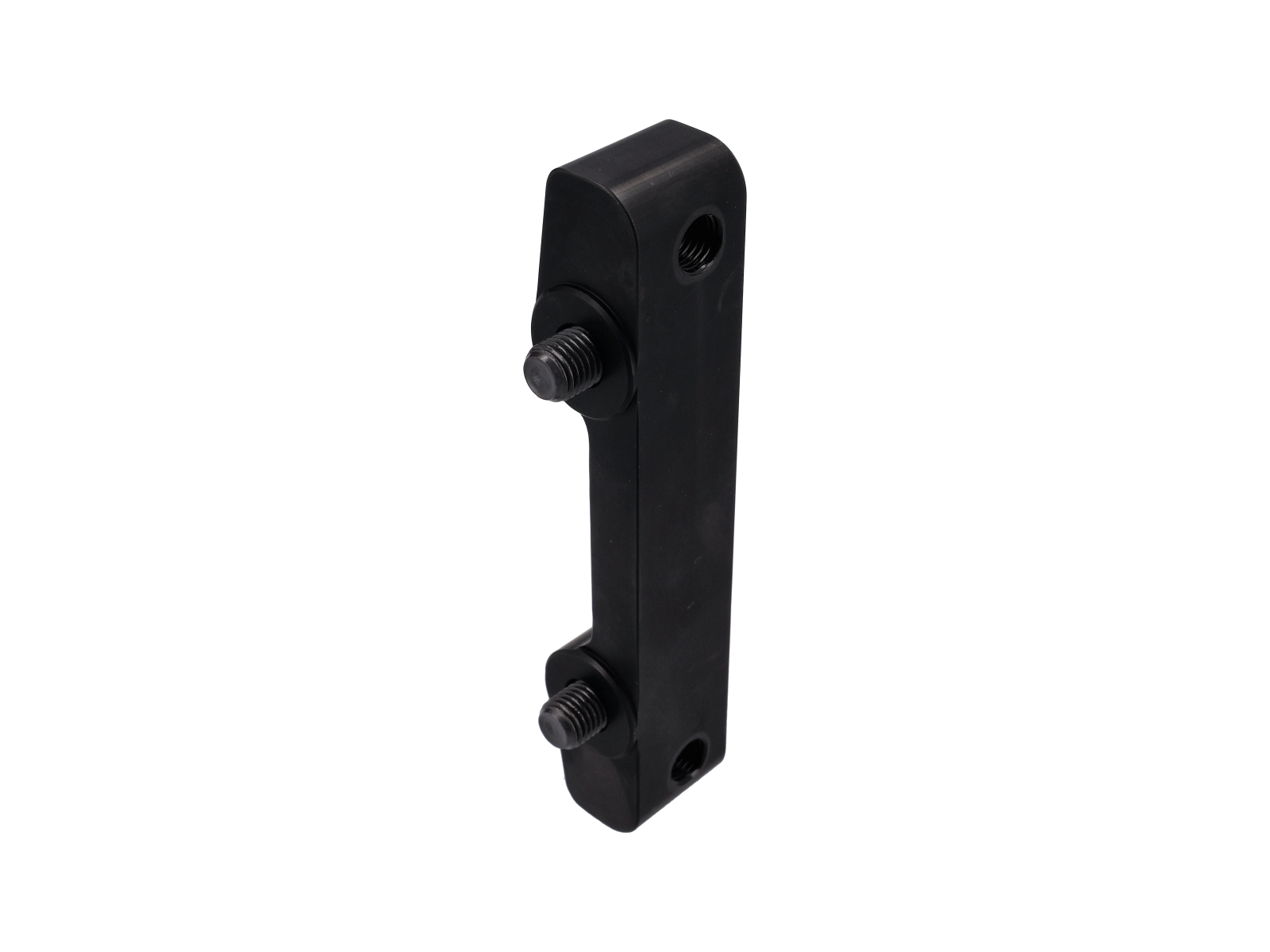

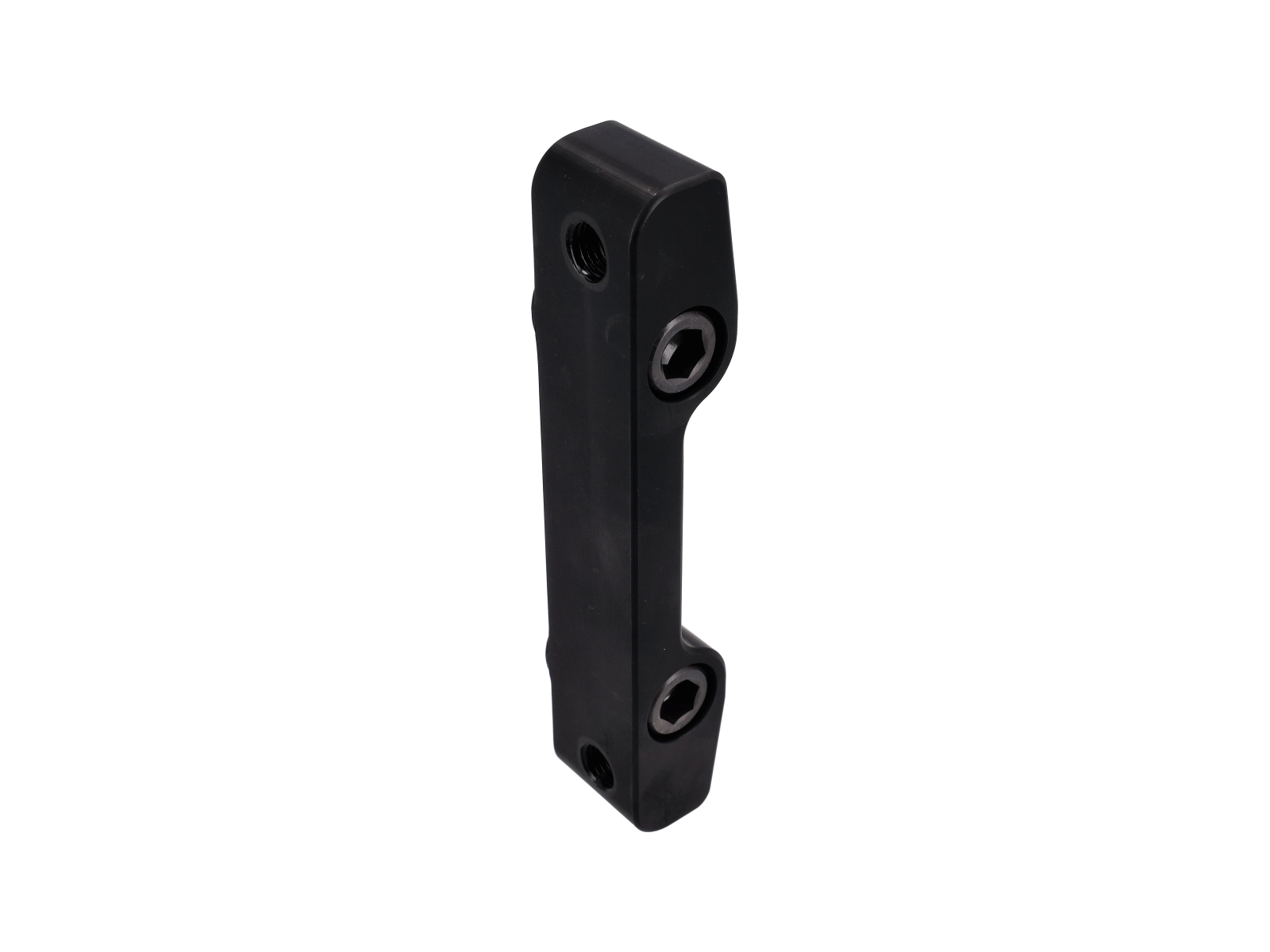

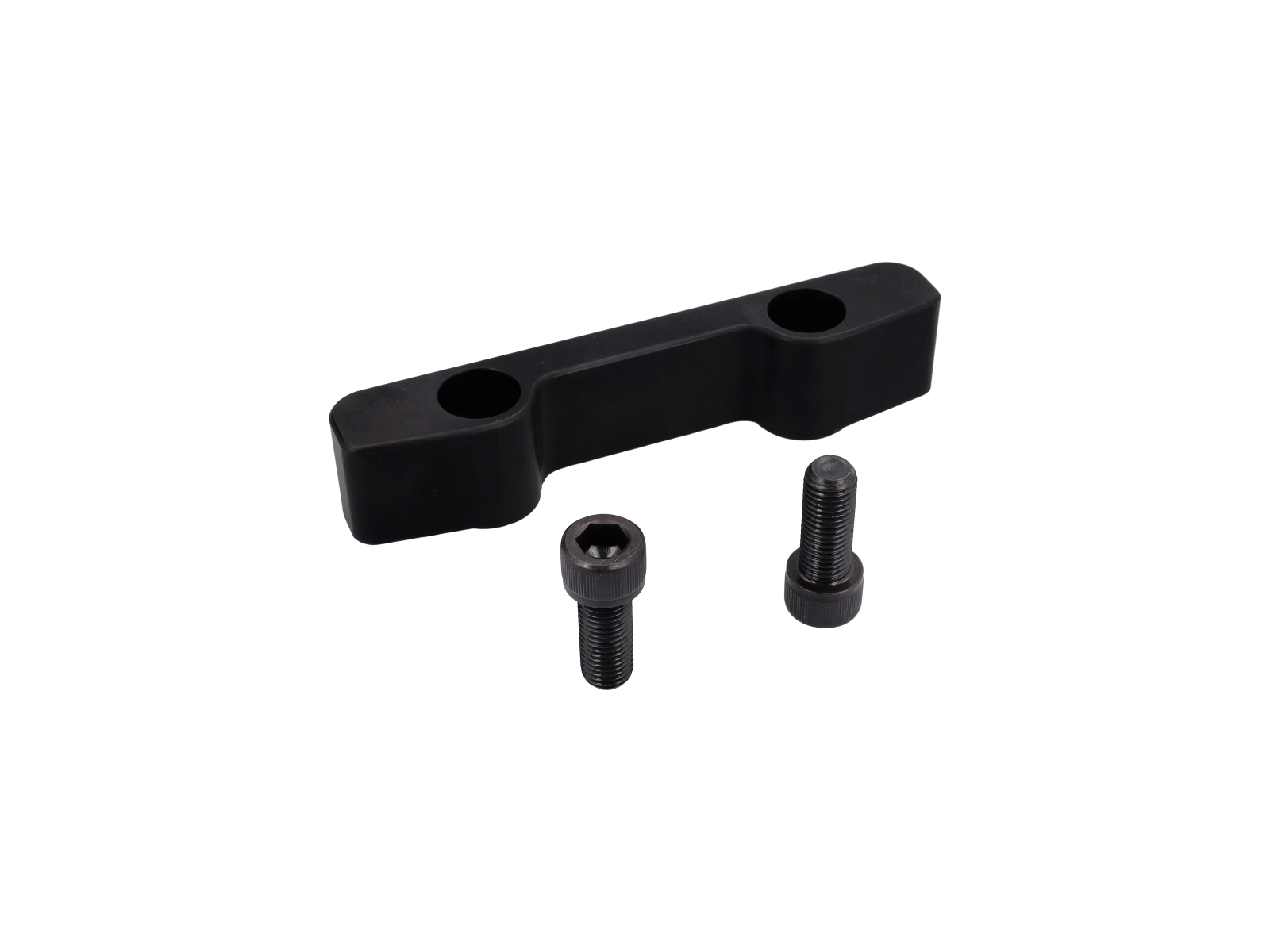

Brake Caliper Adaptor Brackets Front for Porsche 930 Turbo *DesignTek  ❭  BRACKETKIT03

Same as "Big Red" 993 Turbo brakes, these brake calipers are for customers wanting to modify their brakes, the technical details and sizes are in the description, please refer to your mechanic / fitter as these brakes have multiple applications

SET OF 2




Porsche multiple applications

Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast

Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers

Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604209301

The product you are viewing cross references to these numbers

Same as "Big Red" 993 Turbo brakes, these brake calipers are for customers wanting to modify their brakes, the technical details and sizes are in the description, please refer to your mechanic / fitter as these brakes have multiple applications SET OF 2



SET OF 2


Porsche multiple applications

Technical specification:
Piston size (mm): 36/44
Piston area (mm3): 50.37
Weight (Kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 322
Disc thickness (mm): 32
Hydraulic threads: M10 X 1
Mounting hole center (mm): 130
Mounting offset (mm): 55
Mounting hole diameter (mm): Ø12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast

Made to the same dimensions and specifications as the original Porsche 993 turbo brake calipers "Big Reds" can be used to upgrade the braking system on your Porsche 964 / 993 model with bigger brake disc, brake pads from the 993 Turbo should be used with these brake calipers

Also Fits:
Porsche 964 C2 with Brackets - BRACKETKIT02
Porsche 964 C4 with Brackets - BRACKETKIT02
Porsche 964/965 Turbo with Brackets - BRACKETKIT02
Porsche 930 Turbo with Brackets - BRACKETKIT03
Porsche 911 1974-89 with Brackets - BRACKETKIT04

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604209302

The product you are viewing cross references to these numbers

Motorsport use only. No option to fit brake pad sensors

These brake calipers are for customers wanting to modify their brakes, the technical details and sizes are in the description, please refer to your mechanic / fitter as these brakes have multiple applications. Modifications to the brake lines and fabrication of hub adapter may be required



SET OF 2
LEFT & RIGHT



Fits:
Porsche multiple applications

Technical specification:
Pistons size (mm): 36/44
Piston area (cm3): 50.37
Weight (kg): 3.8
Pad thickness (mm): 18
Disc Diameter (mm): 330
Disc thickness (mm): 28
Hydraulic threads: M10x1
Mounting hole center (mm): 130
Mounting offset (mm): 53.2
Mounting hole diameter (mm): Ø 12.2
Caliper body: Fission
Caliper material: AI A356
Material process: Cast

Please note: Before brake pad installation you might need to clamp the brake pad spring in the vice to make it apply more pressure to brake pads.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

3604206403

The product you are viewing cross references to these numbers
