Porsche Cayenne 92A (958) 2010-2017 Brakes Pin Kit and Guide Plates

Brake pad pin kit, Rear. Porsche 911 1974-83 › 91135295100

Check vehicle fitment

Porsche

91135295100

Product Information

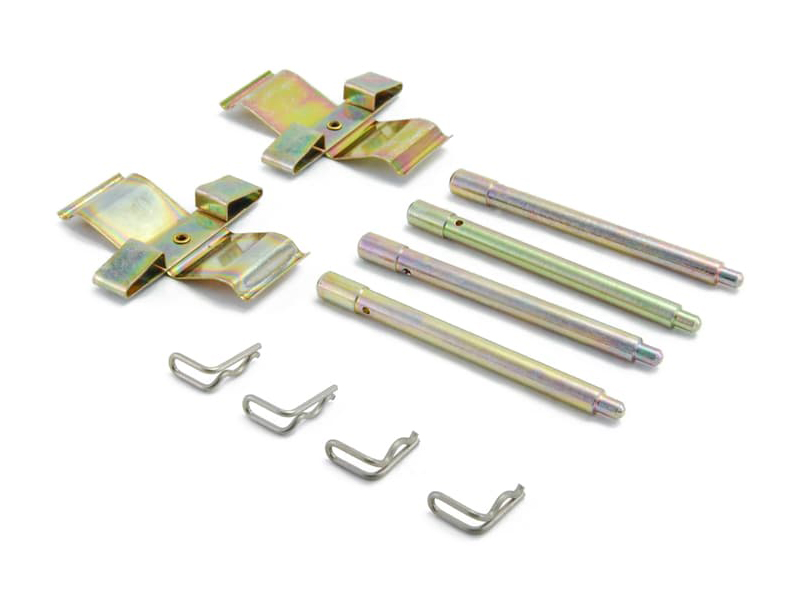

Brake pad pin kit, Rear axle.

rear

Porsche 911 1974-83

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91135295100

91135295100

1664000710

The product you are viewing cross references to these numbers

Related products

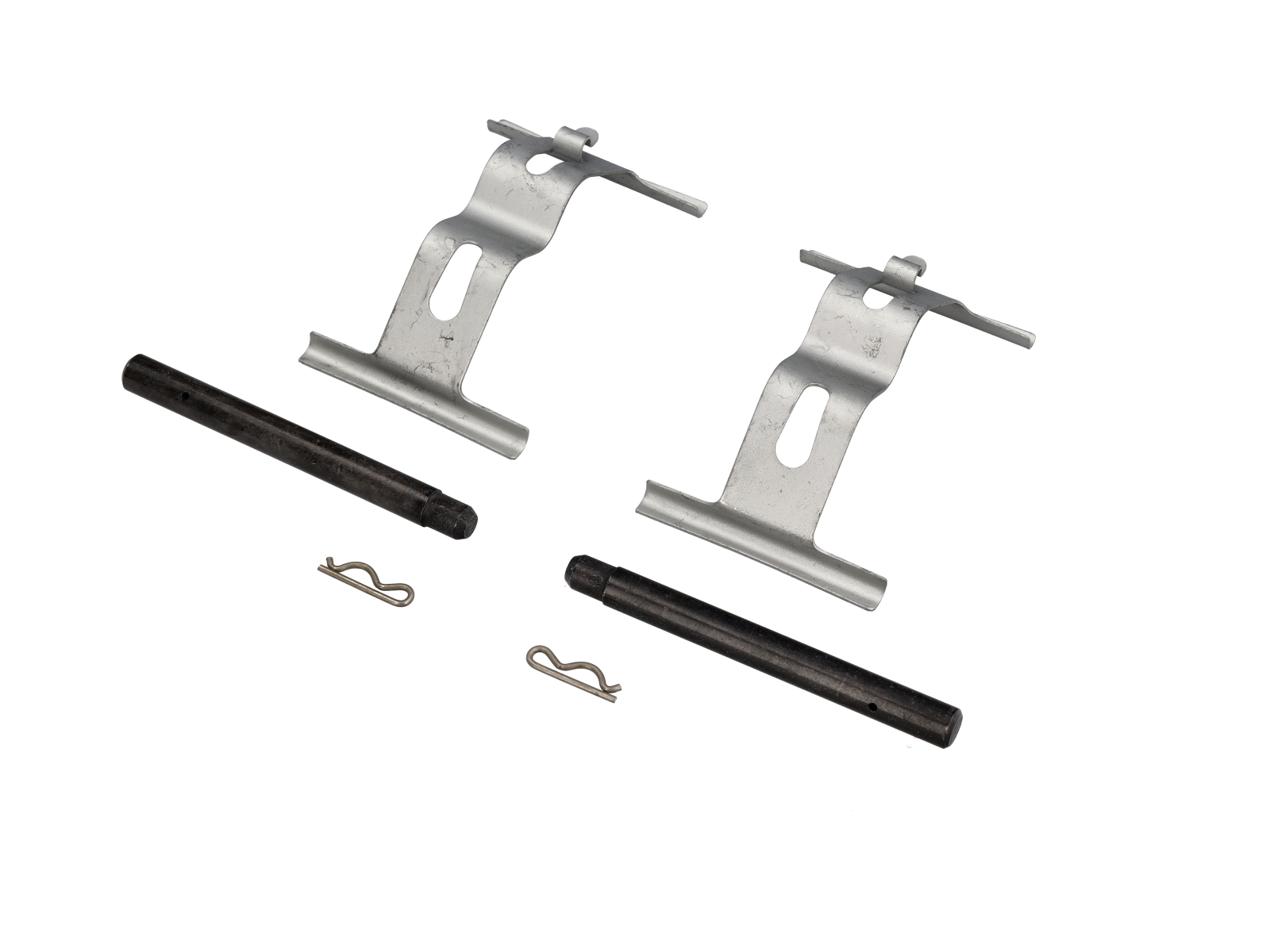

Brake pad spring clip kit. Porsche 958 Cayenne

7PP615269/1

Product Information

Rear Brake Pad Spring Clip Kit

OE Match rear brake pad spring clip kit for Porsche 958 Cayenne models with 3.0L to 4.8L engines, including diesel applications, from June 2010

Fits:

Porsche 958 Cayenne V6 3.6L Petrol (300Hp) 2010-17
Porsche 958 Cayenne V6 3.0L Diesel (245Hp) 2010-17
Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
Porsche 958 Cayenne S V8 4.8L Petrol (400Hp) 2010-17
Porsche 958 Cayenne S V8 4.2L Diesel (382Hp) 2010-17
Porsche 958 Cayenne GTS V8 4.8L Petrol (400Hp) 2010-17
Porsche 958 Cayenne Turbo V8 4.8L Petrol (500Hp) 2010-17
Porsche 958 Cayenne Turbo S V8 4.8L Petrol (550Hp) 2010-17

Diagram ref no 12

The spring clip forms part of the rear brake caliper assembly and helps retain and stabilise the brake pads in their correct position. Maintaining the correct spring tension helps prevent unnecessary pad movement and associated brake noise while allowing the braking system to operate as intended.

What Does the Brake Pad Spring Clip Do?

The spring clip applies tension to the brake pads within the caliper assembly, helping keep them correctly located when the brakes are released and during normal driving.

This reduces unwanted movement of the pads and forms an important part of the brake pad retaining hardware.

Why Does It Fail?

Brake pad spring clips operate in a demanding environment and are continually exposed to heat, water, road salt, brake dust and temperature changes.

Over time they can deteriorate because of:

Corrosion
Loss of spring tension
Heat cycling
Physical distortion
Damage during previous brake servicing
Heavy contamination
General age-related deterioration

A corroded or distorted spring should not simply be reused because it may no longer retain the brake pads as intended.

When Should It Be Replaced?

Replacement should be considered if the spring clip is:

Heavily corroded
Bent or distorted
Cracked or damaged
Missing from the caliper
No longer providing adequate spring tension

The clips should always be inspected when replacing the rear brake pads or carrying out caliper maintenance.

Checks During Replacement

When servicing the rear brakes, also inspect:

Rear brake pads
Brake discs
Brake pad wear sensors
Caliper pistons and dust seals
Caliper mounting hardware
Brake pad retaining components
Opposite-side spring clip

Any brake hardware showing significant corrosion, distortion or damage should be replaced rather than reused.

Porsche 958 Cayenne Brake Pad Springs, Clips & Caliper Hardware

Brake pad springs and retaining hardware are small but important components within the Porsche Cayenne braking system. They help correctly locate the brake pads within the caliper and reduce unwanted movement as the brakes are applied and released.

Because these components operate close to the brake disc and caliper, they are exposed to considerable heat as well as water, road salt and brake dust. Corrosion or loss of spring tension can make replacement necessary during routine brake servicing.

OE Match provides a replacement rear brake pad spring clip kit for applicable Porsche 958 Cayenne 3.0L to 4.8L models, including diesel variants, from June 2010 onwards.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

7PP615269

7PP615269

The product you are viewing cross references to these numbers
