Cardan shaft. Porsche 996 C4 / 996 Turbo / 997.1 C4 / 997 Turbo  ›  99742102001

Cardan shaft
Genuine Porsche cardan shaft for selected Porsche 996 and 997 all-wheel-drive models, including Carrera 4, Carrera 4S and Turbo applications. This original Porsche cardan shaft, also known as a prop shaft or drive shaft, transfers torque through the drivetrain to support all-wheel-drive operation and smooth power delivery.

Fits:
Porsche 996 C4 / C4S 2002 - 2005  *G96.31 6-speed manual  gearbox
Porsche 996 C4 / C4S 2002 - 2005  *A96.35 5-speed Tiptronic gearbox
Porsche 996 Turbo / S 2001 - 2005 (Z96.00)

Porsche 997.1 C4 / C4S 2006 - 2008 *G97.31 6-speed manual gearbox
Porsche 997.1 C4 / C4S 2006 - 2008 *A97.31 5-speed Tiptronic S
Porsche 997.1 Turbo 2007 - 2009
Porsche 997.2 Turbo 2010 - 2013 *PR:480  6-speed manual gearbox

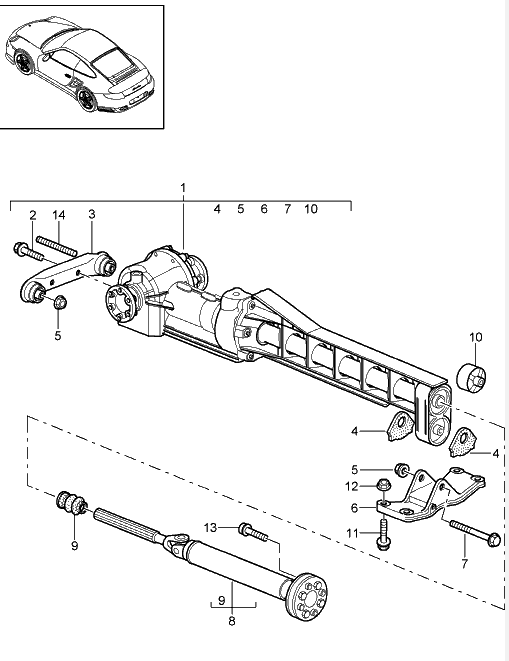

Diagram ref no 8

This part is used in the all-wheel-drive drivetrain system on selected Porsche 996 and 997 models.

What This Part Does / Functions
•  Transfers torque through the AWD drivetrain
•  Connects drivetrain components between transmission / transfer output and front axle final drive
•  Supports front axle drive operation on Carrera 4, Carrera 4S and Turbo models
•  Helps maintain smooth and balanced driveline rotation
•  Replaces a worn, noisy, vibrating or failed original cardan shaft
•  Helps reduce drivetrain vibration, knocking or shudder
•  Provides correct Genuine Porsche length, balance and joint specification
•  Supports factory Porsche AWD performance and driveline refinement.

Why Replace This Part?
The cardan shaft is a high-speed rotating drivetrain component. It is exposed to torque load, vibration, road conditions, heat and continuous movement. Over time, joints, boots, flanges or balance characteristics can wear or become damaged. A worn or incorrect shaft can cause vibration, knocking, rumbling or shudder under acceleration.

Replacing it with a Genuine Porsche cardan shaft helps restore correct AWD driveline operation, smooth torque transfer and OE Porsche drivetrain quality.

Common Symptoms of a Faulty Cardan Shaft
•  Driveline vibration under acceleration
•  Vibration at certain road speeds
•  Knocking or clunking from underneath the vehicle
•  Shudder during take-up of drive
•  Rumbling or bearing noise from the driveline area
•  Excess play in shaft joints or flanges
•  Split or damaged cardan shaft boot
•  Damage after underside impact
•  Fault confirmed during drivetrain inspection.

When to Replace This Part
•   If vibration or knocking is traced to the cardan shaft
•   If the shaft is damaged, bent or out of balance
•   If joints, boots or flanges have excessive wear
•   During AWD drivetrain repair or overhaul
•   After underside impact or accident damage
•   If the original shaft has failed inspection
•   When replacing related front axle final drive, transmission or driveline components.

Where It Fits on the Car
This cardan shaft fits in the AWD drivetrain / front axle final drive system. It connects the drivetrain output to the front axle final drive, allowing the vehicle’s all-wheel-drive system to transfer torque to the front axle.

Correct installation, alignment and torque settings are essential to prevent vibration and ensure smooth drivetrain operation.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99742102001

The product you are viewing cross references to these numbers
