Engine coolant flange gasket. Porsche 944  ❭  94410431106

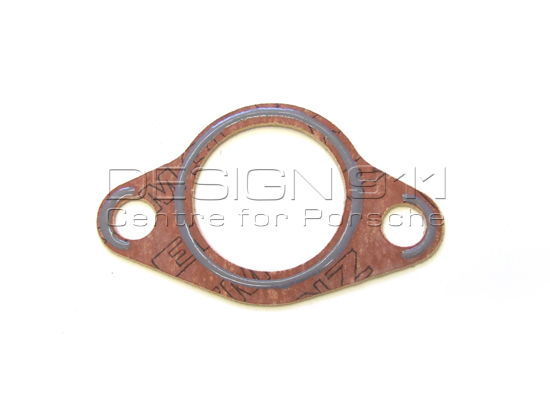

Engine coolant flange gasket
The Genuine Porsche 94410431106 engine coolant flange gasket is an OE cooling system gasket for selected Porsche 944 models. It seals the coolant / water hose flange connection at the engine, helping prevent coolant leaks and maintain cooling system pressure. Ideal for coolant hose replacement, flange service, cylinder head work or restoring the cooling system with Genuine Porsche parts.

Fits:
Porsche 944 2.5L 1985 - 1987
Porsche 944 2.5L Turbo 1986 - 1991
Porsche 944 2.5L Turbo S 1987 - 1988

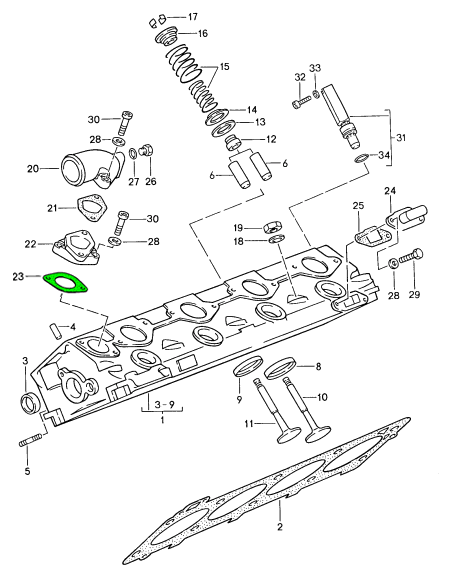

Diagram ref no 23

This gasket is used on selected Porsche 944 cooling system flange connections, commonly at the water hose flange / coolant outlet area on the engine.

What This Part Does / Functions
• Seals the coolant flange to the engine / cylinder head
• Helps prevent coolant leaks from the flange joint
• Maintains cooling system pressure
• Supports correct coolant flow through the engine
• Helps prevent air entering the cooling system
• Replaces a compressed, torn, brittle or leaking original gasket
• Provides correct OE Porsche gasket profile and fitment
• Supports reliable cooling system operation after hose or flange service.

Why Replace This Part?
Coolant flange gaskets are exposed to heat cycles, coolant pressure, age and corrosion around the sealing surface. Over time, the gasket can compress, harden, tear or lose its ability to seal correctly. A leaking gasket can cause coolant loss, low coolant warnings, air pockets in the cooling system or overheating. Replacing it with a Genuine Porsche OE coolant flange gasket helps restore the correct seal and supports reliable cooling system performance.

Common Symptoms of a Failed Coolant Flange Gasket
•  Coolant leak around the water flange
•  Dried coolant residue near the cylinder head / hose flange
•  Low coolant level
•  Coolant smell from the engine bay
•  Steam or coolant seepage after warm-up
•  Cooling system pressure loss
•  Air entering the cooling system
•  Overheating caused by coolant loss.

When to Replace This Part
•  Whenever the coolant flange or water hose socket is removed
•  During coolant hose replacement
•  If coolant is leaking from the flange joint
•  If the gasket is brittle, torn, crushed or damaged
•  During cylinder head, thermostat or cooling system work
•  When replacing the water hose flange / coolant outlet
•  During engine rebuild or cooling system restoration
•  Whenever Porsche workshop procedure recommends replacing the gasket after removal

Where It Fits on the Car
This gasket fits at the engine coolant flange / water hose flange connection. It is commonly used at the front of the cylinder head / coolant outlet area on Porsche 944 applications. Correct surface cleaning and gasket alignment are important to ensure a leak-free seal.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

94410431106

The product you are viewing cross references to these numbers
