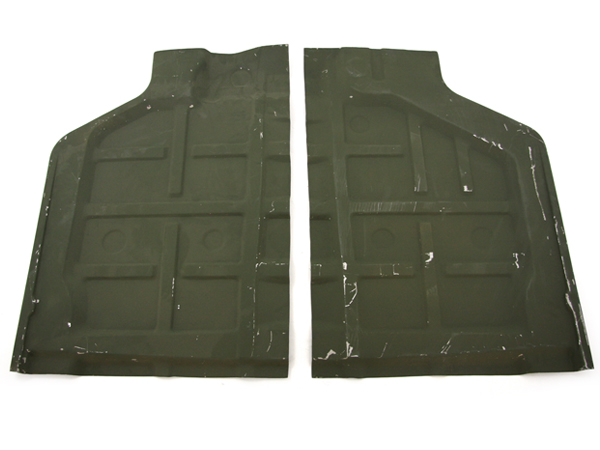

Floor pan repair panel, Front. Porsche 911 66-89  ❭  9115010519

• Porsche 911 1966-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)

Manufactured as an OE-style replacement, this panel provides a practical solution when the original front floor section has become corroded, perforated, damaged or weakened. It is particularly suitable for classic Porsche restoration projects where repairing isolated rust with small patches is no longer appropriate.

The front floor pan forms an important part of the vehicle's lower body structure. Replacing badly deteriorated metal helps restore the strength, shape and integrity of the body shell while providing a sound foundation for long-term corrosion protection.

What This Product Does:
The front floor pan forms part of the lower body structure of the Porsche 911.

It provides a solid metal floor section while helping connect and support surrounding areas of the body shell.

Its functions include:

• Forming part of the vehicle's lower body structure
• Providing a solid floor section
• Supporting surrounding bodywork
• Maintaining the correct shape of the floor area
• Providing joining surfaces for adjacent panels
• Helping maintain body-shell integrity
• Separating the passenger compartment from the underside of the vehicle
• Providing protection against water, dirt and road debris

When the original floor pan becomes extensively corroded, replacing the affected section with a correctly fitted repair panel provides a more permanent solution than repeatedly patching severely deteriorated metal.

Symptoms Of Wear Or Failure:
Floor pans do not normally wear out through ordinary mechanical movement. Their most common problem is corrosion, although accident damage, incorrect lifting and previous poor-quality repairs can also cause deterioration.

Signs that the front floor pan may require repair or replacement include:

• Visible rust
• Bubbling paint or underseal
• Rust perforation or holes
• Soft or weakened metal
• Flaking or heavily pitted steel
• Cracks or splits in the floor
• Water entering the cabin
• Damp carpets
• Corrosion around seams and welded joints
• Separation between overlapping panels
• Distortion from accident damage
• Damage caused by incorrect jacking or lifting
• Failed previous patch repairs
• Excessive body filler or seam sealer hiding corrosion
• Visible corrosion underneath carpets or sound insulation

Any significant corrosion should be investigated beyond the immediately visible area.

Why Replacement Matters:
A badly corroded front floor pan is more than a cosmetic problem.

The floor forms part of the vehicle's body shell, and extensive corrosion can weaken the surrounding structure and joining points.

Replacing deteriorated metal helps:

• Restore the integrity of the floor area
• Remove weakened and perforated steel
• Restore correct body-panel geometry
• Provide sound metal for welding
• Improve the strength of surrounding joints
• Prevent corrosion from continuing beneath old repairs
• Reduce the risk of water and road debris entering the cabin
• Provide a solid foundation for underbody protection
• Improve the quality and longevity of a restoration

For a classic Porsche undergoing extensive restoration, properly replacing severely corroded sections is generally preferable to covering deteriorated metal with additional patches.
