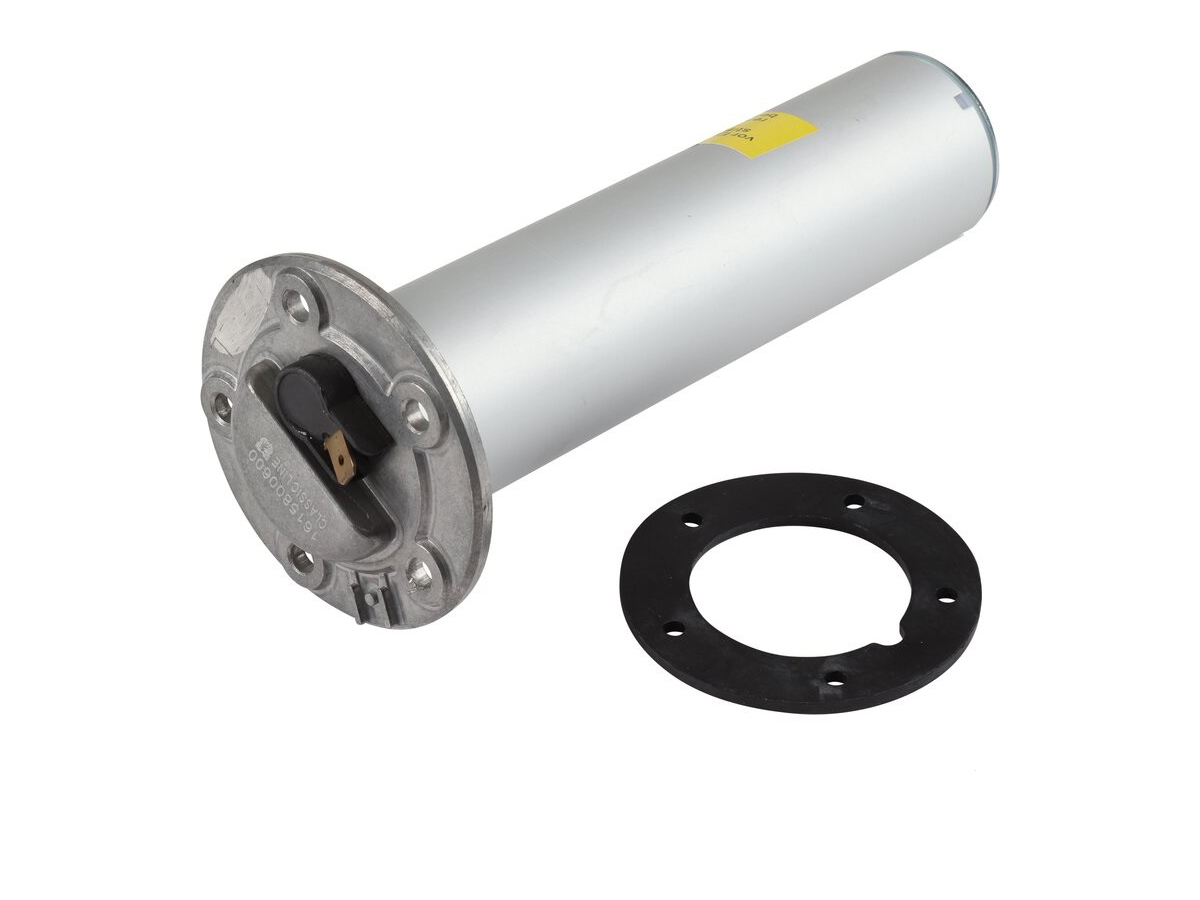

Fuel level sender, Bottom mounted. Porsche 356B T6 1.6L 08/1961–12/1963 › 64420180106

OE Match fuel level sender for Porsche 356B T6 1.6L models with a bottom-mounted tank sender. A gasket is included with the unit.

Fits

• Porsche 356B T6 1.6L - 08/1961-12/1963



Check fitment for your specific vehicle (model, year, engine) before ordering.

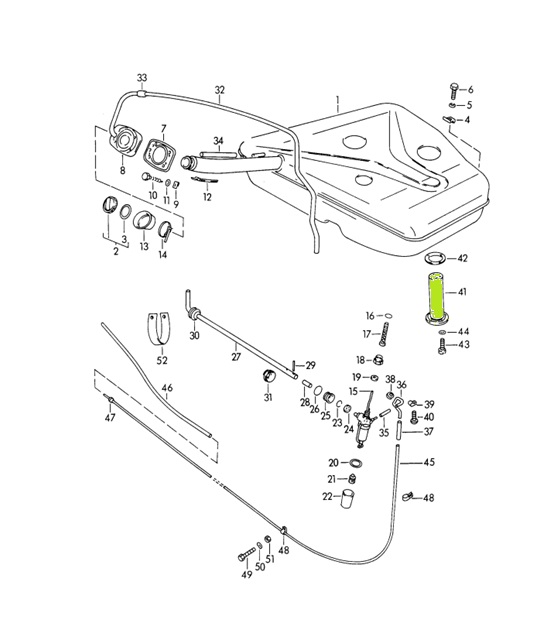

Diagram ref no: 41

What This Product Does

The sender detects the fuel remaining inside the tank and provides an electrical signal to the dashboard gauge. It serves the fuel indication system rather than pumping fuel or controlling its delivery to the engine.

Functions

• Detects changes in tank fuel level.
• Supplies the signal used by the dashboard fuel gauge.
• Allows the driver to monitor the remaining fuel.



Technical Details

• Brand: OE Match.
• Mounting arrangement: bottom-mounted fuel tank sender.
• Supplied references: 64420180106 and 1615800600.
• Engine application: 1.6L.
• Application dates: August 1961 to December 1963.
• Included component: sender gasket.



Symptoms of Fault

• The gauge remains at empty or full despite changes in fuel quantity.
• The needle moves abruptly or gives intermittent readings.
• Refuelling produces little or no change in the indicated level.
• Readings vary with vibration or temperature.
• Sender terminals show corrosion, or fuel odour is traced to the sealing area.



Why Replacement Matters

A defective sender can make the displayed fuel quantity unreliable. Once diagnosis confirms the unit is responsible, replacement addresses the faulty indication. Inspect the wiring, earth connections and gauge first, since faults elsewhere can produce similar behaviour. During tank refurbishment, also examine the sender mounting surface and sealing area.

FAQs

Does an incorrect reading prove the sender has failed?
No. Poor connections, damaged wiring, an inadequate earth or a gauge fault can also affect the display.

Will replacing this unit correct fuel delivery problems?
Its purpose is fuel-level indication. Starting or running faults require separate diagnosis.

Is a sealing gasket supplied?
Yes. The sender includes a gasket; inspect the mating surface when fitting it.

What should be checked before selecting it?
Confirm the T6 application, production dates, supplied references and bottom-mounted sender arrangement against the vehicle.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

64420180106

The product you are viewing cross references to these numbers
