Long oil pipe sleeve. Porsche 911 1970-94  ❭  96420730200

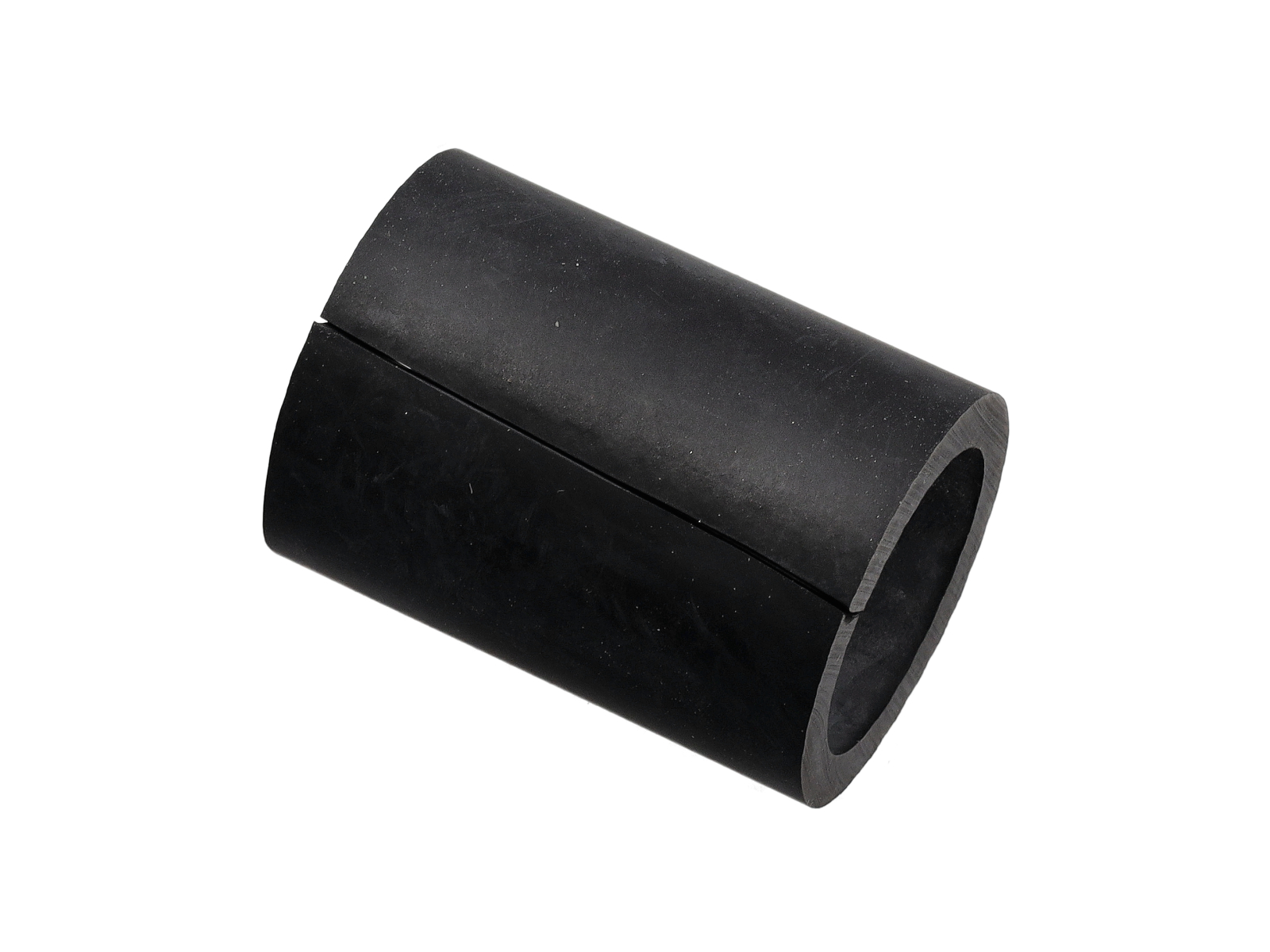

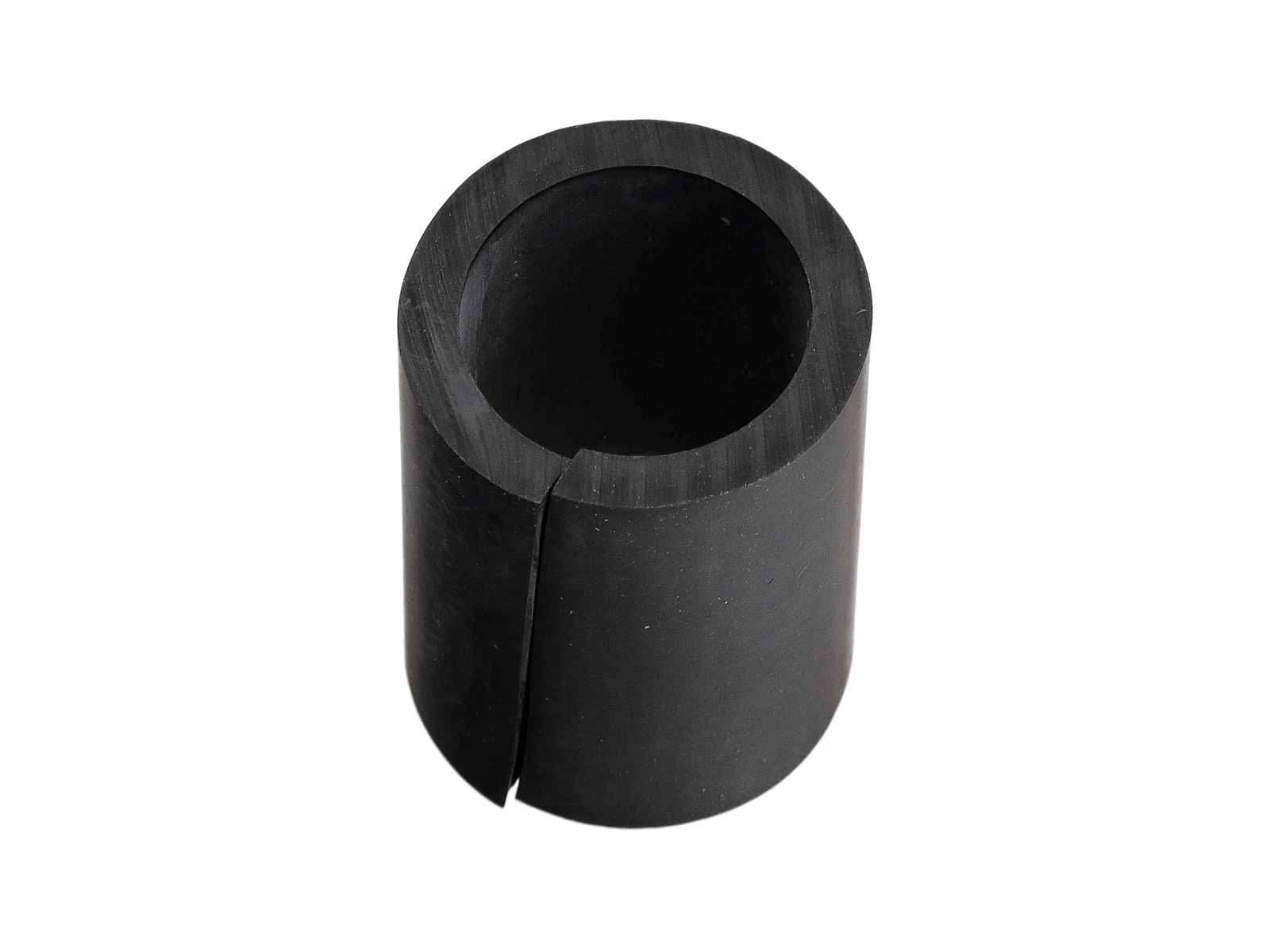

Long Oil Pipe Sleeve by OE Match for Porsche 911, 930 and 964 oil-line assemblies from 1970 to 1994. This rubber mounting insert is a replacement for Porsche reference 96420730200.

Fits:
Porsche 911 2.2-3.3 08/1969 - 07/1989
Porsche 964 3.3-3.6 12/1988 - 06/1994

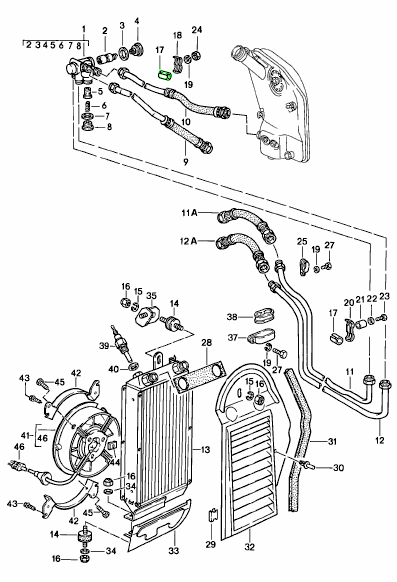

Diagram ref no 17

What This Product Does

The sleeve fits around the relevant oil pipe at its mounting point, helping to locate and cushion the line within the support. It reduces direct contact between the pipe and mounting hardware while allowing the oil-line assembly to be secured correctly.

Functions

• Supports the oil pipe at the mounting point
• Cushions the pipe against its bracket or support
• Helps maintain the intended oil-line position
• Reduces movement and contact that may cause chafing



Symptoms of Fault

• Rubber that has hardened, split or deteriorated with age
• A missing or displaced sleeve at the oil-pipe support
• Excessive oil-line movement around the mounting point
• Chafing or contact marks on the pipe or nearby bracket
• Oil seepage near the assembly requiring inspection of the pipe, unions and supporting parts

Why Replacement Matters

Replacing a worn or missing sleeve restores the intended support for the oil pipe and helps prevent unnecessary movement or contact. Inspect the associated brackets, clamps, pipes and connections at the same time, particularly when older lines have been disturbed during servicing.

FAQs

• Is this sleeve an oil seal?
  No. It is a mounting and support sleeve rather than a seal within the oil circuit. Investigate the pipe, hose, union and seals if oil leakage is present.
• How many sleeves are required?
  The quantity varies by oil-line assembly and model. Consult the applicable parts diagram before ordering.
• Should nearby hardware be inspected?
  Yes. Check the mounting bracket, clamps, fasteners and oil line for corrosion, wear or damage while access is available.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96420730200

The product you are viewing cross references to these numbers
