Distributor Clamp Aluminium for 123Ignition Distributor. Porsche 356 / 912  ❭  123DISTCLAMP

Distributor Mounting Clamp for 123Ignition Distributor

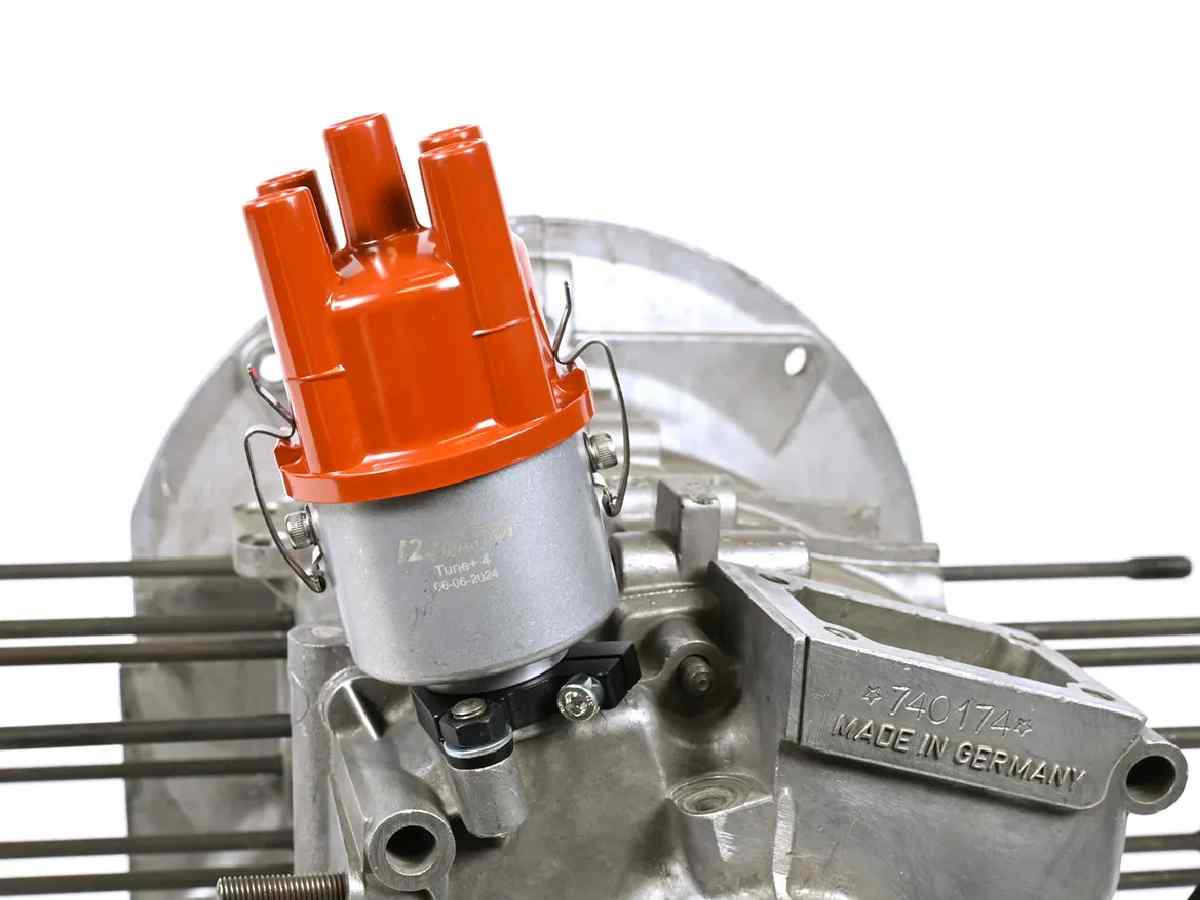

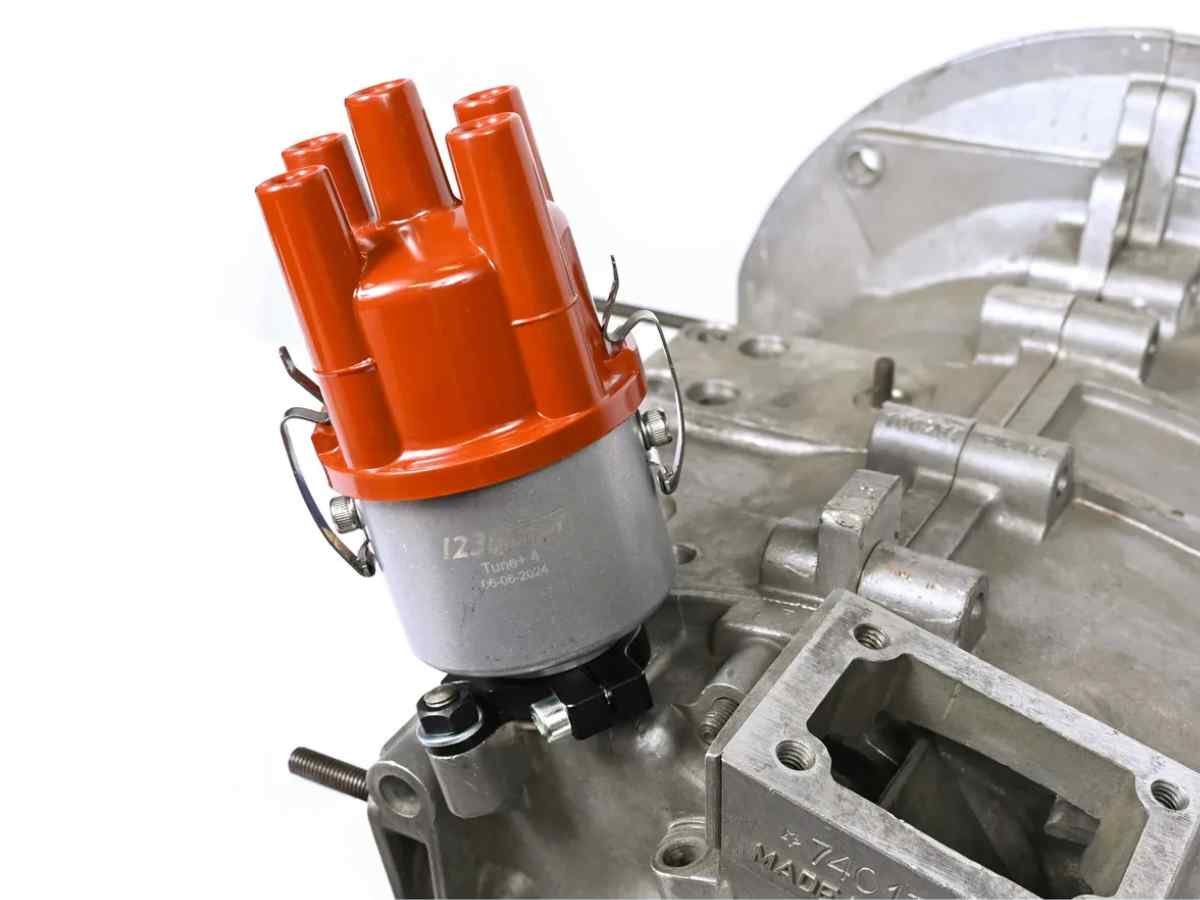

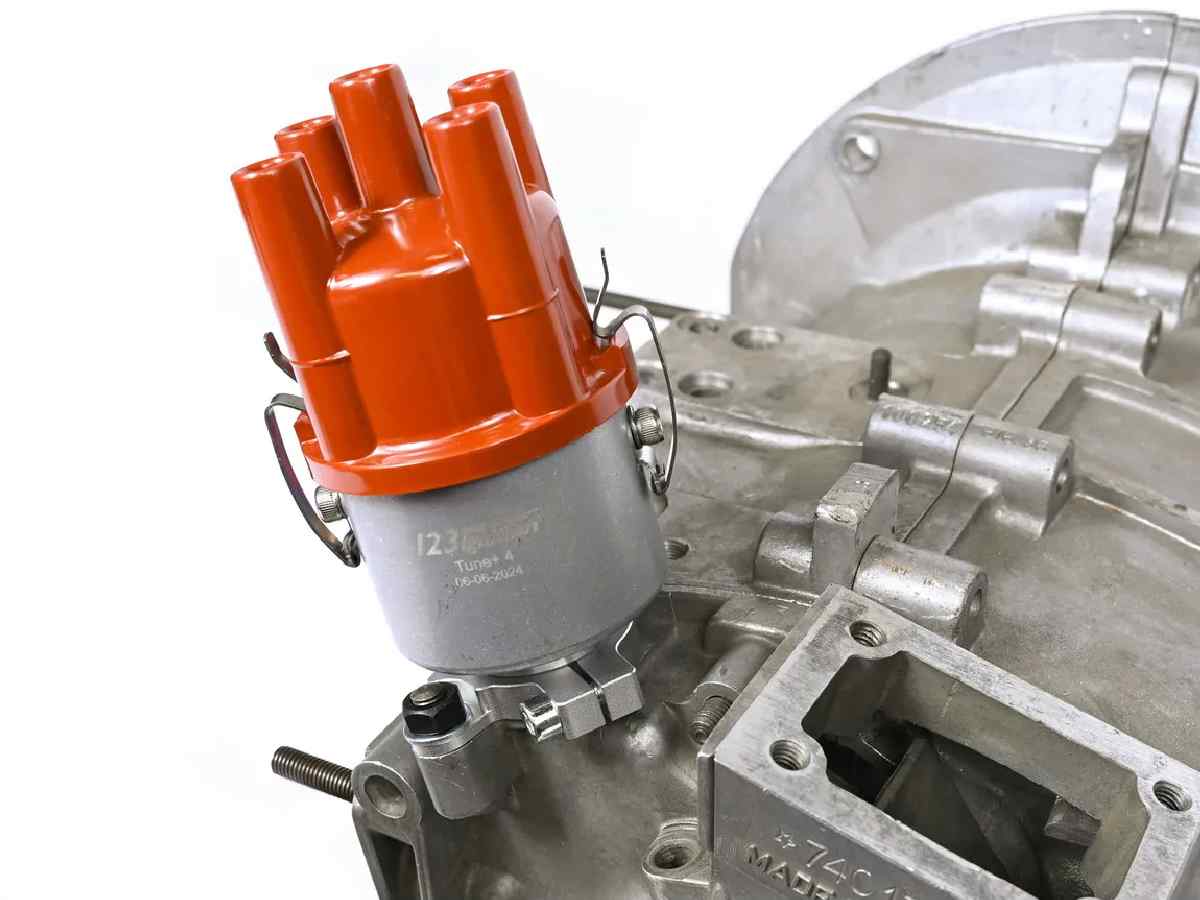

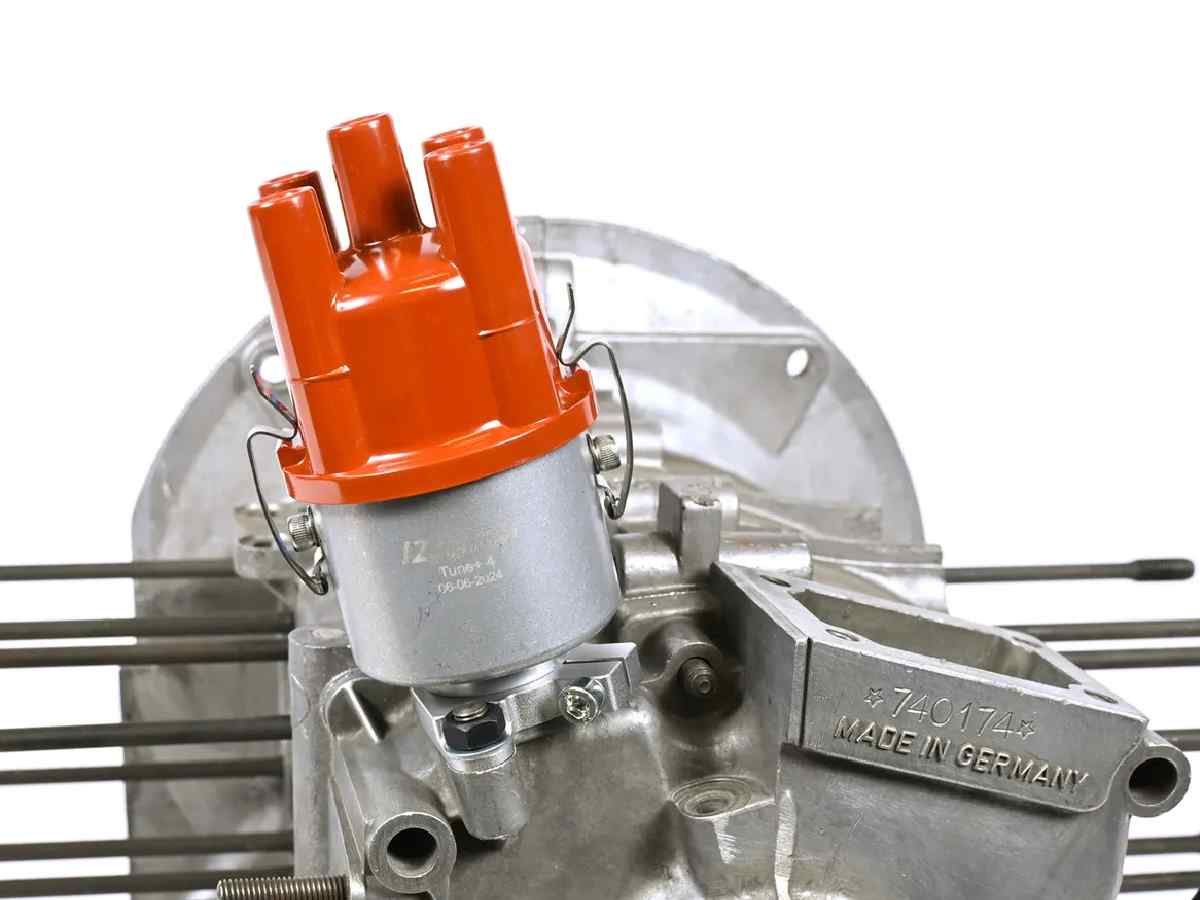

Securely install a 123Ignition distributor into a Porsche 356 or 912 3-piece engine case with this upgraded OE Match Aluminium Distributor Mounting Clamp.

Fits:

• Porsche 912 SWB 1965-1968 (F)
• Porsche 356 1950-55
• Porsche 356A 1955-59
• Porsche 356B 1959-63
• Porsche 356C 1963-65

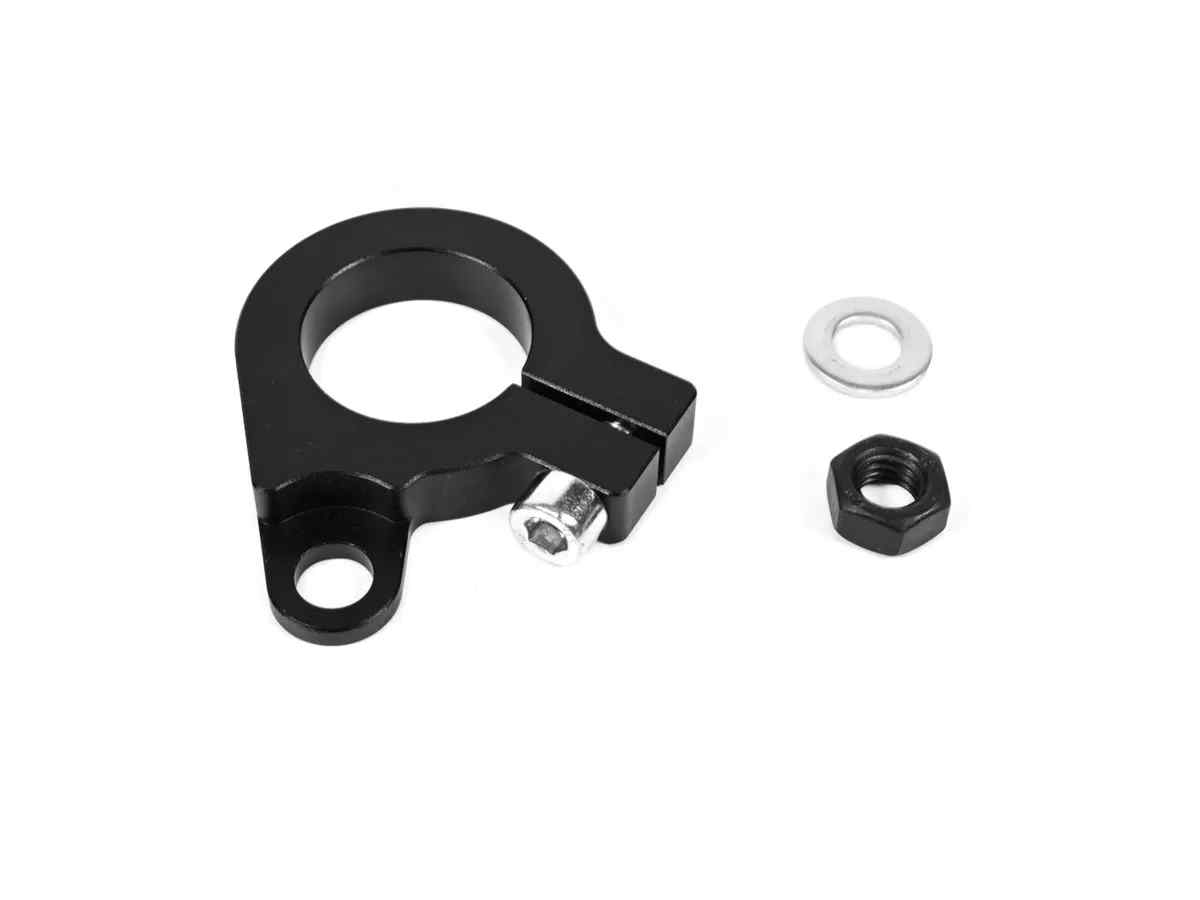

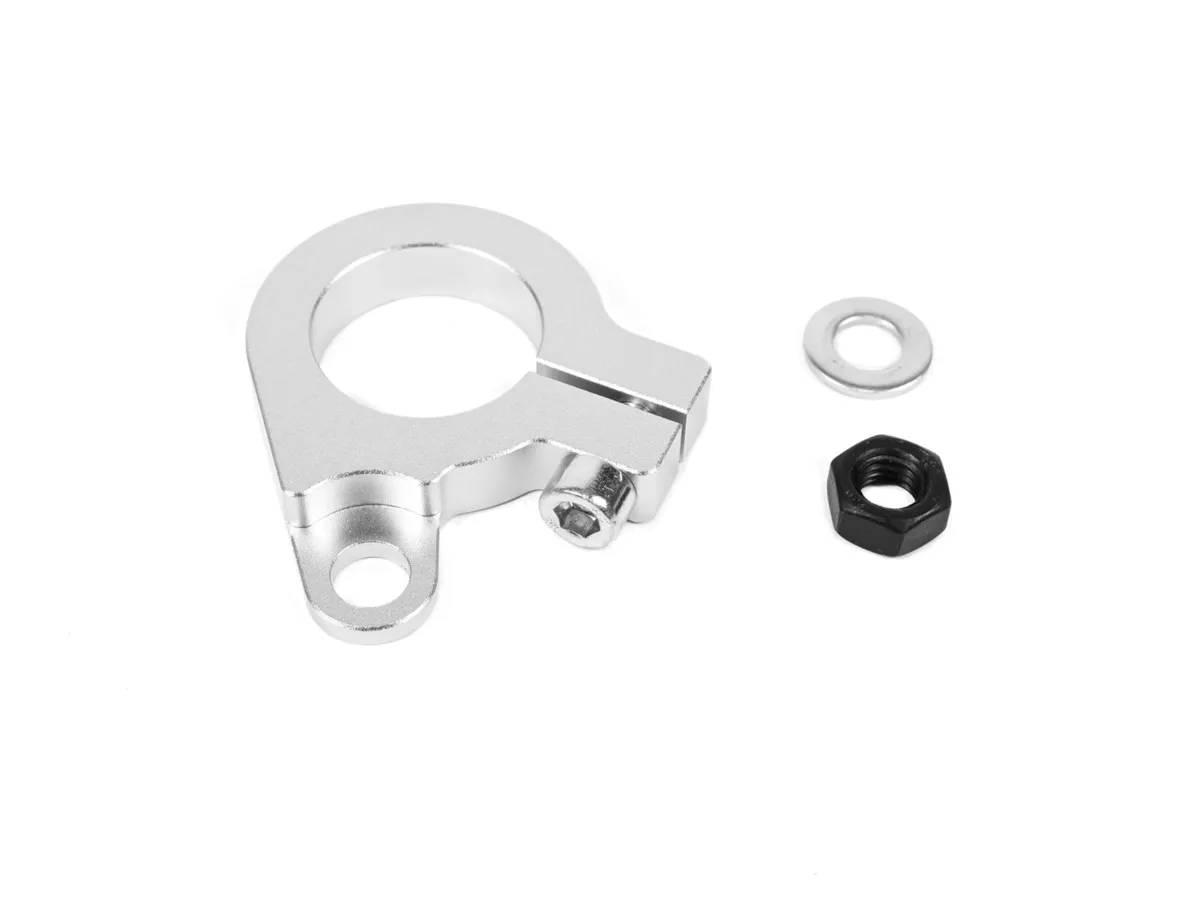

Specifically designed for use with a 123Ignition distributor, this mounting clamp replaces the original thin 2mm distributor clamp and separate spacer ring arrangement. Its wider 9mm clamping surface provides improved support and more even pressure distribution around the distributor.

The design also helps ensure that the distributor sits at the correct height and rests properly against the engine housing, preventing it from being installed too deeply and incorrectly loading against the distributor drive shaft.

What Does the Distributor Mounting Clamp Do?

The distributor mounting clamp secures the distributor in its correct position within the engine case.

Once the ignition timing has been set, the clamp holds the distributor securely so it cannot rotate or move during engine operation.

When installing a 123Ignition distributor into a classic Porsche 356 or 912 engine, correct positioning is particularly important. The distributor needs to sit at the correct depth within the housing while engaging correctly with the distributor drive.

This upgraded clamp helps:

• Secure the 123Ignition distributor correctly
• Maintain the correct distributor installation height
• Distribute clamping pressure more evenly
• Prevent unwanted distributor movement
• Support accurate ignition timing
• Prevent the distributor from being mounted too deeply
• Provide a more secure mounting arrangement than the original thin clamp

Why Is This Clamp Recommended for 123Ignition Distributors?

The original Porsche distributor clamp has a clamping surface of only approximately 2mm.

When used with a 123Ignition distributor, this narrow clamping surface can create installation problems. In particular, the original clamp can potentially move into the distributor groove rather than providing the intended support.

This upgraded aluminium version increases the clamping surface to 9mm.

The wider contact area provides better pressure distribution and helps ensure that the distributor rests correctly against the engine housing rather than sitting too low and standing on the drive shaft.

9mm Clamping Surface

One of the main improvements is the substantially wider clamping area.
Original-style clamp: approximately 2mm
Upgraded mounting clamp: 9mm

The increased width provides a more stable contact surface and prevents the clamp from slipping into the distributor groove.

This creates a more positive and secure installation for the 123Ignition distributor.

Correct Distributor Installation Height

A distributor should not be supported by the drive shaft itself.

If a 123Ignition distributor is fitted too deeply into the engine case, it can stand on the distributor drive shaft rather than correctly resting against the engine housing.

This mounting clamp is designed to help establish the correct position, ensuring the distributor is properly supported by the housing while maintaining correct engagement with the drive mechanism.

Alternative to a Spacer Ring

When installing a 123Ignition distributor into a Porsche 356 or 912 3-piece engine case, the use of either a suitable spacer ring or this dedicated mounting clamp is recommended.

This upgraded clamp provides an integrated solution, replacing the original thin clamp and spacer ring arrangement with a single purpose-designed aluminium component.

Porsche 356 / 912 123Ignition Distributor Mounts & Electronic Ignition Upgrades

Upgrading a Porsche 356 or 912 to a 123Ignition electronic distributor is a popular way of introducing modern ignition control while retaining the basic distributor-based layout of the original engine.

Correct installation is essential. The distributor must engage correctly with the drive while sitting at the intended height against the engine housing.

The original thin distributor clamp was designed around the original distributor arrangement and is not necessarily the ideal solution when installing a modern 123Ignition unit.

This purpose-designed aluminium mounting clamp provides a 9mm clamping surface, improving support and pressure distribution while helping maintain the correct distributor position.

It is therefore a worthwhile addition when installing a 123Ignition distributor into a Porsche 356 or 912 3-piece engine case.
