Wheel Spacer for 5x205 Bolt Circle. Porsche 356 / 356A / 356B  ❭  356SPACER

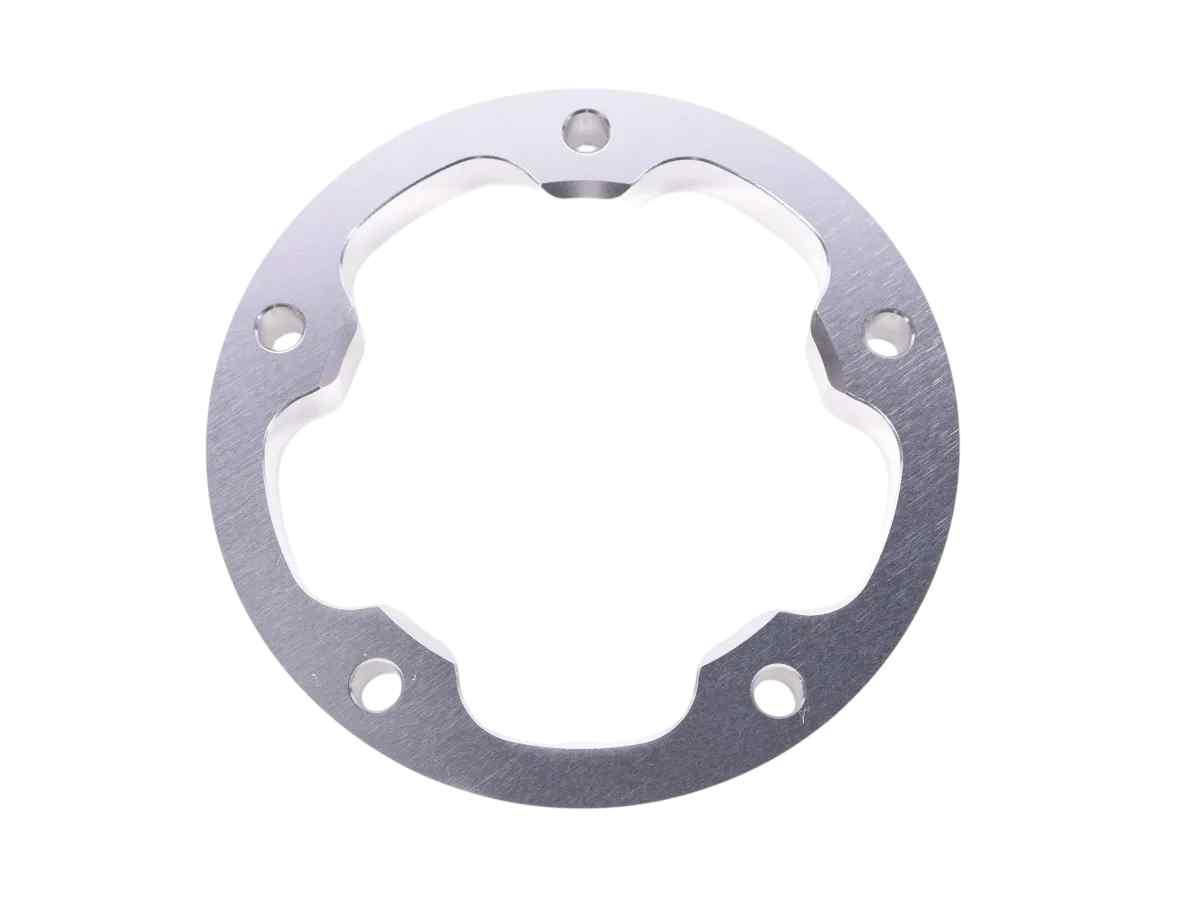

Wheel Spacers – 5x205mm Bolt Circle and 160mm Hub Opening

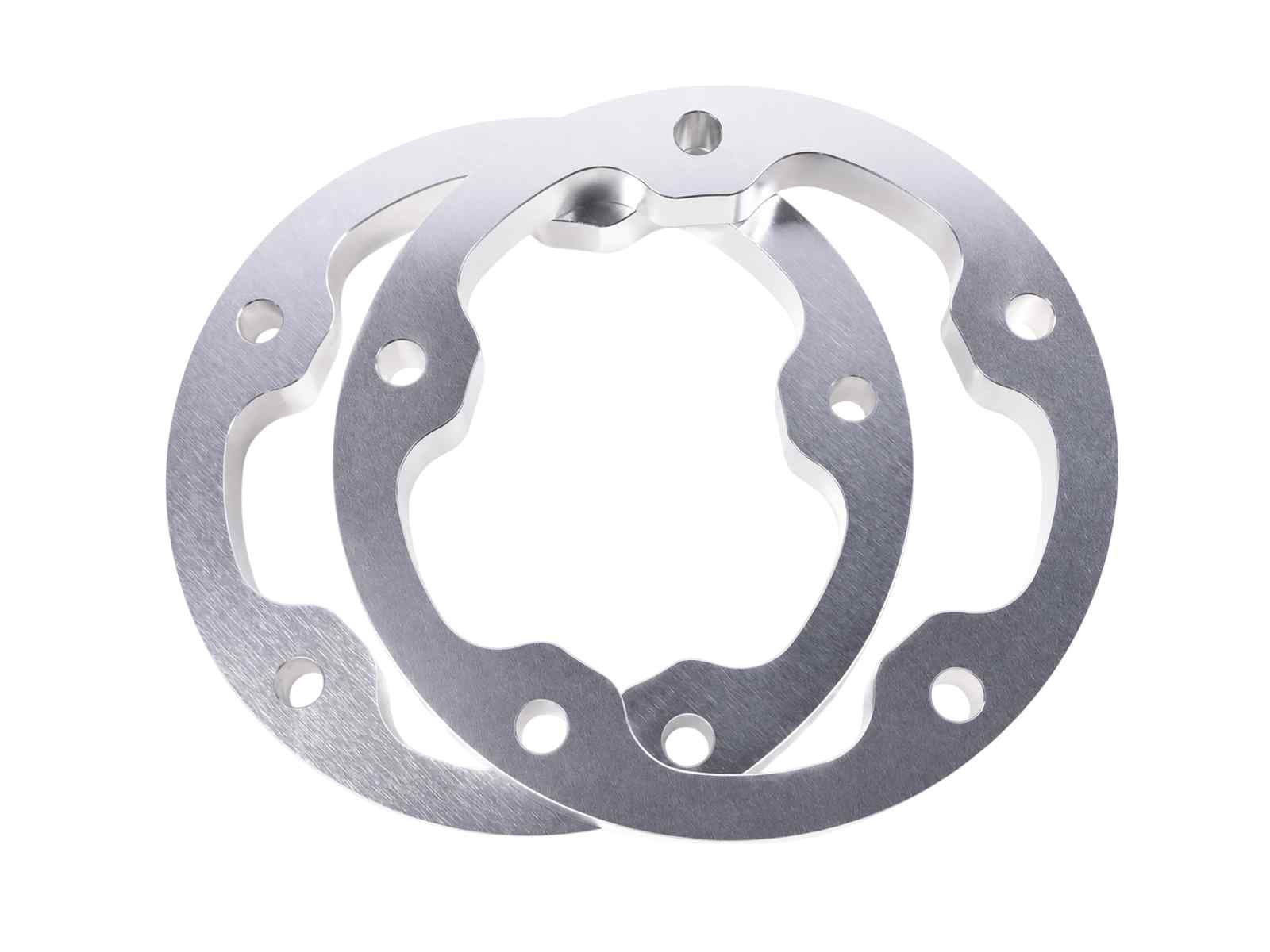

Sold as a pair

Improve wheel clearance, offset or stance while maintaining a discreet, original-style appearance with these OE Match Wheel Spacers for vehicles using the classic 5x205mm bolt pattern.

Fits:

• Porsche 356 1950-55
• Porsche 356A 1955-59
• Porsche 356B 1959-63

The design is particularly suited to original-style wheels. Unlike many conventional wheel spacers that leave a noticeable ring visible behind the rim, these spacers are designed to remain largely hidden once the wheel is installed.

An internal chamfer allows the spacer to sit correctly against the brake drum, providing a clean and precise fit.

What Do Wheel Spacers Do?

Wheel spacers fit between the wheel and the brake drum or hub, moving the wheel further outwards by the thickness of the spacer.

Depending on the application and thickness selected, fitting wheel spacers can:

• Increase wheel-to-suspension clearance
• Adjust the effective wheel offset
• Provide clearance for different wheel and tyre combinations
• Increase vehicle track width
• Position the wheel further towards the edge of the wheel arch
• Create a wider and more purposeful stance

Selecting the correct spacer thickness is important to ensure adequate clearance between the wheel, tyre, suspension and bodywork.

Designed for Original-Style 5x205 Wheels

These spacers have been specifically designed to complement original-style wheels using the traditional 5x205 bolt pattern.

The CNC-machined profile keeps the spacer largely hidden behind the wheel, avoiding the prominent visible ring that can occur with some conventional spacer designs.

This makes them particularly suitable for classic vehicles where improved wheel positioning is required without detracting from the original appearance.

They can also be used with other compatible wheels featuring a 5x205mm bolt pattern, subject to checking the dimensions and clearances of the individual wheel.

Precision Fit Against the Brake Drum

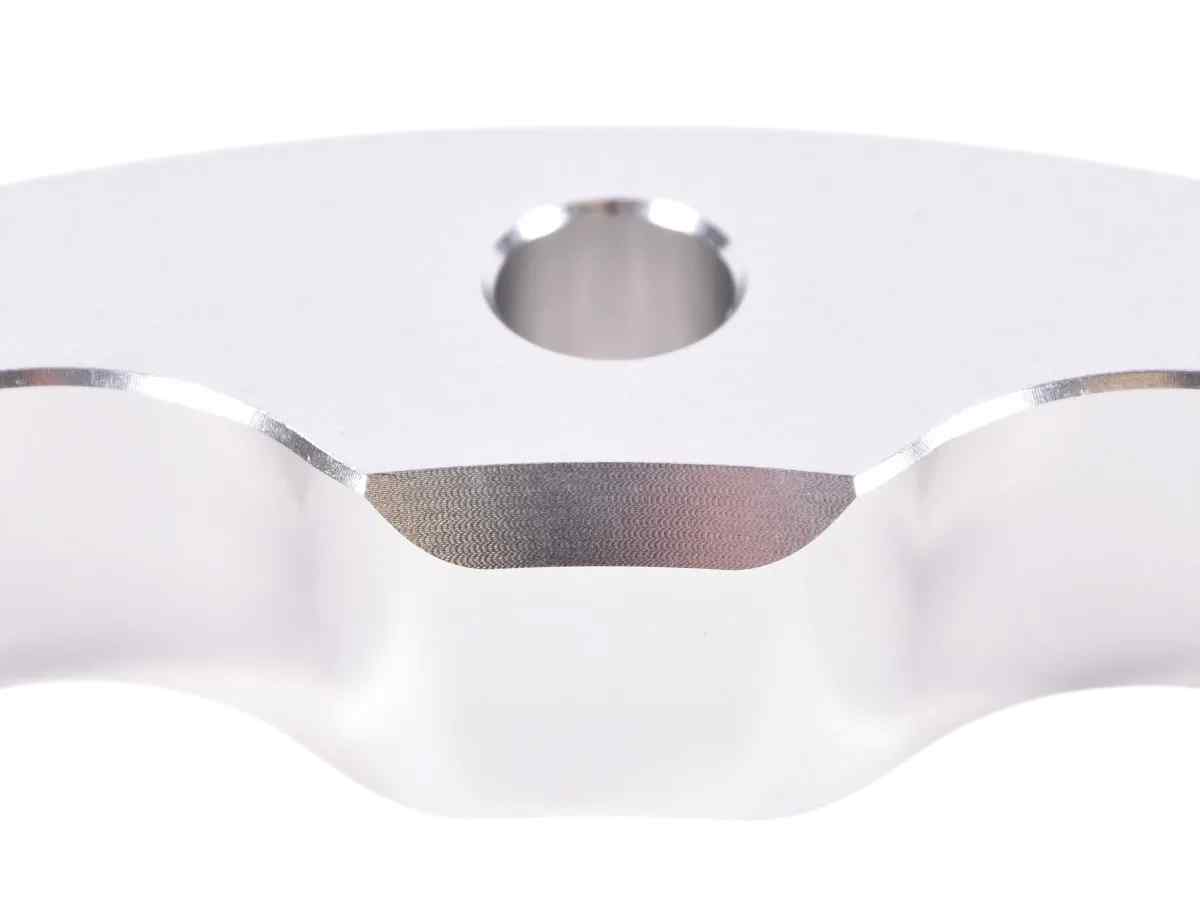

A carefully machined chamfer on the inside of the spacer allows it to locate correctly against the brake drum.

Correct seating is essential when installing wheel spacers. The spacer must sit flat against the mounting surface without interference before the wheel is installed.

Available Spacer Thicknesses

These 5x205 wheel spacers are available in:

• 5mm
• 10mm
• 15mm
• 20mm
• 25mm
• 30mm

The range of thicknesses allows the wheel position to be adjusted according to the individual vehicle, wheel specification and required clearance.

Longer Wheel Bolts May Be Required

Increasing the distance between the wheel and mounting surface reduces the amount of the original wheel bolt that engages with the hub or brake drum.

Longer wheel bolts may therefore be required when fitting these spacers.

As a general rule, the additional wheel bolt length should correspond to the thickness of the spacer being installed. For example, a 15mm spacer will normally require a wheel bolt approximately 15mm longer than the original.

The correct bolt type, length and thread engagement must always be confirmed for the individual vehicle and wheel combination before use.

5x205 Wheel Spacers for Classic Porsche & Wide 5 Wheels

The 5x205 wheel pattern is widely associated with early classic vehicle applications and requires appropriately designed components when altering wheel position or offset.

Wheel spacers provide a straightforward way of moving the wheel outwards without changing the wheel itself. They can be useful when additional inner clearance is required or when owners want to improve the position of the wheel within the bodywork.

For classic vehicles using original-style rims, appearance is also important. These CNC-machined 5x205 wheel spacers are designed to remain discreetly positioned behind the wheel, helping retain a traditional appearance while providing the required increase in track width or clearance.

With thicknesses ranging from 5mm to 30mm, the appropriate spacer can be selected according to the required wheel position and individual vehicle setup.
