Brake pedal return spring. Porsche 911 74-89 LHD  ›  91142353103

Pedal Return Spring

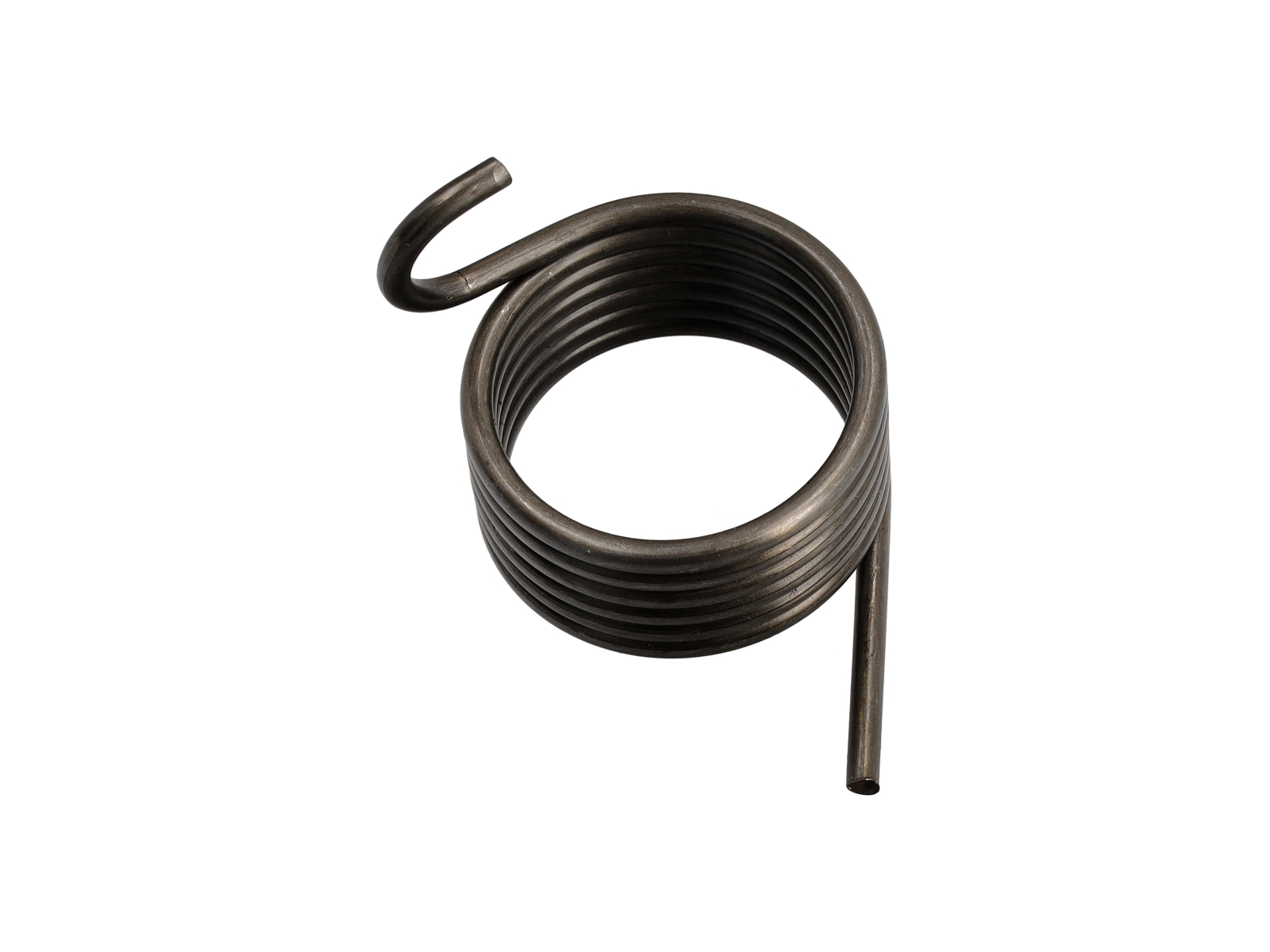

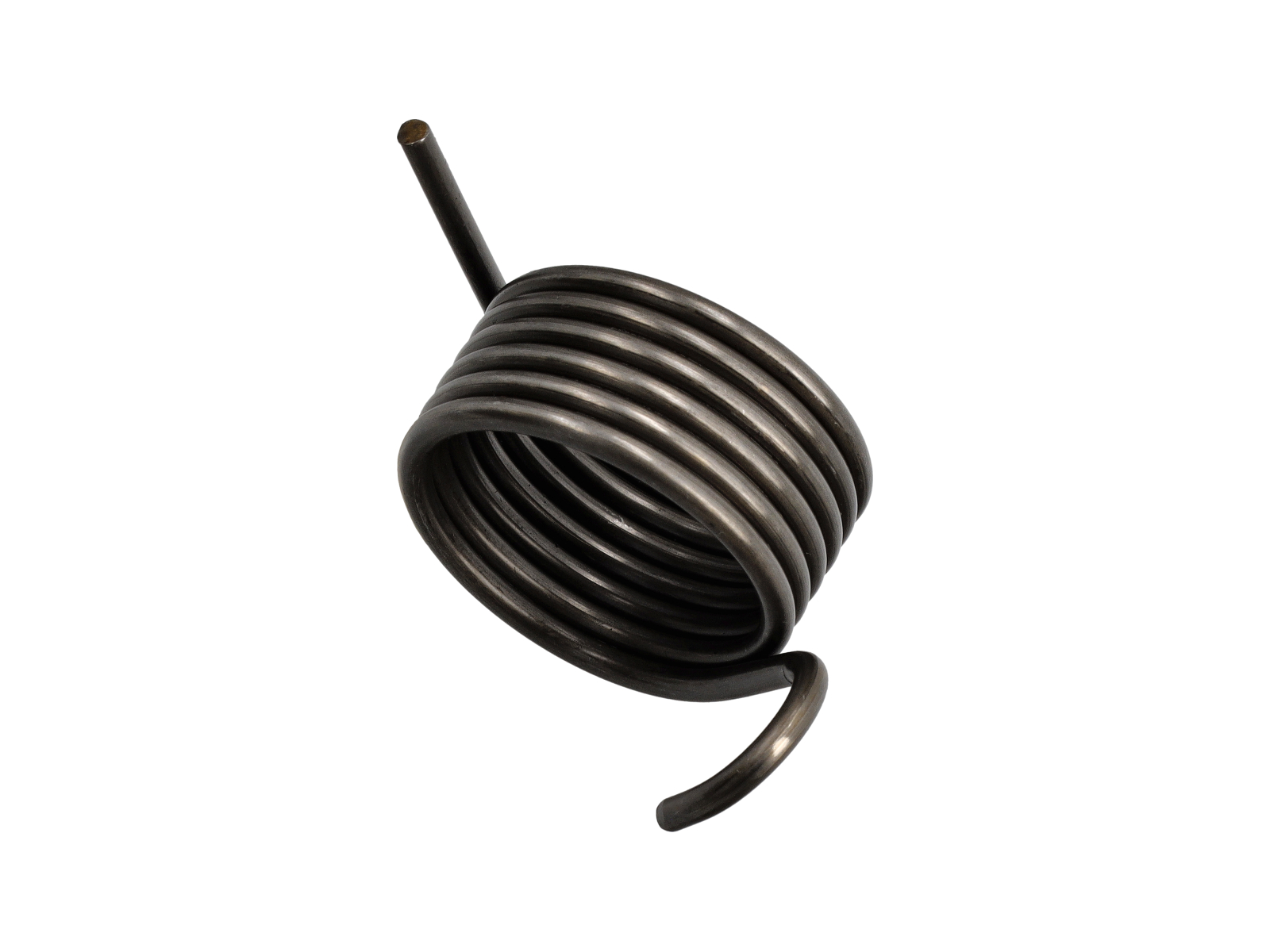

The OE Brake Pedal Return Spring is a replacement component for left-hand-drive Porsche 911 models manufactured between 1974 and 1989, designed to help return the brake pedal to its normal resting position after braking.

Fits:

• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)

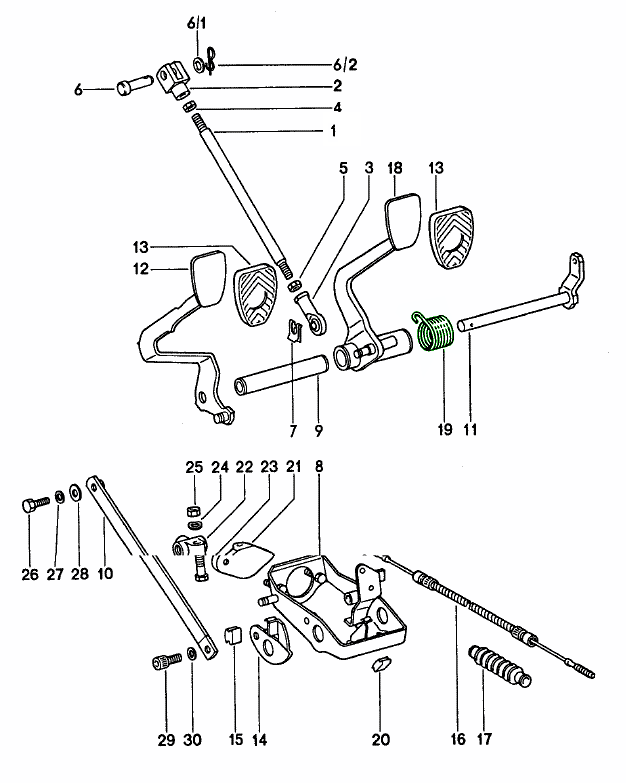

Diagram ref no 19

The brake pedal return spring is an important part of the pedal assembly, helping maintain smooth, consistent pedal movement and ensuring the brake pedal returns correctly when released.

Over time, the original spring can weaken, corrode, stretch or break, potentially resulting in sluggish pedal return, excessive pedal movement or an incorrectly positioned brake pedal.

Replacing a worn or damaged spring helps restore the intended operation of the brake pedal assembly and contributes to the safe and reliable functioning of the braking system.

What Does the Brake Pedal Return Spring Do?

The brake pedal return spring assists the brake pedal in returning to its normal resting position when the driver releases pressure from the pedal.

Working alongside the pedal linkage and brake master cylinder mechanism, the spring helps maintain consistent pedal movement and return action.

Its main functions include:

• Assisting the brake pedal's return to its resting position
• Maintaining the correct pedal return action
• Helping prevent excessive pedal movement
• Supporting smooth operation of the pedal assembly
• Contributing to consistent brake pedal feel
• Helping maintain the correct relationship between the brake pedal and its associated controls

Although relatively small, the return spring is an important mechanical component within the brake pedal assembly.

Why Does the Brake Pedal Return Spring Fail?

Brake pedal return springs are subjected to repeated tension and movement every time the brakes are applied.

After many years of use, the spring may lose its original tension or suffer mechanical damage.

Common causes of failure include:

• Metal fatigue from repeated pedal operation
• Corrosion caused by moisture and age
• Loss of spring tension over time
• Stretching or deformation
• Breakage caused by excessive loading
• Incorrect installation during pedal assembly repairs
• Damage to the spring's mounting or attachment points

A weakened or broken spring may no longer provide sufficient assistance to return the brake pedal correctly.

When Should It Be Replaced?

Replacement is recommended whenever the brake pedal return spring becomes weakened, stretched, corroded, damaged or broken.

Common symptoms include:

• Brake pedal slow to return after being released
• Brake pedal failing to return fully to its resting position
• Excessive free movement in the pedal assembly
• Unusual pedal movement or inconsistent return action
• Visible corrosion or deformation of the spring
• Broken or missing spring Incorrect pedal positioning following previous repairs

The return spring should also be inspected during pedal cluster refurbishment, brake master cylinder replacement or a complete classic Porsche restoration.

A brake pedal that does not return correctly may also indicate a fault elsewhere in the braking system and should be investigated before the vehicle is driven.

Checks & Diagnosis

Before replacing the spring, inspect the complete brake pedal assembly to determine the cause of the problem.

Check for:

• Weak, stretched or broken return spring
• Corrosion around the pedal pivot points
• Worn pedal bushes or bearings
• Stiff or seized pedal movement
• Damaged spring attachment points
• Incorrect pedal linkage adjustment
• Brake master cylinder or pushrod problems
• Obstruction preventing full pedal return

A sticking brake pedal is not always caused by the return spring. Binding pedal pivots, incorrect linkage adjustment or hydraulic faults can produce similar symptoms.

If the pedal does not return fully or the brakes remain partially applied, the underlying fault must be identified and repaired.

Installation Notes

The brake pedal return spring is fitted within the brake pedal assembly and should be installed in accordance with the Porsche workshop instructions.

Before installation, inspect the pedal pivots, bushes, spring mounting points and associated linkage for wear or damage.

Ensure the replacement spring is correctly positioned and securely attached.

Take care when fitting or removing the spring, as it may be under tension.

After installation, check that the brake pedal moves freely and returns fully to its correct resting position.

Verify the brake pedal free play, brake light switch operation and correct brake release before returning the vehicle to service.

Professional installation is recommended because the component forms part of the braking system.
