Axle spacer kit, 10mm. Porsche 996 Turbo / 997 Turbo / 991 Turbo  ❭  ASK-10-TT

Axle spacer kit, 10mm. Porsche 996 Turbo / 997 Turbo / 991 Turbo
1
Check vehicle fitment
ASK-10-TT
Product Information
Product Information

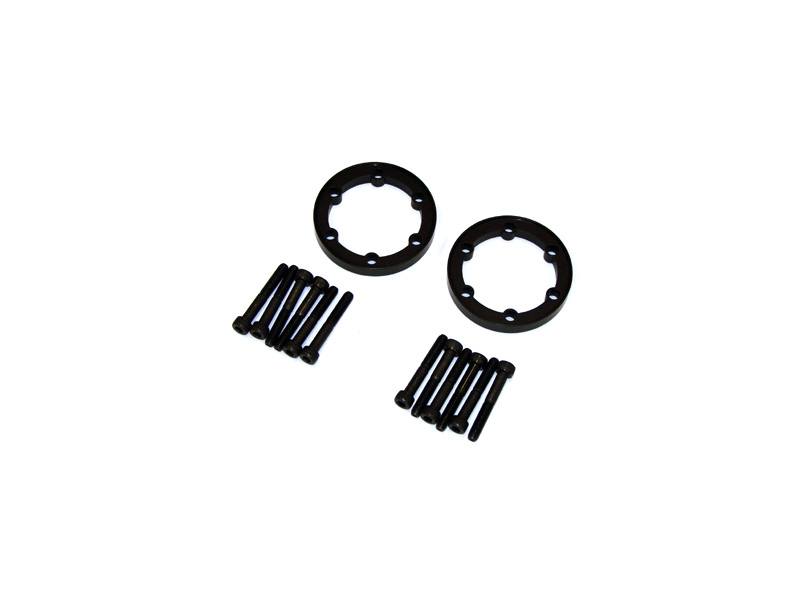

Axle Spacer Kit, 10mm.

tarett

For all Porsche 996TT, 997TT, 991TT & C4.

Finally a solution that allows you to safely increase front camber, with GT3 LCA shims, but without the risk of damaging the transmission or front axles on your Porsche Turbo or C4. As you add shims to your front LCA's, you move the CV joints closer to and beyond their safe range of motion, risking failure and expensive damage.

These 10mm thick precision spacers, used with 16mm of LCA shims will provide an additional -1.7 deg. of camber, while maintaining the factory CV joint and axle relationship.

The spacer design includes a concentric lip that positively and accurately locates it to the CV joint for perfect balance and no vibration.

Each kit includes two spacers and all the needed hardware in high class 10.9 grade.
Related products
Prop shaft repair clamping support mount. Porsche 970 Panamera - 97042101104, 97042101102, 97042101133, 97042101132, 97042101154, 97042101153, 7L0521102M, 97042101152
5
Prop shaft repair clamping support mount. Porsche 970 Panamera
97042103151EPS
Product Information
Product Information
EPS Driveshaft repair clamping support mount.

eps

Fits:
Porsche 970 Panamera / S 2010-14
Porsche 970 Panamera 4 /4S 2010-14
Porsche 970 Panamera GTS 2012-14
Porsche 970 Panamera Hybrid 2012-14
Porsche 970 Panamera Turbo / S 2010-14


The innovative Drive Shaft Clamping Center Support (DSCCS) by EPS is the only true Permanent fix to premature bearing support failures. This Patented device was developed by our team of technicians whom over the course of 2 years were able to create what is now the end-all solution to failing Bearing Supports.

The Clamping Center Support is the ONLY device that can be installed without removing the Drive Shaft from the vehicle or without requiring the disassembly of the Drive Shaft. Why is this so important?

  1. By not having to disassemble the Drive Shaft means that NO re-balancing of the shaft is required. All other methods of Bearing Support replacement require this expensive and lengthy procedure. Failure to balance the once disassembled Drive Shaft would result in major vibrations.


  2. Our Clamping Bearing Support installs easily to your Drive Shaft, using basic household tools, in less than an hour. This is a Do-it-Yourself repair that will save you very costly repair bills and unnecessary time down. Should you choose to have a professional install it, the labor times will be much less than Drive Shaft replacement or any other method of repair.
    The cause of the premature Drive Shaft Support failure is a direct result of too much continuous stress imposed upon the rubber in the mount. This is more the product of the Drive Shaft design than the quality of the rubber material in the mount. Unfortunately, by merely replacing the Bearing Support with another similar rubber mount you can expect much of the same results experienced with the factory rubber mount.



There is only One certain and definite fix.
The EPS Drive Shaft Clamping Center Support for the Porsche Cayenne, Volkswagen Touareg & Audi Q7 takes a completely different approach in solving this, all too common, problem. Getting away from the proven failure-prone solid rubber vibration dampener, we instead use multiple, hollow Silicone Pods. This design is much better equipped to withstand the constant compressing and stretching forces generated while in use. The silicone material also does a much better job of handling the heat and atmospheric conditions located under your vehicle. Even better, although we have over Two Years of use on our test vehicle and the DSCCS is still functioning flawlessly, in the rare event that any of the Pods on the DSCCS fail, they are very easily replaced in minutes.

Key Benefits :
• Permanently repairs the notorious bearing support
• DIY installation - typically in under one hour using household tools
• No need to remove or disassemble your current Drive Shaft
• No need to re-balance your Drive Shaft
• No need to send in your faulty Drive Shaft
• No core charges
• Lightweight - Spend less on shipping
• Will pay for itself in labor & shipping costs
• Save money & downtime

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97042103151EPS
97042101104
97042101102
97042101133
97042101132
97042101154
97042101153
7L0521102M
97042101152

The product you are viewing cross references to these numbers
Front stub shaft. Porsche 970 Panamera / 971 Panamera - 298407313, 97034123100
3
Front stub shaft. Porsche 970 Panamera / 971 Panamera
Special Order item
298407313
Product Information
Product Information
Front stub shaft.

porsche

Fits:
Porsche 970 Panamera 2 / 2S 2010-16 (I1X2)
Porsche 971 Panamera 2 / 2S 2017>> (I1X2 / I0J2 / I0J3)

I1X2 - Rear-wheel drive
I0J2 - Load group 1 FA/1 RA
I0J3 - Load group 1 FA/2 RA

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

298407313
298407313
97034123100

The product you are viewing cross references to these numbers
Front stub protective ring. Porsche 970 Panamera / 971 Panamera - 298407475, 97034123501
3
Front stub protective ring. Porsche 970 Panamera / 971 Panamera
Special Order item
298407475
Product Information
Product Information
Front stub protective ring.

porsche

Fits:
Porsche 970 Panamera 2 / 2S 2010-16 (I1X2)
Porsche 971 Panamera 2 / 2S 2017>> (I1X2 / I0J2 / I0J3)

I1X2 - Rear-wheel drive
I0J2 - Load group 1 FA/1 RA
I0J3 - Load group 1 FA/2 RA

Click 'Zoom in' for large parts diagram.
Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

298407475
298407475
97034123501

The product you are viewing cross references to these numbers
