Power Steering Return Line, LHD. Porsche 986 Boxster / 996 2002-05  ❭  99634744911

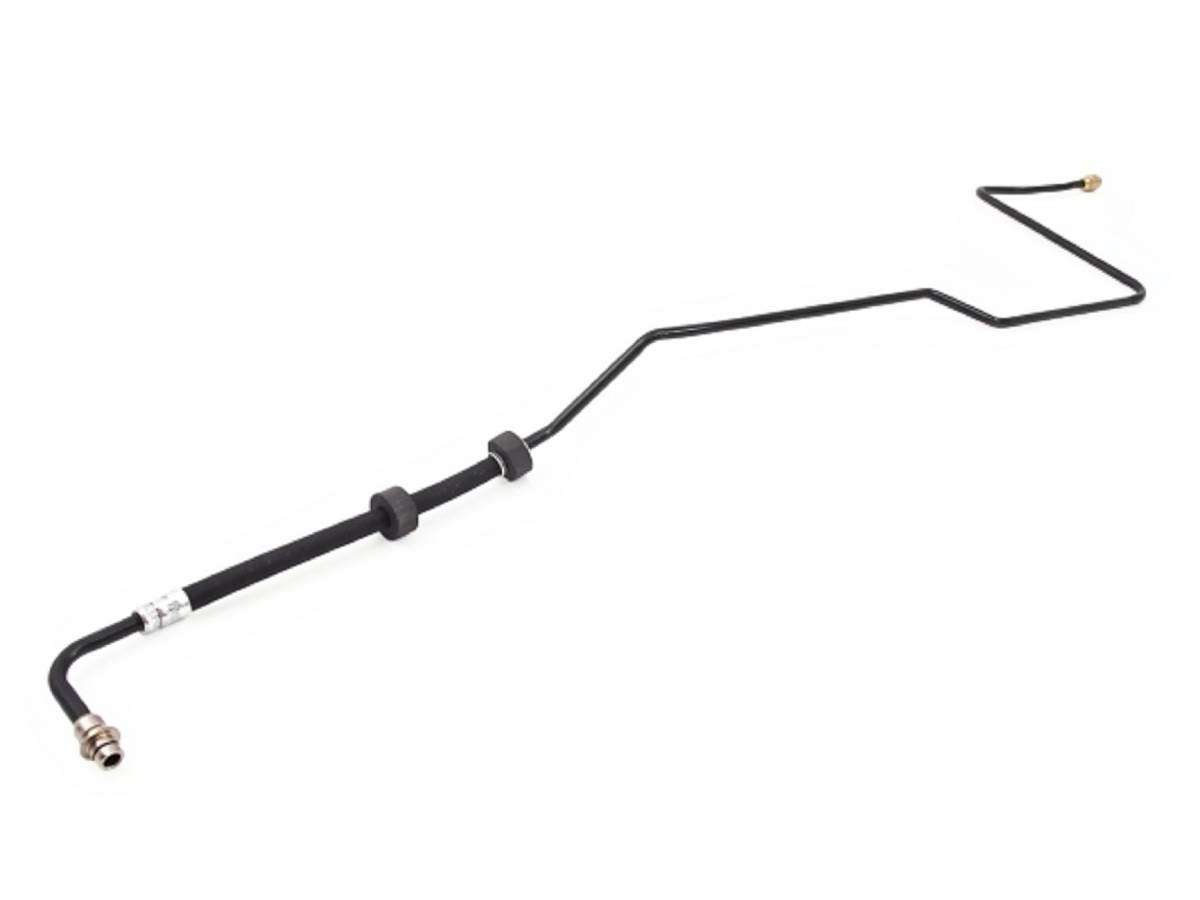

Power Steering Return Line, LHD.
The Genuine Porsche Power Steering Return Line 99634744911 is a replacement hydraulic line for the power-assisted steering system on compatible left-hand-drive (LHD) Porsche vehicles.

Fits:

• Porsche Boxster 986 2.7L 2002
• Porsche Boxster S 986 3.2L 2002
• Porsche Boxster 986 2.7L 2003-04
• Porsche Boxster S 986 3.2L 2003-04
• Porsche 996 C2 3.6L 02-2005
• Porsche 996 C4 3.6L 09/01-2005
• Porsche 996 C4S 3.6L 02-2005
• Porsche 996 GT2 2002-05
• Porsche 996 GT3 MKI 2002
• Porsche 996 GT3 MKII 2003>>

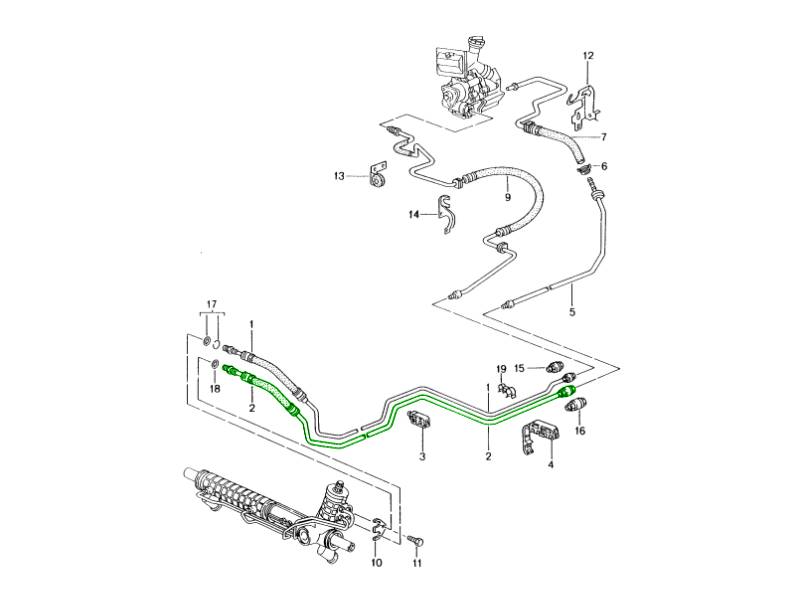

Diagram Ref No 2

The return line carries power steering fluid back through the hydraulic system after it has assisted steering operation. Maintaining a sealed and unrestricted return path is essential for correct fluid circulation, consistent steering assistance and protection of the power steering pump and associated components.

As a Genuine Porsche component, this line is manufactured for the intended factory installation and is suitable for replacing an original return line that has become cracked, leaking, corroded or otherwise damaged.

What This Product Does:
A hydraulic power steering system uses pressurised fluid to reduce the amount of effort required to turn the steering wheel.

The power steering pump circulates hydraulic fluid through the system. After the fluid has performed its steering-assistance function, it must return through the system so that it can be recirculated.

The power steering return line provides this return path.

Its functions include:

• Returning hydraulic fluid through the power steering system
• Maintaining continuous power steering fluid circulation
• Helping maintain correct hydraulic system operation
• Preventing fluid from escaping from the system
• Supporting consistent steering assistance
• Helping protect the power steering pump from low-fluid operation

Although the return side generally operates at lower pressure than the main pressure supply line, it must still remain properly sealed and free from restrictions.

Symptoms Of Wear Or Failure:
Power steering lines are exposed to heat, vibration, hydraulic fluid, road contamination and ageing.

Over time, deterioration can result in leaks or restricted fluid flow.

Common symptoms include:

• Power steering fluid underneath the vehicle
• Visible fluid around the return line
• Damp or oily hose connections
• Falling power steering fluid level
• Frequent need to top up the reservoir
• Heavier steering effortIntermittent power steering assistance

• Whining or groaning from the power steering pump
• Foaming or aeration in the fluid reservoir
• Burning smell if fluid reaches hot components
• Visible cracking or deterioration of flexible hose sections
• Corrosion on metal sections or fittings
• Damaged or loose connections

Any unexplained loss of power steering fluid should be investigated promptly.

Why Replacement Matters:
The return line is essential for maintaining a sealed and correctly circulating hydraulic power steering system.

Replacing a damaged or leaking line helps:

• Stop power steering fluid loss
• Restore correct hydraulic fluid circulation
• Maintain consistent steering assistance
• Reduce the risk of air entering the system
• Protect the power steering pump
• Prevent fluid contamination of surrounding components
• Restore the reliability of the steering system

Because steering is a safety-critical vehicle system, known hydraulic leaks or damaged lines should be repaired promptly.
