Precision fuel rail and regulator kit. Porsche 964 / 993

Precision fuel rail and regulator kit.



Fits:
Porsche 964 - 1989 to 1994
Porsche 993 - 1994 to 1997

Available with or without a Honeywell Fuel Pressure Sensor

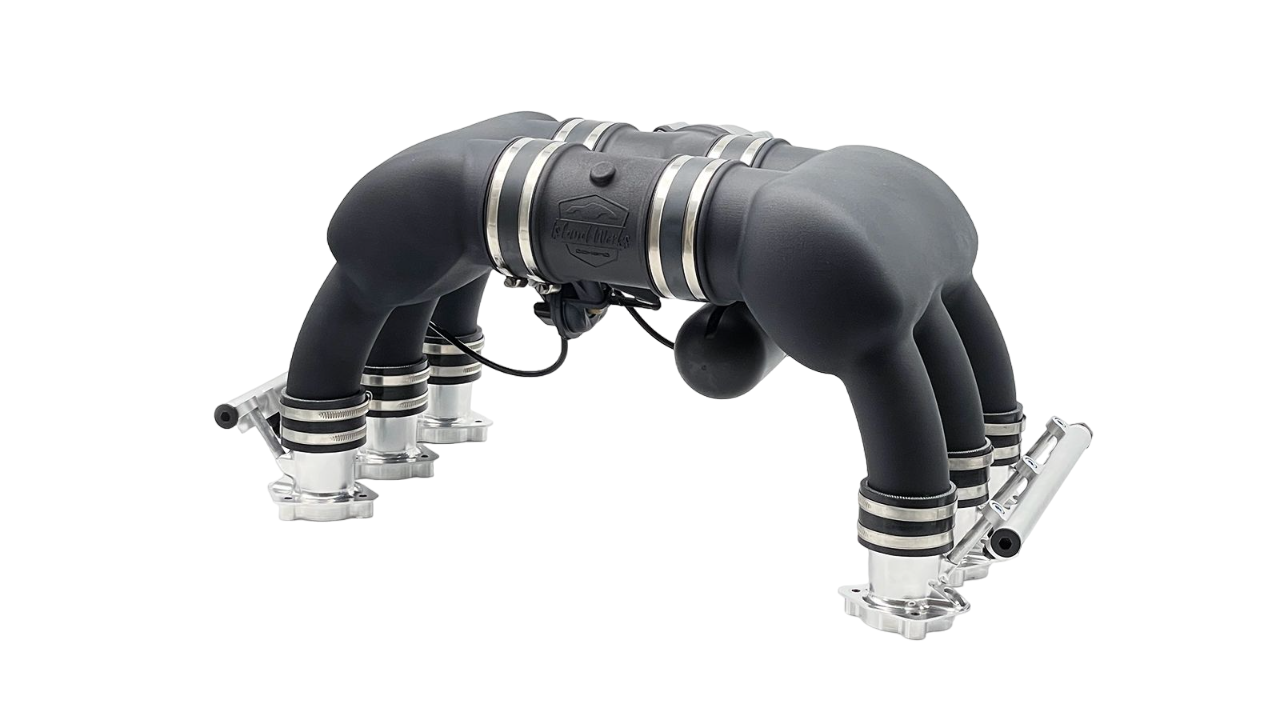

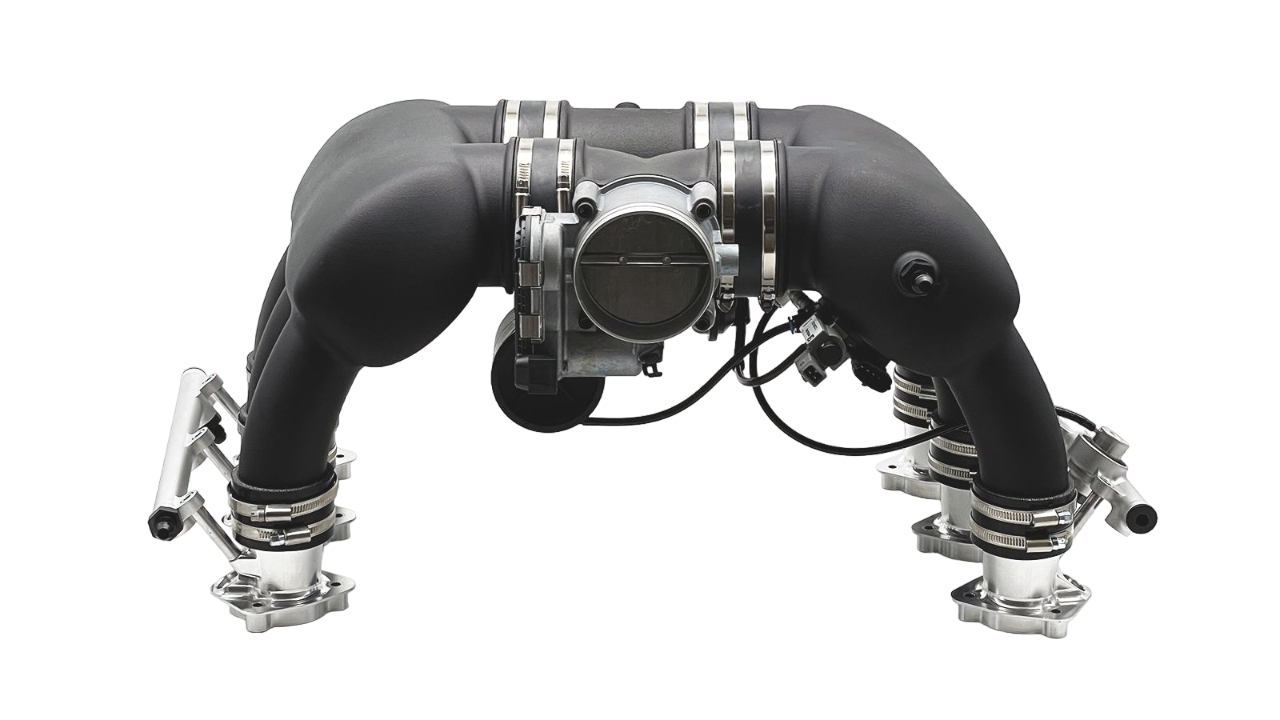

This versatile fuel rail & regulator are designed for individual use with a standard intake or as part of the IslandWorks intake, ensuring optimal fuel delivery for enhanced engine performance.

The rails are CNC machined in a 5-axis machine with meticulous precision and care. The result is a set of aluminum rails with minimalistic touch to it. To make it more interesting a fuel pressure regulator is integrated into the left rail with all inlets and outlets under the rails between the plenum legs to give your engine a clean appearance.

Key Features:

• Integrated fuel pressure regulator 3.8 Bar: The secondary rail accommodates direct attachment of the fuel pressure regulator, aiding efficient fuel return to the tank. The outlet is under the rail with a AN6 connector.
• Fuel Pressure Sensor Compatibility: The option to include a fuel pressure sensor, positioned at the end of the left rail, allows for precise connection to the ECU, enhancing injection precision.
• Included connectors and included hose: Inlet on front side of right rail AN6, interconnecting hose (included) AN6 hose and outlet from regulator AN6.

Included in the Kit:

• Rail Mounts: Integrated into the rail compatible with Islandworks billet intake runners or original Porsche plastic runners. Note: Both are based on EV14L injectors.
• Optional Honeywell Fuel Pressure Sensor: For enhanced monitoring and precision.

Please note:
This kit is designed for EV14L injectors or any other injectors compatible with the Porsche 964 original fuel rails.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

96411030700

The product you are viewing cross references to these numbers
