Rear Axle Control Arm & Track Rod Locking Set. Porsche 996 / 997 - 9Products  ❭  9P-0396

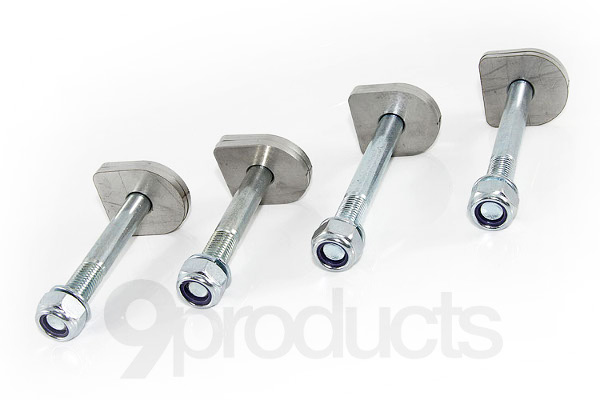

Rear Toe Link Locking Plate Kit.
SET OF 2

Fits:
Porsche 996 C2, C4, C4S, Turbo, GT2, GT3
Porsche 997 C2, C2S, C4, C4S, Turbo, GT2, GT3
Porsche 986 Boxster / Boxster S
Porsche 987 Boxster / Boxster S
Porsche 987 Cayman / Cayman S
Porsche 981 Boxster / Boxster S
Porsche 981 Cayman / Cayman S / Cayman GT4
Porsche 991 C2, C2S, C4, C4S, Turbo, GT2, GT3
Porsche 982 (718) Boxster / Boxster S
Porsche 982 (718) Cayman / Cayman S

The optional RSS Locking Plate Kit is designed for use with RSS Adjustable Rear Toe/Bump Steer Kit (Part# 312).

This kit replaces the factory eccentric bolt which can come loose under racing and/or aggressive driving conditions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

333

The product you are viewing cross references to these numbers

RSS Rear adjustable toe/bump steer link REAR
SET OF 2

Replacement for 98133104501, 98133104502



Fits:
Porsche 981 Boxster / Boxster S
Porsche 981 Cayman / Cayman S

The RSS Adjustable Rear Toe Steer Kit is designed for Porsche models that have been lowered. This kit will help minimize the suspension geometry change in the REAR of the vehicle. Allows for toe adjustment at the toe steer arm giving the ability to make adjustments independent of the factory eccentric bolts which may not offer sufficient adjustment. Allows for bump steer adjustment. Greatly improves handling and feedback. Eliminates rubber bushing deflection. For off road use only.

The links are sold as a pair for the rear of the car.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

301

The product you are viewing cross references to these numbers

RSS XL TARMAC SERIES XL 2-PIECE COMPLETE LOWER CONTROL ARM KIT - Rear Axle (Pair of 2).



RSS Tarmac Series Motorsport Lower Control Arms are specifically engineered for use on lowered vehicles that have reduced travel struts/dampers such as PASM or M030 option. Alternatively if the car is equipped with high quality aftermarket or motorsport coilover kits ie Bilstein PSS10, KW V3 or Ohlins etc.

The Lower Control Arms are NOT COMPATIBLE with "Base Model Suspension" (long travel struts/dampers) or "Base Model struts/dampers with lowering springs."
Caution: Do not install on vehicles with Base Model struts/dampers as it may result in an unsafe driving condition with possibility of suspension bind when struts/dampers are fully extended or in full drop.

Fits:
FOR REAR AXLE PORSCHE 986, 996, 997, 987, 981/982/718

Includes:
- Adjustable/Non-Hydraulic Replacement Thrust Arm Bushings,
- 1mm/2mm/3mm/7mm Shims,
- Spherical Monoball Ends.
*** Note: 981 and 991 Models may require additional Front Litronic or Torque Vector Sensor Brackets.

RSS Tarmac Series Motorsport Lower Control Arms are specifically engineered for use on lowered vehicles that have reduced travel struts/dampers If you need assistance in identifying your suspension type please contact us. For specific fitment information refer to the "Chassis Fitment Guide and Lower Control Arm Fitment Notes" (See Images Below).

The RSS Tarmac Series – Motorsports Control Arms are designed for the Porsche driver who demands the absolute maximum in precision handling, feedback and control from their chassis. This system has been specially engineered to provide unmatched performance, quality, strength and serviceability. RSS Tarmac Series Control Arms address the performance related shortcomings of the OEM rubber mounted suspension components which were designed to reduce road noise and vibration for everyday street use. The use of rubber injected moldings in mounting components such as the control arms, thrust arms, upper links and toe arms is a compromise in regards to maximum suspension performance. The soft rubber deflects under suspension load which in turn causes unwanted movement (deflection) between the suspension and chassis. Data also shows that temporary changes in spring rates can occur as well. These movements and changes result in unnecessary corrections and inputs from the driver.

FEATURES & BENEFITS:
• Replaceable Sub-Assemblies: For the extreme, repetitive track day enthusiast or racer, our high strength
steel alloy spherical bearings (with a friction reducing, longevity increasing Teflon liner) outer and inner arm sub-assemblies can be replaced
unlike the motorsports arms, in which case a new set of arms will need to be purchased if the
spherical bearings are worn out.
• Adjustable Suspension Geometry: Adjust dynamic camber values and roll center heights with our
unique zinc plated steel bushings.
• Solid Monoball Control Arm Ends: Offers better handling and a more responsive suspension over the
factory one-piece rubber injected control arm by eliminating bushing deflection (also uses the same
high strength steel alloy spherical bearing found in our control arm monoball kit).
• 6061 Aerospace Grade Billet Aluminum Construction: Allows for a more uniform molecular structure
at every point of the arm over the cast components providing a more durable and inherently
stronger part. Manufacturing from billet aluminum rather than casting results in fewer impurities in
the metal.
• Anodized Aluminum Surfaces and Zinc Plated Steel Parts: Allows for better corrosion resistance
against the elements.

AVAILABLE FOR MOST PORSCHE 996, 986, 981, 982, 987 & 997 MODELS INCLUDING TURBO, GT2, GT2RS, GT3 & GT3RS.

RSS TARMAC SERIES Motorsports Suspension Kits have been winning championships and races in various forms of motorsport (Road Racing to Rally) around the world. RSS is the suspension of choice of professional race teams, tuners, track day junkies, and driving enthusiasts around the world.
- 2015 PIRELLI WORLD CHALLENGE TC CHAMPIONS
- 2014 FIA SPANISH RALLY TARMAC CHAMPIONS
- 2013 ROLEX GRAND-AM GX CHAMPIONS

RSS High Performance Tarmac Series Suspension Components are designed, engineered and manufactured on location here in the USA.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

374

The product you are viewing cross references to these numbers
