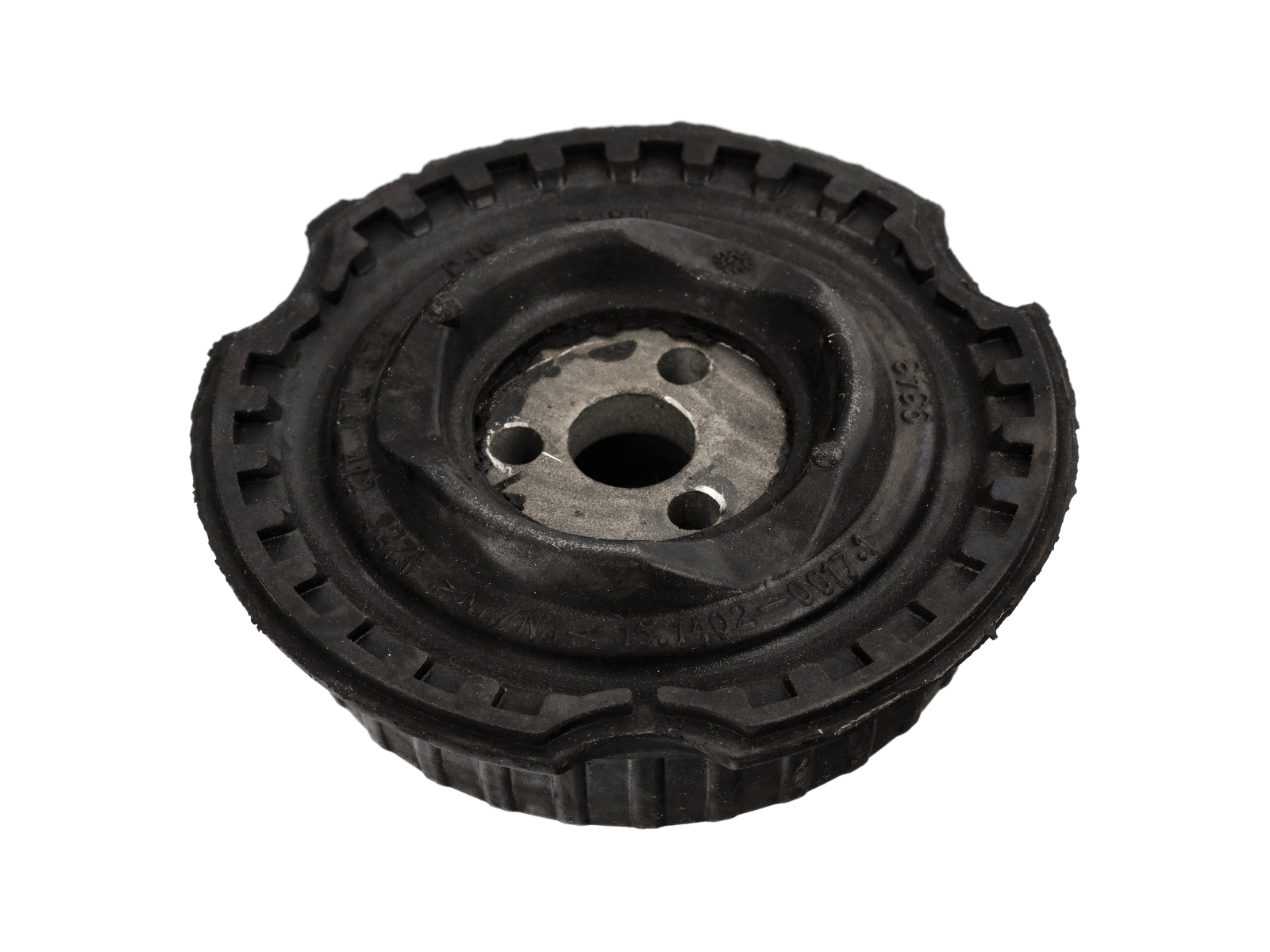

Shock absorber mounting, Front or Rear. Porsche 955 Cayenne / 957 Cayenne › 95534301810

The OE Match shock absorber mounting supports the damper attachment, it is suitable for front or rear mounting positions.

Fits
For cars with (I1BK) Air suspension with levelling system and height adjustment (PASM)

• Porsche 955 Cayenne 2003–06
• Porsche 957 Cayenne 2007–10

  Check fitment for your specific vehicle (model, year, engine) before ordering.

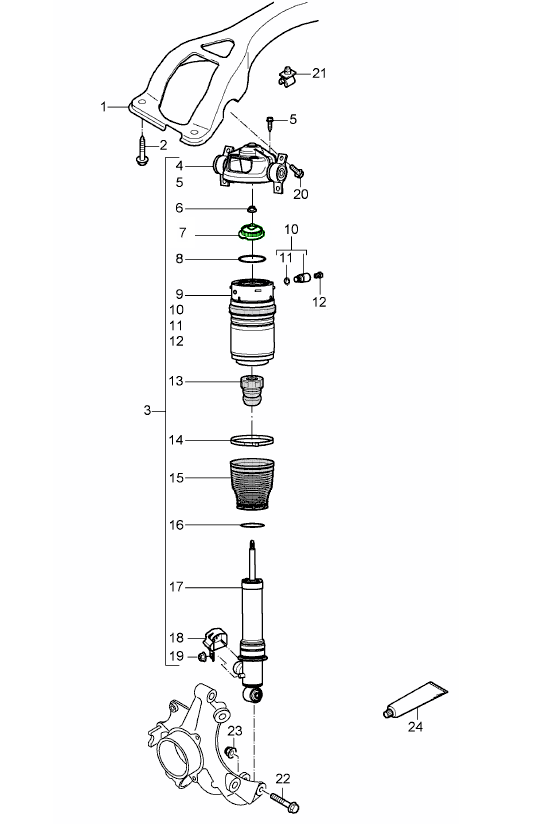

  Diagram ref no 5 (front) or 7 (rear)

  Required Quantity

Two mounts are required for each applicable front or rear axle assembly.

What Is This Part?

This is a supporting mount within the shock absorber attachment assembly. It works with the associated mounting bracket and fixings to keep the damper correctly seated and supported. The mount is a separate service component, so its condition should be checked when investigating suspension noise or removing a strut. Correct selection depends on the vehicle’s suspension equipment as well as its model and year.

What Does This Part Do?

• Supports the damper attachment: Provides support at the shock absorber mounting point.
• Maintains seating: Helps locate the damper correctly within its mounting assembly.
• Works with the fixing hardware: Forms part of the attachment together with the bracket, bolts and nuts.
• Controls unwanted movement: A sound mount helps prevent looseness at the damper attachment.

  Why Replace This Part?

A worn or damaged mount may no longer support the damper correctly and can contribute to knocking or movement at the attachment. Replacement is appropriate when inspection confirms deterioration, damage or poor seating, rather than simply because the vehicle has developed a suspension noise.

When a damper is removed, check the mount, bracket and fixing hardware together. Reusing a visibly damaged mount can leave an existing attachment problem unresolved even after the damper itself has been renewed.

When to Replace This Part?

• Visible deterioration: Cracking, separation, distortion or other damage found during inspection.
• Poor seating: The mount no longer sits correctly against the adjoining components.
• Confirmed mounting play: Movement traced to the mount after checking the fixings and surrounding assembly.
• Knocking over bumps: Investigate the mount alongside suspension bushes, joints and other possible sources.
• During strut removal: Replace if inspection reveals wear or damage; removal alone does not make replacement mandatory.

  Where Is This Part Fitted?

Location: At the shock absorber support mounting within the applicable front or rear suspension strut assembly, where it works with the mounting bracket and associated fixings.

Product Summary

• Product: Shock absorber supporting mount.
• Brand: OE Match.
• Part number: 95534301810.
• Position: Applicable front or rear damper mounting.
• Suspension equipment: Air suspension with levelling and height adjustment, PASM.
• Purpose: Supports and locates the damper attachment.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95534301810

The product you are viewing cross references to these numbers
