Steering Rack Ball Joint End, Front. Porsche 970 Panamera 2009-16 › 97034713

The OE Match steering rack ball joint end is an outer track rod end for the Porsche 970 Panamera. It connects the front steering linkage to the wheel-side steering arm, transmitting steering movement while allowing the joint to pivot.

Fits

• Porsche 970.1 Panamera 2009–2013
• Porsche 970.2 Panamera 2014-2016

  Left- and right-hand versions have different references: 97034713101 is left; 97034713201 is right. Select the reference for the required side. Check fitment for your specific vehicle (model, year, engine) before ordering.

  Diagram ref no 7 (LEFT) and 8 (RIGHT).

  What Is This Part?

This component is the ball-jointed outer end of the front track rod, also called a tie rod. It forms the final connection between the steering linkage and the steering arm on the wheel carrier. Its joint allows angular movement as the wheel steers and the suspension moves, while maintaining the mechanical connection to the steering rack. It is relevant when repairing confirmed wear or damage in this outer connection.

What Does This Part Do?

• Transfers steering movement: Carries movement from the track rod to the wheel-side steering arm.
• Allows articulation: Provides a pivoting connection as steering and suspension positions change.
• Completes the steering linkage: Joins the outer end of the track rod to the wheel carrier.
• Supports alignment control: A sound joint avoids unwanted looseness at this connection that can affect wheel alignment.

  Why Replace This Part?

Wear within the ball joint can introduce clearance between its moving surfaces. This may contribute to vague steering, knocking or inconsistent wheel alignment. Damage to the protective boot can allow dirt and moisture into the joint, encouraging further wear. Replacement is appropriate when inspection confirms excessive play, damage or deterioration that prevents the joint from functioning correctly.
Inspect the adjoining track rod, inner joint and mounting connection at the same time, rather than assuming every steering symptom comes from the outer end. Wheel alignment should be checked and adjusted after replacement; matching the previous adjustment is not a substitute for an alignment check.

When to Replace This Part?

• Confirmed joint play: Inspection identifies excessive clearance at the outer track rod end.
• Damaged protective boot: Splitting or deterioration warrants assessment of the joint for contamination and wear.
• Knocking or grinding: Noise during steering warrants inspection of this joint and the surrounding steering components.
• Loose steering or wandering: Investigate the complete steering and suspension assembly before choosing replacement parts.
• Uneven front tyre wear: Check joint condition alongside tyre pressures, suspension condition and wheel alignment.

  Where Is This Part Fitted?

Location: At the outer end of the front steering track rod, next to the wheel carrier. The ball joint connects the track rod to the steering arm, with a separate version for each side.

Technical Details

• Component: Outer steering track rod ball joint end.

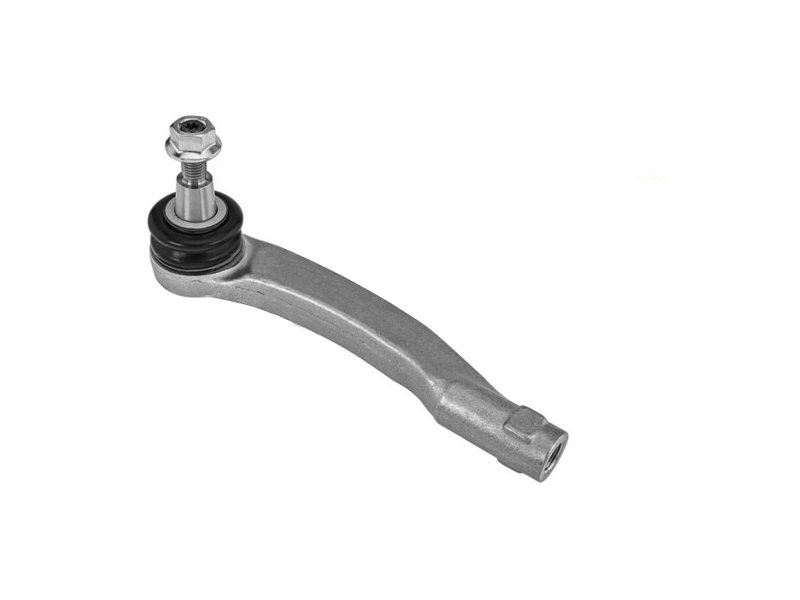

• Left-hand reference: 97034713101.

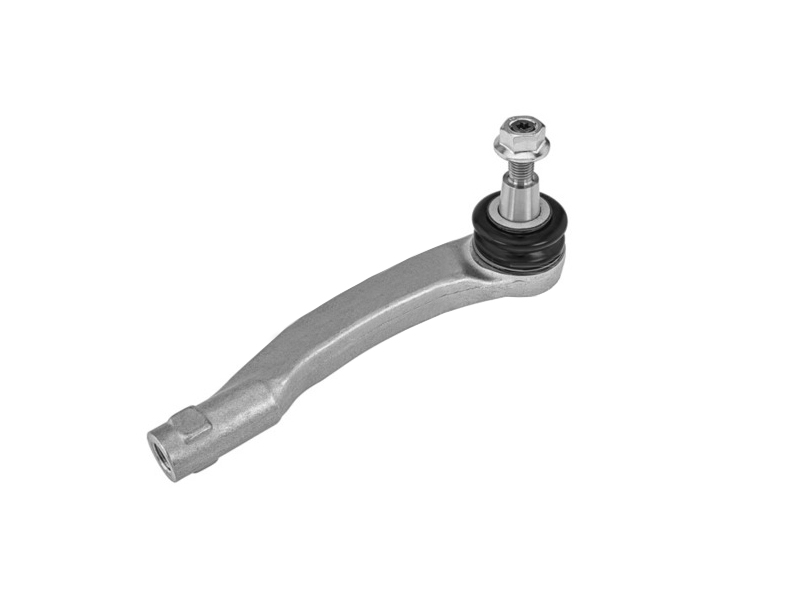

• Right-hand reference: 97034713201.

  FAQs

• Do I need wheel alignment after replacement?
  Yes. Have the alignment checked and adjusted after replacing a track rod end.
• Should both sides be replaced?
  Inspect both sides. Replace joints according to their condition rather than assuming the opposite side is worn.
• Can suspension wear cause similar symptoms?
  Yes. Worn bushes and other steering or suspension joints can also cause knocking, wandering or vague steering, so diagnosis matters before ordering.

  Product Summary

• Product: Front outer steering rack ball joint end.
• Brand: OE Match.
