Porsche

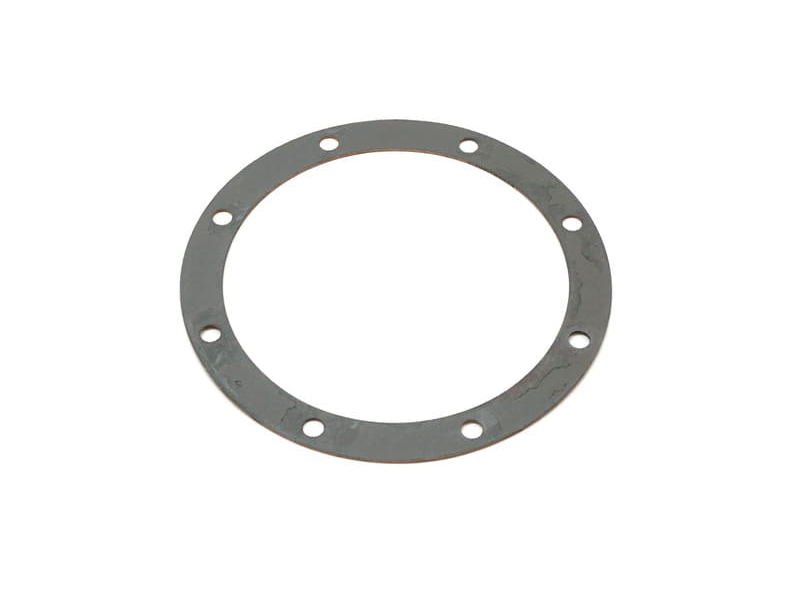

This Porsche Genuine OE Sump Gasket is an original factory oil strainer / sump plate sealing gasket designed for a wide range of classic air-cooled Porsche engines. This gasket fits between the engine sump plate (oil strainer cover) and the engine crankcase, creating a leak-free seal within the engine lubrication system. It is commonly referred to as an oil strainer gasket, sump plate gasket, or oil sump gasket.
Sold each, 2 gaskets required per engine.
Fits:
Porsche 911 1965 - 1989
Porsche 930 Turbo 1975 - 1989
Porsche 964 1989 - 1994
Porsche 993 1994 - 1998
Porsche 914 1970 - 1976

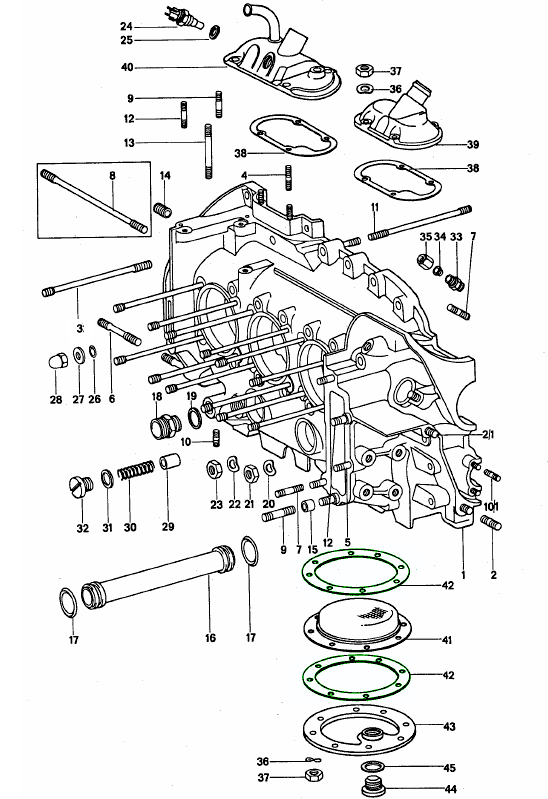

Diagram ref no 42.
Cross Reference / Superseded Numbers: 90110139100 / 93010139100 / 93010139101
The sump gasket seals the joint between the engine sump plate and crankcase, preventing engine oil leaks while maintaining proper oil circulation and pressure. It is used during servicing of the oil strainer and sump plate assembly, ensuring a reliable seal after removal or maintenance.
Functions & Technical Role
• Oil sealing: Prevents leaks around the sump plate and oil strainer
• Pressure retention: Helps maintain correct lubrication system integrity
• Service component: Replaced whenever the sump plate is removed
• Engine protection: Supports proper oil containment and circulation
• OEM specification: Manufactured to Porsche factory dimensions and material standards
Fitment / Position on car
• Fitting position: Engine lubrication system
• Location: Between the oil sump plate / oil strainer cover and engine case
• System: Engine oil circulation and filtration
Over time, sump gaskets can become:
• Compressed or brittle
• Damaged during removal
• Unable to seal properly after reuse
A failing gasket can lead to:
• Engine oil leaks
• Reduced oil retention
• Contamination around the sump plate area
Replacing with a genuine Porsche OE gasket ensures proper sealing and helps protect the engine lubrication system.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93010139101
The product you are viewing cross references to these numbers
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 914 (1970-1976)
