OE Match

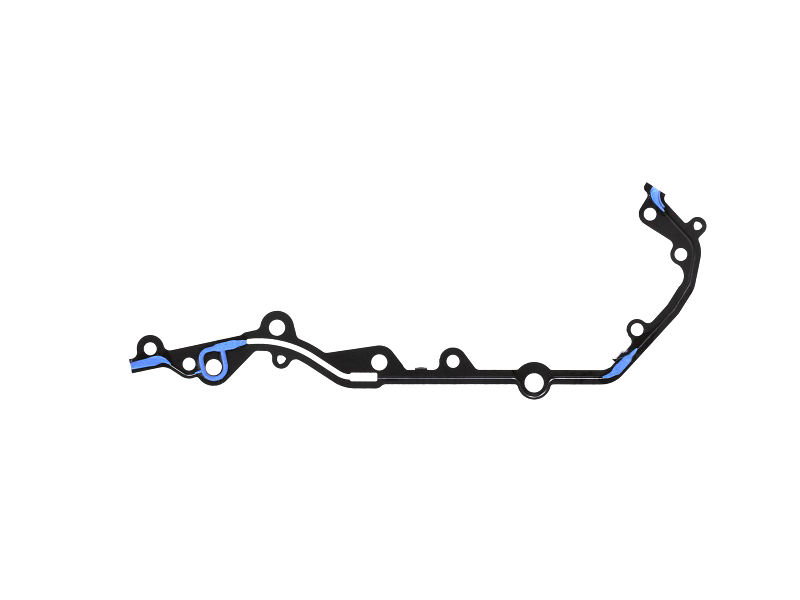

The OE Match right timing chain cover gasket seals the cover joint on Porsche 955 Cayenne S and Turbo 4.5L engines. It is a replacement sealing component for a confirmed gasket leak or for resealing during timing cover removal and refitting.
Fits
- Porsche 955 Cayenne S V8 4.5L 2003–06
- Porsche 955 Cayenne Turbo 4.5L 2003–06
Check fitment for your specific vehicle (model, year, engine) before ordering.

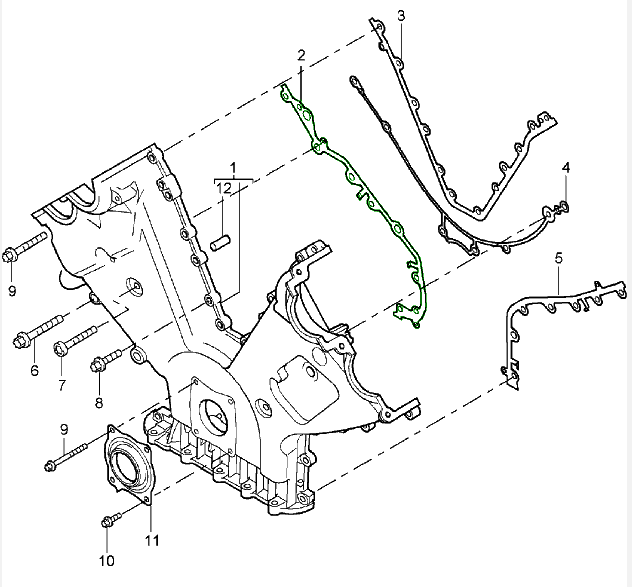

Diagram ref no 2
Required Quantity
1 right timing chain cover gasket per engine.
What Is This Part?
This gasket forms the seal at the right-hand timing chain cover joint. The cover encloses the timing chain assembly, while the gasket closes the joint between the mating surfaces to help contain engine oil. It works alongside the other seals and fixings used in the timing cover assembly. When planning a repair, identify the leaking joint carefully, as oil from an adjoining seal can spread across the cover and make the source difficult to distinguish.
What Does This Part Do?
- Seals the cover joint: Closes the mating interface at the right-hand timing chain cover position.
- Helps contain engine oil: Limits oil seepage through this joint when correctly installed against sound sealing surfaces.
- Completes the sealing arrangement: Works with the surrounding cover seals to close the timing housing.
- Supports reassembly: Provides a replacement sealing interface when the relevant cover joint is opened for repair.
Why Replace This Part?
Repeated heating and cooling, ageing or damage during earlier installation can leave a gasket unable to seal consistently. If inspection confirms oil is escaping through this right-hand cover joint, replacing the gasket is part of addressing that leak. A gasket disturbed during dismantling should also be assessed for renewal rather than assumed suitable for reuse.
The cover and its mating surfaces need checking at the same time. Damage, distortion, contamination or an incorrectly seated gasket can allow leakage to return even after a new seal is fitted. Follow the engine-specific fitting procedure, including its requirements for surface preparation, sealant where specified and fastener tightening.
When to Replace This Part?
- Confirmed joint leakage: Fresh oil returns at the right-hand cover joint after the area has been cleaned and inspected.
- Visible deterioration: The removed gasket is cracked, split, distorted or otherwise damaged.
- Poor seating: Inspection shows the gasket has been trapped, displaced or incorrectly positioned.
- Cover removal: Review gasket renewal when opening this joint for timing-system work or engine repairs.
- Recurring seepage: Inspect the gasket, cover condition and adjoining seals if an earlier repair has not stopped the leak.
Where Is This Part Fitted?
Location: At the right-hand timing chain cover joint on the engine, between the cover and its mating surface.
Product Summary
- Product: Right timing chain cover gasket.
- Brand: OE Match.
- Purpose: Seals the cover joint to help contain engine oil.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810113007
The product you are viewing cross references to these numbers
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
Shop Securely
12 Month Warranty
Worldwide Delivery
Fits:
Porsche 958 Cayenne Hybrid 2011>>
Porsche 970 Panamera Hybrid 2012>>
Click 'Zoom in' for large parts diagram.
Diagram ref no 4 (Cyl 1-3).
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95810523201
The product you are viewing cross references to these numbers
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
Shop Securely
12 Month Warranty
Worldwide Delivery
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery
OE Match cylinder head gasket, It seals the joint between the cylinder head and engine block during cylinder-head repair or engine rebuilding.
Fits
- Porsche 958 Cayenne HYBRID 3.0L 2011-18
- Porsche 970 Panamera HYBRID 3.0L 2010-16
Diagram ref no 25
Check fitment for your specific vehicle (model, year, engine) before ordering.
What Is This Part?
The cylinder head gasket is the sealing component clamped between the cylinder head and the engine block. It seals around the combustion chambers and the oil and coolant passages crossing this joint. These areas must remain sealed from one another despite combustion pressure and changes in engine temperature. Correct sealing depends on the condition of the mating surfaces and the specified cylinder-head tightening procedure, as well as the gasket itself.
What Does This Part Do?
- Seals combustion pressure: Closes the head-to-block joint around the cylinders.
- Contains coolant: Seals the coolant passages where they cross between the block and cylinder head.
- Contains engine oil: Seals the oil passages at the cylinder-head joint.
- Separates fluids and combustion gases: Helps prevent leakage between adjoining passages and combustion chambers.
These are the principal sealing duties of a cylinder head gasket.
Why Replace This Part?
Replacement is appropriate when inspection confirms leakage or damage at the cylinder-head joint, or when the head is removed for repair. Overheating, distorted mating surfaces or insufficient clamping force can compromise the seal. Fitting another gasket without correcting the underlying problem can leave the replacement exposed to the same conditions.
During repair, the cylinder head and block sealing surfaces should be checked for damage and flatness. Follow the engine-specific requirements for surface preparation, fasteners and tightening, and investigate any cooling-system fault associated with previous overheating.
When to Replace This Part?
- Confirmed joint leakage: Oil or coolant leakage has been traced to the cylinder-head gasket rather than a nearby seal or connection.
- Evidence of combustion leakage: Inspection reveals a damaged sealing area or tracks where combustion gases have escaped.
- Overheating damage: Inspection after overheating confirms gasket deterioration or distorted sealing surfaces requiring repair.
- Damage during dismantling: The removed gasket has damaged sealing areas and is unsuitable for refitting.
Coolant loss or overheating alone does not establish that the gasket has failed; the cooling system and sealing joint need diagnosis.
Where Is This Part Fitted?
Location: Between the cylinder head and engine block of the 3.0L V6 petrol engine. Access requires cylinder-head removal; it is not an externally fitted cover seal.
Technical Details
- Cayenne application identifiers: 06EC, CGEA, CGE, CGFA and CJT.
- Panamera application identifiers: CGEA, CGE and CGFA.
Product Summary
- Product: Cylinder head gasket.
- Brand: OE Match.
- Purpose: Seals combustion chambers, oil passages and coolant passages at the cylinder-head joint.
- Repair context: Cylinder-head sealing repairs and engine rebuilding following inspection.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95810314
The product you are viewing cross references to these numbers
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
Shop Securely
12 Month Warranty
Worldwide Delivery
Fits:
Porsche 958 Cayenne Hybrid 2011>>
Porsche 970 Panamera Hybrid 2012>>
Click 'Zoom in' for large parts diagram.
Diagram ref no 3 (cyl 4-6)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95810523101
The product you are viewing cross references to these numbers
- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
Shop Securely
12 Month Warranty
Worldwide Delivery
