Caliper and Brake Lines

Banjo bolt for brake line.

Fits:
Porsche 356 /A/B 1.1-1.6 01/50-12/63
Porsche 911 Turbo 3.0-3.3 01/75-07/89
Porsche 914 1.7-2.0 01/69-02/76

Note: This bolt supersedes Porsche part number 91435553400 but has a different body diameter (10mm instead of 12mm). If your original bolt has a 12mm body diameter, you'll also need the smaller 10mm banjo fitting and sealing rings, as your existing fittings won't be compatible. Please check before ordering. You'll have the option to add these parts when adding the bolt to your basket.


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99913500202

The product you are viewing cross references to these numbers

Banjo Bolt For Brake Line.

The OE Match Brake Line Banjo Bolt is a replacement hydraulic fitting used to secure a banjo-style brake line connection on selected classic Porsche models.

Fits:

• Porsche 356 /A/B 1.1-1.6 01/50-12/63
• Porsche 911 Turbo 3.0-3.3 01/75-07/89
• Porsche 914 1.7-2.0 01/69-02/76

Note: This bolt supersedes Porsche part number 91435553400 but has a different body diameter (10mm instead of 12mm). If your original bolt has a 12mm body diameter, you'll also need the smaller 10mm banjo fitting and sealing rings, as your existing fittings won't be compatible. Please check before ordering. You'll have the option to add these parts when adding the bolt to your basket.

Diagram Ref No 16

Unlike a conventional solid bolt, a brake banjo bolt incorporates an internal fluid passage. When installed through the brake-line banjo fitting, it both secures the connection mechanically and allows pressurised brake fluid to flow through the joint.

Because the component forms part of the hydraulic braking circuit, its threads, internal passages and sealing surfaces must remain in excellent condition. Corrosion, thread damage, blocked passages or damaged sealing surfaces can result in brake fluid leakage or unreliable hydraulic operation.
What This Product Does:
The banjo bolt performs two important functions within the braking system: it mechanically secures the banjo fitting and provides a passage for hydraulic brake fluid.

It is designed to:

• Secure the brake-line banjo fitting in position.
• Allow pressurised brake fluid to pass through the connection.
• Form part of a sealed hydraulic brake circuit.
• Maintain correct brake-fluid delivery to the connected component.
• Provide a secure connection under repeated braking pressure.
• Replace a corroded, damaged or unreliable original banjo bolt.
• Support correct restoration of the braking system.
• Help maintain leak-free operation when installed with the correct sealing components.

Symptoms Of Wear Or Failure:
A banjo bolt does not normally wear in the same way as a moving mechanical component, but age, corrosion, overtightening or repeated removal can damage it.

Possible signs that replacement is required include:

• Brake fluid seepage around the banjo connection.
• Wetness around the bolt or fitting.
• Falling brake fluid reservoir level.
• Soft or spongy brake pedal.
• Increased brake pedal travel.
• Visible corrosion on the bolt.
• Heavy rust or pitting.
• Damaged or stripped threads.
• Rounded or damaged bolt head.
• Damaged sealing faces.
• Bolt no longer tightening correctly.
• Cross-threading.
• Internal fluid passage becoming blocked by contamination.
• Evidence that the bolt has been overtightened.
• Brake fluid leakage appearing after the connection has been disturbed.

Any brake-fluid leak should be investigated immediately.
Why Replacement Matters:
The banjo bolt forms part of a safety-critical hydraulic circuit.

When the brake pedal is pressed, substantial hydraulic pressure is transmitted through the brake fluid. The banjo connection must remain securely fastened and completely sealed throughout this pressure cycle.

Replacing a damaged bolt helps restore:

• Reliable hydraulic sealing.
• Correct brake-fluid flow.
• Secure brake-line attachment.
• Consistent brake pressure.
• Correct pedal feel.
• Long-term braking-system reliability.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99913500202

The product you are viewing cross references to these numbers

Banjo ring fitting for brake line.
Sold each - 2 required for 356 and 4 required for 911 turbo

Fits:
Porsche 356 - 1950 to 1955
Porsche 356A - 1955 to 1959
Porsche 356B - 1959 to 1963
Porsche 911 turbo 1984 to 1986

This is a great part to get when working with your brake restoration project. This is a new banjo bolt or 'ring fitting' for your Porsche 356, 356A, 356B and 911 turbo. These fit the front lower wheel cylinders on 356 (2 required) and front and rear brake calipers on the 911 turbo (4 requited)

Diagram ref no 17 and fit to 13

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99921502703

The product you are viewing cross references to these numbers

Bridge Pipe Between Front Wheel Cylinders. 2 Req'd.

Fits:
Porsche 356 / 356A / 356B 1950-63

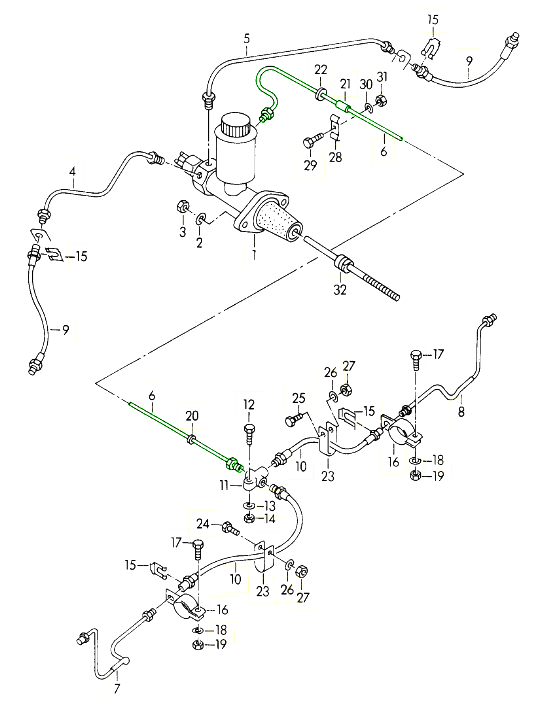

Click 'Zoom in' for large parts diagram.
Diagram ref no 15

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

35642184

The product you are viewing cross references to these numbers

Bracket for Front or Rear Brake Hose/Line. EACH.


Porsche 356/356A 1950-59
Porsche 356B/356C 1960-65

This product supersedes Porsche's old part numbers:
- 91435566500

Click 'Zoom in' for large parts diagram
Diagram ref no 15

Bracket For Front Or Rear Brake Hose/Line. EACH.
The OE Match Bracket for Front or Rear Brake Hose/Line is a premium-quality replacement mounting bracket designed to securely support and correctly position the flexible brake hose and rigid brake line on compatible Porsche models. Manufactured to OE specifications for fit, strength and durability, this bracket ensures the brake lines remain securely located, preventing unwanted movement, abrasion and stress during suspension and steering operation.

Fits:

• Porsche 356 1950-55
• Porsche 356A 1955-59
• Porsche 356B 1959-63
• Porsche 356C 1963

Diagram Ref No 15

Manufactured from high-quality pressed steel with a durable corrosion-resistant finish, the bracket is engineered to withstand constant vibration, road debris, moisture and temperature changes. Precision-manufactured for direct OE-style installation, it provides accurate positioning of the brake hose and line, helping to maintain the integrity and reliability of the hydraulic braking system. Supplied individually (each), it is suitable for front or rear applications where specified.

What This Product Does:

• Secures the brake hose and brake line in the correct position.
• Prevents excessive movement of hydraulic brake components.
• Reduces stress on flexible brake hoses.
• Helps prevent chafing and abrasion of brake lines.
• Maintains correct routing of the brake system.
• Supports reliable hydraulic brake operation.
• Restores factory-style mounting and fitment.
• Forms an essential part of the vehicle's braking system.

Symptoms Of Wear Or Failure:

• Loose or unsupported brake hoses.
• Excessive movement of brake lines.
• Damaged or corroded mounting bracket.
• Brake hose rubbing against suspension or body components.
• Bent or distorted bracket.
• Missing retaining bracket or fixing.
• Premature wear of flexible brake hoses.
• Rattling noises from unsecured brake lines.
• Visible corrosion around the mounting area.
• MOT or vehicle inspection failure due to insecure brake line mounting.

Why Replacement Matters:

• Brake hose and line brackets are continually exposed to vibration, moisture, road salt and debris. Over time, corrosion, accidental damage or fatigue can weaken the bracket, allowing the brake hose or line to move excessively or become incorrectly routed.
• A damaged or missing bracket can place unnecessary strain on the brake hose, increasing the risk of abrasion, premature wear or hydraulic failure. Unsecured brake lines may also contact suspension or steering components, potentially leading to expensive repairs and compromising braking safety.
• Replacing a worn or damaged brake hose/line bracket restores the correct routing and secure mounting of the brake system. The OE Match replacement provides factory-style fitment, high-strength corrosion-resistant construction and long-lasting durability, helping maintain the safety, reliability and performance expected from your Porsche.

Brake Line Clip flexi to hard line.
Sold each - 2 required per car

Fits:
Porsche 356 - 1950 to 1955
Porsche 356A - 1955 to 1559
Porsche 356B - 1959 to 1963
Porsche 356C - 1960 to 1965

Clamps around the half-shaft tube for brake flexi hose to hardline connection
Finished in stove enamelled gloss black

Diagram ref no 16



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

64435165101

The product you are viewing cross references to these numbers

Porsche Classic has now reissued the clip used to fasten the brake line to the rear axle.


Porsche 356 / 356A 1950-59
Porsche 356B / 356C 1960-65

Click 'Zoom in' for large parts diagram.
Diagram ref no 16

Price shown is for each.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

64435165101

The product you are viewing cross references to these numbers

Brake Line 3-way distribution piece..

Fits:
Porsche 356 1950-65
Porsche 911 1965-89
Porsche 924S 1986-88
Porsche 928 1978-95
Porsche 944 1982-91
Porsche 964 1989-94
Porsche 968 1992-95

Click 'Zoom in' for large parts diagram.
Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435566701

The product you are viewing cross references to these numbers

Brake Line 3-way distribution piece.

Fits:
Porsche 356 1950-65
Porsche 911 1965-89
Porsche 924S 1986-88
Porsche 928 1978-95
Porsche 944 1982-91
Porsche 964 1989-94
Porsche 968 1992-95

Diagram ref no 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435566701

The product you are viewing cross references to these numbers

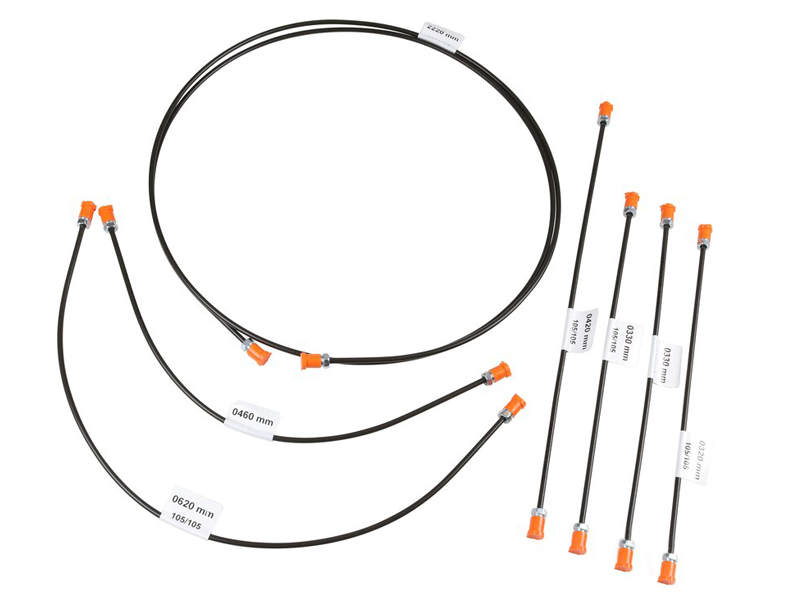

Brake Line Kit 1 Circuit Brake System.

The OE MATCH Brake Line Kit 1661500910 is a seven-piece replacement brake pipe set designed for classic Porsche 356 and 356 A models equipped with a single-circuit hydraulic braking system.
Set Of 7.

NOTE: Needs to be moulded into shape.

Fits:

• Porsche 356 /A 1.1-1.6 01/1950-12/1961 for LHD cars

Manufactured to provide OE-style fitment and functionality, this kit is designed to replace ageing, corroded, damaged or leaking rigid brake lines, helping restore the integrity of the vehicle's hydraulic braking system.

The kit contains seven brake pipes intended for applicable left-hand-drive Porsche 356 vehicles. The pipes are supplied ready for forming and must be carefully bent to match the original routing and installation requirements.

The Porsche 356 braking system operates hydraulically, using brake fluid pressure generated by the master cylinder to activate the wheel brake cylinders.

The rigid brake lines play a critical role in this process by transporting pressurised brake fluid between the master cylinder and the appropriate braking components.

Over time, original metal brake pipes can deteriorate due to corrosion, exposure to moisture and road salt, vibration, repeated heating and cooling, or mechanical damage.

Corroded or weakened brake lines may eventually develop leaks, resulting in hydraulic pressure loss, reduced braking efficiency or complete brake failure.

The OE MATCH Brake Line Kit provides a practical replacement solution for restoring the original single-circuit brake pipe arrangement.

It is particularly suitable for complete brake system refurbishment, chassis restoration and replacement of heavily corroded original pipework.

Ideal for classic Porsche maintenance and restoration projects, this seven-piece kit helps preserve the vehicle's original braking configuration while supporting dependable hydraulic operation.

What This Product Does:
The brake line kit replaces the rigid hydraulic pipes responsible for carrying pressurised brake fluid throughout the vehicle's braking system.

When the driver presses the brake pedal, the master cylinder generates hydraulic pressure.

This pressure travels through the brake pipes and associated flexible hoses to the wheel brake cylinders, allowing the braking system to apply force to the brake shoes and slow the vehicle.

The brake pipes must maintain a secure, leak-free hydraulic connection for the brakes to operate correctly.

Their key functions include:

• Hydraulic Brake Fluid Transfer: Carry pressurised brake fluid from the master cylinder towards the wheel braking components.
• Brake Pressure Transmission: Allow hydraulic pressure generated by the brake pedal to reach the appropriate brake circuits and wheel cylinders.
• Leak-Free Brake Operation: Provide sealed hydraulic connections when correctly formed, fitted and tightened.
• Reliable Braking Response: Support consistent transfer of brake pressure during normal braking.
• Single-Circuit System Compatibility: Maintain the original brake pipe arrangement of applicable Porsche 356 single-circuit systems.
• Front and Rear Brake Connections: Form part of the hydraulic pipework serving the vehicle's braking assemblies.
• Structural Pipe Routing: Provide rigid hydraulic connections along the intended chassis and body mounting routes.
• Brake System Restoration: Replace corroded or damaged original metal brake pipes.
• Hydraulic Integrity: Help prevent brake fluid loss caused by defective rigid pipework.
• Original-Style Braking Configuration: Support restoration of the original Porsche 356 hydraulic brake layout.
• Complete Pipework Refurbishment: Allow multiple ageing rigid brake lines to be renewed as part of one repair project.

Symptoms Of Wear Or Failure:
The rigid brake pipes are safety-critical components exposed to moisture, road contamination, vibration and mechanical stress throughout the vehicle's life.

On classic Porsche 356 models, original brake lines may have been in service for many decades.

Common signs of deterioration include:

1. Visible Brake Pipe Corrosion

Rust forming on the metal brake lines is one of the most common indications of deterioration.

Advanced corrosion can weaken the pipe walls and eventually lead to hydraulic leaks.

2. Brake Fluid Leakage

Wet patches, fluid droplets or visible seepage around brake pipes and fittings may indicate a damaged line or leaking connection.

Brake fluid leaks should be investigated immediately.

3. Soft or Spongy Brake Pedal

A soft or spongy brake pedal may indicate air within the hydraulic system.

Air can enter following fluid loss or inadequate bleeding, although the symptom can have several other causes.

4. Brake Pedal Sinking Under Pressure

A pedal that gradually sinks while steady pressure is applied can indicate hydraulic pressure loss.

Potential causes include leaking brake pipes, wheel cylinders, hose connections or an internal master cylinder fault.

5. Reduced Braking Performance

A hydraulic leak or pressure-loss problem can reduce braking effectiveness and increase stopping distances.

6. Low Brake Fluid Level

An unexplained reduction in reservoir fluid level may indicate leakage somewhere in the braking system.

The complete system should be inspected.

7. Corroded Brake Pipe Unions

Rust or corrosion around pipe fittings may damage the connections and make removal difficult.

Severely corroded unions may also contribute to leakage.

8. Cracked or Damaged Brake Pipes

Physical damage, incorrect bending, vibration fatigue or previous poor repairs may weaken the rigid pipework.

9. Flattened or Kinked Pipe Sections

Improper bending or accidental impact can distort brake pipes and affect their structural condition.

Damaged sections should be replaced rather than straightened repeatedly.

10. Brake Fluid Around Chassis Components

Fluid collecting around the underbody, wheel arches or brake line connections can indicate leakage.

11. Previous Improper Repairs

Incorrectly flared pipes, unsuitable fittings, unsupported sections or poorly routed lines may compromise braking safety.

12. Excessive Brake Pipe Movement

Missing or damaged retaining clips may allow rigid brake pipes to vibrate or rub against surrounding components.

13. Corrosion Hidden Beneath Clips

Moisture trapped around retaining clips and mounting points can create localised corrosion that may be difficult to identify without close inspection.

14. Brake Warning Symptoms

Where fitted, a brake system warning indication may alert the driver to a problem.

However, early Porsche 356 models do not provide the comprehensive electronic fault monitoring found on modern vehicles.

15. Age-Related Deterioration

Even where no external leak is visible, extensive corrosion or poor pipe condition identified during restoration may justify replacement.

Why Replacement Matters:

• Replacing deteriorated or damaged brake pipes is essential for maintaining the safety, reliability and hydraulic integrity of your classic Porsche 356 braking system.
• The brake lines form the hydraulic network that transfers pressure from the master cylinder to the individual braking components.
• Unlike cosmetic trim or comfort-related components, brake pipes are directly involved in the vehicle's ability to stop safely.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

1661500910

The product you are viewing cross references to these numbers

Brake line, 2150mm.

Fits:
Porsche 356 / 356A 1950-1959 LHD cars
Porsche 356B / 356C 1960-1965 LHD cars

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

69535260201

The product you are viewing cross references to these numbers

Brake line, centre.

Fits:
Porsche 356 / 356A 1950-1959 LHD cars
Porsche 356B / 356C 1960-1965 LHD cars

Click 'Zoom in' for large parts diagram.
Diagram ref no 6

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

69535260201

The product you are viewing cross references to these numbers
