Fuel Pumps

Blanking cover plate mechanical fuel pump.

Fits:
Porsche 356A - 1955 to 1959
Porsche 356B - 1959 to 1963
Porsche 356C - 1963 to 1965

Fuel Pump Cover Plate to be used when converting the mechanical fuel pump to an electric fuel pump.
Produced from high quality cast alloy to match the engine case.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61608134

The product you are viewing cross references to these numbers

Braided Fuel Hose (Sold by the Metre) - 7.3mm Internal Diameter / 13.5mm Outer Diameter.

This high-quality braided fuel hose is designed for multiple uses within the fuel system of various vehicles. It offers extremely low fuel permeability, excellent heat resistance, and high flexibility, making it a reliable choice for demanding applications.

Fits:
Porsche 356 1950-65
Porsche 911 Carrera 1965-1977
Porsche 912 1967-69
Porsche 914 1970-76

Comparable to Porsche part number(s): 99918003050 & 9991800305A

Specifications:
Inner Diameter (ID): 7.3mm
Outer Diameter (OD): 13.5mm
Material: FPM/ECO/AR/ECO (Type 3E) – Compliant with DIN 73379-1
Complies With: EU End-of-Life Vehicles Directive

NOTE: This product is not suitable for use in fuel tanks, or for gear and/or engine oils. Always follow the manufacturer's specifications regarding operating temperatures, especially for high-performance engines exposed to extreme heat.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

9991800305A

The product you are viewing cross references to these numbers

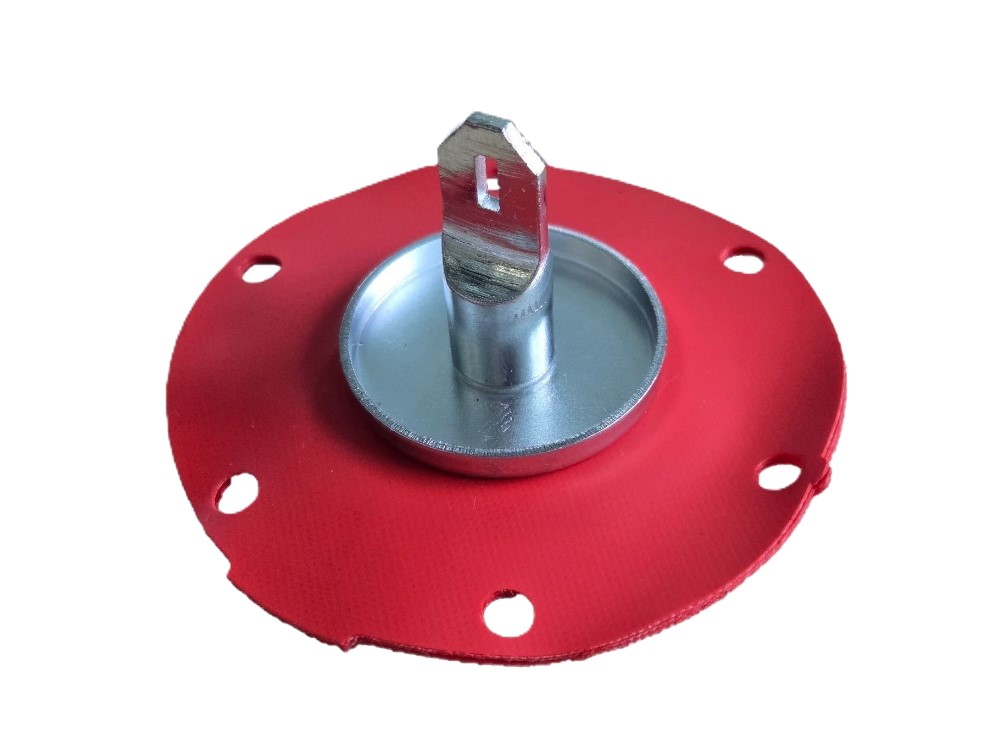

Diaphragm For Fuel Pump.
Restore reliable fuel delivery with this OE Match Fuel Pump Diaphragm. Produced to OE-style specifications, this diaphragm is designed for compatible mechanical fuel pumps, providing the flexible sealing membrane required to pump fuel efficiently from the fuel tank to the engine. Manufactured from high-quality, fuel-resistant rubber reinforced for strength and durability, it offers excellent resistance to modern fuels, heat, and continual flexing, making it ideal for Porsche maintenance, repairs, and restoration projects.

Fits:

• Porsche 356 1950-55
• Porsche 356A 1955-59
• Porsche 356B 1959-63

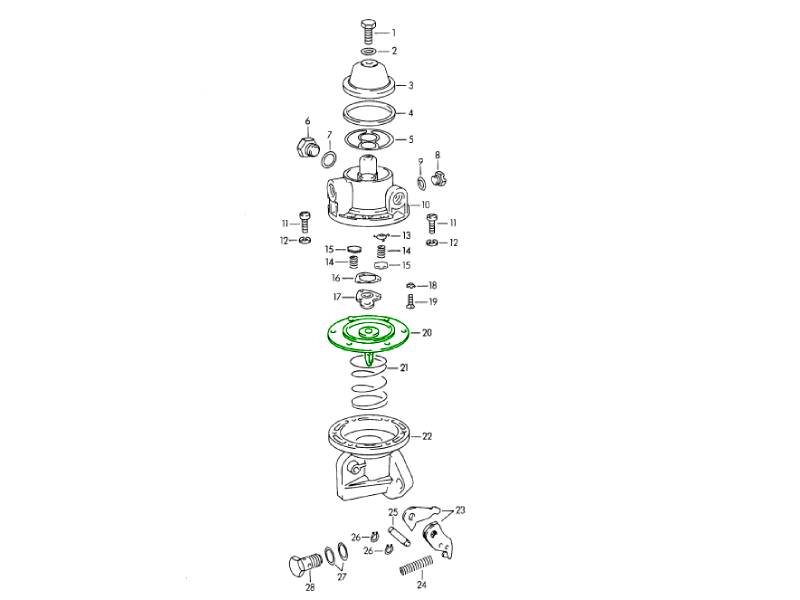

Diagram Ref No 20

The fuel pump diaphragm is the heart of a mechanical fuel pump, moving back and forth with engine operation to generate the vacuum and pressure required for continuous fuel flow. Over time, constant movement, age, fuel additives, and heat can cause the diaphragm to harden, crack, stretch, or split, reducing pump efficiency or causing complete fuel delivery failure. Replacing a worn diaphragm restores dependable fuel supply while extending the service life of the original fuel pump.

What This Product Does:

• Generates suction and pressure within the mechanical fuel pump.
• Draws fuel from the tank and delivers it to the engine.
• Maintains consistent fuel flow under varying engine speeds.
• Provides a fuel-tight internal seal within the pump.
• Supports reliable engine starting and smooth operation.
• Replaces worn, cracked, or damaged fuel pump diaphragms.
• Provides an OE-style fit for straightforward installation.

Symptoms Of Wear Or Failure:

• Difficulty starting the engine.
• Loss of fuel pressure.
• Engine hesitation or misfiring.
• Poor acceleration or reduced engine performance.
• Fuel leakage from the mechanical fuel pump.
• Cracked, hardened, or split diaphragm during pump overhaul.
• Engine stalling caused by inadequate fuel delivery.

Why Replacement Matters:

• The fuel pump diaphragm is the primary pumping element within a mechanical fuel pump and is essential for maintaining consistent fuel delivery to the engine. As the diaphragm ages, continual flexing and exposure to fuel can cause deterioration, reducing fuel pressure and affecting engine performance. If the diaphragm fails completely, fuel delivery may stop altogether, preventing the engine from running.
• Replacing a worn diaphragm restores the performance of the mechanical fuel pump, ensuring reliable fuel flow, smoother engine operation, and improved starting performance while preserving the original fuel pump assembly. Manufactured as a direct replacement and produced to OE-style specifications, this OE Match Fuel Pump Diaphragm provides reliable fit, performance, and durability for Porsche maintenance, repairs, and restoration projects.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610842600

The product you are viewing cross references to these numbers

Early fuel pump rebuild kit.
This is a very comprehensive fuel pump repair kit (for the T-5). Included are all the needed parts including diaphragm, valves and filter.
Note: The "early" pump can easily be identified by banjo bolt connections for the inlet and exit lines.

Fits:
Porsche 356 A  1956-1959
Porsche 356 B  1960-1961

This comprehensive repair kit is designed to restore the mechanical fuel pump on early Porsche 356 models (including 356 A and early 356 B) back to factory specification. It provides all the essential internal components — diaphragms, valves, seals, springs and filters — so you can rebuild your existing pump rather than replace the entire unit.

Only compatible with the original early‐style mechanical fuel pump housing — not for later style pumps without banjo bolt configuration.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610890300

The product you are viewing cross references to these numbers

Fuel pump blanking plate with gasket for electric pump conversion



Fits:
Porsche 912
Porsche 356

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610844999

The product you are viewing cross references to these numbers

Fuel pump Bracket Carrera. For the electrical Auto Pulse pump. Need 1 per pump. Laser cut and zinc plated



FITS ON:
Porsche 356 Carrera and 550 Spyder

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

547084052

The product you are viewing cross references to these numbers

Fuel pump intermediate flange, Aluminium.

Fits:
Porsche 356 A
Porsche 356 B
Porsche 356 C

Diagram ref no 49

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

616080420

The product you are viewing cross references to these numbers

Fuel Pump Top Cap.
Maintain the integrity of your Porsche's fuel delivery system with this Genuine Porsche Fuel Pump Top Cap, manufactured to Porsche's original equipment specification and supplied under part number 61610841900. Designed to provide the correct fit and sealing performance, this top cap forms part of the fuel pump assembly, helping to secure the pump components while protecting the fuel system from contamination and maintaining reliable operation.

Fits:

• Porsche 356 1950-55
• Porsche 356A 1955-59
• Porsche 356B 1959-63

Diagram Ref No 3

As part of the fuel pump assembly, the top cap is exposed to fuel vapours, vibration, heat, and age. Over time it can become damaged, corroded, or worn, affecting the secure installation of the fuel pump or associated sealing components. Replacing a damaged top cap with a Genuine Porsche part restores the original fit and reliability of the fuel system, making it an ideal choice for routine maintenance, fuel system repairs, concours preparation, and Porsche restoration projects.

What This Product Does:

• Secures the upper section of the fuel pump assembly.
• Helps maintain the integrity of the fuel system.
• Supports correct sealing of the fuel pump installation.
• Protects the fuel system from dirt and contamination.
• Replaces worn, damaged, or corroded original components.
• Maintains the original factory fit and function.
• Manufactured to Porsche's original equipment specification.

Symptoms Of Wear Or Failure:

• Visible corrosion or damage to the top cap.
• Fuel seepage around the fuel pump assembly.
• Damaged or distorted mounting surfaces.
• Loose or insecure fuel pump installation.
• Wear caused by age or previous removal.
• Evidence of fuel contamination around the assembly.
• Difficulty securing the fuel pump correctly.
• Age-related deterioration of the original component.

Why Replacement Matters:

• The fuel pump top cap is an important component of the fuel pump assembly, helping to secure the pump while maintaining the integrity of the fuel system. A damaged or deteriorated top cap can compromise sealing, contribute to fuel leaks or contamination, and affect the long-term reliability of the fuel delivery system.
• Replacing the fuel pump top cap with a Genuine Porsche component restores the correct fit, secure installation, and dependable sealing performance expected from the original assembly. Manufactured to Porsche's original equipment specification and supplied under part number 61610841900, this component offers the quality, precision, and durability required for Porsche maintenance, repairs, concours preparation, and restoration projects.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610841900

The product you are viewing cross references to these numbers

Fuel Pump Top Cap.
Maintain the integrity of your Porsche's fuel delivery system with this OE Match Fuel Pump Top Cap, manufactured as a direct replacement. Produced to OE-style specifications, this top cap is designed to provide the correct fit and dependable sealing performance, helping to secure the fuel pump assembly while protecting the fuel system from contamination and ensuring reliable operation.

Fits:

• Porsche 356 1950-55
• Porsche 356A 1955-59
• Porsche 356B 1959-63

Diagram Ref No 3

The fuel pump top cap is exposed to fuel vapours, engine vibration, heat, and environmental contaminants throughout its service life. Over time, the original cap can become worn, corroded, distorted, or damaged, affecting the secure installation of the fuel pump and associated sealing components. Replacing a deteriorated top cap helps restore the integrity of the fuel system and supports dependable fuel delivery. This OE Match component is ideal for routine maintenance, fuel system repairs, and Porsche restoration projects.

What This Product Does:

• Secures the upper section of the fuel pump assembly.
• Helps maintain the integrity of the fuel delivery system.
• Supports correct sealing of the fuel pump installation.
• Protects the fuel system from dirt and contamination.
• Replaces worn, damaged, or corroded original components.
• Maintains reliable fuel pump installation and operation.
• Provides an OE-style fit and dependable quality.

Symptoms Of Wear Or Failure:

• Visible corrosion or damage to the top cap.
• Fuel seepage around the fuel pump assembly.
• Loose or insecure fuel pump installation.
• Distorted or damaged mounting surfaces.
• Difficulty securing the fuel pump correctly.
• Evidence of contamination around the fuel pump.
• Wear caused by age or repeated servicing.
• Age-related deterioration of the original component.

Why Replacement Matters:

• The fuel pump top cap is an important part of the fuel pump assembly, helping to secure the pump while maintaining a reliable seal within the fuel system. A worn or damaged top cap can compromise sealing, contribute to fuel leaks or contamination, and reduce the long-term reliability of the fuel delivery system.
• Replacing the fuel pump top cap restores secure installation and dependable sealing performance, helping to maintain safe and efficient fuel system operation. Manufactured as a direct replacement and produced to OE-style specifications, this OE Match component provides the correct fit, dependable quality, and long-lasting durability, making it an excellent choice for Porsche maintenance, fuel system repairs, and restoration projects.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610841900

The product you are viewing cross references to these numbers

Fuel pump, early version.

Fits:
Porsche 356 A/B 1.5L-1.6L 01/1955-12/1963

Diagram ref no 47

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61608401

The product you are viewing cross references to these numbers

Gasket for intermediate flange on fuel pump.



Fits:
Porsche 356 A of the model years 1955 to 1959 with Solex carburettor and Pallas-Zenith carburettor
Porsche 356 A 1600 of the model years 1955 to 1959 up to engine number 73 236
Porsche 356 A 1600 S up to engine number 83 423

Click 'Zoom in' for large parts diagram.
Diagram ref no 50

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

53908402

The product you are viewing cross references to these numbers

Sealing ring for fuel pump.


Fits:
Porsche 356 /A/B (1950 to 1965)

Click 'Zoom in' for large parts diagram.
Diagram ref no 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610842100

The product you are viewing cross references to these numbers

Weber IDF throttle arms. Required to fit Weber carburettors to 912 / 356.
Laser cut. yellow zinc passivate plated.
