Banjo Fitting M14 to M10 90° Tube. Porsche 911 1969-75 › 90135604900

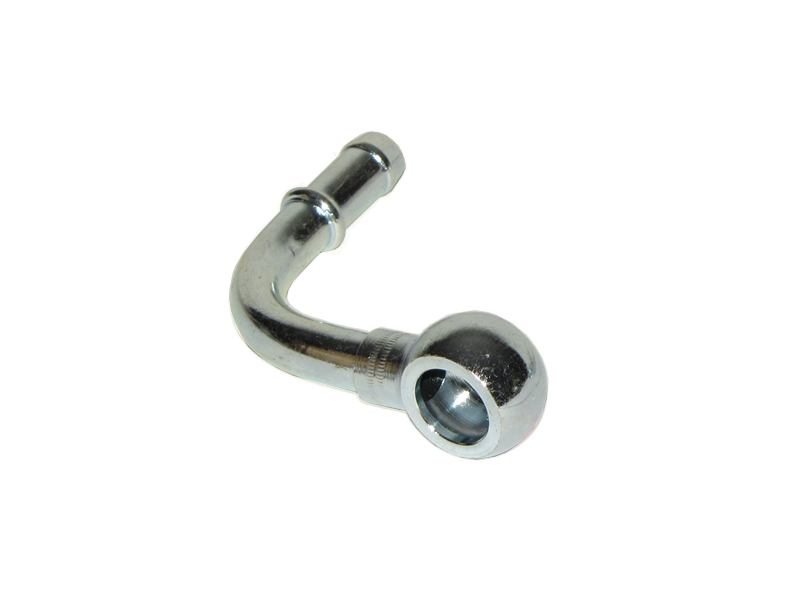

This OE Match M14 to M10 90° tube banjo fitting connects a hose to a banjo-bolt connection, it is used at the fuel tank on MFI cars with an M14 banjo bolt and can also be used for suitable fuel or oil applications.

Fits

• Porsche 911 1969–75

  Check fitment for your specific vehicle (model, year, engine) before ordering. Match the existing tank connection, fuel-pump layout and hose arrangement.

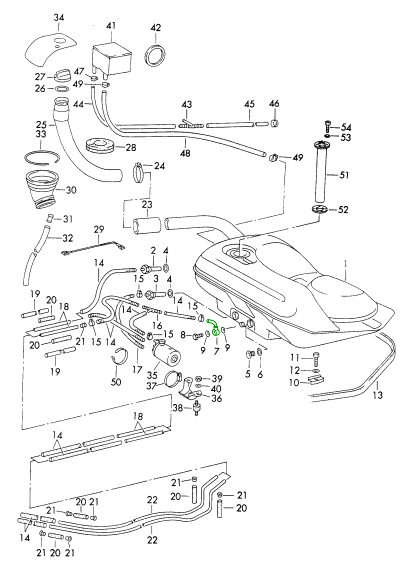

  Diagram ref no 7

  What Is This Part?

This is an angled fluid-line connector with a ring-shaped banjo end and a hose-barb outlet. The banjo end works with the appropriate hollow bolt and sealing rings to form the connection, while the 90° tube directs the attached hose away from the joint. On the listed MFI applications, it forms part of the fuel-tank connection rather than the pump or injection equipment itself. The hose is secured using either a suitable hose clamp or a ferrule crimped in place.

What Does This Part Do?

• Connects the fluid line: Joins the banjo-bolt connection to the attached hose.
• Changes the outlet direction: The 90° tube establishes the hose's departure angle from the joint.
• Provides a hose attachment: The hose barb accepts the hose, which must be retained by the appropriate clamp or crimped ferrule.
• Forms part of the sealed joint: Works with the correct banjo bolt and sealing rings to contain fluid at the connection.

  Why Replace This Part?

Replacement may be appropriate if inspection finds corrosion, cracking, a distorted tube or damage to the banjo sealing faces. A damaged hose barb may also prevent the hose from seating and being retained correctly. These conditions matter because the fitting must provide both an unobstructed fluid passage and sound connection surfaces.
A leak near the fitting does not automatically mean the fitting has failed. Check the hose, clamp or ferrule, sealing rings, banjo bolt and adjoining connection before deciding which components need renewing. During tank or fuel-line work, inspect the existing fitting rather than replacing it solely because the assembly has been dismantled.

When to Replace This Part?

• Visible damage: Cracks, heavy corrosion or deformation affect the fitting or tube.
• Damaged sealing faces: Scoring or distortion prevents the banjo joint from seating correctly.
• Poor hose seating: The barb is damaged or no longer supports a secure hose connection.
• Confirmed leakage: Inspection identifies the fitting itself as the source of wetness or seepage.
• Removal and refitting: Damage found during tank or line repairs makes the existing fitting unsuitable for reuse.

  Where Is This Part Fitted?

Location: At the fuel-tank hose connection on the listed MFI applications, secured with an M14 banjo bolt. Its precise application depends on the tank and fuel-line arrangement fitted to the vehicle.

Technical Details

• Connection specification: M14 banjo to M10 90° hose barb.
• Tube angle: 90°.
• Hose retention: suitable hose clamp or crimped ferrule.
• Suitable uses: fuel or oil applications, subject to matching connections and system requirements.

  Product Summary

• Product: M14 to M10 90° tube banjo fitting / fuel pick-up banjo elbow.
• Brand: OE Match.
• Purpose: Connects a hose to a banjo-bolt joint with an angled outlet.
