Fuel Lines & Breather Hoses

Fuel line warm-up valve to mixer unit.
This fuel line assembly with integrated warp-up valve connects from the fuel system to the mixer or injection control unit, helping regulate fuel flow during warm-up or transient conditions. It ensures proper fuel delivery, mixture balancing, and smooth engine response, particularly during cold start and transitional throttle operation.

Fits:
Porsche 911 SC 3.0L 1978 - 1980

Diagram ref no 61

Aged or cracked lines can leak fuel, creating serious risks and causing mixture imbalances, rough idle, or hesitation during warm-up. An OE-Match replacement restores proper fuel delivery, ensures smooth cold starts, and maintains stable engine performance. Built to resist heat, vibration, and pressure, it provides lasting reliability and peace of mind by preventing breakdowns and protecting your Porsche from costly damage.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011051300

The product you are viewing cross references to these numbers

Complete fuel line from OE Match for Porsche 911 models with Weber or Zenith carburettors. It provides the fuel connection between the electric pump and carburettor system.

Fits

• Porsche 911 65-73 with  Weber / Zenith Carburettor

  Check fitment for your specific vehicle (model, year, engine) before ordering.



Diagram ref no 3

What This Product Does

This assembly carries petrol along the pump-to-carburettor connection. Its role is fuel conveyance rather than filtering petrol or regulating delivery pressure.

Functions

• Connects the electric fuel pump with the carburettor circuit.
• Provides an enclosed passage for petrol.
• Replaces the corresponding complete fuel-line assembly during repair or restoration.



Technical Details

• Part reference: 90110805106.
• Specified carburettor applications: Weber and Zenith.



Symptoms of Fault

• Petrol odour near the vehicle, including after parking.
• Wetness or seepage around line connections.
• Cracking, swelling or deterioration of flexible sections where fitted.
• Starting difficulties or hesitation where inspection confirms restricted flow or leakage.



Why Replacement Matters

Renewal addresses a line that has deteriorated, become damaged or developed a leak. During fuel-system work, inspect adjoining connections, clamps and supports rather than assuming the line alone accounts for every symptom. OE Match focuses its replacement-parts programme on Porsche applications and specification matching.

FAQs

Does this also replace the fuel pump or filter?
No. The product is the complete fuel line; pumps and filters are separate components shown in the associated assemblies.

What should be checked before fitting?
Confirm the original reference, carburettor type, model-year notes and recorded engine cutoff. Inspect the connection hardware and nearby pipework for deterioration.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110805106

The product you are viewing cross references to these numbers

Fuel Feed Hose – Metering Head Line

High-quality replacement fuel feed hose designed for Porsche 911 turbo (930) and 964 turbo models, connecting directly to the fuel metering head within the K-Jetronic system

This hose plays a crucial role in feeding  fuel to the metering head, ensuring proper pressure regulation and stable fuel delivery. Correct operation is essential for maintaining optimal engine performance, smooth running, and consistent fuel system behaviour in turbocharged applications.

Fits:

• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93

Diagram ref no 11

Manufactured to OEM specifications, this fuel feed hose ensures precise fitment along with excellent resistance to fuel, heat, and pressure—making it ideal for maintenance, repair, or restoration of Porsche turbo fuel systems.

Key Features

• Direct replacement fuel feed hose to the metering head
• Suitable for Porsche 911 turbo (930) & 964 turbo
• Designed for K-Jetronic fuel injection systems
• Maintains correct fuel pressure and circulation
• Resistant to fuel, heat, and high pressure
• OEM-style fit and performance

Function and Purpose

This hose is a vital component of the K-Jetronic fuel system.

It helps to:

• Supply fuel to the metering head
• Maintain stable fuel pressure within the system
• Support accurate fuel metering and distribution
• Ensure consistent engine performance

Why Replace Your Fuel Supply Hose

Fuel hoses in K-Jetronic systems are exposed to high pressure and temperature.

Common issues include:

• Cracking or degradation of hose material
• Fuel leaks under pressure
• Irregular fuel pressure behaviour
• Poor engine performance or drivability

Replacing the hose restores safe and reliable fuel system operation.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011030303

The product you are viewing cross references to these numbers

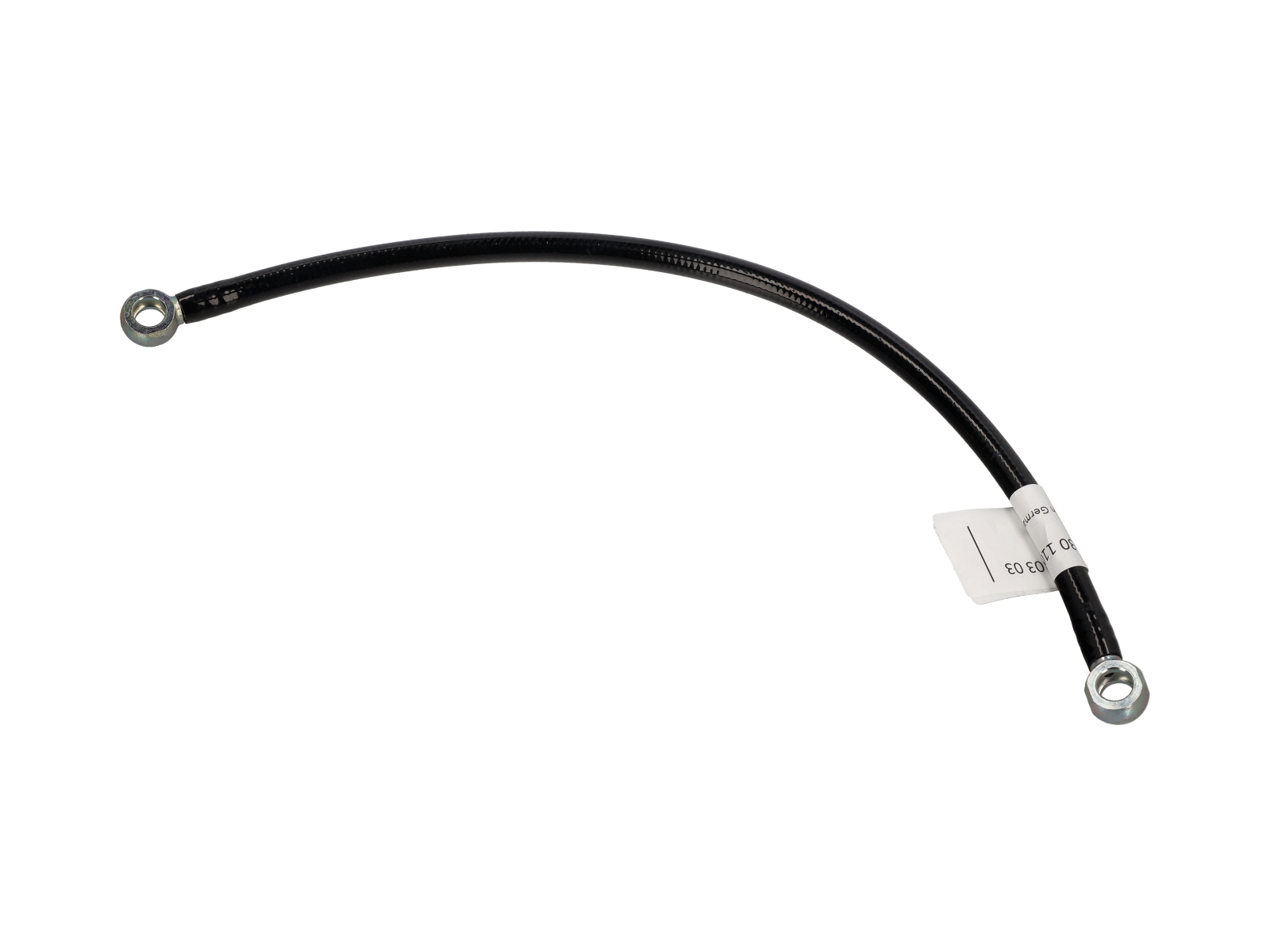

Fuel line, feed.

Fits:
Porsche 911 3.0L Turbo 1975-77
Porsche 911 3.3L Turbo 1978-89
Porsche 964 3.3L / 3.6L Turbo 1990-94

Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011030303

The product you are viewing cross references to these numbers

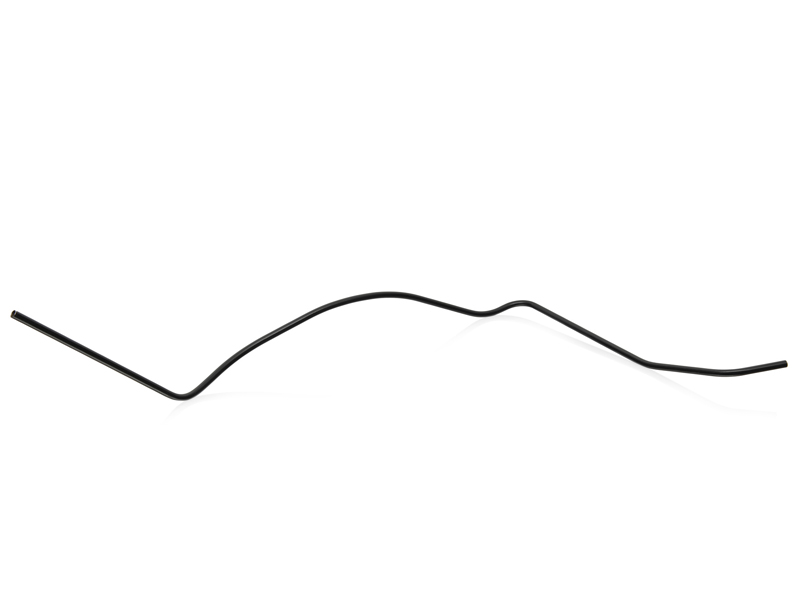

Fuel line, REAR.

Fits:
Porsche 911 T/912 1965-69
Porsche 911 E/S 1965-71
Porsche 911 T 1970-71

Click 'Zoom in' for large parts diagram.
Diagram ref no 22

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135653201

The product you are viewing cross references to these numbers

Fuel Line. Connects to Fuel Pump

Fits:
Porsche 911 (930) Turbo 1975-89

Click picture for large parts diagram.
Diagram Ref No 14.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93035606804

The product you are viewing cross references to these numbers

Fuel line.

Fits:
Porsche 911 1974>>1977

Diagram Ref No 72

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91111051403

The product you are viewing cross references to these numbers

Fuel Line.

The Genuine Porsche Fuel Line (Part Number: 93011049501) is an original equipment fuel injection system component designed for selected Porsche 911 SC 3.0L models manufactured between 1981 and 1983.

Fits:

• Porsche 911 1981-1983 3.0L / SC

Diagram Ref No 61

Manufactured to Porsche's original equipment specifications, this fuel line forms part of the Bosch K-Jetronic Continuous Injection System (CIS), which controls the delivery of pressurised petrol to the engine.

The Porsche 911 SC uses a mechanical fuel injection arrangement that depends on accurately controlled fuel pressure, reliable fuel distribution and secure fuel line connections to maintain consistent engine operation.

The fuel line provides a dedicated passage within the injection system, allowing petrol to move between the relevant fuel system components while maintaining the pressure integrity required for correct operation.

Designed for the original Porsche 911 SC fuel injection configuration, the component helps preserve the routing and connection arrangement specified by Porsche.

Over time, original fuel lines can deteriorate due to repeated temperature changes, petrol exposure, engine vibration, corrosion and general ageing. Damaged pipework or weakened connections may allow fuel to escape or interfere with fuel delivery.

A leaking or restricted fuel line can contribute to fuel odours, starting difficulties, hesitation, irregular engine running or reduced performance.

More importantly, petrol escaping within the engine compartment presents a serious fire risk, particularly where fuel may contact hot exhaust or electrical components.

Replacing a damaged or deteriorated fuel line with a Genuine Porsche component helps restore the original fuel circuit, maintain secure fuel containment and protect the reliability of the engine's fuel injection system.

Ideal for Bosch CIS maintenance, fuel leak repairs, engine refurbishment and classic Porsche restoration projects, this Genuine Porsche Fuel Line provides a factory-specified replacement for compatible Porsche 911 SC models.

What This Product Does:
The fuel line is an essential component of the Porsche 911 SC's Bosch K-Jetronic mechanical fuel injection system.

Its primary function is to transport petrol through the appropriate section of the fuel injection circuit while maintaining secure connections and the intended fuel pressure conditions.

Unlike modern electronically pulsed fuel injection systems, Bosch K-Jetronic uses continuous mechanical fuel distribution to supply the engine's injectors.

The fuel system relies on a network of pipes, pressure-control components and injection valves to ensure that fuel reaches the engine in the correct manner.

The fuel line helps maintain an uninterrupted passage through its designated part of this system.

Its main functions include:

• Transporting petrol: Provides the necessary passage for fuel to move between the connected injection system components.
• Maintaining fuel pressure integrity: Helps preserve the sealed fuel circuit required for correct mechanical injection operation.
• Supporting fuel distribution: Forms part of the system responsible for delivering petrol through the engine's injection arrangement.
• Preventing fuel leakage: Correctly fitted pipework and connections help keep petrol contained within the system.
• Supporting reliable engine starting: Helps maintain the fuel supply conditions required during start-up.
• Maintaining smooth engine operation: Supports consistent fuel delivery during idling and normal driving.
• Supporting acceleration: Provides an unrestricted passage for fuel during changing engine operating conditions.
• Maintaining correct factory routing: Follows the original Porsche fuel line arrangement.
• Supporting injection system reliability: Helps preserve the correct operation of the connected fuel injection components.
• Preserving original specifications: Maintains the fuel line configuration intended for the applicable Porsche 911 SC engine.

The fuel line itself does not regulate fuel pressure or independently meter fuel. These functions are performed by the fuel distributor, warm-up regulator and other components within the CIS system.

Symptoms Of Wear Or Failure:
The Porsche 911 SC fuel injection system operates with pressurised petrol, making the condition of its fuel lines particularly important.

On classic vehicles, decades of heat exposure, engine vibration and ageing can contribute to deterioration of fuel-carrying components.

Common symptoms of a worn or damaged fuel line include:

• Strong petrol smell: A damaged pipe or leaking connection may allow petrol vapour to escape into the engine compartment.
• Visible fuel leakage: Petrol may be visible around the pipe, fittings or associated connections.
• Dampness around fuel fittings: Wet or stained areas near the fuel line connections may indicate seepage.
• Difficulty starting the engine: Significant fuel delivery or pressure problems may affect starting performance.
• Extended engine cranking: Pressure loss or restricted fuel delivery may contribute to prolonged starting.
• Rough engine idling: Irregular fuel delivery may affect combustion consistency.
• Engine hesitation: Fuel flow problems may become noticeable during acceleration.
• Poor performance under load: A restricted fuel passage may interfere with the engine's fuel requirements.
• Intermittent engine stalling: Severe fuel supply interruptions may cause the engine to stop unexpectedly.
• Visible pipe corrosion: Corrosion may weaken metal pipework or associated fittings.
• Cracked or deteriorated sections: Ageing materials or mechanical stress may compromise the fuel line.
• Damaged connection fittings: Worn threads, distorted sealing surfaces or loose unions may cause leakage.
• Kinked or crushed pipework: Physical deformation may restrict normal fuel flow.
• Abrasion damage: Incorrect routing or loose mounting hardware may allow the line to rub against surrounding components.
• Fuel system pressure irregularities: Leaks or restrictions may produce abnormal pressure readings during diagnostic testing.
• Visible damage during maintenance: Removal of surrounding engine components may reveal deterioration that was previously difficult to inspect.

Why Replacement Matters:
Replacing a damaged or ageing fuel line is important for maintaining safe and reliable operation of the Porsche 911 SC's mechanical fuel injection system.

A leaking fuel line can allow pressurised petrol to escape into the engine compartment, creating a significant fire hazard.

Even a small leak should be addressed promptly because fuel may reach hot engine or exhaust components.

A restricted fuel line may also interfere with fuel delivery and contribute to starting difficulties, hesitation or poor running.

Installing a Genuine Porsche replacement Fuel Line helps to:

• Restore secure fuel containment: Replace leaking or damaged pipework to help prevent petrol escaping.
• Improve engine compartment safety: Reduce the risk associated with fuel leakage near hot components.
• Maintain fuel pressure integrity: Support the sealed fuel circuit required for Bosch CIS operation.
• Restore reliable fuel delivery: Replace restricted or damaged pipework that interferes with fuel flow.
• Support consistent engine starting: Help maintain the fuel supply conditions required during start-up.
• Improve idle and running quality: Address fuel delivery problems caused by a confirmed defective line.
• Reduce petrol odours: Eliminate fuel smells resulting from a leaking pipe or connection.
• Prevent further deterioration: Replace corroded or mechanically damaged components before complete failure.
• Maintain correct factory fitment: Restore the original Porsche fuel line routing and connection arrangement.
• Protect surrounding components: Reduce unwanted exposure to petrol within the engine compartment.
• Support CIS servicing: Provide replacement pipework during fuel injection system repairs.
• Preserve vehicle originality: Maintain the factory fuel injection arrangement.
• Support classic Porsche restoration: Replace ageing fuel system components during engine refurbishment.
• Maintain Genuine Porsche quality: Use an original equipment component intended for the applicable vehicle.

Replacement is particularly recommended when inspection confirms corrosion, cracking, damaged fittings, fuel seepage or physical deformation.

When carrying out fuel system repairs, other ageing fuel lines, connection fittings and associated sealing components should also be inspected.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011049501

The product you are viewing cross references to these numbers

Fuel Line.

Fits:
Porsche 911/911 S / CARRERA 3.0 1974-76
Porsche 911 1977

Diagram ref no 62

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91111050101

The product you are viewing cross references to these numbers

Fuel Line. Fuel filter to Accumulator.

Fits:
Porsche 911 1981-89

Click 'Zoom in' for large parts diagram.
Diagram ref no 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91135609103

The product you are viewing cross references to these numbers

Fuel line.

Fits:
Porsche 911 SC 3.0L (930.10) 1981-83

Click 'Zoom in' for large parts diagram.
Diagram ref no 62

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011049800

The product you are viewing cross references to these numbers

Fuel line.

Fits:
Porsche 911 (930) Turbo 3.3L 1978-89
Porsche 964 Turbo 3.3L 1991-92
Porsche 964 Turbo 3.6L 1993-94

Diagram ref no 17

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011030505

The product you are viewing cross references to these numbers

Fuel Return Hose – Metering Head Line

High-quality replacement fuel return hose designed for Porsche 911 Turbo (930) and 964 turbo models, connecting directly to the fuel metering head within the K-Jetronic system

This hose plays a crucial role in returning excess fuel from the metering head back into the fuel system, ensuring proper pressure regulation and stable fuel delivery. Correct operation is essential for maintaining optimal engine performance, smooth running, and consistent fuel system behaviour in turbocharged applications.

Fits:

• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93

Diagram ref no 17

Manufactured to OEM specifications, this fuel return hose ensures precise fitment along with excellent resistance to fuel, heat, and pressure—making it ideal for maintenance, repair, or restoration of Porsche turbo fuel systems.

Key Features

• Direct replacement fuel return hose from metering head
• Suitable for Porsche 911 turbo (930) & 964 turbo
• Designed for K-Jetronic fuel injection systems
• Maintains correct fuel pressure and circulation
• Resistant to fuel, heat, and high pressure
• OEM-style fit and performance

Function and Purpose

This hose is a vital component of the K-Jetronic fuel system.

It helps to:

• Return excess fuel from the metering head
• Maintain stable fuel pressure within the system
• Support accurate fuel metering and distribution
• Ensure consistent engine performance

Why Replace Your Fuel Return Hose

Fuel hoses in K-Jetronic systems are exposed to high pressure and temperature.

Common issues include:

• Cracking or degradation of hose material
• Fuel leaks under pressure
• Irregular fuel pressure behaviour
• Poor engine performance or drivability

Replacing the hose restores safe and reliable fuel system operation.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011030505

The product you are viewing cross references to these numbers

Fuel line.

Fits:
Porsche 911 Turbo 3.3L 1978-89
Porsche 964 Turbo 3.3L 1991-92
Porsche 964 Turbo 3.6L 1993-94

Click 'Zoom in' for large parts diagram.
Diagram ref no 16

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93011030208

The product you are viewing cross references to these numbers

Fuel Pick-Up Banjo Elbow for Early Carbureted 911.
For Lines with Banjo Connections
with bolts

Fits:
Porsche 911 E/S 2.2-2.4 08/68-07/73
Porsche 911 Carrera 2.7 08/73-07/74

Bolt - 18.7mm
Pipe - ID (Inside Diameter) 9.1mm
Pipe - OD (Outside Diameter) 11.9mm

Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135604900

The product you are viewing cross references to these numbers

Fuel Pick-Up Banjo Elbow for Early Carbureted 911.

8mm pipe / 12mm banjo

Fits:
Porsche 911 1969-75

Click 'Zoom in' for large parts diagram.
Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135604900

The product you are viewing cross references to these numbers
