Heater hoses & pipes

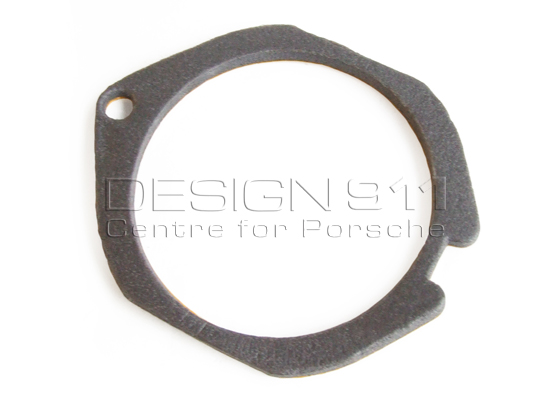

Air Distributor Housing Gasket.



Fits:
Porsche 911 1978-89 LHD Cars

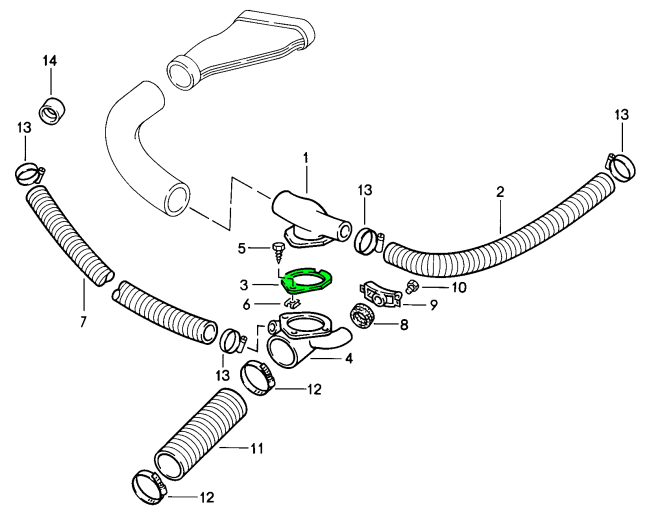

Click 'Zoom in' for large parts diagram.
Diagram ref no 3

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91157317300

The product you are viewing cross references to these numbers

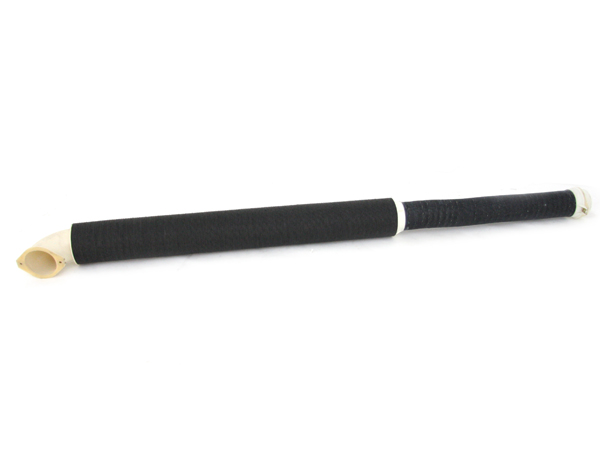

Hose 60x550 from branch bend to side nozzle of ventilation system



Fits:
Porsche 911 Carrera (1987 to 1989)

Click 'Zoom in' for large parts diagram.

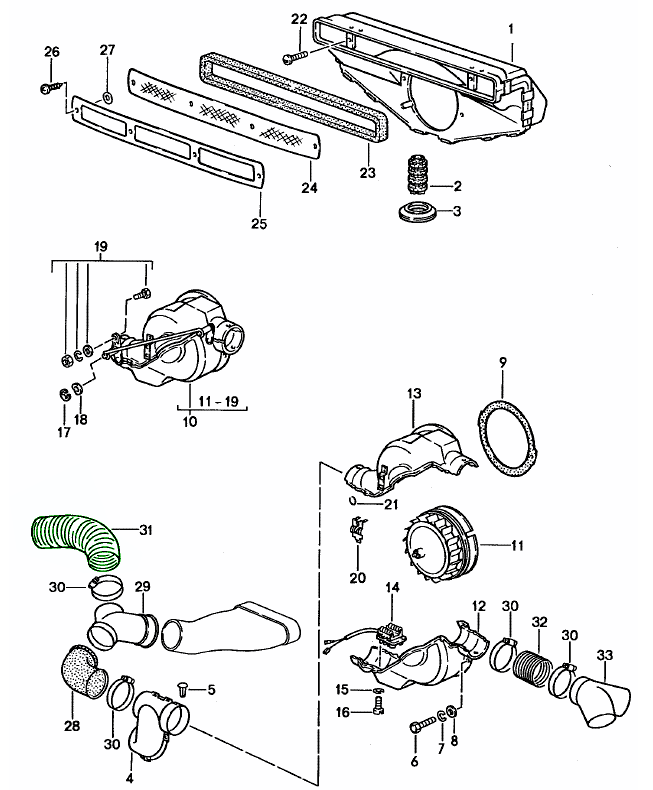

Diagram ref no 31

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91157311501

The product you are viewing cross references to these numbers

Air hose for heating system (62x150 mm)



Fits:
Porsche 911 Carrera (1986 - 1987)

Click 'Zoom in' for large parts diagram.
Diagram ref no 28

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91157232500

The product you are viewing cross references to these numbers

Blanking plug for heater blower pipe.



Fits:
Porsche 911 1984-89

Diagram ref no 14

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99970307740

The product you are viewing cross references to these numbers

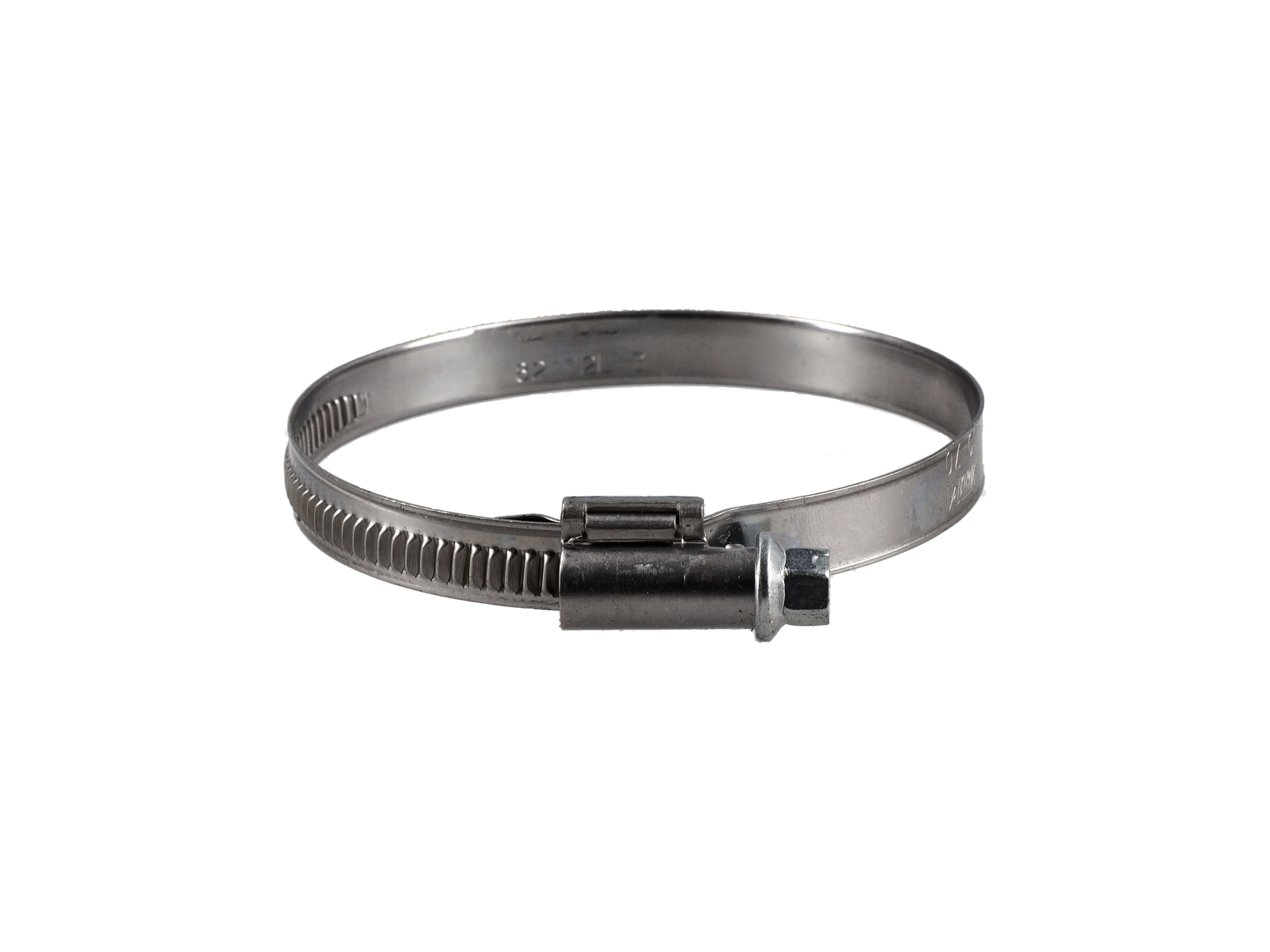

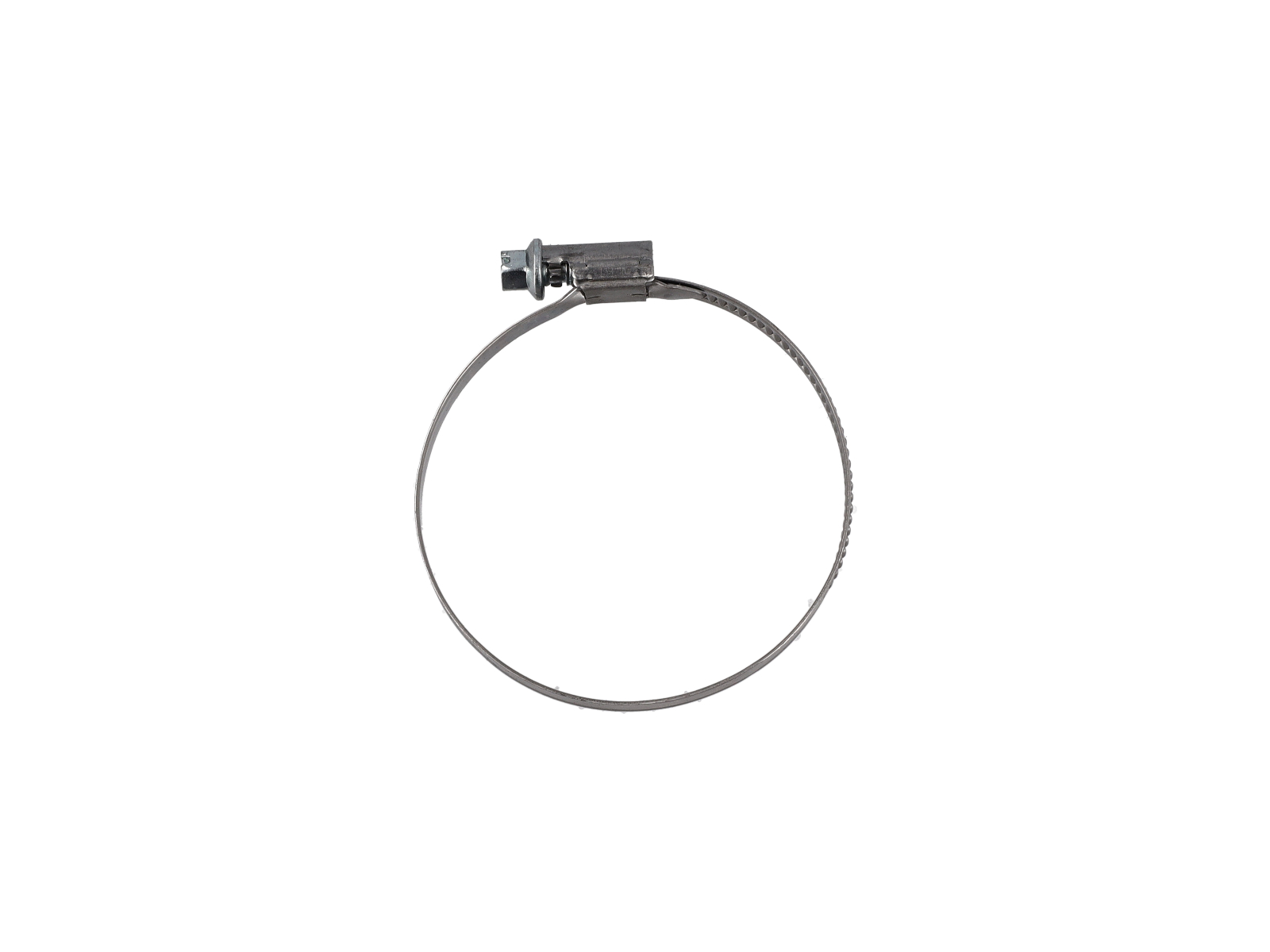

Clamp for Heater Hose - 330 mm



Fits:
Porsche 911 1973-89

Click picture for large parts diagram.
Diagram ref No 12

Price is for each clamp.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99951234901

The product you are viewing cross references to these numbers

Clamp – Power Steering & AC Hose Clamp
Sold each

High-quality clamp designed for securing power steering and air conditioning hoses on Porsche 911 and 928 models.

This clamp ensures hoses are firmly held in place, maintaining correct routing and preventing movement, vibration, or potential damage within the engine bay. It plays an important role in supporting both power steering system reliability and air conditioning performance.

Fits:

• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1987-1989 3.3L Turbo (930)
• Porsche 928S4 5.0L 1987-92
• Porsche 928GT 5.0L 1989-91
• Porsche 928GTS 5.4L 1992-95

Diagram ref no 32

Manufactured to OEM specifications, this clamp offers precise fitment, durability, and corrosion resistance. Supplied individually, it is ideal for maintenance, repair, or restoration of Porsche hose systems.

Key Features

• Suitable for Porsche 911 and Porsche 928
• Part number N020601A
• Designed for power steering and AC hose applications
• Ensures secure hose mounting and routing
• Prevents vibration-related wear and damage
• Durable and corrosion-resistant construction
• OEM-style fit and performance
• Sold individually

Function and Purpose

This clamp is a critical hose securing component.

It helps to:
• Secure power steering hoses in position
• Maintain correct routing of AC lines
• Prevent hose movement and vibration
• Protect hoses from wear and damage
• Ensure reliable system operation

Why Replace Clamps

Clamps can degrade over time due to heat and environmental exposure.

Common issues include:
• Loss of clamping strength
• Corrosion or fatigue
• Hose movement or misalignment
• Increased risk of leaks or system failure

Replacing worn clamps ensures secure installation and protects critical systems.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

N020601A

The product you are viewing cross references to these numbers

Clamp power steering hose and AC hose by Design911 for selected Porsche 911 and 928 models. This part helps keep hose runs correctly supported and positioned within the engine bay, matching original mounting points and clearances where applicable.

What This Product Does

This clamp secures power steering and air conditioning hoses to help maintain correct routing, limit unwanted movement and reduce chafing against nearby components. For Porsche applications, it is used as a direct-fit replacement engineered to match original dimensions and tolerances.

Functions

• Secures power steering hose runs
• Supports AC hose routing
• Helps reduce hose movement
• Helps limit vibration-related wear
• Maintains correct positioning in the engine bay

Why Replacement Matters

• Old clamps can lose tension through age, heat and general exposure
• Corrosion or fatigue may affect how firmly the hose is retained
• Poor hose support can allow movement, rubbing or misalignment
• Replacing worn hardware helps support correct fit and function

Fits

• Porsche 911 and 912 1965–1989
• Porsche 911 3.2L G50 1987–1989
• Porsche 911 3.3L Turbo 930 1978–1989
• Porsche 928 1978–1995
• Porsche 928S4 5.0L 1987–1992
• Porsche 928GT 5.0L 1989–1991
• Porsche 928GTS 5.4L 1992–1995

Check fitment for your specific Porsche model, year and engine before ordering.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

N020601A

The product you are viewing cross references to these numbers

Climate control hose sealing ring.
Rubber sealing ring / gasket used in the HVAC/heater/ventilation system of classic 911 / 912 cars. Its sealing points where heater/vent hoses pass through body or bulkhead. Ideal when refurbishing HVAC ducts, replacing heater hoses, restoring classic 911/912 ventilation and heat systems.
Sold each. 2 required per vehicle.

Fits:
Porsche 911 1965 - 1989 all models

Diagram ref no 18

Because over decades the original sealing rings often become brittle, hard, compressed or cracked (due to heat cycles, age, vibration, exposure to cabin air, moisture and dust), they lose their ability to seal properly.

This can lead to:
• Unwanted air leaks or drafts into cabin
• Water or dust ingress into the interior or into heater ducts
• Poor heating or ventilation performance
• Increased cabin noise, wind-noise or fumes entering cabin (especially on vehicles with engine-bay to cabin vents).

Replacing with a correct-spec sealing ring ensures a tight, flexible seal that restores proper HVAC function, occupant comfort, and helps preserve the integrity of the car’s interior and ventilation system.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90157291301

The product you are viewing cross references to these numbers

Climate control hose sealing ring.

Fits:
Porsche 911 1965-89 all models

Diagram ref no 34

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90157291301

The product you are viewing cross references to these numbers

Vacuum Hose Distribution Y-Piece – 4mm Vacuum Line Splitter
Sold each - used in various locations

High-quality vacuum hose distribution Y-piece designed for a wide range of Porsche models including 911, 964, 924S, 944, 968, and 928.

This Y-splitter allows a single vacuum source to be divided into two outlets, enabling efficient routing and connection of vacuum lines within the engine bay or HVAC system. It is specifically designed for vacuum hoses with a 4mm outer diameter, ensuring a secure and precise fit.

Fits:

• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) RS 3.8L 1991-93
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93
• Porsche 924S 2.5L 1986-87
• Porsche 924S 2.5L 1988
• Porsche 944 2.5L 8V 1982-87
• Porsche 944 2.7L 8V 1988-89
• Porsche 944S 2.5L 16V 1987-88
• Porsche 944S2 3.0L 16V 1989-91
• Porsche 944 Turbo 2.5L 8V 1985-88
• Porsche 944 Turbo 2.5L 8V 1989-91
• Porsche 944 Turbo S 2.5L 8V 1988
• Porsche 968 3.0L 1992-94
• Porsche 968 Sport 3.0L 1994-95
• Porsche 968 CS 3.0L 1993-95
• Porsche 968 Turbo S 3.0L 1993-94
• Porsche 928S2 4.7L 1984-86

Diagram ref no 4

Manufactured to OEM standards, this connector is ideal for maintaining or restoring vacuum system integrity across multiple Porsche applications.

Key Features

• Universal-style vacuum Y-piece connector
• Suitable for Porsche 911, 964, 924S, 944, 968, and 928
• Designed for 4mm outer diameter vacuum hoses
• Enables splitting of vacuum lines
• OEM-style fit and function
• Durable construction for long-term reliability

Function and Purpose

This Y-piece is a critical connector within the vacuum system.

It helps to:

• Split a single vacuum line into two outputs
• Maintain proper vacuum routing
• Ensure consistent vacuum pressure distribution
• Support engine and HVAC system operation

Why Replace Your Vacuum Connector

Over time, vacuum connectors can degrade due to heat and age.

Common issues include:

• Cracked or brittle plastic
• Vacuum leaks
• Poor hose connections
• Engine or HVAC system malfunctions

Replacing the Y-piece restores proper vacuum system function.

• Loose or unsecured temperature sensor
• Incorrect temperature readings
• HVAC system inconsistencies
• Broken or missing connector clips

Replacing the lock piece restores proper sensor stability and function.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92857372702

The product you are viewing cross references to these numbers

Vacuum Hose Distribution Y-Piece – 4mm Vacuum Line Splitter
Sold each - used in various locations

High-quality vacuum hose distribution Y-piece designed for a wide range of Porsche models including 911, 964, 924S, 944, 968, and 928.

This Y-splitter allows a single vacuum source to be divided into two outlets, enabling efficient routing and connection of vacuum lines within the engine bay or HVAC system. It is specifically designed for vacuum hoses with a 4mm outer diameter, ensuring a secure and precise fit.

Fits:

• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) RS 3.8L 1991-93
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93
• Porsche 924S 2.5L 1986-87
• Porsche 924S 2.5L 1988
• Porsche 944 2.5L 8V 1982-87
• Porsche 944 2.7L 8V 1988-89
• Porsche 944S 2.5L 16V 1987-88
• Porsche 944S2 3.0L 16V 1989-91
• Porsche 944 Turbo 2.5L 8V 1985-88
• Porsche 944 Turbo 2.5L 8V 1989-91
• Porsche 944 Turbo S 2.5L 8V 1988
• Porsche 968 3.0L 1992-94
• Porsche 968 Sport 3.0L 1994-95
• Porsche 968 CS 3.0L 1993-95
• Porsche 968 Turbo S 3.0L 1993-94
• Porsche 928S2 4.7L 1984-86

Diagram ref no 4

Manufactured to OEM standards, this connector is ideal for maintaining or restoring vacuum system integrity across multiple Porsche applications.

Key Features

• Universal-style vacuum Y-piece connector
• Suitable for Porsche 911, 964, 924S, 944, 968, and 928
• Designed for 4mm outer diameter vacuum hoses
• Enables splitting of vacuum lines
• OEM-style fit and function
• Durable construction for long-term reliability

Function and Purpose

This Y-piece is a critical connector within the vacuum system.

It helps to:

• Split a single vacuum line into two outputs
• Maintain proper vacuum routing
• Ensure consistent vacuum pressure distribution
• Support engine and HVAC system operation

Why Replace Your Vacuum Connector

Over time, vacuum connectors can degrade due to heat and age.

Common issues include:

• Cracked or brittle plastic
• Vacuum leaks
• Poor hose connections
• Engine or HVAC system malfunctions

Replacing the Y-piece restores proper vacuum system function.

• Loose or unsecured temperature sensor
• Incorrect temperature readings
• HVAC system inconsistencies
• Broken or missing connector clips

Replacing the lock piece restores proper sensor stability and function.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

92857372702

The product you are viewing cross references to these numbers

Drain hose rubber.

Fits:
Porsche 911 1968-89

Diagram ref no 19

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90157132632

The product you are viewing cross references to these numbers

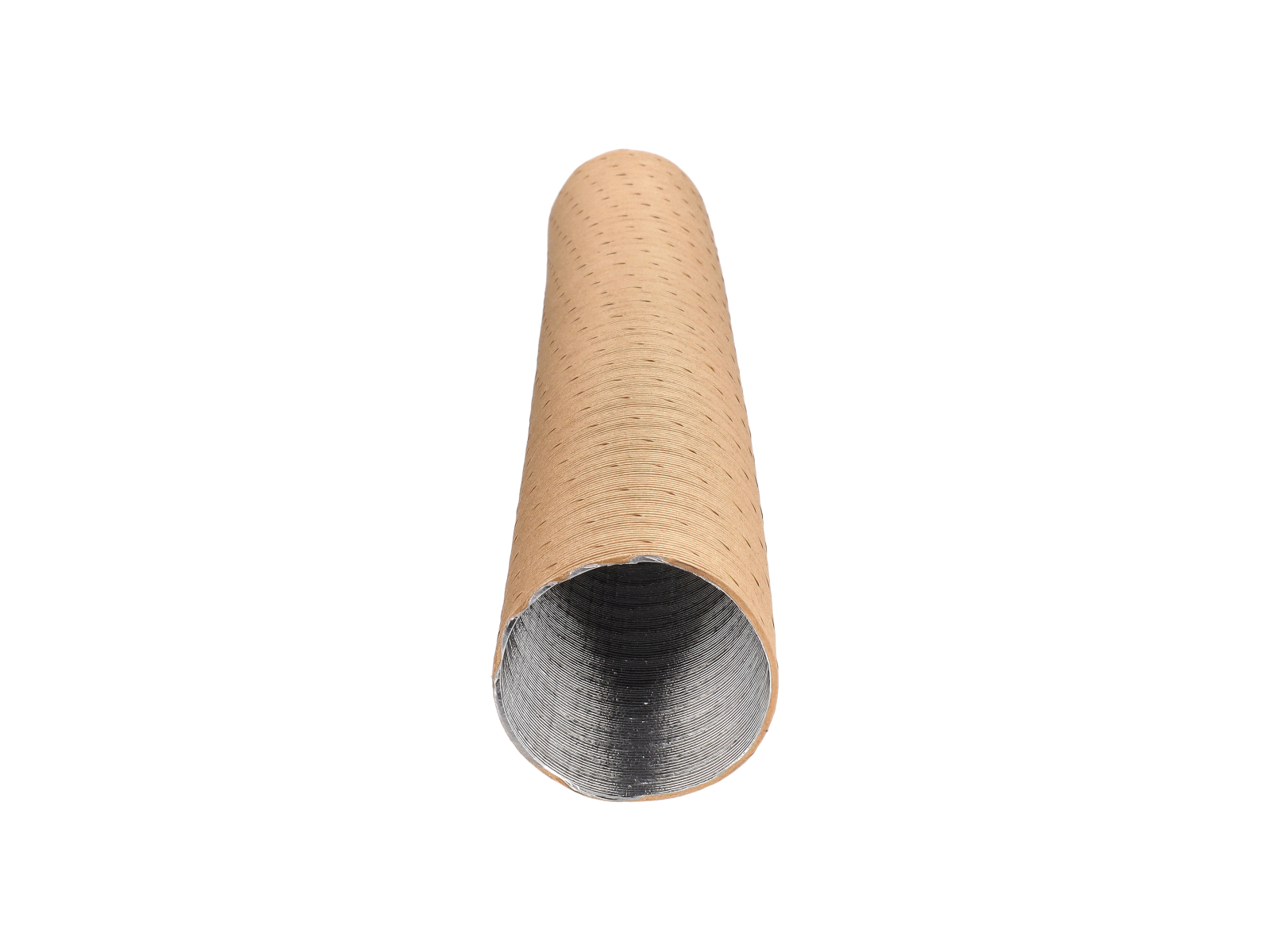

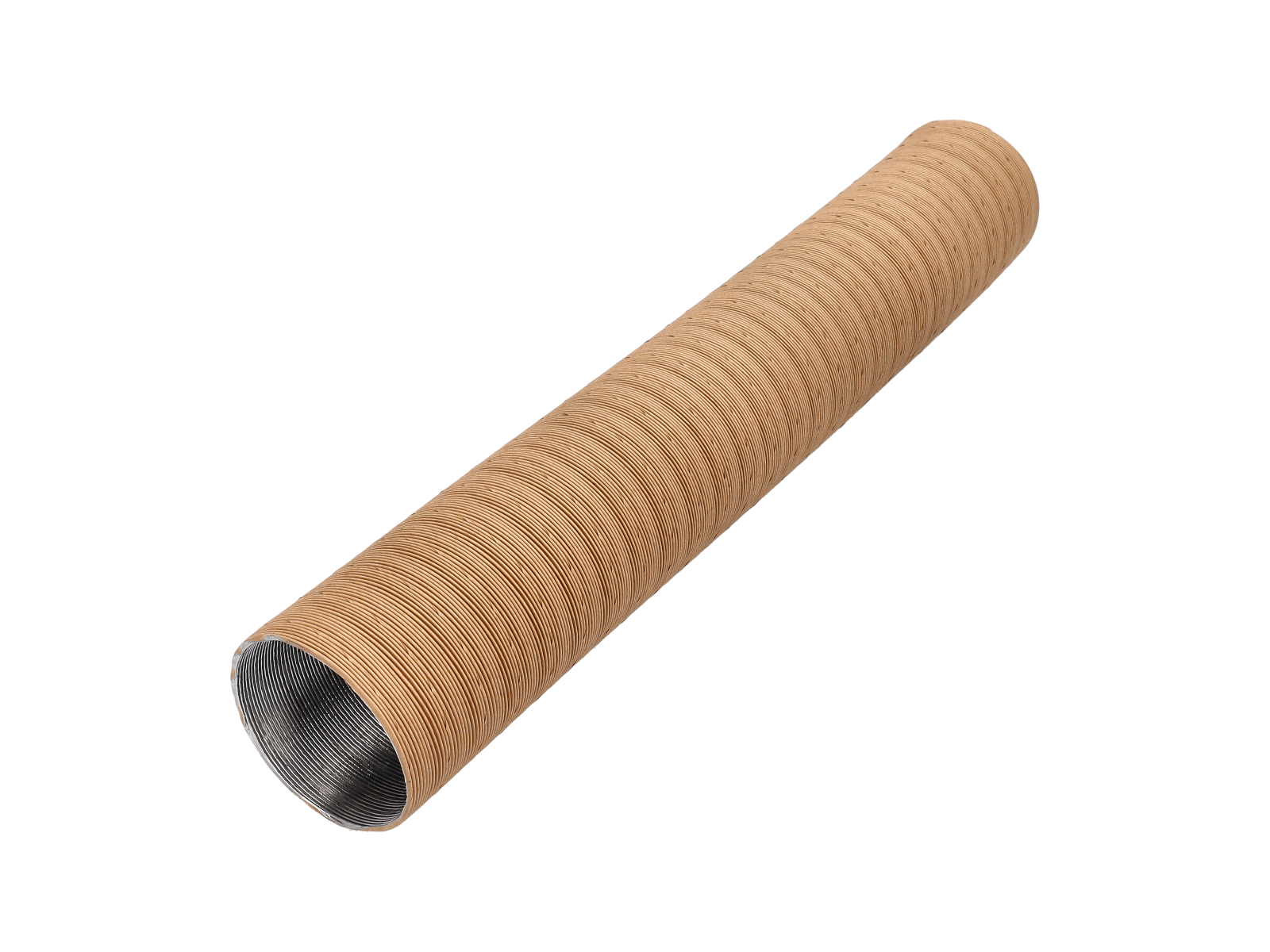

Engine to heat exchanger hose 380mm x 60mm.

Fits:
Porsche 912
Porsche 911 1965-73
Engine to Heat Exchanger on the Left or Right

Fits:
Porsche 930 Turbo 1975-89
Porsche 911SC
Porsche 911 3.2L
Engine to Heat Exchanger on the right

This product supersedes Porsche's old part numbers:
- 90121119400

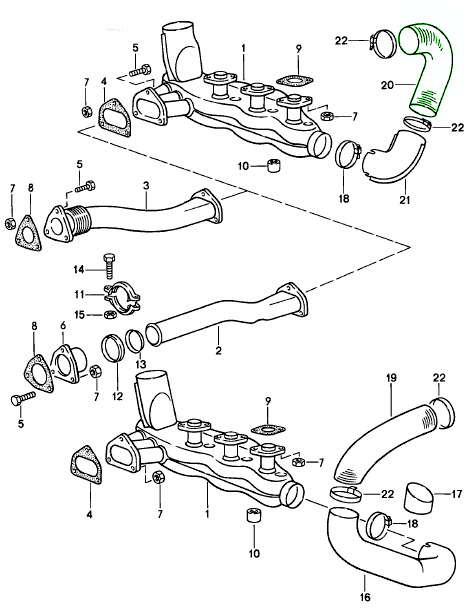

Diagram ref no. 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90121119401

The product you are viewing cross references to these numbers

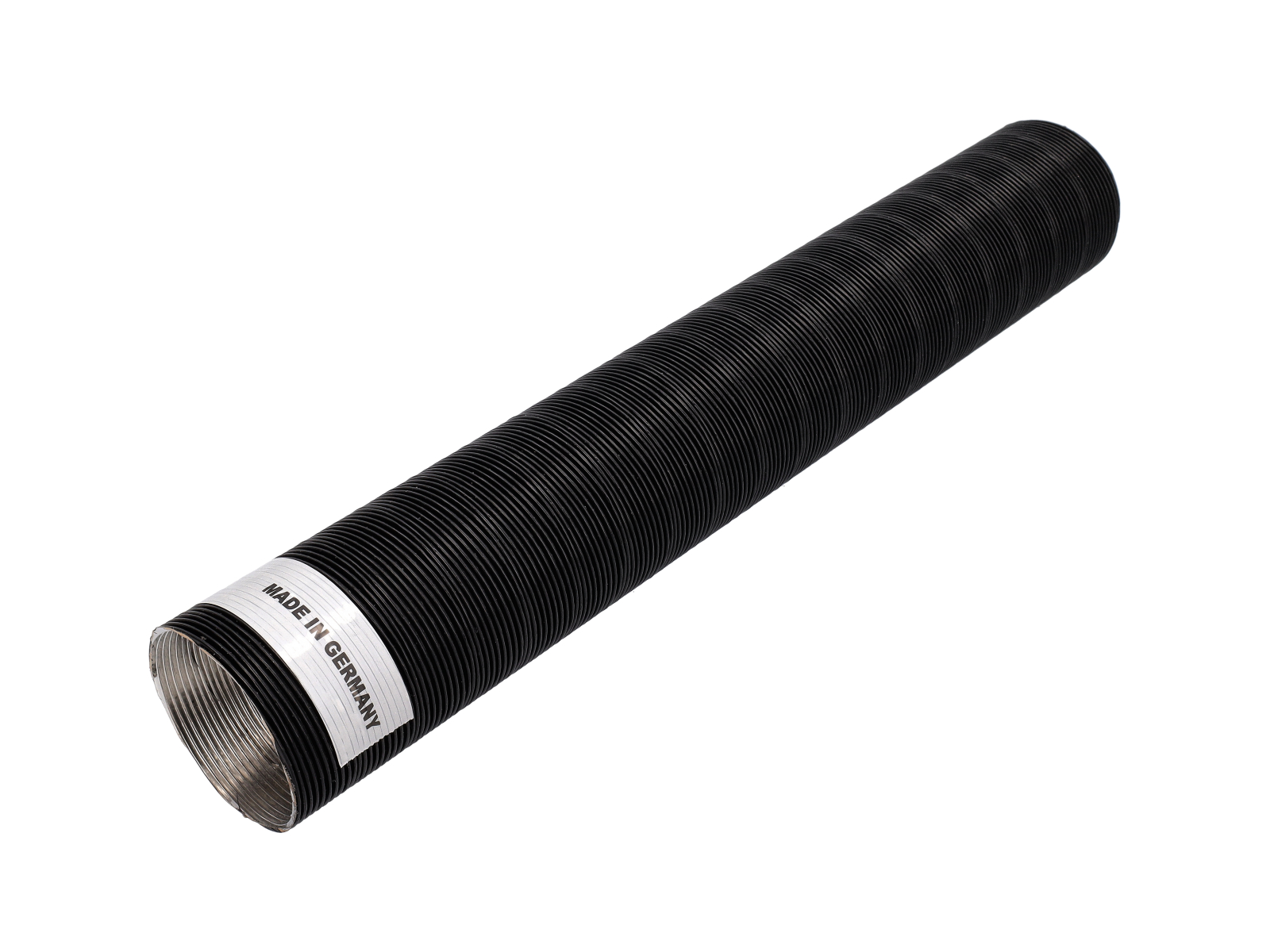

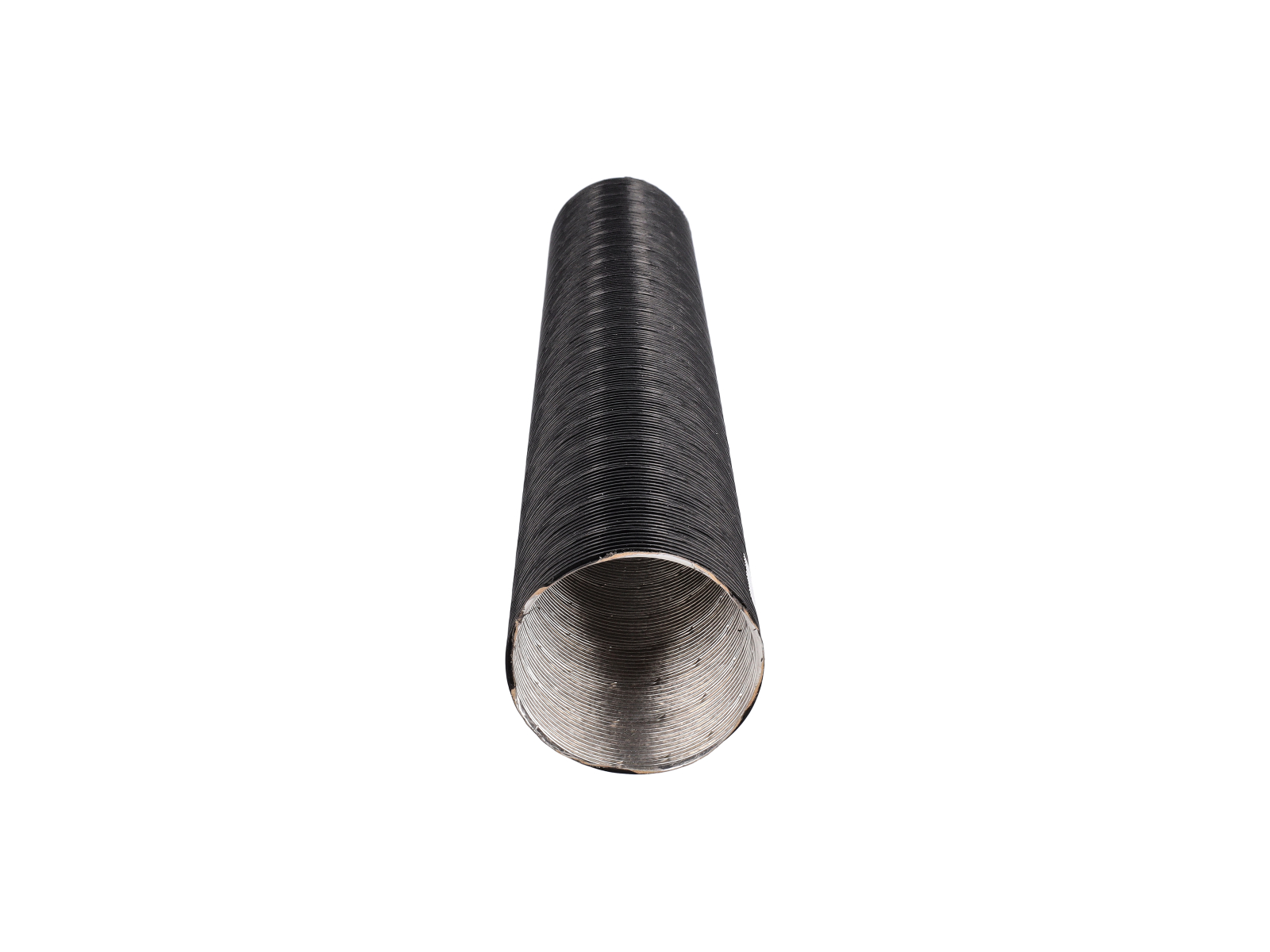

Engine to heat exchanger hose, 380mm x 60mm.
This is a high-quality replacement hot-air hose connecting the engine fan duct to the heat-exchanger in classic Porsche models. With an internal diameter of 60 mm and a length of 380 mm, this hose replicates the original specification, including the aluminium-lined construction and brown-paper exterior that Porsche used.

Fits:
Porsche 912
Porsche 911 1965-73
Engine to Heat Exchanger on the Left or Right

Fits:
Porsche 930 Turbo 1975-89
Porsche 911SC
Porsche 911 3.2L
Engine to Heat Exchanger on the right

Diagram ref no. 20

• Position on Vehicle: Engine bay, connecting the engine fan duct/air-intake housing to the heat-exchanger (or heater box) via the hose (typically on the right side).

• Cross-Reference / Alternative Numbers: 901 211 194 01 (current) supersedes and replaces 901 211 194 00.

• Material & Construction: Crafted from heat-resistant aluminium-lined hose, clad externally with the original brown-paper finish and sized to match the factory shape (60mm inner diameter, ~380mm length). Built for high-temperature engine-bay environment and correct airflow performance.

• Applications: Ideal when the original hose is cracked, delaminated, deformed, missing, or when restoring correct heating/airflow behaviour in the engine bay or passenger compartment on classic air-cooled Porsche cars.

This hot-air hose plays a vital role in engine and cabin heat management: if it's cracked, collapsed, or detached, you may experience reduced heater output, engine-bay overheating, erratic air-flow, or loss of original ducting performance. Installing a correctly specified replacement restores the original system’s performance and helps maintain correct engine and cabin temperature control.

When and why to replace:
• Visible cracking, splitting, or sagging in the old hose.
• Hose has been removed, reused too often or replaced with incorrect diameter/length.
• Heater output is weak or airflow to engine/compartment is abnormal.
• Restoring a classic 911/930 and you require original spec parts for authenticity and functionality.




Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90121119401

The product you are viewing cross references to these numbers

Exhaust gasket for heater flap.
Fits: Left or right side

Fits:
Porsche 911/912 1965-89
Porsche 930 (911) Turbo 1975-89

Diagram ref no 7

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91121129700

The product you are viewing cross references to these numbers

Heat control box connecting piece for SSI heat exchangers.



Fits:
Porsche 911 2.7L-3.3 08/1973-07/1986

Click 'Zoom in' for large parts diagram.
Diagram ref 20.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91165911901

The product you are viewing cross references to these numbers
