Oil Coolers / Radiators / Heat Exchangers

Universal dual-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
Custom end tanks with a 45° chamfer
M22 x 1.5 connections - 22" L x 4.75" H x 2.25" W
Dual pass for increased oil cooling

Fits
911/930 models up to 1989

RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units

These new oil coolers have custom end tanks with a 45° chamfered front angle, allowing them to fit flush inside '73-style RS/RSR bumpers. The fittings are pointed straight back. For best airflow and highest performance, CSF recommends cutting the front tub to allow for proper air flow, exiting behind the oil cooler and underneath the vehicle. Cutting the front tub will also give clearance to allow adding a rear fan shroud to pull more air through the cooler at slower speeds or while idling

Product Features:

•High Efficiency & Rugged Durability Bar/Plate Design

• M22 x 1.5 Inlet/Outlet Connections
• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Pressure Tested at 120psi

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8201

The product you are viewing cross references to these numbers

Universal single-pass oil cooler with direct fitment for Porsche 911 center front oil cooler (RS Style).
Custom end tanks with a 45° chamfer
M22 x 1.5 connections - 22" L x 4.75" H x 2.25" W

Fits:
Porsche 911/930 models up to 1989

RS style bar and plate oil coolers for air-cooled Porsche 911/930 models (up to 1989). This oil cooler is a direct-fit performance replacement for the original Porsche items but they can also be used as heavy duty universal units

These new oil coolers have custom end tanks with a 45° chamfered front angle, allowing them to fit flush inside '73-style RS/RSR bumpers. The fittings are pointed straight back. For best airflow and highest performance, CSF recommends cutting the front tub to allow for proper air flow, exiting behind the oil cooler and underneath the vehicle. Cutting the front tub will also give clearance to allow adding a rear fan shroud to pull more air through the cooler at slower speeds or while idling

Product Features:

•High Efficiency & Rugged Durability Bar/Plate Design

• M22 x 1.5 Inlet/Outlet Connections
• "Aero-Flow" Bar Design for Lightweight, Strength, and Maximum Flow
• Triangular flush mounting bolts on both top & bottom (M8x1.25)
• Satin Black Finish for Extreme Protection Against Corrosion and Debris
• Pressure Tested at 120psi

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

8202

The product you are viewing cross references to these numbers

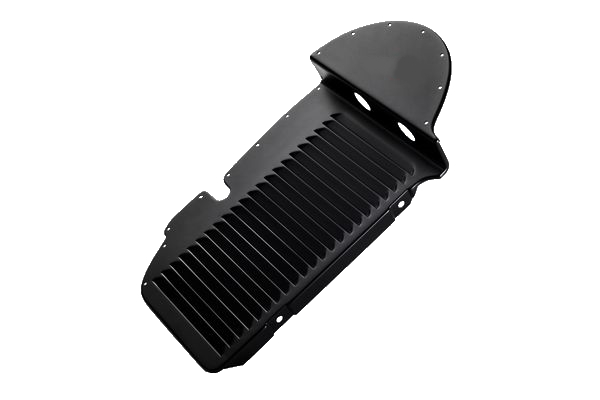

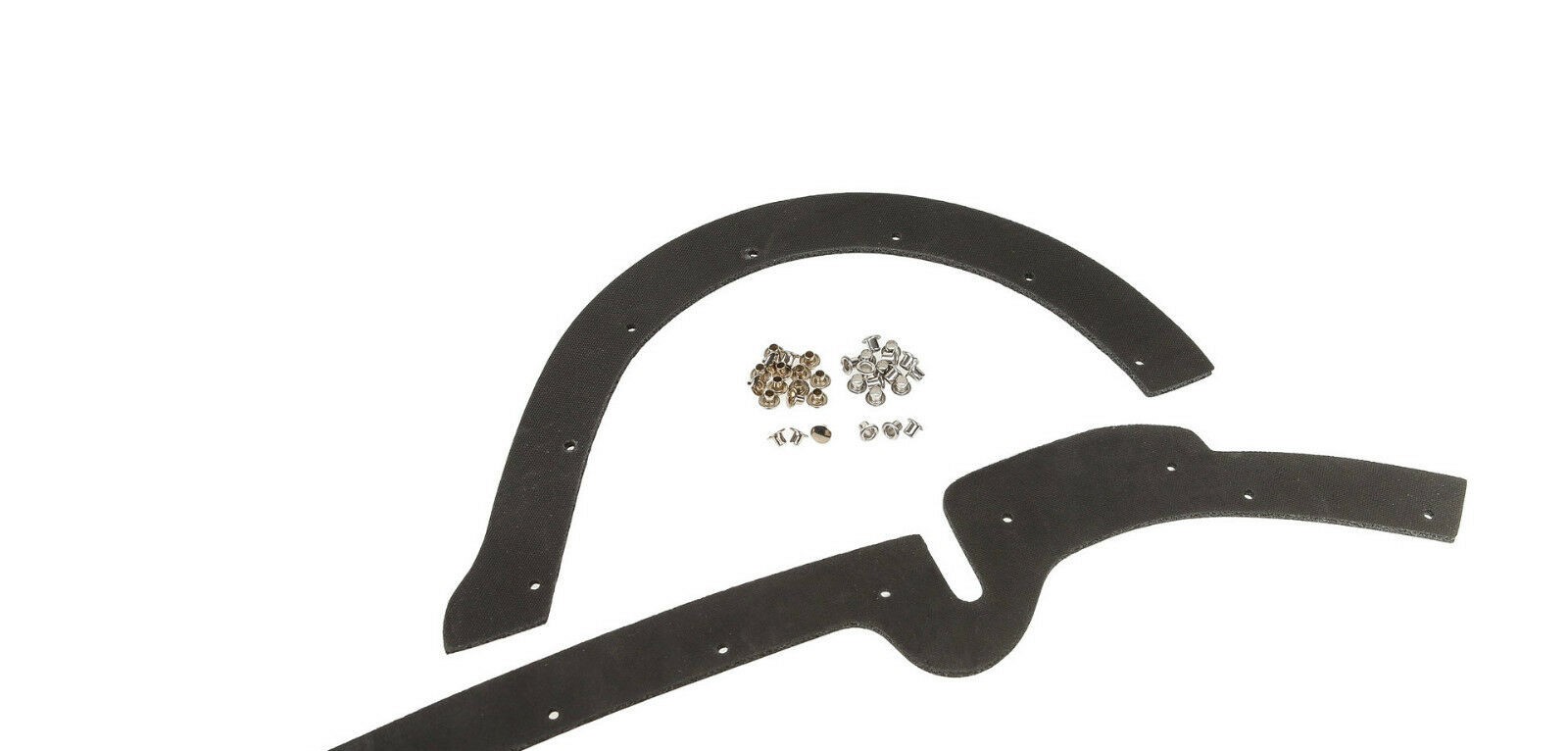

Cover plate for oil cooler, RIGHT, incl gaskets.

Fits:
Porsche 911S 2.0 1969
Porsche 911S 2.2 1970-71

Diagram ref no 18

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110708500

The product you are viewing cross references to these numbers

Cover plate for oil cooler, RIGHT



Fits:
Porsche 911S 2.0 1969-71
Porsche 911S 2.2 1969-71

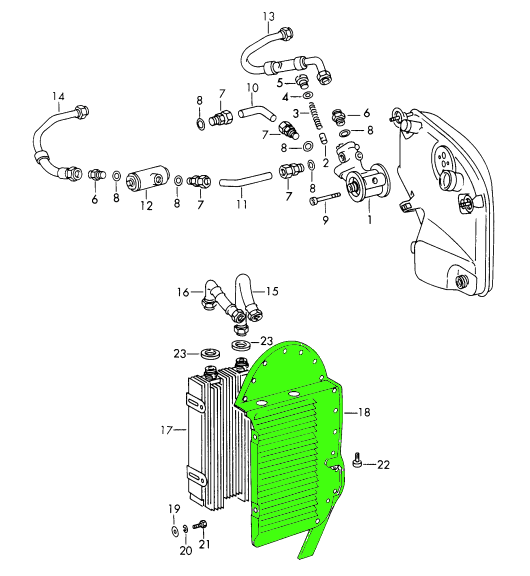

Click 'Zoom in' for large parts diagram.
Diagram ref no 18

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110708500

The product you are viewing cross references to these numbers

Radiator oil cooler high-performance core. Porsche 911 / 911 turbo

OEM+ / High-Performance recreation of the original Behr Oil Cooler
CNC Machined mounting plate with helix design for strength and pocketed for weight savings
Modern Tube & Fin core with lower pressure drop and higher heat dissipation than the original
Stainless Steel Fittings for late model slip-on style (72-89) and early threaded style (65-71) with upgraded M30 “Widemouth” Design for improved flow
All OEM Behr features replicated on the billet mounting plate and cooler case
Comes standard with modern Cerakote titanium finish (additional heat dissipation) – modern interpretation of the OEM Behr finish
Optimized ID and flow characteristics of oil pipe for maximum oil flow through the vehicle’s oil system
Complete drop-in fit, absolutely no modifications to install

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)

Diagram Ref No 8

After 2+ years of development and 4 rounds of prototypes, the world debut of the CSF Porsche 911/930 Engine Oil Cooler at Rennsport Reunion 2023 was met with resounding enthusiasm. Air-cooled enthusiasts know the struggles associated with the oil cooler located on the engine block of the old flat six motor. CSF’s highly anticipated new release is arguably the most important modern engine upgrade to be released for the 911 in years.
While the original design was effective at the time, they have not aged well. On top of that, there have been no updates to the design and original replacement units can be hard to come by. When the CSF 911 was being built, CSF realized this was a much needed part for the air-cooled community and set out to design something special.

The old original coolers aren’t the only issue though. CSF has gotten many first hand reports of brand new OE coolers from Porsche’s revamped “Porsche Classic” Catalogue leaking within a few months of installation. Apparently the new items available from Porsche are not built as well as the original Behr coolers. CSF has now brought to market a modern OEM+ solution to this vintage design.

The high-performance core uses 7 cooling tubes with 8 rows of fins. Between the ultra efficient fin design and high flow tubes, the CSF cooler is ~10% more efficient than a brand new OE unit and up to 25% more efficient than a used unit.

Because the base plate of the cooler is also a common problem area, CSF sought to improve this area as much as possible. Instead of the original cast design, the CSF cooler uses a CNC machined billet aluminum plate. This offers a perfectly flat mounting surface which is both stronger and more resistant to warping over time. You’ll also notice a special helix design which adds strength while keeping weight at a minimum.

Each unit is Individually Leak and Pressure Tested with a 10 year warranty
New OEM coolers from Porsche are extremely scarce/hard to source and cost $1,300+

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110704102

The product you are viewing cross references to these numbers

Performance engine oil cooler.

Fits:
Porsche 356A / 356B /356C - 1950 to 1965
Porsche 912 - 1965 to 1969

Here is a new benchmark in air-cooled performance for your Porsche 356 and 912.

This performance, aluminium oil cooler offers best-in-class features and capabilities including:

• Billet CNC machined top / bottom end tanks
• Thermal Rejection Ceramic Coating for Improved Heat Dissipation
• State of the Art Bar/Plate Core Delivers 10% More Cooling Surface in the OE Footprint versus OE Tube/Fin Construction
• Average 10 Degree Reduction in Engine Oil Temperature Between 2000-5000 RPM
• Multi-fit for both Porsche 356 and VW Installation Hardware and Elring brand oil seals/gaskets included
• Pressure tested to 120psi (~8.3bar)

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG10791250

The product you are viewing cross references to these numbers

Engine oil cooler. Porsche 356 / 912

ref : PCG10791250 / 61610704101/ 61610704102 / 61610704103

Fits:
Porsche 356 A/B/C 1.3-1.6 01/1950-12/1965
Porsche 912 1.6 01/1965-02/1970

Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG10791250

The product you are viewing cross references to these numbers

Front oil cooler oil pipe.



Fits:
Porsche 911 1965-71

Previous OE part number:
- 90110736110

Click 'Zoom in' for large parts diagram.
Diagram Ref No 16.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110736111

The product you are viewing cross references to these numbers

Front Oil Cooler Oil Pipe.

The OE Match Front Oil Cooler Oil Pipe is a high-quality replacement lubrication system component designed to transfer engine oil between the oil cooling system and the engine on compatible Porsche models. Manufactured to OE specifications for fit, flow capacity and durability, this oil pipe ensures efficient oil circulation while maintaining the correct operating temperature of the engine.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)

Diagram Ref No 16

Constructed from high-quality corrosion-resistant metal tubing with precision-formed bends and OE-style threaded connections, the oil pipe is engineered to withstand high oil pressures, elevated temperatures and continuous engine vibration. Designed to provide a secure, leak-free connection, it plays a vital role in the performance and longevity of Porsche's engine lubrication and oil cooling system.

What This Product Does:

• Transfers engine oil to and from the front oil cooler.
• Maintains efficient oil circulation throughout the lubrication system.
• Supports effective engine oil cooling.
• Helps regulate engine operating temperature.
• Delivers a consistent supply of lubricating oil under pressure.
• Provides secure, leak-free oil transfer between components.
• Helps protect internal engine components from excessive wear.
• Forms an essential part of the engine's oil cooling and lubrication system.

Symptoms Of Wear Or Failure:

• Visible engine oil leaks.
• Oil residue around the oil pipe or fittings.
• Low engine oil level.
• Oil pressure warning light.
• Oil smell from the engine bay or underneath the vehicle.
• Corrosion or rust on the oil pipe.
• Cracked or damaged pipe connections.
• Increased engine operating temperatures.
• Reduced oil circulation.
• Premature engine wear caused by lubrication loss.

Why Replacement Matters:

• The front oil cooler oil pipe is continuously exposed to hot engine oil, high operating pressures, vibration, road debris and environmental corrosion. Over time, the pipe can deteriorate through corrosion, impact damage or fatigue, while threaded connections and sealing surfaces may begin to leak.
• A leaking or restricted oil pipe can reduce oil pressure and compromise the engine's lubrication and cooling efficiency. Continued operation with insufficient oil flow can accelerate wear of bearings, camshafts and other critical engine components, potentially leading to severe engine damage and costly repairs.
• Replacing a worn or damaged front oil cooler oil pipe restores reliable oil circulation and ensures the engine's lubrication and cooling systems continue to operate efficiently. The OE Match replacement provides factory-style fitment, robust construction and dependable long-term sealing performance, helping maintain the reliability, performance and longevity expected from your Porsche.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110736111

The product you are viewing cross references to these numbers

Front oil cooler oil pipe.



Fits:
Porsche 911 1965-71

This part number has been superseded from previous numbers:
- 90110736400
- 90110736402

Click 'Zoom in' for large parts diagram.
Diagram ref No 15.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110736403

The product you are viewing cross references to these numbers

Front oil cooler oil pipe.



Fits:
Porsche 911 1965-71

This part number has been superseded from previous numbers:
- 90110736400
- 90110736402

Click 'Zoom in' for large parts diagram.
Diagram ref No 15.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110736403

The product you are viewing cross references to these numbers

Installation kit for early engine case with 8mm x 8mm studs. Kit includes two oil cooler seal rings, part and two studs.



Fits:
Porsche 912
Porsche 356B / 356C

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SMC10704110

The product you are viewing cross references to these numbers

Engine oil cooler.



Fits:
Porsche 356 1950-65
Porsche 912 1965-69

Click 'Zoom in' for large parts diagram.
Diagram Ref No 1.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG10791250

The product you are viewing cross references to these numbers

Radiator engine oil cooler front "Snake Type".
Radiator fits in the front under the wing.



Fits:
Porsche 911 2.7 08/73-07/74
Porsche 911 2.7 RS 08/72-07/73

Click 'Zoom in' for large parts diagram.
Diagram ref no 22

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110704700

The product you are viewing cross references to these numbers

Radiator Engine Oil Cooler Front "Snake Type"

Maintain the correct operating temperature of your classic air-cooled Porsche with this OE Match Front Engine Oil Cooler, commonly known as the Snake Type or Trombone Oil Cooler. Designed as a direct replacement for the original factory oil cooler fitted to Porsche 911 models from 1970-1973, this OE-quality component restores efficient engine oil cooling while preserving the originality of your vehicle.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)

Diagram ref no 22

Unlike later finned oil coolers, the trombone oil cooler uses a continuous loop of oil pipe mounted in the front wheel arch. As airflow passes over the curved tube, excess heat is dissipated from the engine oil before it returns to the engine. Its distinctive looped design earned it the nickname "Trombone Oil Cooler", and it remains an iconic feature of early long-wheelbase Porsche 911 models.

Manufactured to OE specifications, this replacement oil cooler offers excellent fitment, corrosion resistance and long-term durability, making it ideal for restorations, maintenance or replacing damaged original units.

What Does the Oil Cooler Do?

Engine oil performs two vital functions in an air-cooled Porsche: lubricating internal engine components and carrying away excess heat.

The front-mounted Snake Type oil cooler helps to:

• Reduce engine oil temperature.
• Improve lubrication under demanding driving conditions.
• Protect internal engine components from excessive heat.
• Maintain stable oil viscosity.
• Increase engine reliability and longevity.
• Support consistent engine performance during warm weather and spirited driving.

Although simple in design, the trombone cooler provides a significant improvement in oil temperature control compared to engines without a front-mounted oil cooler.

Why Do Oil Coolers Need Replacing?

After decades of service, oil coolers can become damaged or less effective due to:

• External corrosion.
• Stone impacts and road debris.
• Internal contamination.
• Oil leaks caused by corrosion or physical damage.
• Accident damage.
• Previous poor repairs or deformation of the cooling loop.

Replacing a damaged oil cooler helps maintain correct oil temperatures while preventing potentially expensive engine damage caused by oil loss.

Symptoms of a Failing Oil Cooler

Common warning signs include:

• Visible oil leaks around the cooler.
• Rising engine oil temperatures.
• Oil residue around the front wheel arch.
• Corroded or damaged cooling tube.
• Reduced cooling efficiency.
• Oil pressure concerns caused by oil loss.
• Physical damage from road debris.

If any oil leakage is present, the cooling system should be inspected immediately.

When Should the Trombone Oil Cooler Be Replaced?

Replacement is recommended when:

• Oil leaks develop.
• Corrosion weakens the cooling tube.
• Accident damage has occurred.
• Restoring a classic Porsche to factory specification.
• Replacing damaged front oil lines.
• Carrying out a complete oil cooling system overhaul.

Replacing ageing cooling components helps maintain reliable engine temperature control and protects your investment.

Why Choose an OE Match Oil Cooler?

Our OE Match Snake Type oil cooler has been engineered to closely replicate the original Porsche component.

Benefits include:

• Correct Trombone (Snake Type) design.
• OE-quality construction.
• Precision-formed cooling loop.
• Corrosion-resistant finish.
• Excellent oil flow characteristics.
• Straightforward installation using factory mounting points.
• Ideal for restorations and originality-focused vehicles.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91110704700

The product you are viewing cross references to these numbers

Radiator engine oil cooler with screw socket
Radiator type fits in engine compartment.

Fits:
Porsche 911 1965-71

Diagram ref No 8

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90110704103

The product you are viewing cross references to these numbers
