CV joint kit Constant Velocity Joint. Porsche 971 Panamera / 976 Panamera / 91J Taycan Turbo  ❭  971407283A

CV joint kit Constant Velocity Joint, Front axle, inner
Fitting Position: transmission sided, Front Axle Left, Front Axle Right

Fits:
Porsche 971.1 Panamera 2017 - 2021
Porsche 971.2 Panamera 2022 - 2023
 * option code: 1X1 - All-wheel drive
 * option code: 0J5 - Load group 2 FA/2 RA
 * option code: 0J8 - Load group 2 FA/1 RA

Porsche 976 Panamera 2024 >>
 * option code: 1X1 - All-wheel drive

Porsche 91J.1 Taycan Turbo S 2020 - 2023
Porsche 91J.2 Taycan Turbo S 2024>>

Diagram ref no 2

Inner Diameter 1: 25 mm
Inner Diameter 2: 68 mm
Height: 103 mm
Joint Type: Tripod Joint
Bellows Material: TPE (thermoplastic elastomer)
New Part
Supplementary Article: with grease

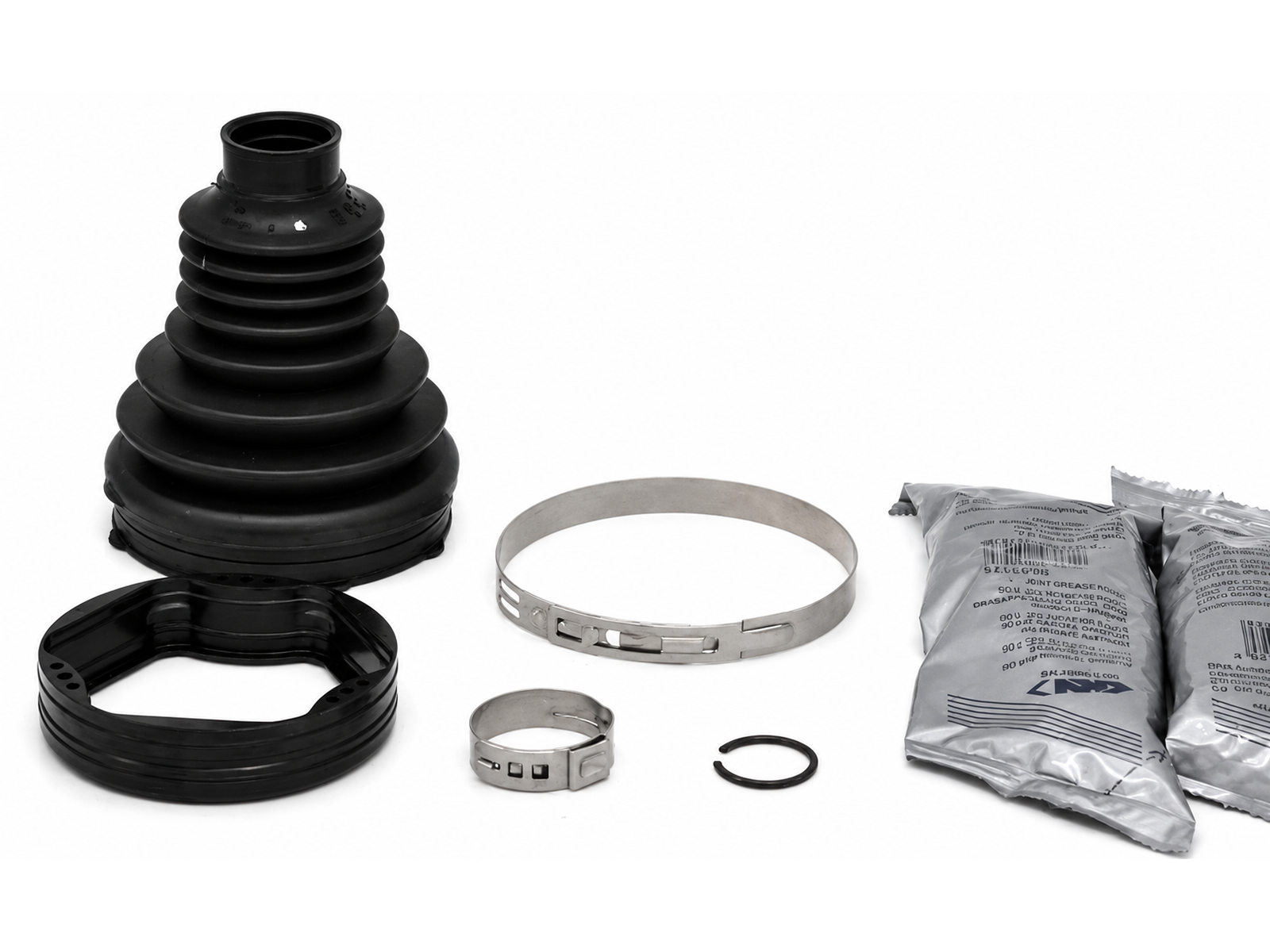

High-quality GKN CV joint boot kit GKNB20647 for selected Porsche Panamera 971 / 976  & Taycan drivetrain applications.

The CV joint boot is an essential protective component of the driveshaft assembly. Its purpose is to retain the specialised CV joint grease while preventing water, dirt, road debris and other contaminants from entering the joint.

This GKN boot is manufactured from TPE - thermoplastic elastomer, a durable material particularly suited to modern high-performance drivetrains where CV joints can operate at elevated temperatures and under substantial torque loads.

Designed for a tripod-type CV joint, the GKNB20647 provides the precise fit required to maintain an effective seal around the joint and driveshaft.

A damaged or split CV boot should be replaced as soon as possible. Once the boot loses its seal, grease can escape and contamination can enter the joint, potentially causing accelerated CV joint wear and eventually requiring replacement of the complete joint or driveshaft.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

971407283A

The product you are viewing cross references to these numbers
