Drive shaft, Front. Porsche 9YA Cayenne 4.0L V8 Turbo E-Hybrid 2018>>  ❭  PAB407271F

Reconditioned Drive shaft, Front.
Sold individually, 1 required per side where fitted, 2 required per vehicle if replacing both rear drive shafts.

Please note:
Reconditioned units are sold on an exchange basis, A surcharge of £75.00 will be held and then refunded when the old one is returned. The old unit must be returned to Design911 in a built state, not in component pieces.

Fits:
Porsche 9YA.1 Cayenne 4.0L V8 Turbo E-Hybrid 2018 - 2024
Porsche 9YA.2 Cayenne 4.0L V8 Turbo E-Hybrid 2023 >>

Diagram ref no 1

Length: 496 mm
Seal diam.: 77 mm
Wheel Side Joint Ø: 103 mm
Transmission-sided Joint Ø: 134 mm
Thread Size: M16x1.5
Bore Ø:13 mm
Number of bores: 6 Bolt
Hole Circle Ø: 113 mm
Dust Cover: with dust cover
Exchange Part
Supplementary Article:  2 with screw

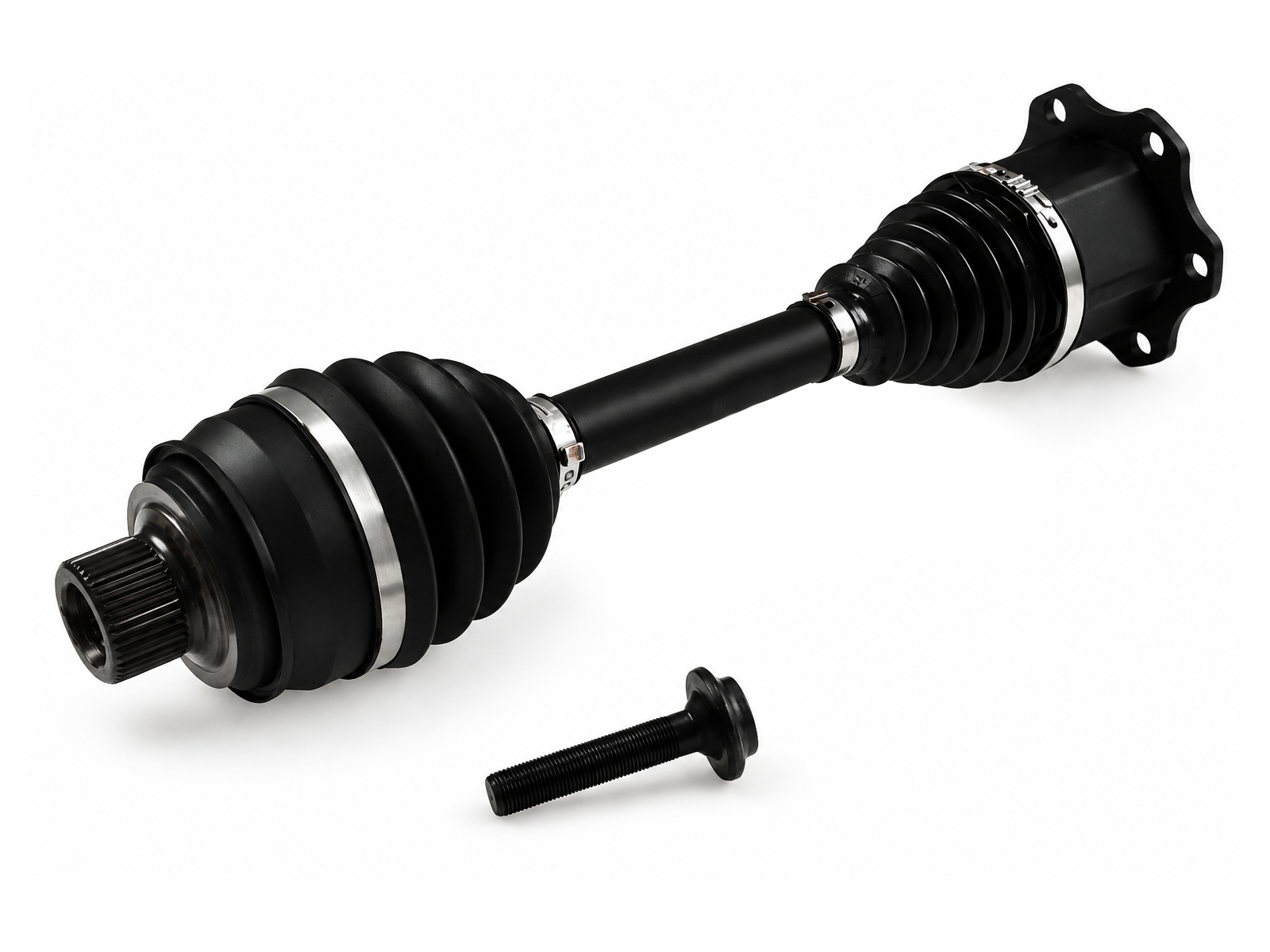

High-quality GKN front drive shaft for selected Porsche Cayenne 9YA 4.0L V8 Turbo E-Hybrid models.

The GKN GKND13056 is a complete front driveshaft / CV axle assembly designed as a premium replacement for Porsche OE references PAB407271A, PAD407271C and PAB407271F.

Suitable for installation on either the left-hand or right-hand side of the front axle, this makes ordering straightforward when replacing a worn or damaged driveshaft.

Please note: This product is sold individually. One shaft is required per side. Order a quantity of two if replacing both front driveshafts.

GKN Automotive is a globally recognised drivetrain specialist and a leading manufacturer of constant-velocity joints and sideshaft systems. GKN driveshaft technology is designed to provide smooth and efficient torque transfer while accommodating steering movement and suspension travel.

This makes the GKND13056 an excellent OE-quality replacement option for the high-performance plug-in hybrid drivetrain used in the Porsche Cayenne.

Why Replace a Worn Drive Shaft?
The driveshaft and CV joints operate under considerable load and are subjected to constant movement as the vehicle accelerates, brakes and travels over changing road surfaces.

Over time, wear or damage can occur to the CV joints, shaft, boots or associated components.

Possible symptoms of a worn or damaged rear driveshaft include:
•  Clicking or knocking noises
•  Vibration during acceleration
•  Shuddering through the vehicle
•  Excessive driveline play
•  Noise when turning
•  Damaged or leaking CV boots
•  Grease loss around the CV joint
•  Mechanical noise under acceleration or regenerative load.

Replacing a worn assembly with a complete quality GKN driveshaft helps restore smooth and reliable torque transmission.


PLEASE NOTE:

• The surcharge for this reconditioned part will be refunded when the exchange unit is received and approved by us and the relevant manufacturer.
• Please note, surcharge refunds often take an average of 6 to 8 weeks to be approved by the manufacturer.
• Acceptance of the exchange part is at the manufacturer's discretion, based on the part being fit for reconditioning.
• All surcharges and exchanges are subject to our terms and conditions.
