LED Headlight, PDLS+. Porsche 976 Panamera 2023>>  ❭  97694168

LED Headlight, PDLS+.
The HELLA LED Headlight with PDLS+ is a replacement front lighting assembly for compatible Porsche applications equipped with the appropriate Porsche Dynamic Light System Plus (PDLS+) specification.

Fits:

• Porsche 976 Panamera V6 2.9L 2023>>
• Porsche 976 Panamera 4 V6 2.9L 2023>>
• Porsche 976 Panamera 4 E-Hybrid V6 2.9L 2023>>
• Porsche 976 Panamera 4S E-Hybrid V6 2.9L 2023>>
• Porsche 976 Panamera GTS V8 4.0L 2023>>
• Porsche 976 Panamera Turbo E-Hybrid V8 4.0L 2023>>
• Porsche 976 Panamera Turbo S E-Hybrid V8 4.0L 2023>>

Cars With Option Codes:
8IU - LED Headlamps With Variable Light Distribution

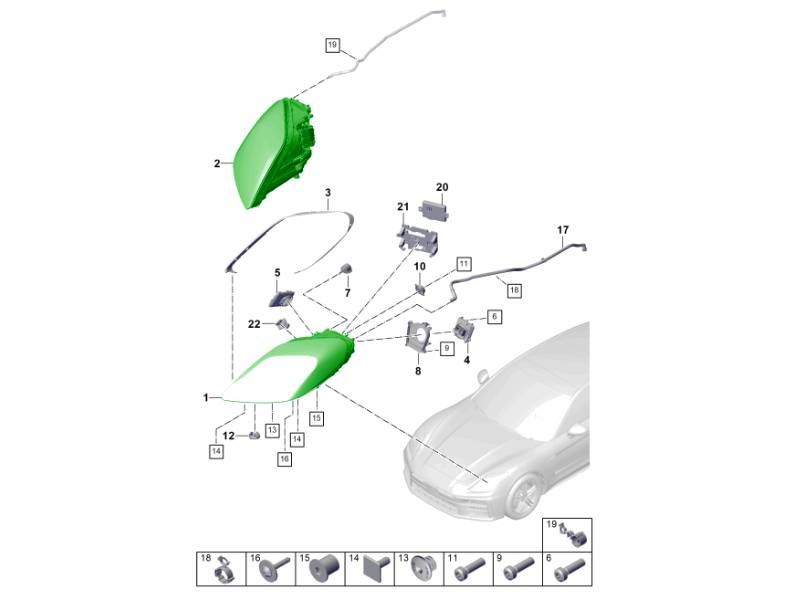

Diagram Ref No 1 And 2

The headlight provides the vehicle's primary forward illumination while integrating with the vehicle's electronic lighting and driver-assistance systems. LED technology provides rapid illumination, efficient operation and precise light distribution, while PDLS+ functionality can provide additional lighting control according to the vehicle's specification and operating conditions.

A damaged, moisture-contaminated or electronically defective headlight can reduce visibility, generate warning messages and prevent some lighting functions from operating correctly. Replacement restores the physical lighting assembly and provides the basis for correct operation once the unit has been properly installed, configured and adjusted.

What This Product Does:
The LED Headlight PDLS+ forms part of the vehicle's primary exterior lighting system.

Its core functions include providing forward road illumination and helping the driver identify:

• Road markings
• Junctions
• Curves
• Pedestrians
• Cyclists
• Other vehicles
• Roadside objects
• Potential hazards in low-light conditions

Depending on vehicle specification and system configuration, the PDLS+ lighting system may also integrate additional electronically controlled lighting functions designed to optimise light distribution under different driving conditions.

Symptoms Of Wear Or Failure:
Unlike conventional service components, an LED headlight does not normally have a predetermined mechanical wear interval. Replacement is generally required because of physical damage, moisture ingress, electrical failure, LED deterioration or problems with integrated electronic components.

Possible symptoms include:

• Headlight not illuminating
• One headlight operating intermittently
• Reduced light output
• Uneven illumination between left and right headlights
• Flickering LED lighting
• Individual LED functions not operating
• Dipped-beam malfunction
• Main-beam malfunction
• Daytime running light malfunction
• Indicator or other integrated lighting malfunction, where applicable
• PDLS+ functions not operating correctly
• Headlight levelling malfunction
• Incorrect or inconsistent beam positioning
• Lighting-system warning displayed in the vehicle
• Diagnostic fault codes relating to the headlight or lighting system
• Communication faults with lighting electronics
• Visible cracks in the headlight lens or housing
• Broken mounting points
• Damaged electrical connectors
• Condensation or excessive moisture inside the lamp
• Water ingressInternal corrosion

• Discolouration or deterioration of the lens
• Physical accident damage

Some of these symptoms can also be caused by wiring, connectors, control modules, sensors, power supply problems, vehicle coding or other components rather than the complete headlight assembly.

Why Replacement Matters:
The front headlight is a safety-critical component because it directly affects the driver's ability to see and be seen.

Replacing a confirmed damaged or defective LED Headlight PDLS+ can help:

• Restore dependable forward illumination
• Restore correct road visibility
• Restore failed LED lighting functions
• Restore the correct headlight assembly after accident damage
• Address persistent moisture or water ingress caused by a defective assembly
• Restore correct beam positioning
• Restore compatible PDLS+ functionality
• Reduce lighting-related warning messages where the headlight itself is responsible
• Maintain the vehicle's original exterior appearance
• Maintain safe nighttime and poor-weather visibility

A defective headlight should not be ignored, particularly where dipped beam, main beam, beam positioning or other safety-related lighting functions are affected.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

97694168

The product you are viewing cross references to these numbers
