Ignition distributor SWITCH,  with vacuum

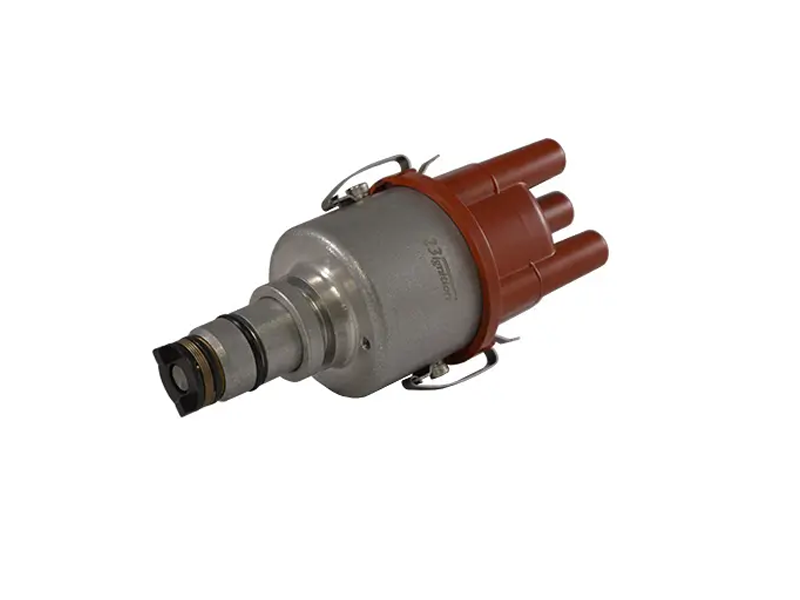

Improve the performance of your classic car with this highly reliable electronic ignition distributor.

This Electronic Ignition Distributor is designed for Porsche 912 / 914 / 356  with D-jetronic injection system

NOTE:  This unit offers Bosch D-Jetronic fuel injection support

The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the curve table for available advance curves.

Cylinders: 4
Model: Switch
Operating voltage: 4-15V
Positive earth supported: Yes

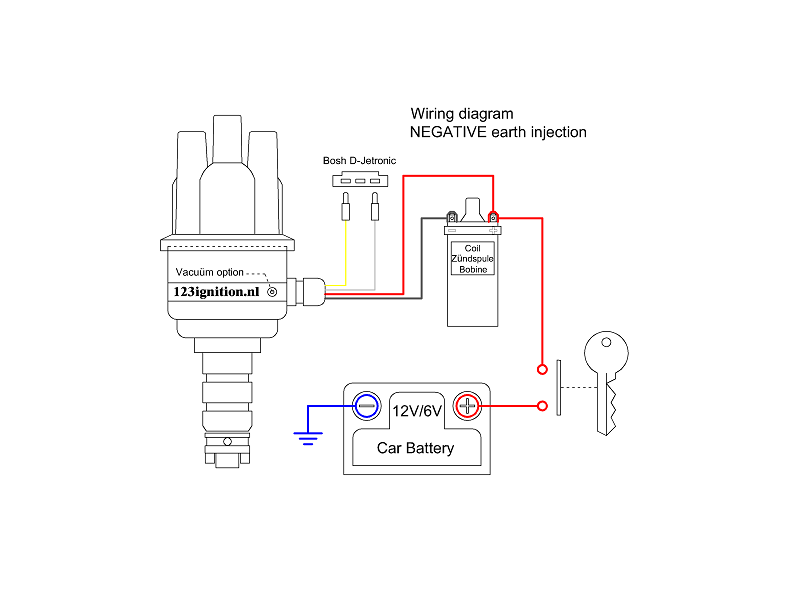

Wires: Black: coil ‘-‘ | Red: ignition key (battery 6V / 12V) | White & yellow: D-Jetronic signals
Vacuum: YES
Rotation direction: CW & CCW
IE (D-jetronic support): Yes
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current - fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft

Porsche-4-R-V-IE =  Porsche stands for the 123ignition type
Porsche-4-R-V-IE =  4 stands for the number of cylinders
Porsche-4-R-V-IE =  R stands for straight distributor cap
Porsche-4-R-V-IE =  V stands for vacuum advance
Porsche-4-R-V-IE =  IE stands for D-Jetronic
