Ignition distributor TUNE+ Bluetooth. Porsche 911 3.0L 6 cylinder engines  ❭  123TB6RV911SC

Ignition distributor TUNE+ Bluetooth. Porsche 911 3.0L 6 cylinder engines - 93060202104, 930602021DX, 91160202109, 911602021JX, 90160202510, 90160202500 - 123\TUNE+-4-R-V-PORSCHE-IE
6
Select your vehicle to check compatibility
123TB6RV911SC
Product Information
Product Information

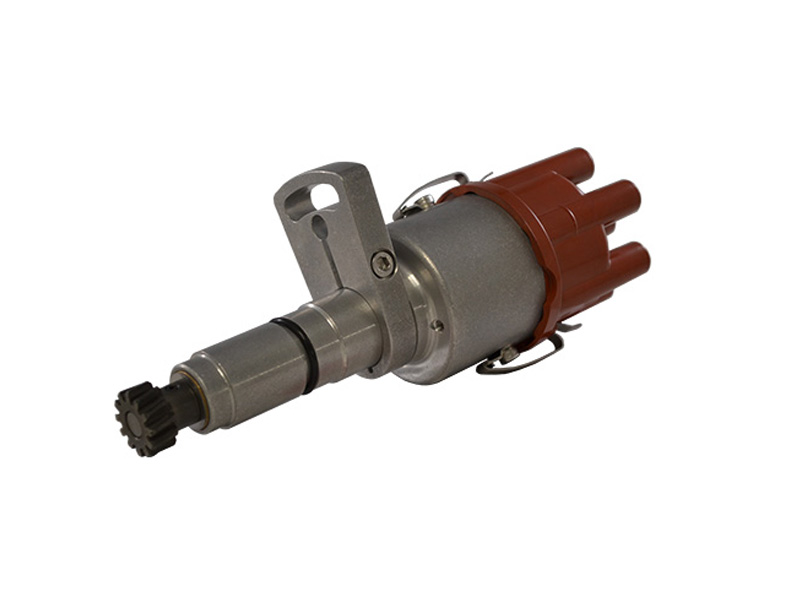

Ignition distributor TUNE+ Bluetooth
Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.

This Bluetooth Electronic Ignition Distributor is designed for Porsche 911 3,0L 6 cylinder engines

IMPORTANT:
Only compatible with Porsche 911 3.0 SC engines!
Only suitable for engines with original Bosch HKZ (CDI) unit of the second generation. HKZ unit (6 wires).

Please be aware the Porsche 911 3.0 SC ignition has a different gear comparing to other Porsche 911 engines. 123ignition is proud to announce the first fully programmable wireless ignition!

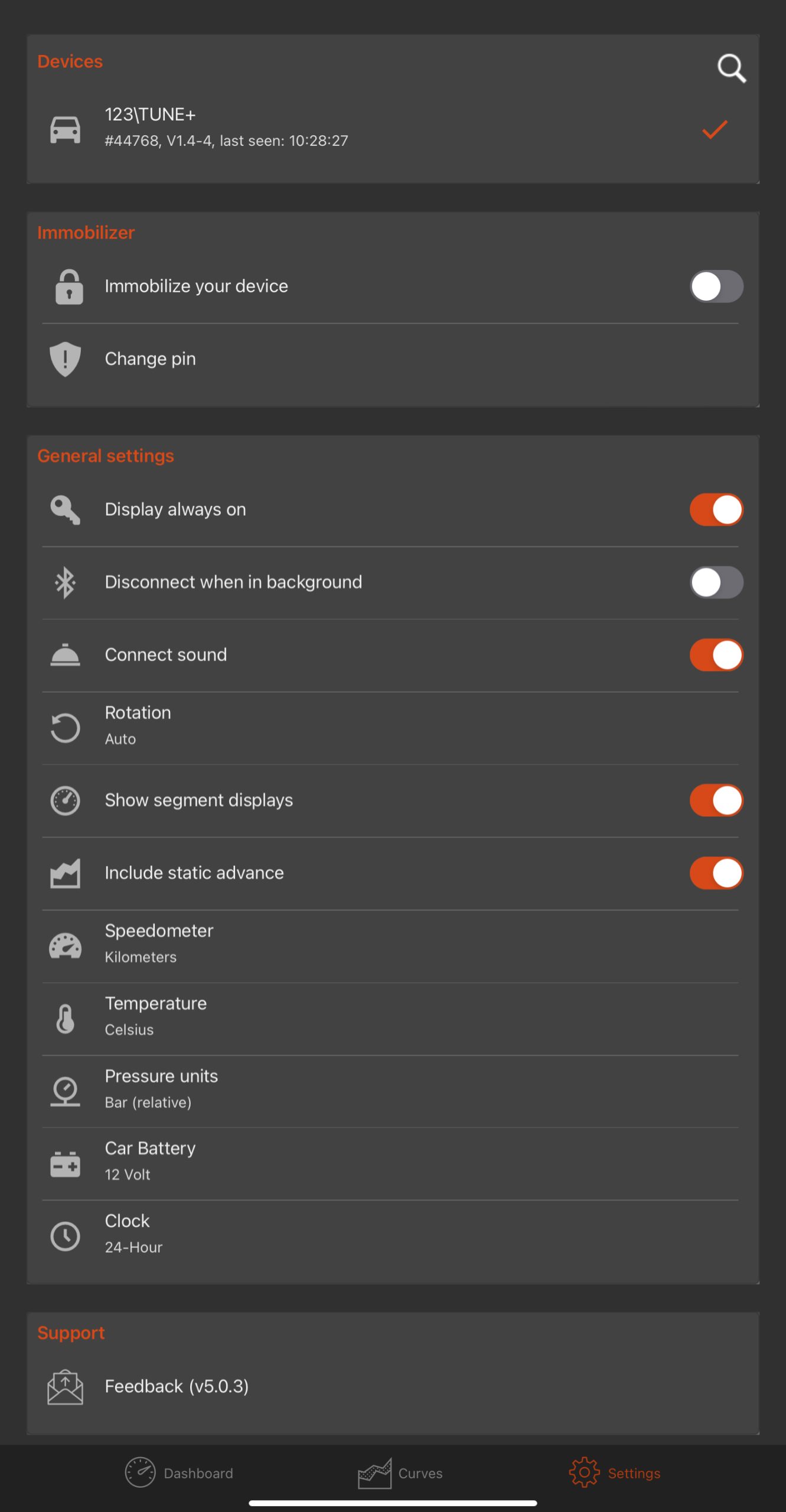

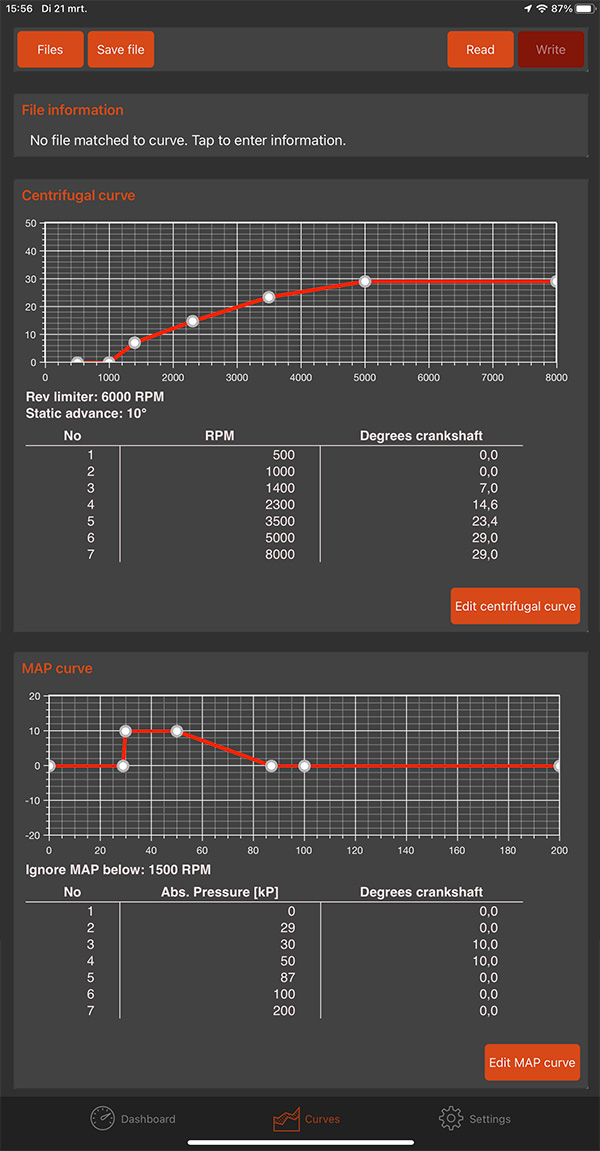

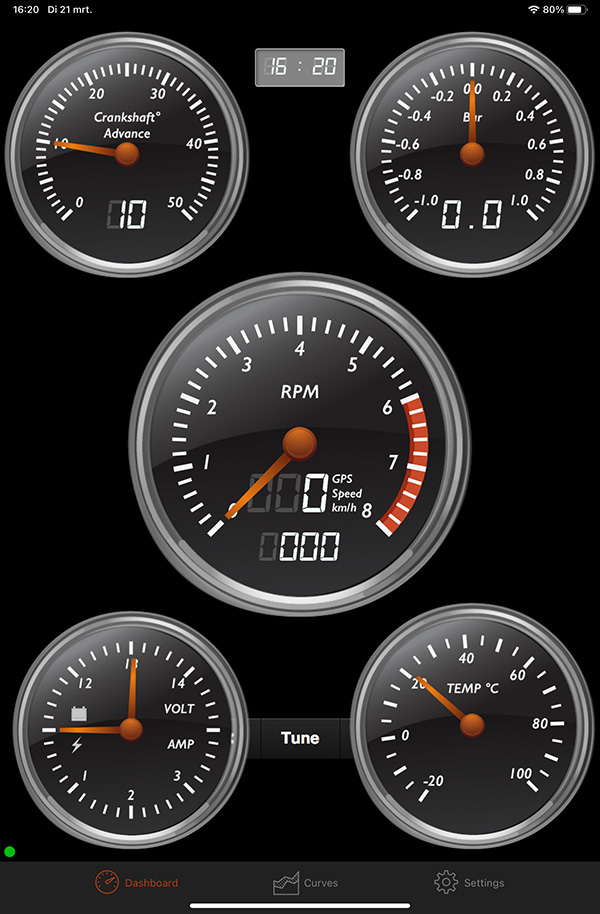

Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

Cylinders: 6
Model: Tune+
Operating voltage: 4-15V
Positive earth supported: Yes

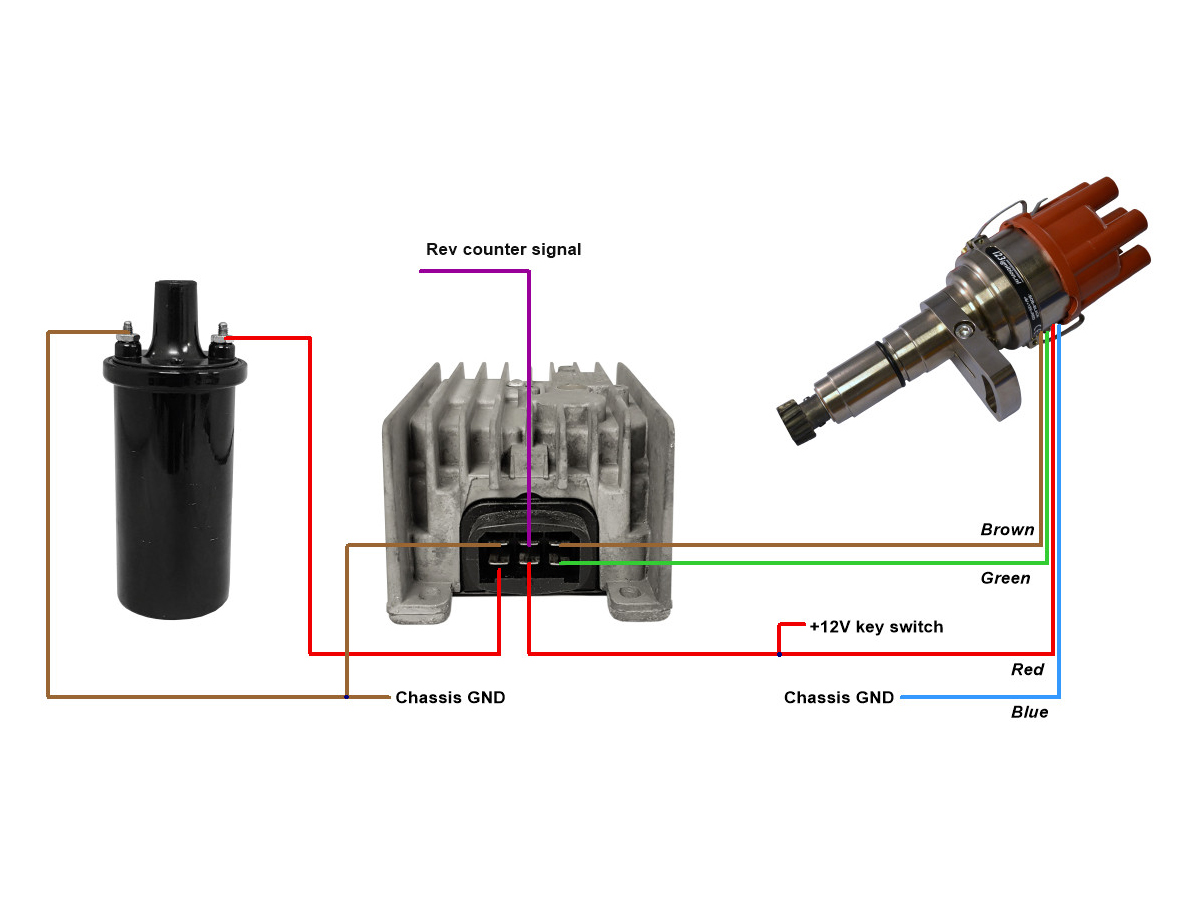

Wires: Black: coil ‘-‘ | Blue: battery negative | Red: ignition key (battery 6V / 12V)
Vacuum: Yes
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current: fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft

Tune+-6-R-V-POR911-3.0-SC =  Tune+ stands for connection with bluetooth
Tune+-6-R-V-POR911-3.0-SC =  6 stands for the numbers of cylinders
Tune+-4-R-V-POR911-3.0-SC =  R stands for Straight distributor cap
Tune+-4-R-V-POR911-3.0-SC =  V stands for vacuum advance
Tune+-4-R-V-POR911-3.0-SC =  POR911-3.0-SC stands for the 123ignition type for a 6 pins HKZ unit


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

123TB6RV911SC
93060202104
930602021DX
91160202109
911602021JX
90160202510
90160202500

The product you are viewing cross references to these numbers
