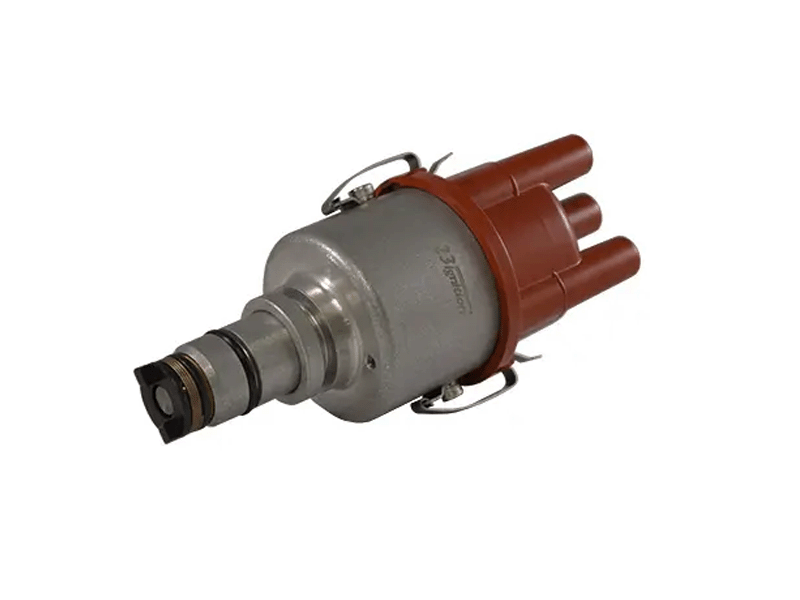

Ignition distributor TUNE+ Bluetooth. Porsche 912 / 914 / 356  ❭  123TB4RV

Ignition distributor TUNE+ Bluetooth
Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.

This Bluetooh programmable is designed for Porsche 912 / 914 / 356

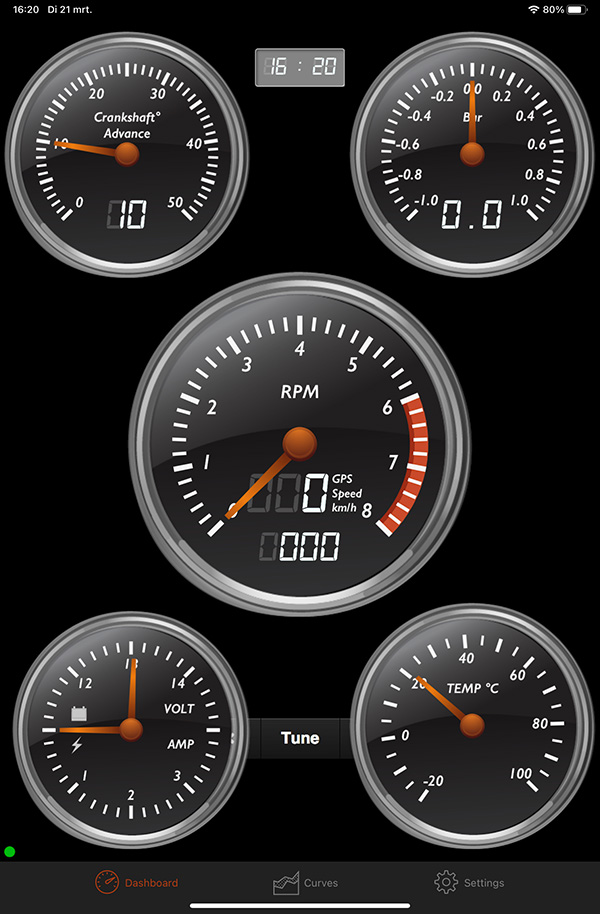

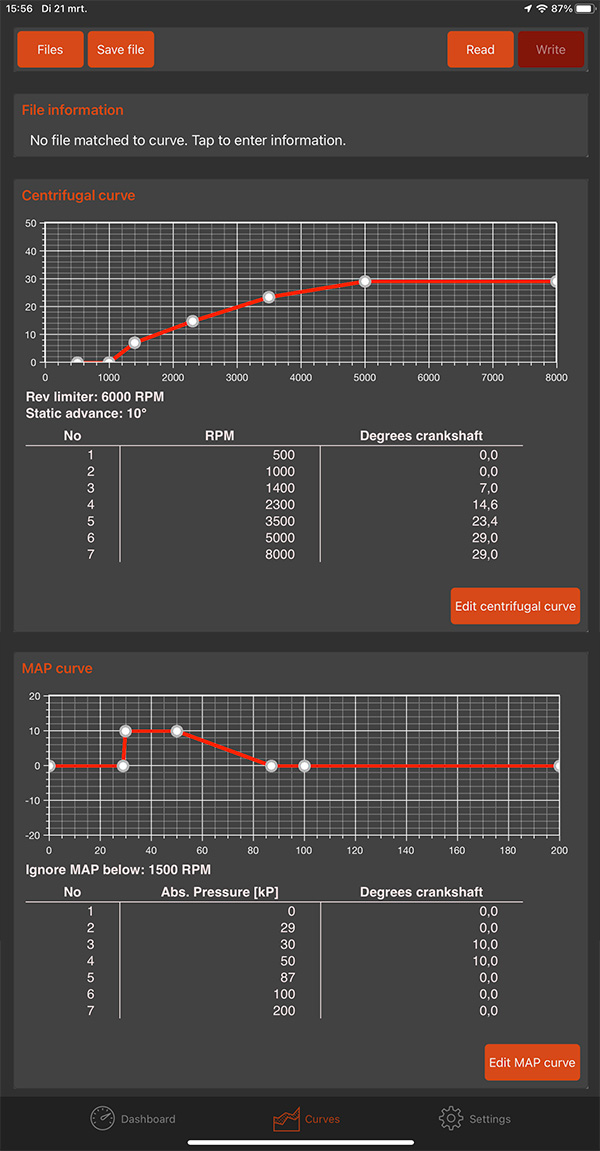

123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.

Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.

Cylinders: 4
Model: Tune+
Operating voltage: 4-15V
Positive earth supported: Yes

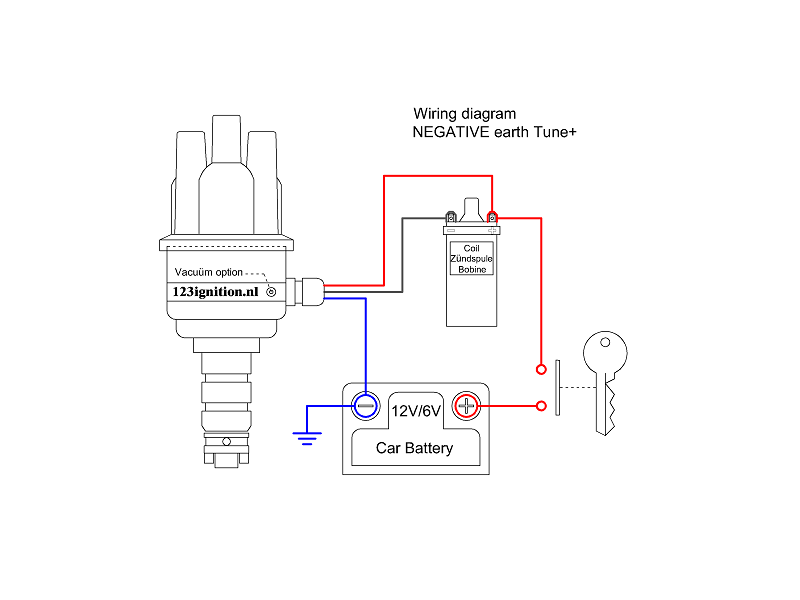

Wires: Black: coil ‘-‘ | Blue: battery negative | Red: ignition key (battery 6V / 12V)
Vacuum: Yes
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current - fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft

Tune+-4-R-V-PORSCHE =  Tune+ stands for connection with bluetooth
Tune+-4-R-V-PORSCHE =  4 stands for the numbers of cylinders
Tune+-4-R-V-PORSCHE =  R stands for Straight distributor cap
Tune+-4-R-V-PORSCHE =  V stands for vacuum advance
Tune+-4-R-V-PORSCHE =  PORSCHE stands for the 123ignition type
