Timing Chain. Porsche 971.1 / 971.2 Panamera / 9YA Cayenne 2017-23  ❭  PAB109229C

Timing Chain.

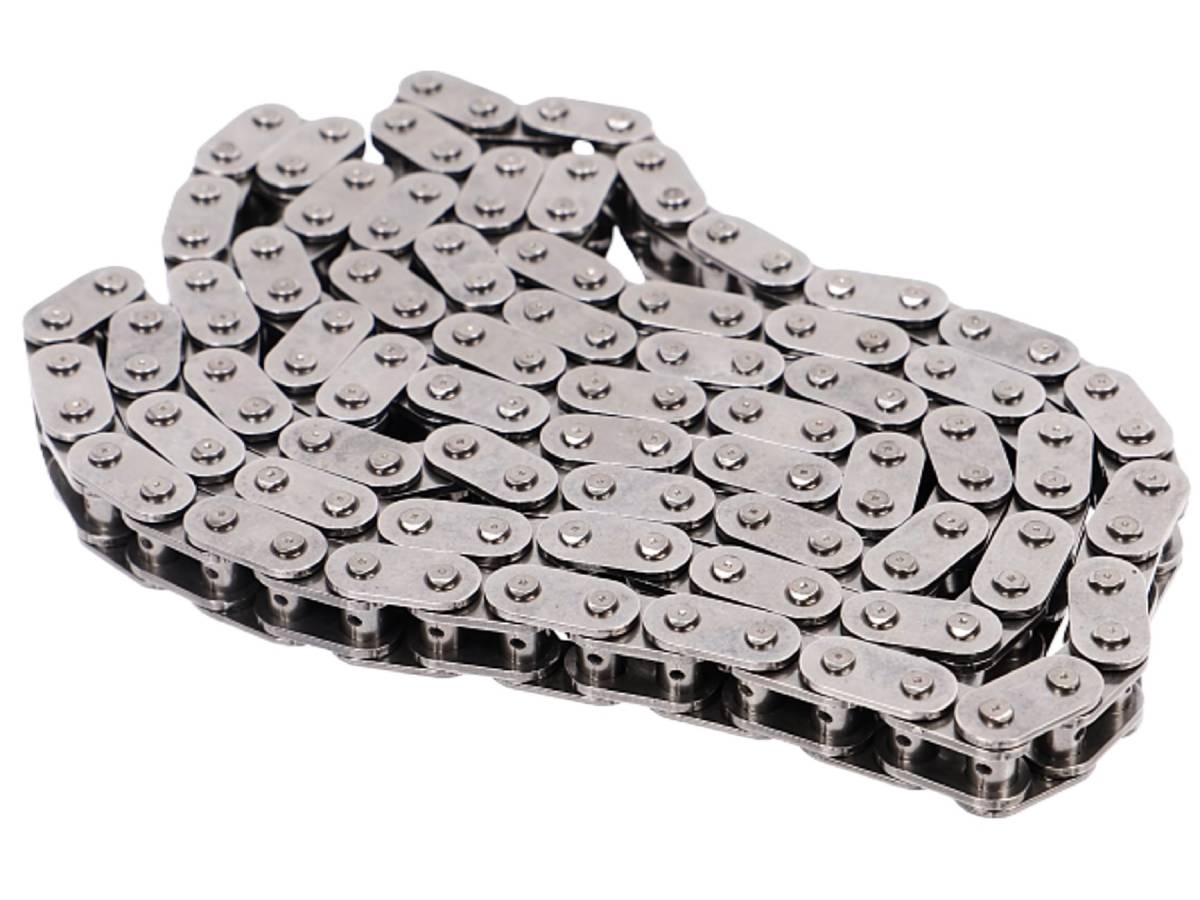

The IWIS Timing Chain is a replacement internal engine timing component for compatible Porsche applications. It forms part of the engine's mechanical timing system, transferring rotational drive and helping maintain precise synchronisation between associated engine components.

Fits:

• Porsche 9YA Cayenne V6 3.0L Petrol (340Hp) 2018-23
• Porsche 9YA Cayenne Coupe V6 3.0L Petrol (340Hp) 2019-23
• Porsche 9YA Cayenne S V6 2.9L Petrol (440Hp) 2018-23
• Porsche 9YA Cayenne Coupe S V6 2.9L Petrol (440Hp) 2019-23
• Porsche 9YA Cayenne GTS V8 4.0L Petrol (460Hp) 2020-23
• Porsche 9YA Cayenne Coupe GTS V8 4.0L Petrol (460Hp) 2021-23
• Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
• Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
• Porsche 971.1 Panamera V6 3.0L 2WD (330 Hp) 2017-20
• Porsche 971.1 Panamera 4 V6 3.0L 4WD (330 Hp) 2017-20
• Porsche 971.1 Panamera 4 V6 3.0L 4WD Executive 2017-20
• Porsche 971.1 Panamera 4 3.0L Turbocharged V6 Sport Turismo 2017-20
• Porsche 971.1 Panamera 4S V6 3.0L 4WD (440 Hp) 2017-20
• Porsche 971.1 Panamera 4S V6 3.0L 4WD Executive 2017-20
• Porsche 971.1 Panamera 4S 2.9L Twin-Turbo V6 Sport Turismo 2017-20
• Porsche 971.1 Panamera Turbo V8 4.0L 4WD (550 Hp) 2017-20
• Porsche 971.1 Panamera Turbo V8 4.0L 4WD Executive 2017-20
• Porsche 971.1 Panamera Turbo 4.0L Twin-Turbo V8 Sport Turismo 2017-20
• Porsche 971.2 Panamera GTS 4.0L V8 2021-23
• Porsche 971.2 Panamera GTS Sport Turismo 4.0L V8 2021-23
• Porsche 971.2 Panamera Turbo S 4.0L V8 2021-23
• Porsche 971.2 Panamera Turbo S Sport Turismo 4.0L V8 2021-23

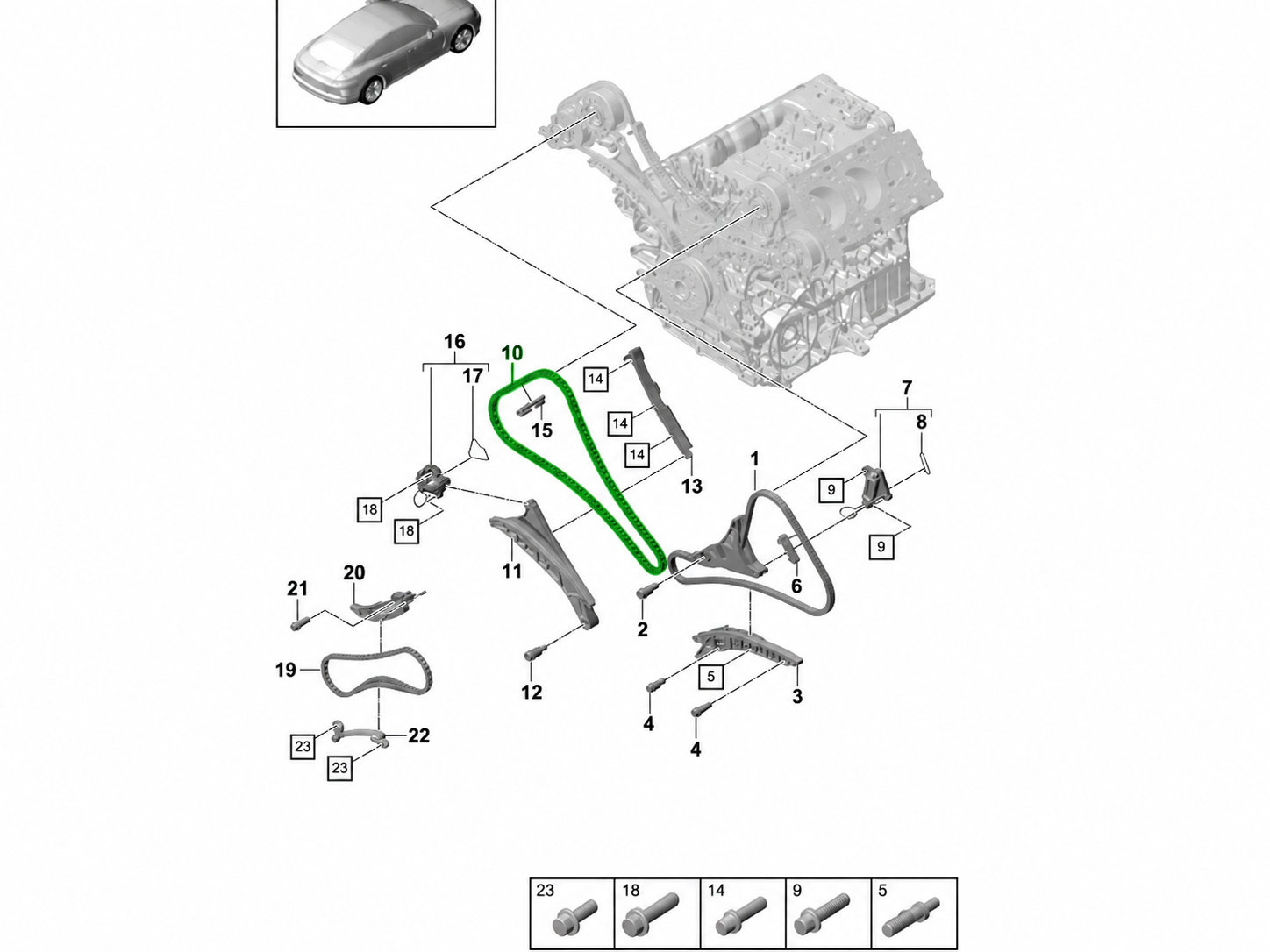

Diagram Ref No 10

Timing chains operate continuously whenever the engine is running. Although designed for long service life, repeated mechanical loading, friction, heat and lubrication conditions can gradually cause wear to the chain pins, links and contact surfaces. Timing-chain guides, tensioners and sprockets may also deteriorate over time.

As wear increases, the effective length of the chain can increase, resulting in excessive slack, abnormal mechanical noise and potentially inaccurate engine timing. Severe deterioration can increase the risk of the chain jumping, derailing or failing.

What This Product Does:
The Timing Chain transfers mechanical rotation through the engine timing system while maintaining the required synchronisation between associated timing components.

Depending on the specific engine configuration, correct timing-chain operation helps support:

• Accurate engine timing
• Correct camshaft operation
• Correct valve timing
• Reliable mechanical synchronisation
• Consistent rotational drive
• Stable combustion
• Smooth engine operation
• Predictable throttle response
• Consistent power delivery

The chain must remain correctly tensioned, properly lubricated and accurately engaged with its sprockets for reliable operation.

Symptoms Of Wear Or Failure:
Possible symptoms of timing-chain or associated timing-system deterioration include:

• Metallic rattling or clattering
• Timing-chain rattle during cold starts
• Rattle immediately after engine start-up
• Mechanical noise from the timing area
• Noise that changes with engine RPM
• Excessive chain slack
• Timing-chain elongation
• Excessive tensioner travel
• Rough or irregular engine operation
• Unstable idle
• Difficult or extended starting
• Reduced engine performance
• Poor throttle response
• Engine misfires
• Check-engine warning
• Timing-related diagnostic fault codes
• Camshaft-position faults
• Crankshaft/camshaft correlation faults
• Variable camshaft timing faults, where applicable
• Visible chain wear
• Worn or damaged timing-chain guides
• Abnormal sprocket wear
• Metal or plastic wear debris in the engine oil or filter

These symptoms do not automatically confirm that the chain itself has failed. Defective tensioners, worn guides, damaged sprockets, variable timing components, sensors, wiring or lubrication problems can produce similar symptoms.

Why Replacement Matters:
The Timing Chain is a critical internal engine component.

Replacing a confirmed worn, elongated or damaged chain can help:

• Restore accurate mechanical synchronisation
• Maintain correct engine timing
• Restore dependable timing-chain operation
• Reduce excessive chain slack
• Reduce abnormal chain noise
• Maintain reliable sprocket engagement
• Protect timing-chain guides
• Protect associated sprockets
• Reduce the risk of timing deviation
• Reduce the risk of the chain jumping
• Reduce the risk of chain derailment
• Support smooth engine operation
• Protect expensive internal engine components

Continuing to operate an engine with a confirmed timing-chain fault can allow deterioration to progress and potentially result in a much more extensive engine repair.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAB109229C

The product you are viewing cross references to these numbers
