Porsche Boxster 718 (982) 2017>> Suspension & Axle Track Control Arms FRONT

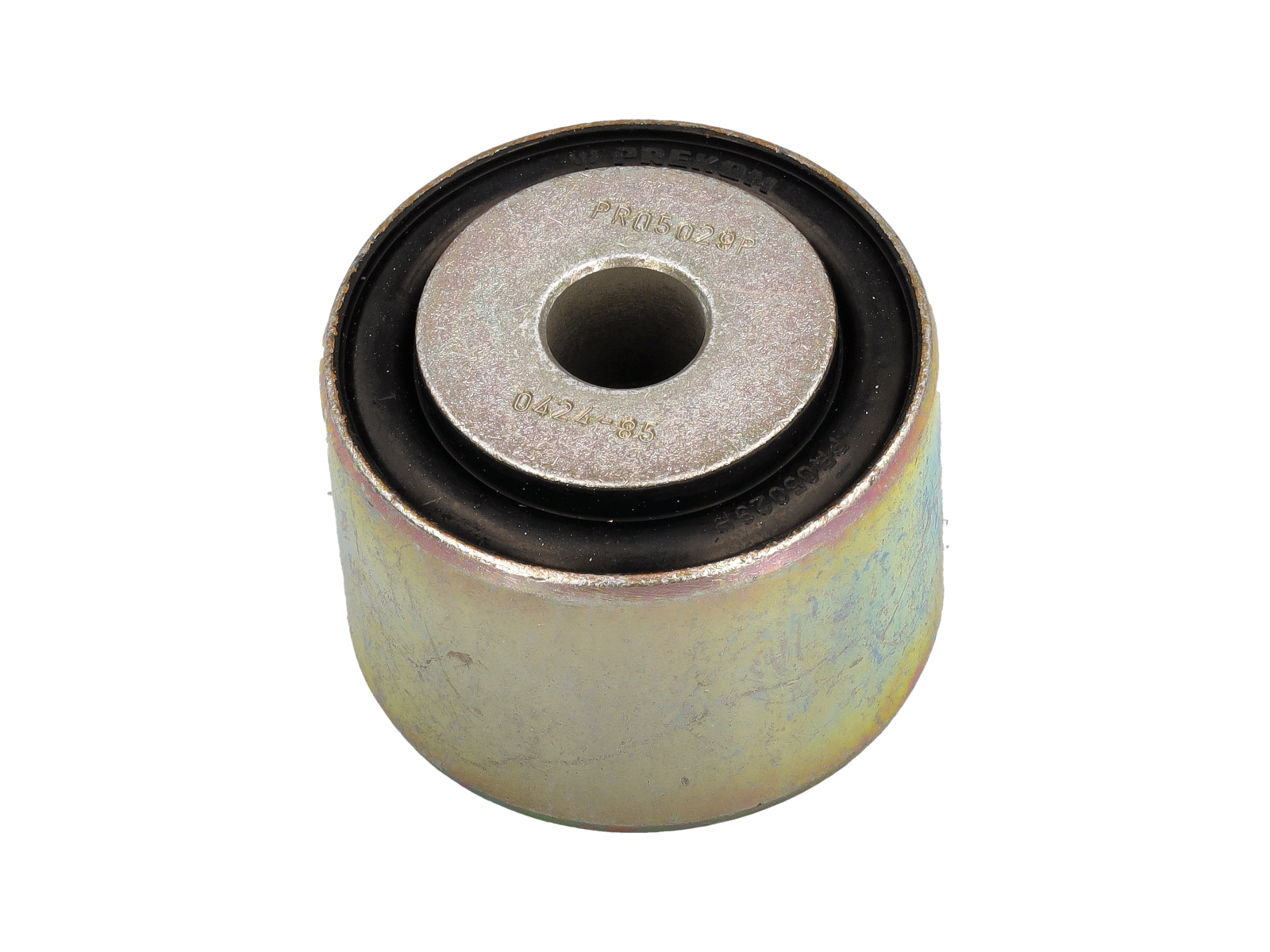

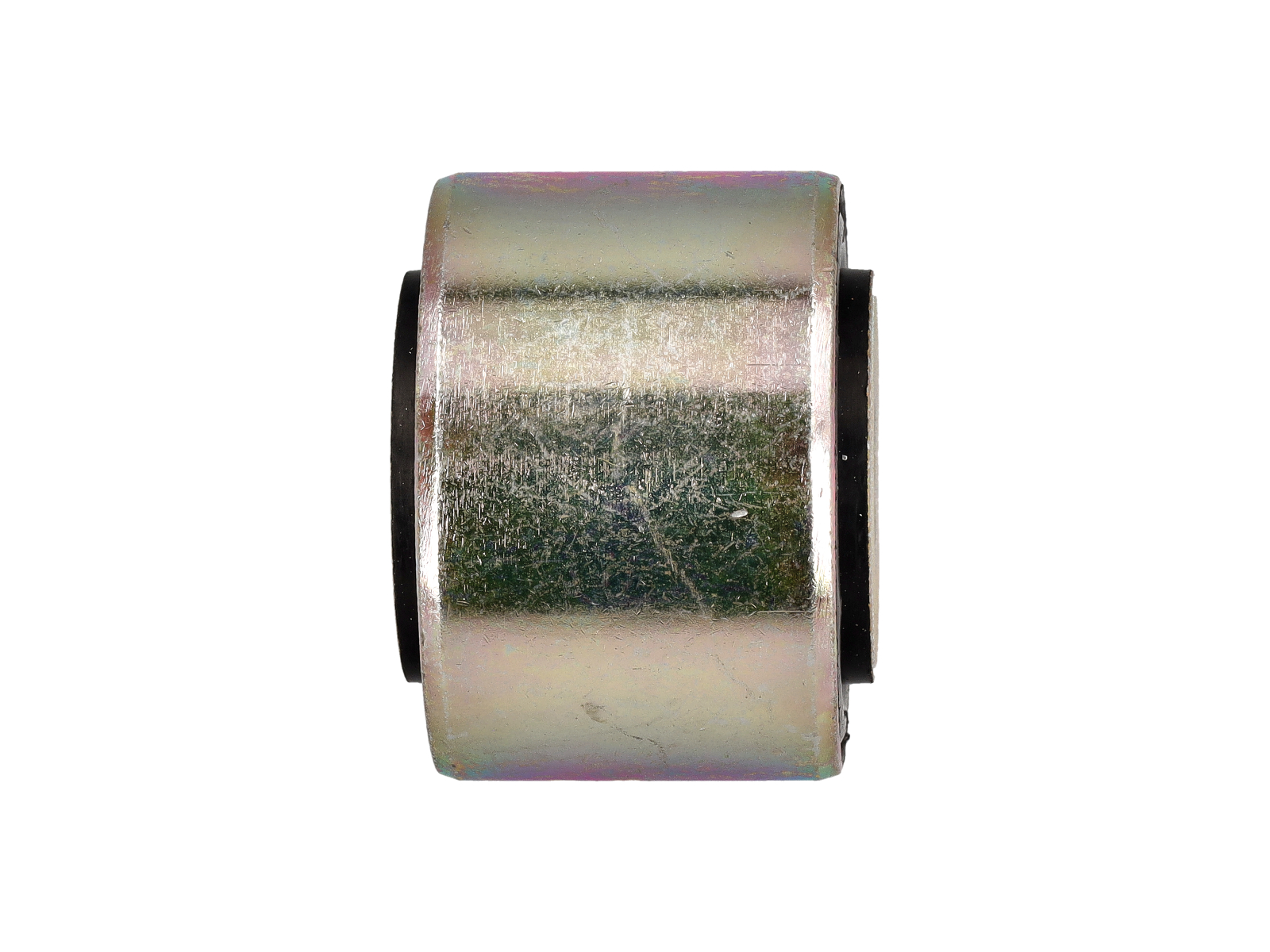

Lower control arm centre solid bush. Porsche 986 Boxster / 996 › 99634105320

Lower control arm centre solid bush. Porsche 986 Boxster / 996 - 99634105317, 99634194101, 99634105305, 99634105306, 99634105307, 99634105314, 99634105316, 99634105317, 99634194100, 99634194101, 99634105319, 99634105320

3 3 3

Check vehicle fitment

OE Match

99634105320/A

Product Information

This OE Match lower control arm centre solid bush is intended for Porsche 986 Boxster and 996 suspension applications. Supplied individually, it replaces the bush rather than the complete wishbone.

Fits

Porsche 986 Boxster
Porsche 996 1997-05

When using in 997/987 requires spacers/shims

Check fitment for your specific vehicle (model, year, engine) before ordering.

What This Product Does

The centre bush forms part of the lower control arm connection, supporting the arm's location as suspension loads change. It is intended for suspension refurbishment or a revised bush specification on vehicles used on the road and track.

Functions

Provides the lower control arm's central bush connection.
Supports controlled movement at the associated suspension joint.
Replaces a worn or damaged centre bush within a serviceable arm.

Technical Details

Component: lower control arm centre solid bush, not a complete arm.
Specified material: aluminium, grade 6082-T6.
Supplied specification states a 25% durometer increase; the comparison baseline and absolute hardness are not specified.
Quantity supplied: one bush.

Symptoms of Fault

Bush wear may be associated with knocking or creaking, indistinct steering, vibration, uneven tyre wear or pulling during braking. These symptoms can also originate from ball joints, track rods, drop links or mounts, so inspect the complete assembly before selecting replacement parts.

Why Replacement Matters

Renewing a worn bush addresses unwanted movement at its connection. Check the arm, ball joint and adjoining hardware at the same time; a new centre bush will not correct wear elsewhere. Choose the bush specification to suit the intended suspension setup rather than assuming identical comfort characteristics to the original component.

FAQs

Is wheel alignment necessary afterwards?
Have suspension geometry checked following the work and adjusted where required.

Should the opposite side be inspected?
Yes. Assess both sides for comparable wear and inspect nearby joints before deciding the extent of the repair.

Does this directly fit a 997 or 987?
The supplied installation note requires spacers/shims for those models. Confirm the specific arm and installation requirements first.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99634105320

99634105317

99634194101

99634105305

99634105306

99634105307

99634105314

99634105316

99634105317

99634194100

99634194101

99634105319

99634105320

The product you are viewing cross references to these numbers

Related products


                                            3
                                            3
                                            3

                            Control arm FRONT. Porsche 991 / Boxster / Cayman

                        99134104306/1

Product InformationProduct Information

                            Fork control arm FRONT.

Fits:
Porsche Boxster 981 2012 - 2016
Porsche Boxster 982 (718)  2017 >>
Porsche Cayman 981C 2014 - 2016
Porsche Cayman 982C (718C)  2017 >>
Porsche 991.1 Carrera 2012 - 2016
Porsche 991.1 Turbo 2014 - 2016
Porsche 991.1 GT3 / GT3 RS 2014 - 2016
Porsche 991.2 Carrera 2016 - 2019
Porsche 991.2 Turbo 2016 - 2019
Porsche 991.2 R / GT3 4.0L / GT3 RS 4.0L 2016 - 2019

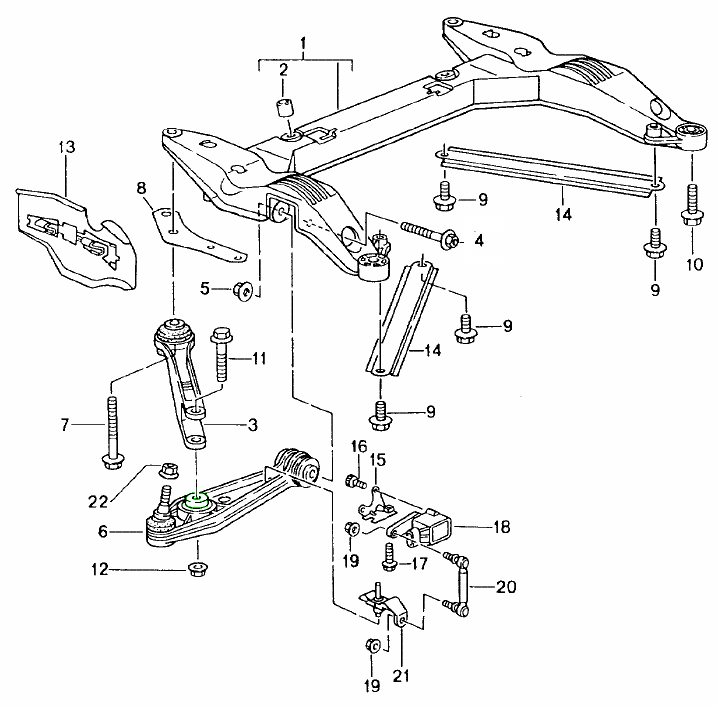

Diagram ref No 5

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99134104306
 99134104302
 99134104301
 9913410430
 99134104304
 99134104305
 99134114302
 99134104306

The product you are viewing cross references to these numbers

                                            6
                                            6
                                            6
                                            6
                                            6
                                            6

                            Control arm, Front. Porsche 991 GT3 / 982 Boxster Spyder / 982 Cayman GT4

                        99134104

Product InformationProduct Information
Control arm, Front
These Porsche Genuine OE Front Control Arms (Part Nos. 99134104187 Left & 99134104287 Right) are original factory front suspension wishbones / lower control arms designed for Porsche 991 GT3, 982 Boxster Spyder and 982 Cayman GT4. Complete with integrated bushes and ball joints, they ensure precise steering response, stable suspension geometry, and factory handling characteristics both on road and track. As genuine Porsche parts, they guarantee exact fitment, durability, and OEM-level chassis performance.

Fits:
Porsche 991 GT3 2014 - 2021
Porsche 982 (718) Boxster Spyder 2019>>
Porsche 982C (718C) Cayman GT4 2019>>

Diagram ref No 6

The control arms connect the wheel carrier to the front axle subframe, controlling suspension movement during:

• Steering input
• Braking
• Cornering
• Suspension compression and rebound

They maintain correct wheel alignment and suspension geometry while ensuring precise steering response and high-speed stability.

The integrated ball joints allow smooth articulation, while the suspension bushes absorb vibration and road harshness without compromising the sharp handling characteristics expected from Porsche GT models.

Functions & Technical Role
•  Suspension geometry control: Maintains accurate wheel positioning and alignment
•  Steering precision: Supports sharp and responsive steering feel
•  Integrated ball joints: Allow controlled suspension articulation
•  Vibration damping: Bushes reduce harshness and unwanted movement

•  GT chassis stability: Designed for high-performance driving and track use
•  OEM engineering: Manufactured to Porsche factory tolerances for exact fitment and durability

The front control arms play a major role in steering accuracy, suspension stability, and tyre wear control. Worn bushes or ball joints can negatively affect handling precision and overall driving dynamics.

When to replace
•  Knocking or clunking from the front suspension
•  Excessive play in bushes or ball joints
•  Uneven tyre wear or alignment issues
•  Steering instability or vague handling
•  During suspension rebuild or track-preparation work

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99134104
 99134104180
 99134104181
 99134104185
 99134104187
 99134104280
 99134104281
 99134104285
 99134104287

The product you are viewing cross references to these numbers

                                            2
                                            2

                            Track control arm and bush kit. Porsche 996 / 997 / Boxster / Cayman

                        PF57K-1001

Product InformationProduct Information

                            Track control arm and bush kit uses a Black 95A  inner bush and Purple 80A outer bush, providing a direct replacement alternative to worn OEM parts.

PACK OF 2

OEM Part Number: 98133105301
OEM Part Number: 99733104180
OEM Part Number: 99634105318

We're excited to introduce our new range of complete replacement Track Control Arm and Bush Kits for a number of Porsche models including 911 996, 997, 991, and Boxster / Cayman 718, 981, 986, 987.

Fits:
FRONT  Diagram reference 2F
Porsche 997 GT2, GT3 & GT3RS
Porsche 986 Boxster (1997-2004)
Porsche 996 (1997-2005)

REAR  Diagram reference 5R
Porsche 997 ALL inc GT2, GT3 & GT3RS
Porsche 997 MK2 ALL inc. Turbo
Porsche 718 Boxster/Cayman
Porsche 981 Boxster/Cayman
Porsche 986 Boxster (1997-2004)
Porsche 987 Boxster (2005-2012)
Porsche 987C Cayman (2005 - 2012)
Porsche 996 (1997-2005)

CONTENTS (parts per pack):

2 x Cast Aluminium Track Control Arms
Pre-assembled parts:
2 x Outer Bushes
2 x Inner Bushes
2 x Short Stainless Steel Sleeves
2 x Long Stainless Steel Sleeves
2 x Ball Joint Nuts

Partnering with Chassis Technology Europe (CTE), a specialist in the manufacture of suspension and steering parts, we can now supply a high-quality cast control arm pre-assembled with our signature polyurethane bushes for a 'fit and forget' product, designed specifically for high performance and convenience of use with the added peace of mind of our Lifetime Warranty *.

Simply remove the old arm and refit!

Both Adjustable and Non-Adjustable bush options are available to suit differing driving and performance requirements.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PF57K-1001
 PF57K-1001
 98133105301
 99733104180
 99634105318

The product you are viewing cross references to these numbers

                                            5
                                            5
                                            5
                                            5
                                            5

                            Track control arm and bush kit ADJUSTABLE. Porsche 996 / 997 / Boxster / Cayman

                        PF57K-1001G

Product InformationProduct Information

                            Track Control Arm and Bush Kit Adjustable uses our Black 95A material for both bushes for ultimate performance and is supplied with an offset outer sleeve and CNC machined inner sleeve with spanner to allow for on-car adjustment of both caster and camber, for quick and easy optimisation of your wheel alignment.

PACK OF 2

This arm features suspension geometry tuning, with a caster increase of up to 0.4° and camber adjustment of +/- 0.75°

OEM Part Number: 98133105301
OEM Part Number: 99733104180
OEM Part Number: 99634105318

We're excited to introduce our new range of complete replacement Track Control Arm and Bush Kits for a number of Porsche models including 911 996, 997, 991, and Boxster / Cayman 718, 981, 986, 987.

Fits:
FRONT  Diagram reference 2F
Porsche 997 GT2, GT3 & GT3RS
Porsche 986 Boxster (1997-2004)
Porsche 996 (1997-2005)

REAR  Diagram reference 5R
Porsche 997 GT2, GT3 & GT3RS
Porsche 997 inc. Turbo
Porsche 718 Boxster/Cayman
Porsche 981 Boxster/Cayman
Porsche 986 Boxster (1997-2004)
Porsche 987 Boxster (2005-2012)
Porsche 987C Cayman (2005 - 2012)
Porsche 996 (1997-2005)

CONTENTS (parts per pack):

2 x Short Adjustable Stainless Steel Sleeves
1 x C45 Spanner
2 x Stainless Steel Washers

Pre-assembled parts:
2 x Cast Aluminium Track Control Arms
2 x Outer Bushes
2 x Inner Bushes
2 x Long Adjustable Stainless Steel Sleeves
2 x Ball Joint Nuts

Partnering with Chassis Technology Europe (CTE), a specialist in the manufacture of suspension and steering parts, we can now supply a high-quality cast control arm pre-assembled with our signature polyurethane bushes for a 'fit and forget' product, designed specifically for high performance and convenience of use with the added peace of mind of our Lifetime Warranty *.

Simply remove the old arm and refit!

Both Adjustable and Non-Adjustable bush options are available to suit differing driving and performance requirements.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PF57K-1001G
 PF57K-1001
 98133105301
 99733104180
 99634105318
 996341053

The product you are viewing cross references to these numbers
