Engine Cooling Air Guide Lower. Porsche 912 › 61610604

OE Match Engine Cooling Air Guide Lower

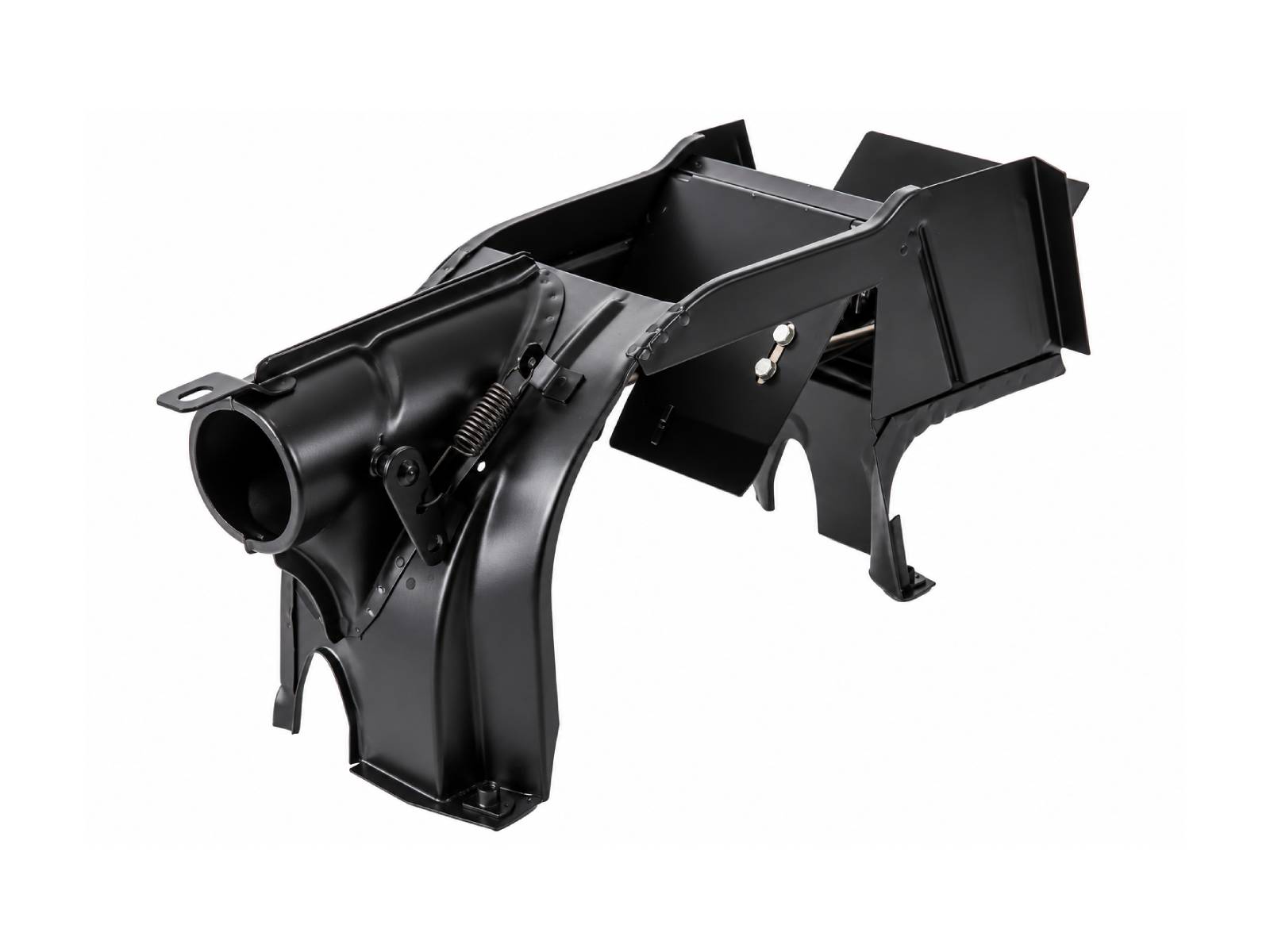

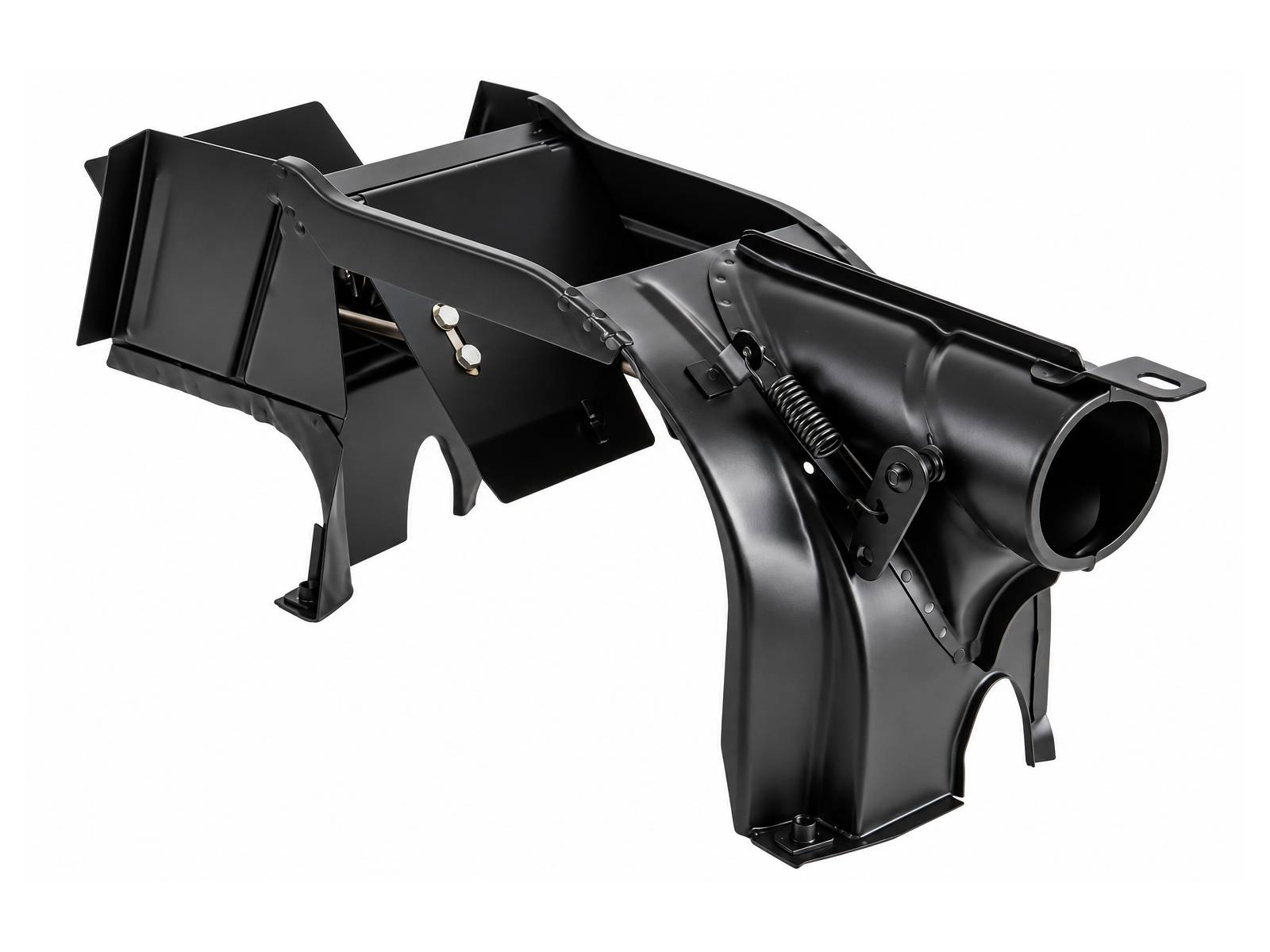

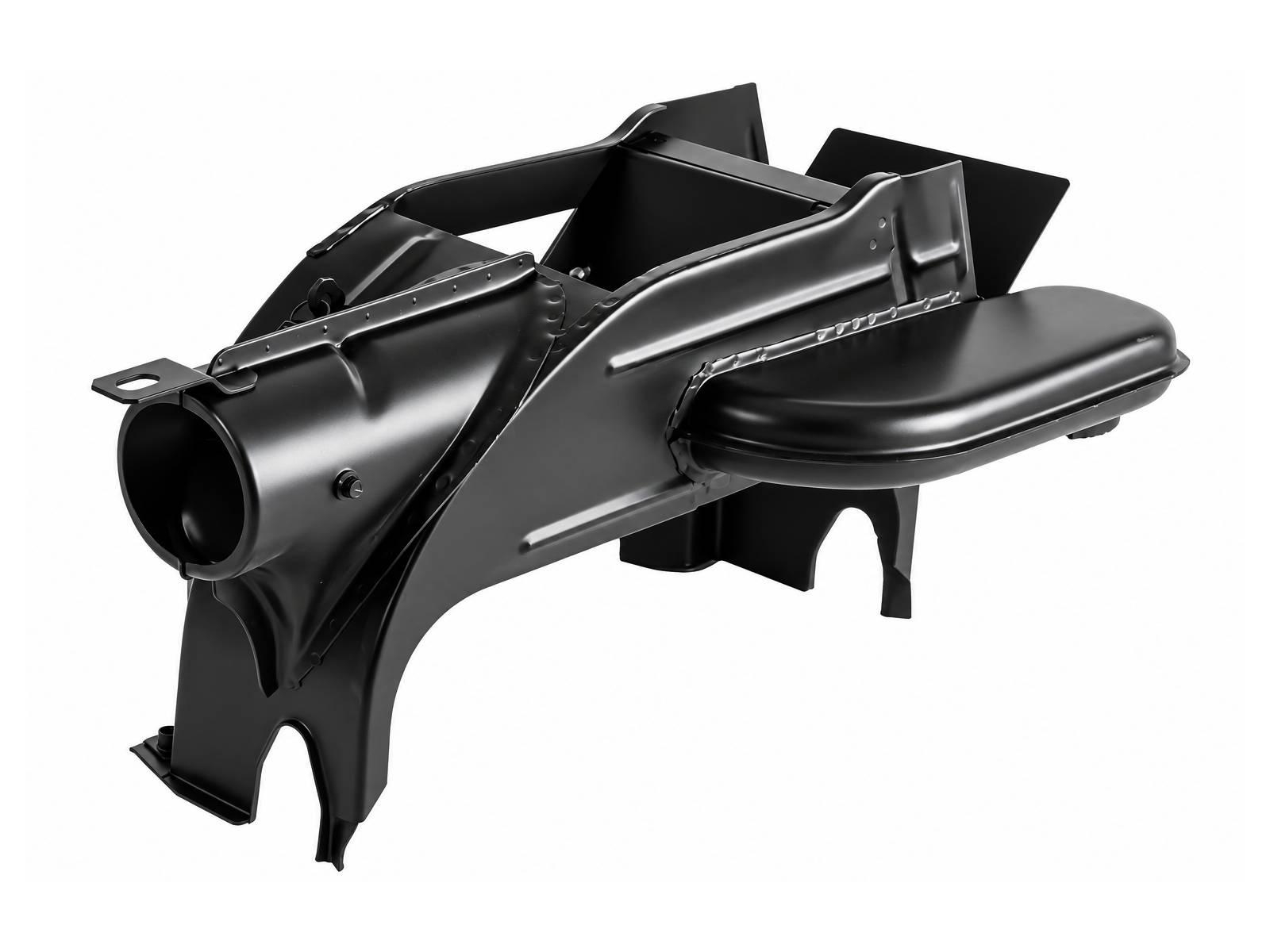

The OE Match Lower Engine Cooling Air Guide is a replacement component designed for the air-cooled Porsche 912 engine.

Fits:

• Porsche 912 1965-1968 SWB (F)

Positioned beneath the engine, these air guides help direct cooling airflow through the engine's tinware system, supporting efficient engine cooling and maintaining the original factory-style arrangement.

Not intended for the later Porsche 912E (1976), which uses a different engine cooling arrangement.

What Does It Do?

The lower engine cooling air guide helps direct fan-driven air around the engine, ensuring airflow follows the intended route.

Working alongside the surrounding engine tinware, it helps maintain effective cooling of the air-cooled engine and prevents unnecessary loss of cooling airflow.

Why Is It Important?

The Porsche 912 relies on airflow to regulate engine temperature.

Missing or damaged cooling guides can disrupt airflow, potentially creating uneven cooling and increased operating temperatures.

Correctly fitted engine tinware is essential for maintaining the original cooling system's effectiveness.

Why Does It Fail?

Over time, the lower air guides can deteriorate due to:

• Corrosion and rust
• Heat exposure and age
• Engine vibration
• Impact damage from road debris
• Incorrect installation or previous repairs
• Missing or damaged mounting points

These problems can leave the guides distorted, loose or unable to direct airflow correctly.

When Should It Be Replaced?

Replace the air guide if:

• It is heavily corroded or rusted through
• The panel is bent, cracked or damaged
• Mounting points are broken or missing
• The guide is loose or rattling
• The original component is missing
• The engine cooling tinware is being restored

Replacement is particularly recommended during Porsche 912 engine rebuilding or restoration work.

Checks & Installation

Inspect the surrounding engine tinware, mounting hardware and cooling flap mechanism before installation.

Ensure the correct left-hand or right-hand guide is fitted and securely attached.

Check that the guide does not interfere with the cooling flap operation and that adjoining panels fit correctly.

Key Features

• Designed for Porsche 912 (1965–1969)
• Left-hand and right-hand versions
• Helps direct engine cooling airflow
• Supports correct air-cooled engine operation
• Replaces corroded, damaged or missing guides
• Maintains original-style engine tinware arrangement
• Suitable for classic Porsche engine restoration

Porsche 912 Engine Cooling Air Guides & Replacement Tinware

The Porsche 912 air-cooled engine relies on correctly fitted cooling tinware to direct airflow around its cylinders and cylinder heads.

The OE Match Lower Engine Cooling Air Guides help restore the original cooling arrangement, replacing missing, damaged or corroded components.

Suitable for Porsche 912 Coupe and Targa models from 1965 to 1969, these replacement guides are useful during engine rebuilds, cooling system repairs and classic Porsche restoration.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610604

The product you are viewing cross references to these numbers
