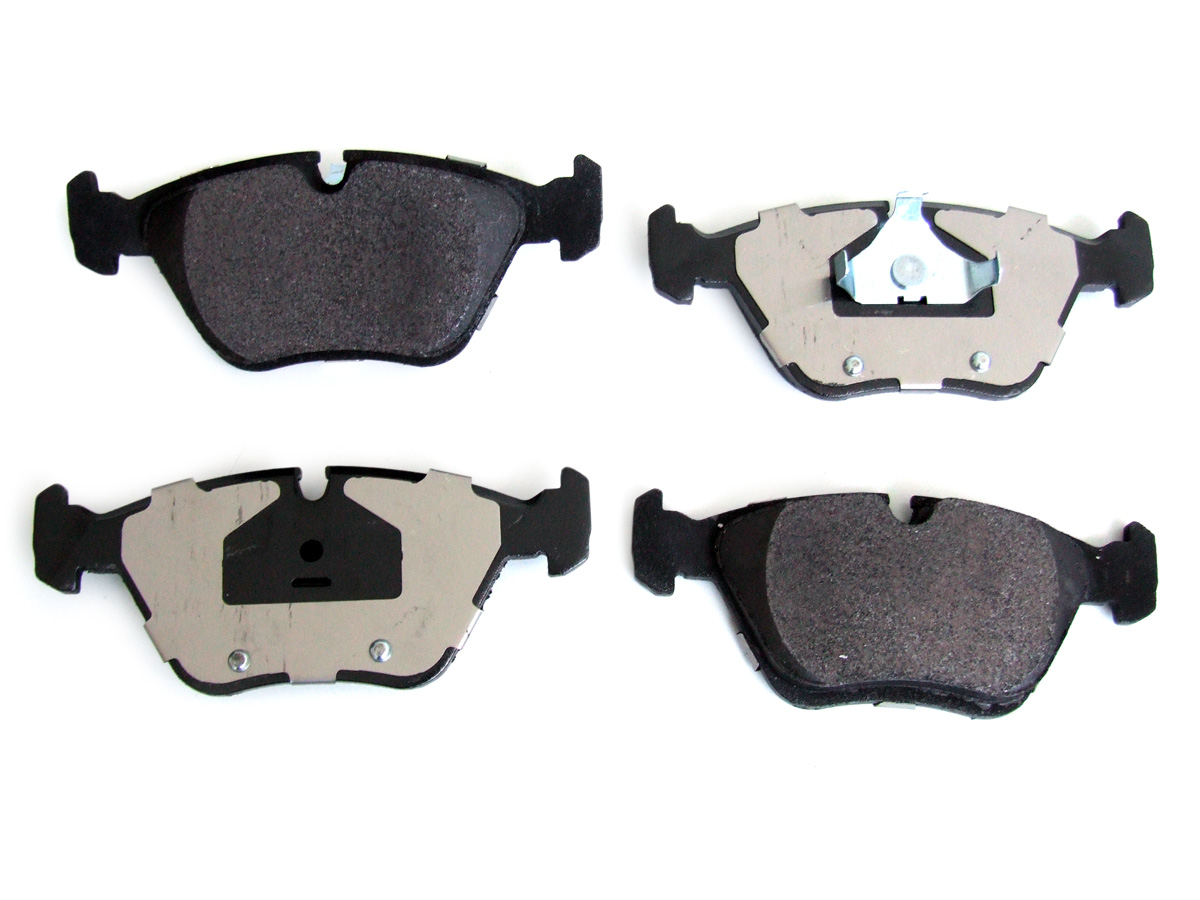

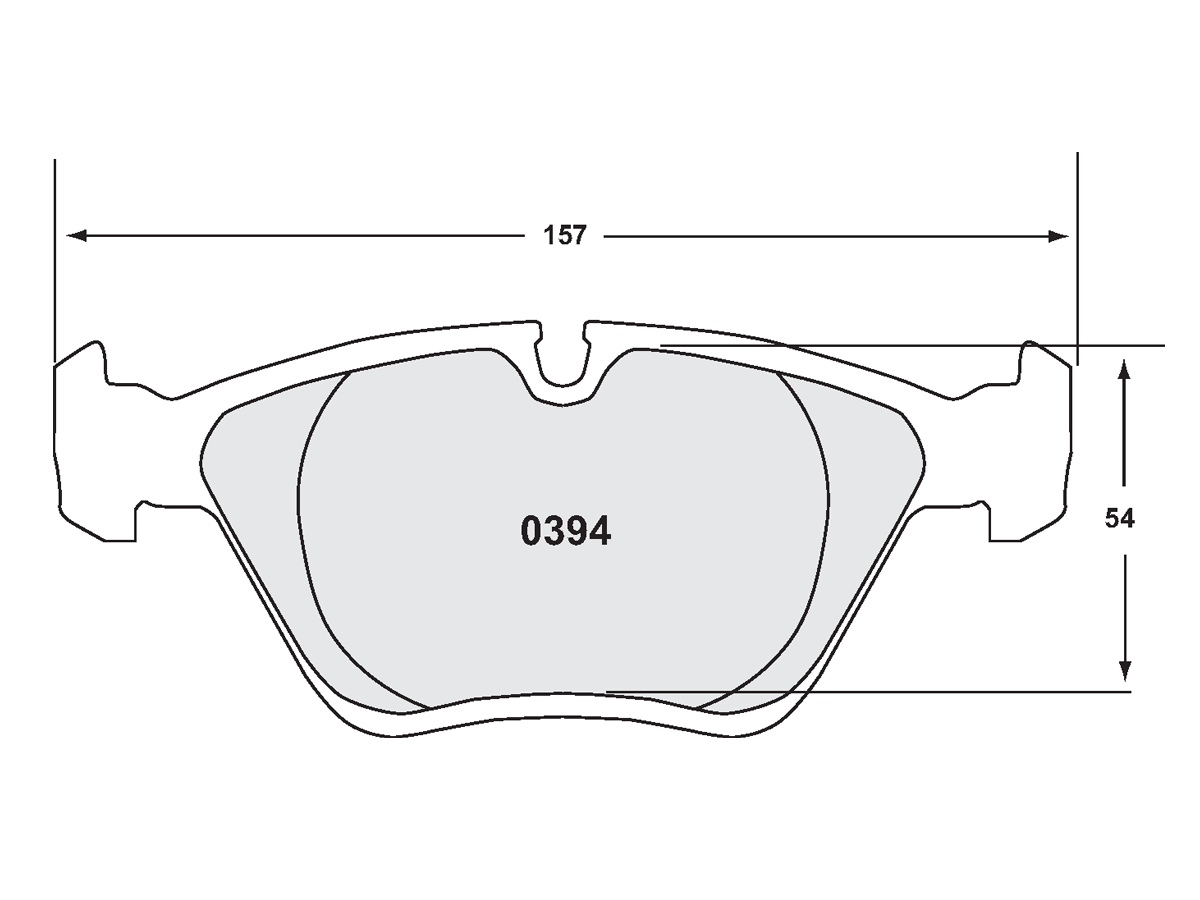

PFC SPORT PADS BRAKE PADS FRONT BMW E46 M3, E36 M3

ICarsoft Professional Diagnostic Tool CR Plus for Multi-brand Vehicles



iCarsoft CR Plus is a well built comprehensive diagnosis instrument by iCarsoft.It's not only including full function of OBDII/EOBD,but also support more function of Four system( Engine, automatic transmission, anti-lock braking system and airbag ) of certain models of car, such as read and clear code, multi languages, data flow picture display, graph. It also includes Electronic Parking Brake (EPB) release, Steering Angle Sensor (SAS) and Oil Service Light resets. View Engine, ABS, SRS along with A/T enhanced data



Features & Benefits:

• OBDII diagnostic full function
• Multiple car models (covering over 40 prevailing models from Asia, America and Europe).
• Support 4 Systems: Engine, Transmission, ABS, and Airbag.
• Basic diagnostic functions: read DTCs, clear DTCs, and read data stream
• Support DTCs help, data stream wave display, history data record and replay
• Online upgrade, you can download the latest version anytime anywhere.
• Auto module search
• Enhanced OBDII Mode 6
• Supports vehicles 1996 & newer ( OBDII & CAN )
• Retrieves generic P0, P2, P3 & U0 codes,
along with manufacturer specific P1, P3 & U1 codes – both permanent & pending
• Read & Clear Check Engine Lights
• Turn off MIL & reset monitors
• Displays DTC definitions right on the screen
• View freeze frame data & I/M Readiness monitor status
• Display live PCM data stream & O2 Sensor test data
• Graph, record & replay data in full color
• Resets Oil Service Light
• Brake Pads Reset
• Steering Angle Sensor Calibration
• Code cause / solution tips guide users to the root cause of trouble codes faster, saving diagnosis and repair time
• Retrieves vehicle information ( VIN, CIN and CVN )

Twelve Super Advantages:

1. Read & Clear DTCs
2. Read Data Stream
3. Full ECU Diagnosis
4. Diagnose Multi-brand Models Equipped With OBDII-16 DLC
5. Easy To Use With Metal Dome Keys
6. Oil Light/Service Reset
7.Brake Pads Reset
8.Steering Angle Sensor Calibration
9. 4.0" TFT LCD With 480 * 320 Pixels
10. USB 2.0 High Speed Upgrade
11. Upgrade Via TF Card
12. Multi-language: English, French, Spanish, German, Italian, Russian and Dutch.

And for more, refer to User's Manual.

Specifications:

• Display: 4.0" TFT LCD , with 480 * 320 Pixels
• Operation Temperature: 0℃ -- 50℃
• Storage Temperature: -20 ℃ -- 70 ℃
• Power: 9V -- 18V
• Operating current: 150mA@12V(Typical)
• Power consumption: 1.8W(Typical)
• Dimension: 205mm*110mm*31mm(LxWxH)
• Weight: 350g

OBDII function:

1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are
operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by
the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of
the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently
performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring
tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system.
Before using the system test function, refer to the vehicle's service repair manual to determine the procedures
necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification
number (CVN), and other information of the test vehicle.

Contents:

● Main Unit
● Hardcopy User's Manual
● Main cable
● USB cable
● TF Card
● Nylon carry case
● TF Card reader

iCarsoft CR Ultra



Advanced automotive diagnostic tool

● ULTRA SMART
● ULTRA HIGH PERFORMANCE
● ULTRA RIGHT FOR YOU

iCarsoft CR ULTRA is and advanced automotive diagnostic tool with 10inch touch screen tablet, Bluetooth and WI-FI. It enjoys more than 30 special service functions, supports ECU coding, programming, active test and more. With this all-in-one intelligent automotive scanner, you are able to diagnose, research, and manage any issues at fingertips with its smooth logical workflow, where fully optimizes easy-to-use software allows advanced OE-level diagnostics of online ECU coding, complete bi-directional functions, access to all vehicle modules, etc.


CR ULTRA GLOBAL VEHICLE COVERAGE

European:
For Abarth, For Alfa Romeo, For Audi, For Bentley, For Mercedes-Benz, For BMW, For Bugatti, For Citroen, For Dacia, For EU-Ford, For Ferrari, For Fiat, For Jaguar, For Lamborghini; For Lancia, For LandRover; For Maserati; For Maybach; For Mini; For Opel; For Peugeot; For Porsche; For Renault, For Rolls-Royce, For Rover, For Saab, For Seat, For Skoda, For Smart, For Sprinter, For Vauxhall, For Volvo, For VW, For (UKRAINE) ZAZ, For (RUSSIA) GAZ, For IZH, For PAZ, For SEAZ, For UAZ, For VAZ.

American:
For Buick; For Cadillac; For Chevrolet; For Chrysler; For Dodge; For Ford; For GM; For Hummer; For Jeep; For Lincoln; For (BRAZIL) BX-Fiat; For BX-GM.

Australian:
For Au-Ford; For Holden.

Asia:
For (Japan) Acura; For Daihatsu; For Honda; For Infiniti; For Isuzu; For (Japan) Isuzu; For Lexus; For Mazda; For Mitsubishi; For Nissan; For Nissan GTR; For Scion; For Subaru; For Suzuki; For (Thailand) Isuzu; For Toyota; For (Korea) Daewoo; For Hyundai; For KIA; For Samsung; For Ssangyong; For (China) Baic; For Beijing; For Changan;For Changan-Ford; For Changcheng; For Changhe; For (China) Suzuki; For (China) Peugeot; For (China) Honda; For (China) Nissan; For (China) XK; For Flyer, For BYD; For Fukang; For Futian, For Foton; For Geely; For Gonow; For GZ Honda; For Hafei; For Haoqing; For HC For BMW; For Hmada; For Huachen; For Isuzu,For JMC; For Jacty; For Jianghuai; For Jiao; For Jinlong; For Joylong; For Lifan; For Liuwel-TY; For Luxgen; NJ Fiat; For Qirul-TY, For Chery; For Qoros; For Saicmg; For Spark-TY; For (China) Toyota; For Trumpchi GAC; For Weili; For Xiaokang For Dongfeng; For Xili,For Faw For Tianjin; For Xinkai; For (China) Mazda; For Zhongshun; For Zhongtai,For Zotye; For Zhongxing; For (India) Mahindra; For Maruti; For Tata; For (Malaysia) Perodua; For Proton; For (Iran) MVM.

PRODUCT FEATURES
SUPPORTS MORE THAN 30 SERVICE FUNCTIONS.

1. Comprehensive OBD relearn coverage.
2. Onscreen relearn procedure.
3. Read &Clear codes for all available systems.
4. Display live data in text, graph & analog for easy data review.
5. Auto VIN technology can automatically identify model and year information in no time.
6. Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
7. Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
8. Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
9. Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
10. Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
11. Battery Management System (BMS): Registers new battery to the BMS while battery replacement.
12. Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle value.
13. ABS Bleeding: Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
14. Injector coding: Relearn the injector control parameter while the injector renewed or replaced.
15. Support TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
16. AFS Head Lamp reset means that the adaptive front lighting system can be rotated to either side, pressing the button means they
stay pointing straight forward, and don't turn anymore when turning the steering wheel.
17. Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
18. Gearbox Reset: Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
19. Air conditioning service: Calibration of air-conditioning related control units, such as additional calibration of air mass flow, etc.
20. Air Filter Self-learning process after replacing the air filter.
21. Fuel Pump activation function, activate it when replace a new one.
22. ODO Reset, this function allow you to revise the date of odometer and write the original date into new odometer.
23. Seat Match, this utility performs the re-initialization of the power seat adaptive memory.
24. Windows/Door/Roof, when replacing door glass and after battery replacement on certain year, make, model vehicles special steps need to be taken in order to properly replace and reprogram the vehicle so the electric windows work properly , the door window glass position can be learned by executing this routine, which enables pinch protection and one touch up function.
25. Supports ADblue Reset, Stop/Start Reset, Tyre Reset, Nox Sensor Reset, Gear Learning and more.
26. Automatic software upgrade.
27. Easy to feedback test questions online.
28. Provides convenient instruction with customer in interface.
29. Language Change, this routine is to change language displayed in the instrument display.
30. Multi-language: English, German, Dutch, Spanish, French, Italian, Japanese, Portuguese, Russian, Polish, Turkish, Hungarian, Chinese. (More languages will be added in the future.)

Note!
*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
*This scan tool covers 20 years models, so some functions may not be available on all years /models.

STRONG HARDWARE:

ANDROID: 10.0
RAM: 4GB
ROM: 64GB
BATTERY: 6000mAh/7.6V
SCREEN: 10 Inches
CAMERA: 8 million pixel rear

ExactFit Magnetic Phone Mount.



Fits:
BMW E36 **will Not Fit Z3**

** Steel pad required for use on MagSafe equipped iPhones **

In this day and age, everyone has a cell phone; our lives have come to revolve around them. The problem is that there is no great place in our cars to store them. The market is full of flimsy universal mounts, vent mounts, and mounts that clip or stick to areas of your interior which can and will cause damage. Rennline has solved this problem with our ExactFit Magnetic Phone Mounts. These mounts are tailored to your specific model and do not attach to any part of your interior that will cause harm. Most of our mounts are bolt-in units that can be easily installed in minutes. All critical components are manufactured from metal, so they will not crack or break like most plastic units available.
