Fuse box, 12 fuse. Porsche 914 › 91461231510

Fuse Box, 12 Fuse.

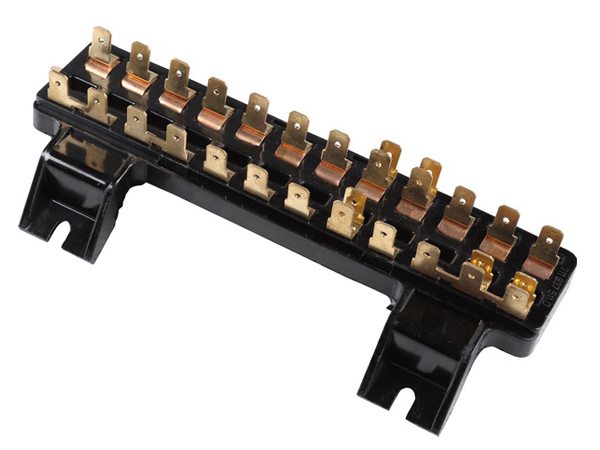

The OE MATCH Fuse Box, 12 Fuse 91461231510/1 is an OE-style replacement electrical component designed for Porsche 914 and 914/6 models manufactured between 1970 and 1976.

Fits:

• Porsche 914 1.7-2.0 01/69-02/76

Diagram Ref No 10

Designed to provide reliable electrical circuit protection and original-style fitment, this 12-pole fuse box forms an essential part of the vehicle's electrical distribution system.

Also known as a 12-way fuse panel, fuse holder assembly or electrical fuse block, the component provides mounting positions and electrical connections for up to 12 individual fuses.

Each fuse protects its associated electrical circuit by interrupting the current when an excessive electrical load or short circuit occurs.

The fuse box provides a central location for the vehicle's fuses, helping maintain organised electrical connections and providing convenient access for inspection and maintenance.

Over time, original fuse boxes can deteriorate due to ageing, moisture exposure, corrosion, vibration and repeated fuse replacement.

Corroded terminals, weakened fuse contacts or damaged insulation may lead to intermittent electrical faults, increased electrical resistance, localised overheating or failure of individual electrical circuits.

The OE MATCH replacement provides a practical solution for restoring the original fuse panel arrangement without requiring a complete replacement of the vehicle's wiring harness.

Ideal for classic Porsche electrical repairs, fuse panel refurbishment and restoration projects, this 12-fuse box helps preserve the electrical reliability and factory-style configuration of the Porsche 914.

What This Product Does:
The fuse box provides a central mounting and connection point for the electrical fuses that protect the vehicle's individual circuits.

It works with the vehicle's wiring harness and correctly rated fuses to distribute electrical power while providing overcurrent protection.

Its key functions include:

• Electrical Circuit Protection: Accommodates fuses designed to interrupt excessive electrical current before it damages protected circuits.
• 12-Fuse Capacity: Provides 12 fuse positions for the original electrical distribution arrangement.
• Centralised Fuse Mounting: Keeps electrical fuses organised and accessible within one assembly.
• Electrical Distribution: Provides the necessary connection points between the vehicle's wiring and the associated fused circuits.
• Short-Circuit Protection: Allows correctly rated fuses to interrupt current when an electrical short occurs.
• Overload Protection: Supports protection of electrical wiring and connected components against excessive current.
• Secure Fuse Retention: Maintains the intended mechanical contact between the fuses and their terminals.
• Consistent Electrical Contact: Helps reduce interruptions caused by loose or deteriorated fuse connections.
• Electrical Maintenance: Provides convenient access for fuse inspection, testing and replacement.
• Original Wiring Compatibility: Supports the factory-style electrical arrangement of the Porsche 914.
• Restoration Support: Provides an OE-style replacement for an aged, damaged or corroded original fuse box.

Symptoms Of Wear Or Failure:
The original fuse box may deteriorate after decades of exposure to moisture, vibration, electrical loads and environmental contamination.

Common symptoms include:

1. Corroded Fuse Contacts

Oxidation or corrosion around the metal fuse terminals may interrupt electrical flow.

Visible green, white or dark deposits can indicate moisture exposure and contact deterioration.

2. Intermittent Electrical Operation

Lights, instruments or other electrical accessories may operate inconsistently when fuse contacts are loose or corroded.

3. Loose Fuses

Weakened retaining clips may no longer hold the fuses securely, creating unreliable electrical connections.

4. Electrical Circuits Not Working

One or more electrical systems may stop functioning because of a damaged fuse connection or deteriorated fuse box terminal.

5. Flickering Lights

Unstable electrical connections can cause intermittent illumination or flickering in affected lighting circuits.

6. Melted or Heat-Damaged Fuse Box

Discolouration, melted material or burn marks may indicate overheating caused by excessive current or a high-resistance connection.

7. Cracked or Broken Fuse Housing

Ageing, impact damage or excessive force during maintenance may crack the insulating material.

8. Burnt or Pitted Terminals

Poor contact or electrical arcing may damage the metal connection surfaces.

9. Repeated Fuse Problems

A circuit that repeatedly blows fuses may indicate a short circuit, excessive electrical load or a wiring fault.

A damaged fuse box may contribute to connection problems, but replacing it will not cure an underlying electrical overload.

10. Damaged Wiring Connections

Loose terminals, corroded connectors or damaged wires attached to the fuse box may cause intermittent or complete electrical failure.

11. Excessive Contact Resistance

Corroded or weakened connections can create unwanted electrical resistance, leading to voltage drop and heat generation.

12. Missing or Damaged Fuse Clips

Broken or distorted retaining clips may prevent correct fuse installation.

13. Moisture Around the Fuse Panel

Water entering the fuse box area can accelerate corrosion and electrical deterioration.

14. Improper Previous Repairs

Incorrect wiring modifications, unsuitable connectors or bypassed fuses may compromise the original electrical protection arrangement.

Why Replacement Matters:

• Replacing a worn, damaged or corroded fuse box is an important part of maintaining the electrical reliability, safety and original functionality of your Porsche 914.
• The fuse box forms a central part of the electrical distribution system, providing the connection points for multiple circuits throughout the vehicle.
• A properly functioning fuse panel helps ensure that each circuit receives electrical power through its correctly rated protective fuse.
