R Seat Frame and Foam Kit, for 5-Point Belts. Porsche 911 / 964 / 914 1965–94  ❭  SEATFRAMERSEAT

Sold each

This R Seat frame and foam kit provides an untrimmed, fixed-back bucket-seat foundation for Porsche 911, 964 and 914 applications from 1965–94. Prepared for a 5-point belt arrangement, it allows a chosen upholstery specialist to complete the covering in materials and details suited to the vehicle.

Fits

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 914 (1970-1976)

What This Product Does

The seat-shell concept separates the supporting structure and shaped padding from the final upholstery. The kit supplies the principal components needed to establish the seat profile, while the covering material, colour, stitching and finishing work can be completed locally. This approach makes it possible to coordinate the finished seat with a restored, period-style or individually specified interior.

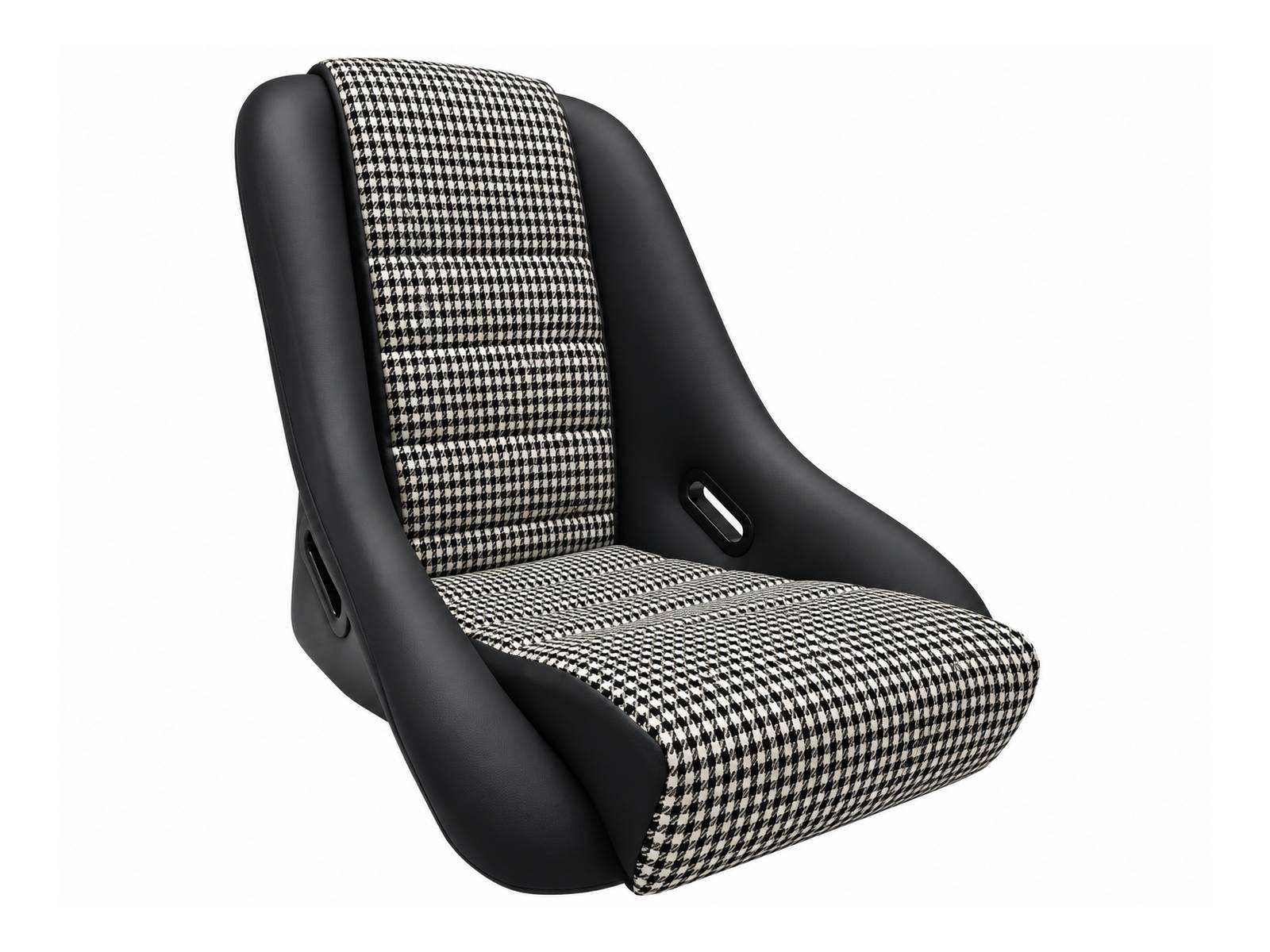

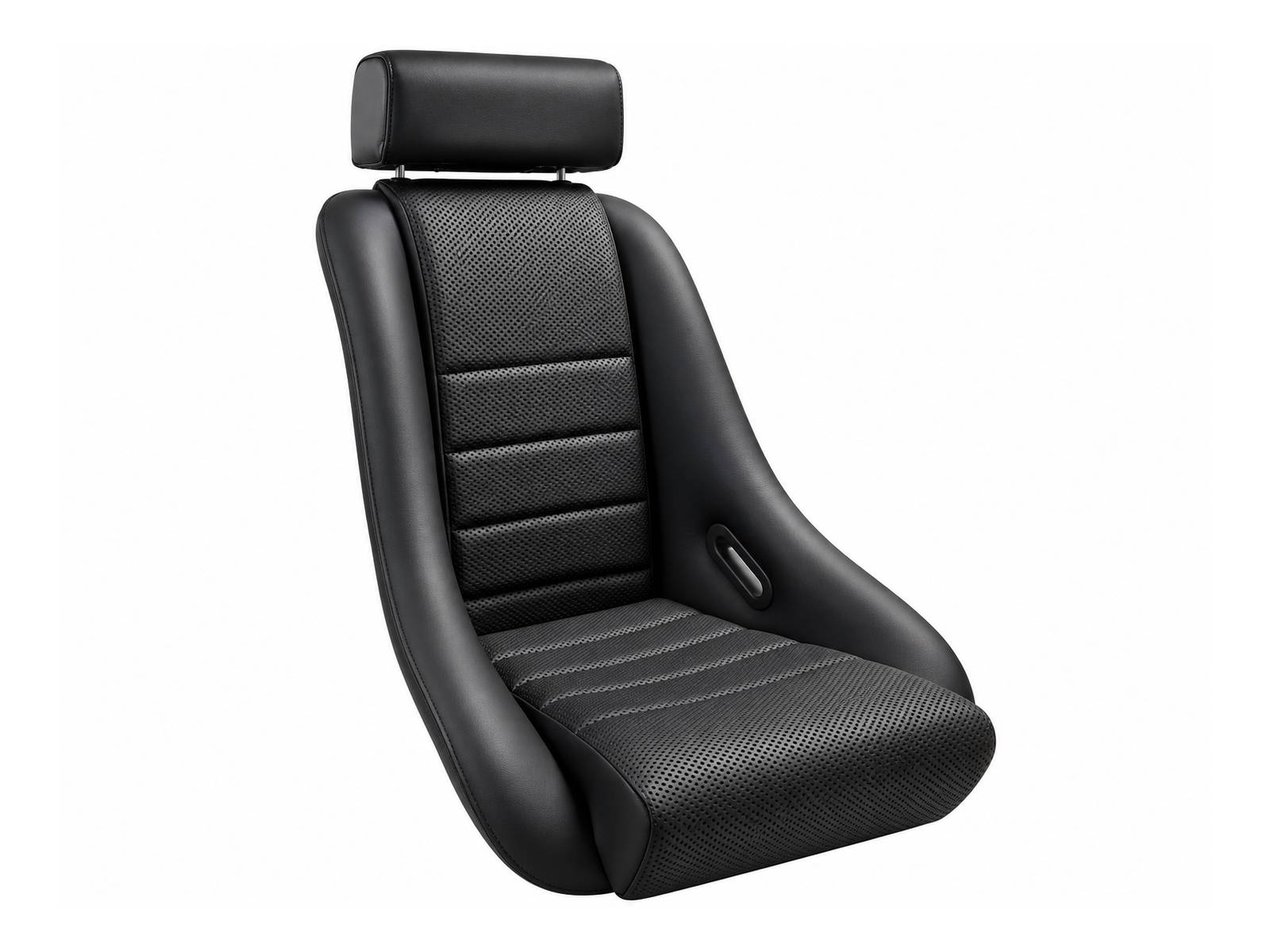

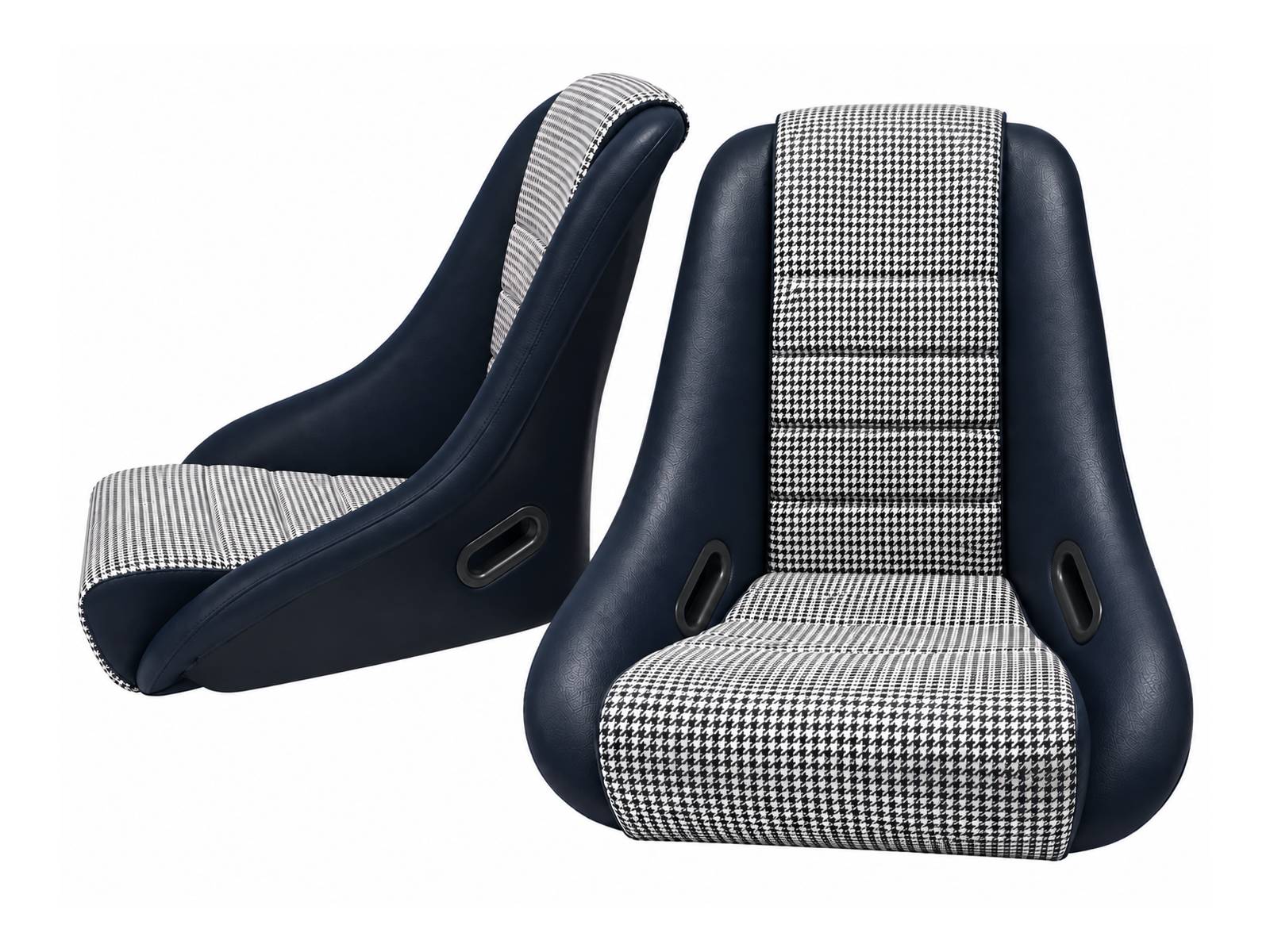

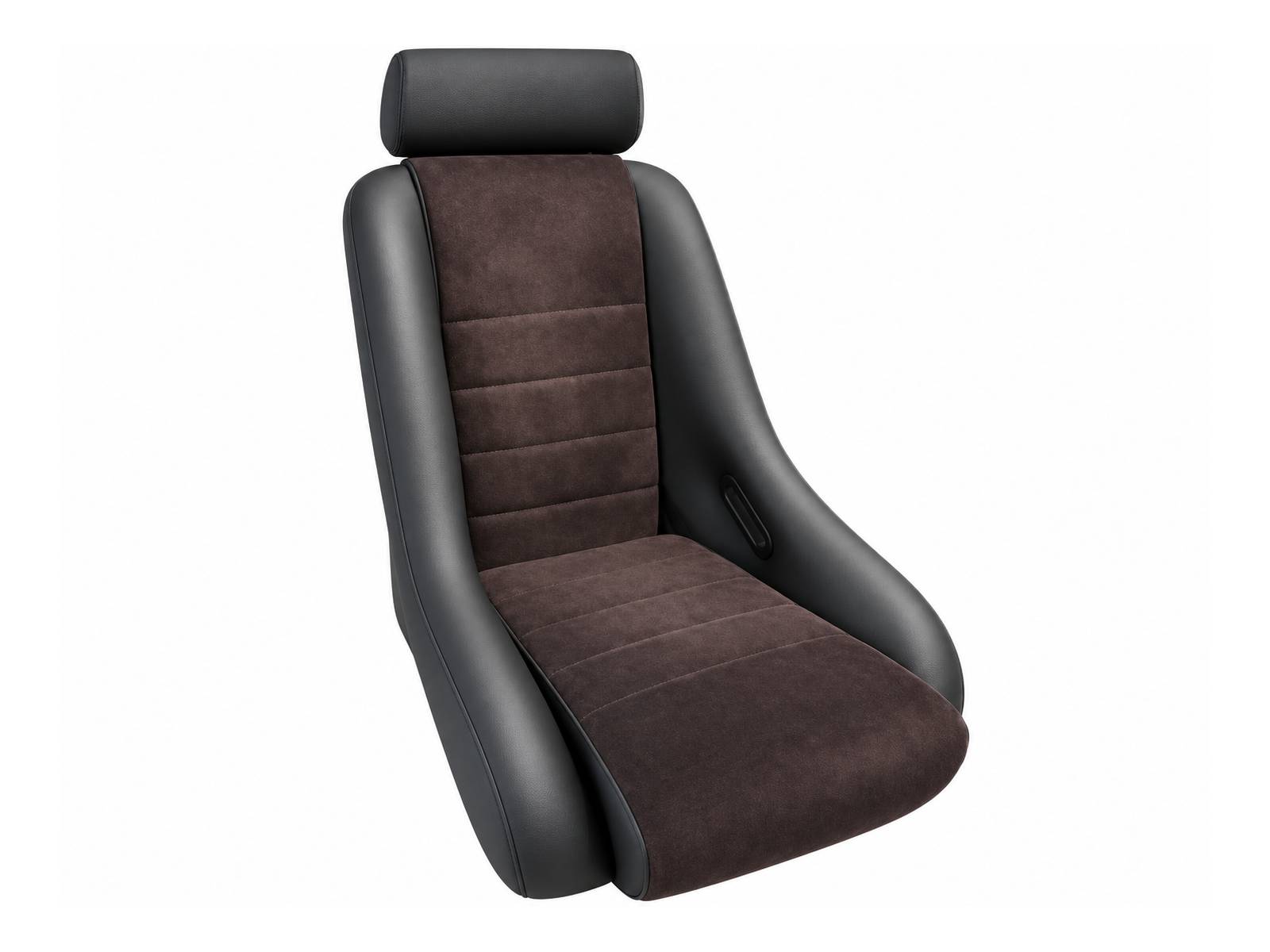

The R Seat shape is based on the supportive seats associated with early rally and racing cars. Its fixed bucket form creates defined back, side and cushion support while retaining an appearance appropriate for a classic Porsche cabin. Duralastic suspension belts provide a flexible base beneath the cushion rather than relying on foam alone.

Functions

• Forms the structural foundation for a fully upholstered R Seat
• Uses shaped foam to establish the backrest, side and cushion profile
• Supports the seat cushion through flexible Duralastic suspension belts
• Provides dedicated openings for a 5-point belt arrangement
• Allows the final upholstery specification to be selected separately
• Creates a fixed seating position determined by the mounting installation

Technical Details

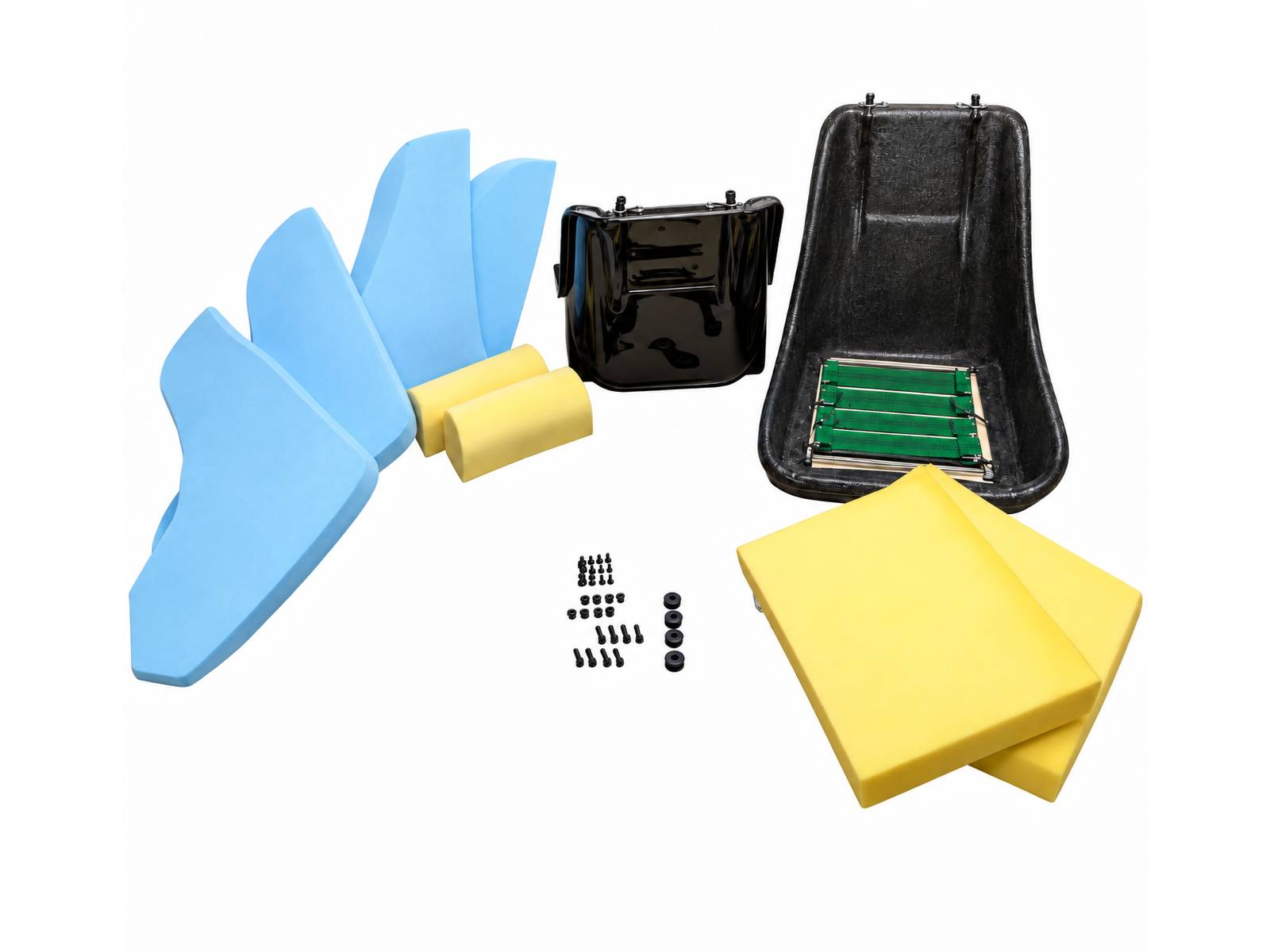

• Kit includes the seat frame, Duralastic belt set, side and backrest foams, cushion foam and 5-point belt rosette set
• Coated steel tube frame construction
• Fire-resistant foam padding
• Approximately 385 mm side-to-side mounting distance
• Fixed, non-adjustable seat structure
• Final seat height and backrest angle are established through the mounting arrangement

Symptoms of Fault

• Seat foam has collapsed, split or become uneven
• The existing seat no longer provides consistent back or side support
• Suspension components have stretched and allow the cushion to sag
• The frame has corrosion, distortion or unwanted movement
• Damaged upholstery and padding require a complete seat rebuild
• The current seat is unsuitable for the planned 5-point belt layout

Why Replacement Matters

Renewing the frame, suspension and padding together gives the upholsterer a sound foundation for the finished seat. It avoids placing new trim over deteriorated foam or tired supporting components and enables the seat position to be set for the vehicle and driver during installation. All belt anchorages and seat mountings should be installed using suitable hardware and checked by a competent specialist.

FAQs

• Is upholstery supplied? No. The frame, suspension and foam components are provided for finishing by an upholstery specialist.
• Can the backrest be adjusted? No. This is a fixed seat structure, so its installed height and angle depend on the selected mounting arrangement.
• Is this version prepared for 5-point belts? Yes. It has the relevant belt openings and includes the corresponding rosette set.
• Can it be fitted to a Porsche 914? The supplied application includes the Porsche 914 when used with an appropriate slider or tilting bracket.
