Sebring Seat Frame and Foam Kit, for 3-Point Belts. Porsche 911 / 964 / 914 1965–94  ❭  SEATFRAMESEBRINGSTD

Sebring Seat Frame and Foam Kit - 3 Point Seat Belt
Sold each

This untrimmed Sebring seat frame and foam kit is intended for selected Porsche 911, 964 and 914 models produced from 1965 to 1994. Configured for a standard 3-point seat-belt arrangement, it provides the principal structural, suspension and padding components required to create a complete period-style sports seat.

Fits

• Porsche 911 1965–1968 2.0L / 912 SWB (F)
• Porsche 911 1968–1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974–1977 2.7L / 1976–77 3.0 Carrera
• Porsche 911 1978–1983 3.0L / SC
• Porsche 911 1984–1986 3.2L
• Porsche 911 1987–1989 3.2L G50
• Porsche 911 Turbo (930) 3.0L 1975–1977
• Porsche 911 Turbo (930) 3.3L 1978–1989
• Porsche 964 (911) C2 1989–1993
• Porsche 964 (911) C4 1989–1993
• Porsche 914 1970–1976

What This Product Does

A seat frame kit supplies the underlying components separately from the finished upholstery. The frame establishes the seat structure, Duralastic suspension belts form a flexible supporting platform, and pre-shaped foam defines the cushion, backrest and side bolsters. An automotive trimmer can then cover the prepared seat using suitable leather, vinyl or fabric, with the colour, stitching and piping selected to coordinate with the vehicle's interior.

The Sebring design reflects the high-backed rally and sports seats associated with European competition cars of the late 1960s and early 1970s. Its deep sides and raised back provide a defined, supportive seating profile while retaining an appearance suited to a classic Porsche cabin. The seat itself has a fixed structure, so its final height and angle are determined by the brackets and mounting arrangement used during installation.

Functions

• Provides the structural foundation for a fully trimmed classic sports seat
• Uses Duralastic suspension belts to support the cushion beneath the foam
• Includes shaped padding for the backrest, sides, cushion and headrest
• Allows the upholstery material and finishing details to be chosen separately
• Creates a high-backed profile with pronounced lateral support
• Accommodates the supplied standard 3-point seat-belt configuration

Technical Details

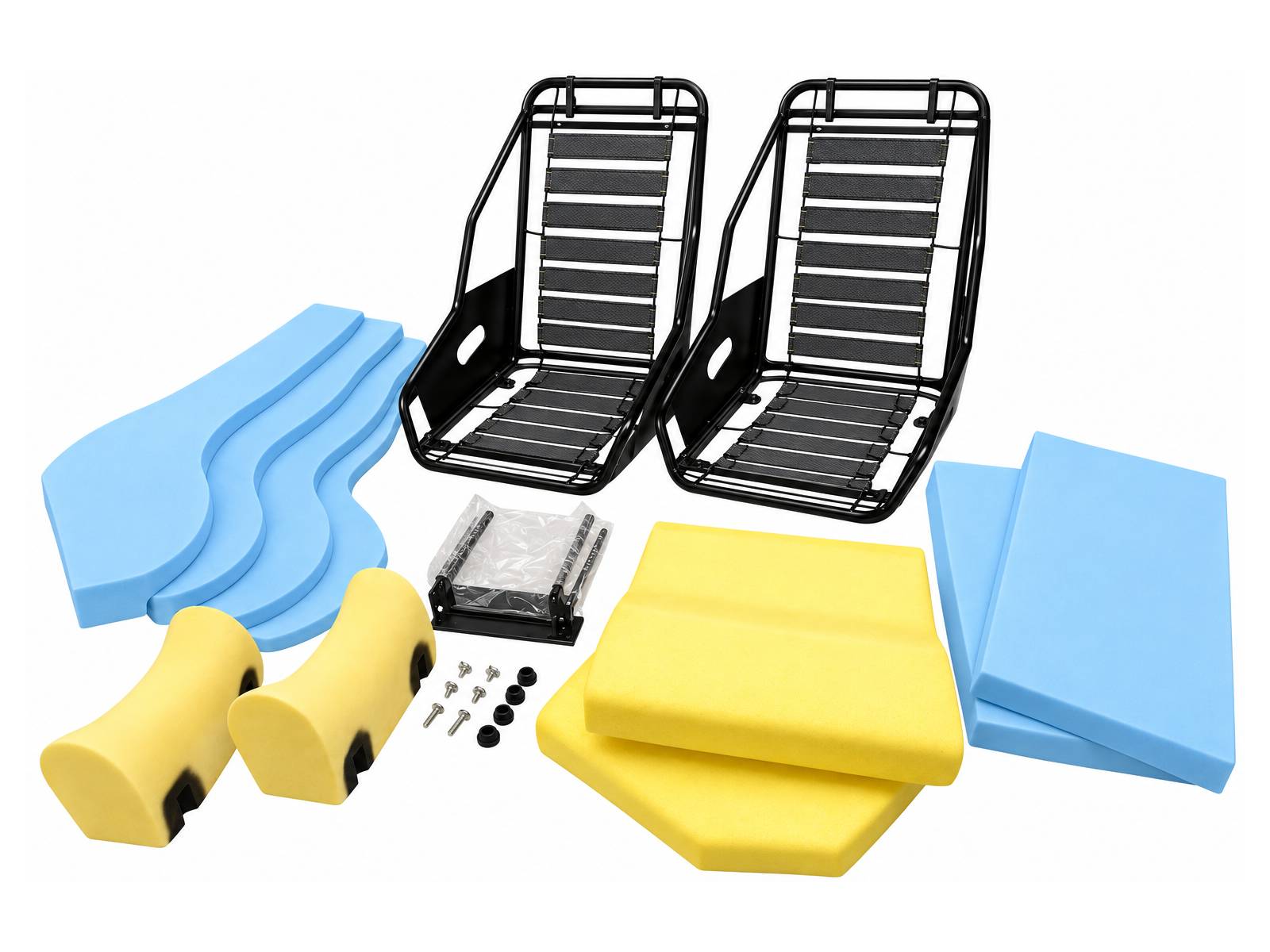

• Kit includes the seat frame, Duralastic belts, side and backrest foam, seat cushion and headrest
• Lightweight coated and protected steel tube frame
• Fire-retardant foam specification
• Fixed, non-adjustable seat structure
• Approximate seat weight: 9.8 kg
• Runners, mounting brackets and upholstery should be confirmed separately

Symptoms of Fault

• Original seat padding has compressed, cracked or become uneven
• The seat cushion sags or no longer supports the occupant consistently
• The existing seat frame is corroded, damaged or distorted
• Backrest or side-bolster support has deteriorated
• Worn trim has exposed damaged foam or suspension components
• A complete untrimmed foundation is required for an interior restoration

Why Replacement Matters

Renewing the frame, suspension and shaped foam together gives the trimmer a consistent base for the final covering. It avoids applying new upholstery over collapsed padding or weakened supporting components and permits the finished seat to be coordinated with a restored or individually specified cabin. Seat mounts, runners and belt anchorages are safety-critical, so the installation should use suitable vehicle-specific hardware and be checked by an experienced specialist.

FAQs

• Is the upholstery included? No. The components are supplied untrimmed so a chosen upholstery specialist can complete the seat.
• What does the kit contain? It includes the steel seat frame, suspension belts, shaped side and backrest foam, cushion and headrest.
• Can the seat recline? No. The seat has a fixed structure; its installed height and tilt depend on the selected mounting hardware.
• Is this suitable for a standard seat belt? Yes. This version is specified for use with a 3-point belt arrangement.
• Are runners and brackets included? The correct model-specific runners, brackets and fixings should be checked separately for the intended installation.
