Sebring Seat Frame and Foam Kit, for 5-Point Belts. Porsche 911 / 964 / 914 1965-94  ❭  SEATFRAMESEBRING

Sebring Seat Frame and Foam Kit - 5 Point Seat Belt
Sold each

The Retro Trim Sebring Seat Frame and Foam Kit for 5-point belts provides an untrimmed foundation for a period-style sports seat in selected Porsche 911, 964 and 914 models from 1965 to 1994. Five-point seat-belt cut-out rosettes are included.

Fits

• Porsche 911 1965–1968 2.0L / 912 SWB (F)
• Porsche 911 1968–1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974–1977 2.7L / 1976–77 3.0 Carrera
• Porsche 911 1978–1983 3.0L / SC
• Porsche 911 1984–1986 3.2L
• Porsche 911 1987–1989 3.2L G50
• Porsche 911 Turbo (930) 3.0L 1975–1977
• Porsche 911 Turbo (930) 3.3L 1978–1989
• Porsche 964 (911) C2 1989–1993
• Porsche 964 (911) C4 1989–1993
• Porsche 914 1970–1976

What This Product Does

A seat frame kit supplies the structural and supporting components required before upholstery is fitted. The steel tube frame establishes the shape of the seat, while Duralastic suspension belts create a flexible base beneath the cushion. Pre-shaped foam forms the seat base, backrest, headrest and side bolsters. A vehicle trimmer can then finish the assembly in a suitable leather, vinyl or fabric, allowing the colour, stitching and piping to be coordinated with the interior.

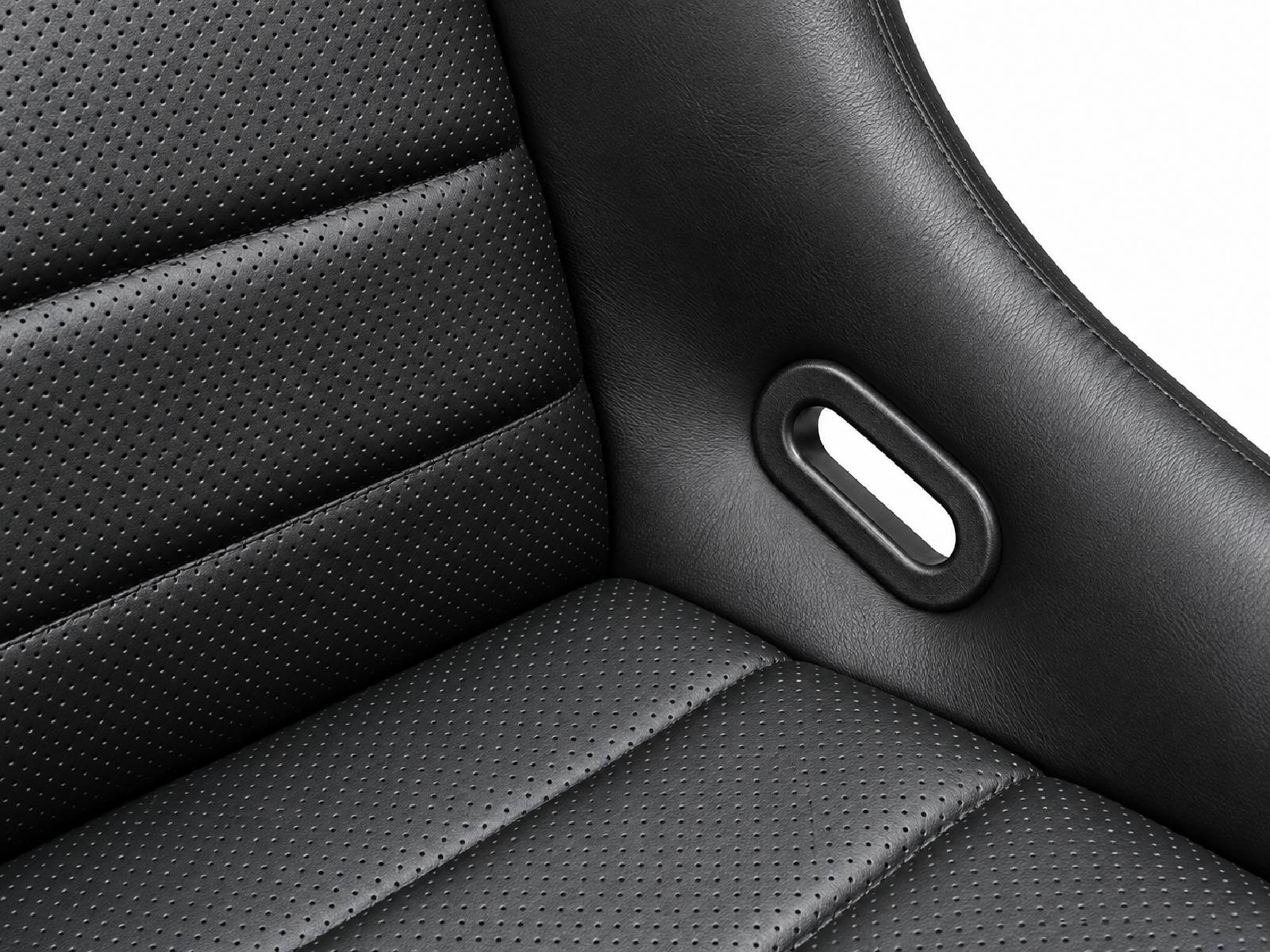

The Sebring has a high-backed profile influenced by rally and sports seats used in European competition cars during the late 1960s and early 1970s. Raised sides provide a defined seating position, while the belt openings allow installation with a suitable 5-point restraint arrangement. Supplied rosettes provide a finished surround for the seat-belt cut-outs.

Functions

• Provides the structural base for a fully upholstered classic sports seat
• Uses Duralastic belts to create a flexible supporting platform
• Includes shaped foam for the cushion, backrest, sides and headrest
• Allows upholstery materials and finishing details to be selected separately
• Creates a fixed, high-backed seating profile with pronounced side support
• Provides cut-outs and rosettes for a 5-point seat-belt arrangement

Technical Details

• Kit includes the seat frame, Duralastic belts, side and backrest foam, seat cushion and headrest
• Lightweight coated and protected steel tube construction
• Fire-retardant seat foam
• Fixed, non-adjustable seat structure
• Includes 5-point seat-belt cut-out rosettes
• Supplied untrimmed; upholstery, runners and vehicle-specific mounting brackets should be selected separately

Symptoms of Fault

• Original seat foam has compressed, cracked or become uneven
• The seat cushion sags or provides inconsistent support
• The existing frame is corroded, distorted or damaged
• Side-bolster or backrest support has deteriorated
• Worn upholstery has exposed damaged foam or suspension components
• A complete untrimmed seat foundation is required for a restoration or custom interior

Why Replacement Matters

Renewing the frame, suspension and shaped foam together provides a consistent foundation for the final upholstery. This avoids applying a new covering over collapsed padding or weakened supporting parts. The fixed structure also allows the final seating height and angle to be established through the selected runners and mounting brackets. Seat mounts, belt anchorages and harness geometry are safety-critical, so suitable vehicle-specific hardware should be installed and checked by an experienced specialist.

FAQs

• Is upholstery included? No. The kit is supplied untrimmed for completion by a suitable vehicle trimmer.
• What components are supplied? The kit contains the steel frame, Duralastic suspension belts, shaped side and back foam, seat cushion and headrest.
• Are the belt-opening rosettes included? Yes. Rosettes for the 5-point seat-belt cut-outs are supplied with this version.
• Can the seat recline? No. It has a fixed structure, with the installed height and tilt determined by the selected mounting arrangement.
• Are runners and mounting brackets included? The appropriate model-specific runners, brackets and fixings should be confirmed separately.
