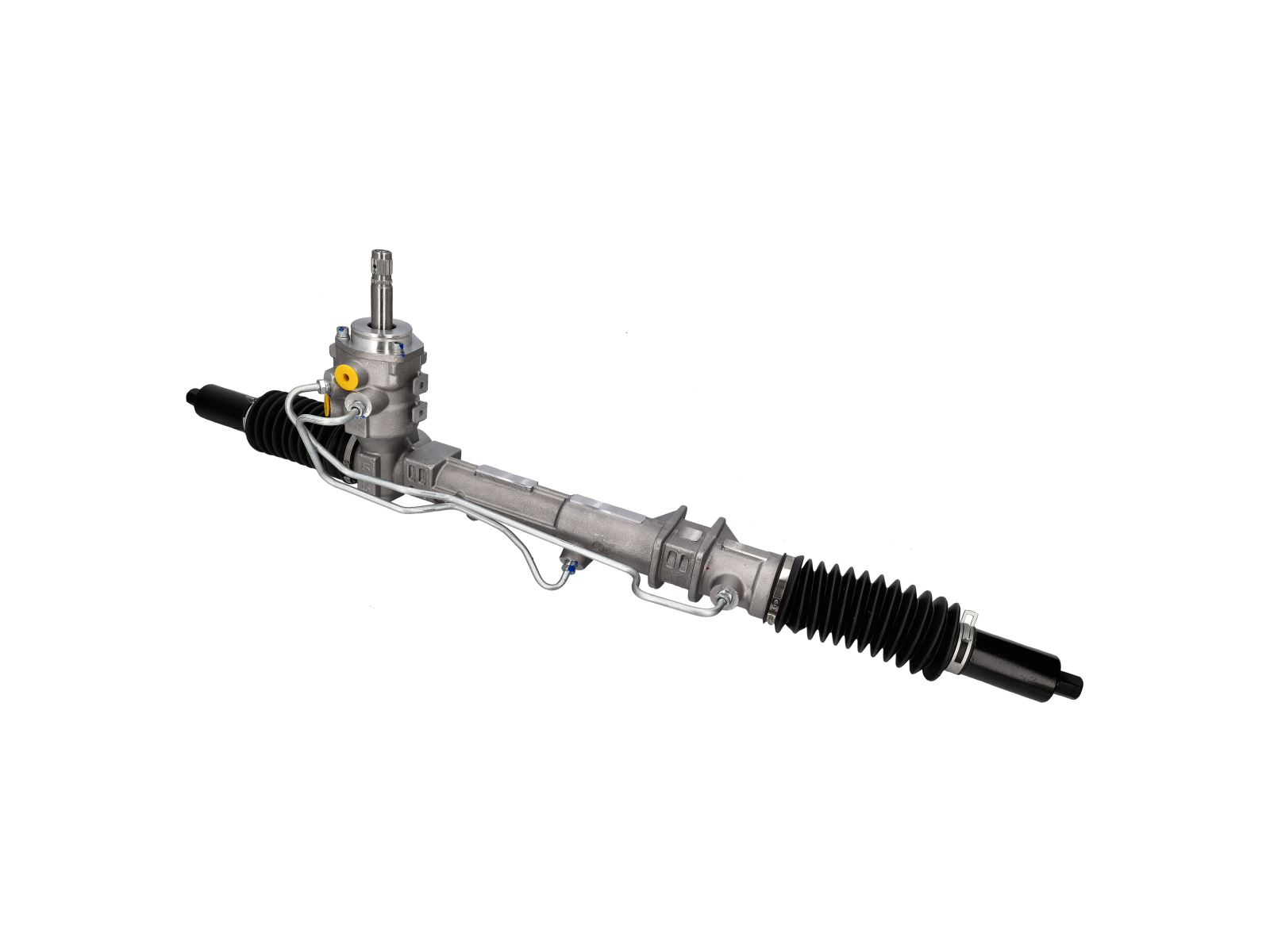

Steering rack with tie rods and bellows, for Right Hand Drive (RHD). Porsche 993 Carrera / Turbo 1994-98  ›  99334701204

OE Match steering rack with tie rods and bellows for right-hand-drive Porsche 993 Carrera and Turbo applications. This kit combines a new rack with the associated steering linkage and protective bellows.

Fits

Porsche 993 Carrera / Turbo (not RS)
Right Hand Drive Cars (like UK)

• 993 (911) C2 1994–97
• 993 (911) C4 1994–97
• 993 (911) C2S 1994–97
• 993 (911) C4S 1994–97
• 993 (911) TURBO 1994–96
• 993 (911) TURBO S 1994–97
• 993 (911) GT2 1994–97

The supplied application record covers the 993 (911) (1994–1998) and also lists 993 (911) RS 1994–97. However, the explicit product exclusion states not RS; this assembly must not be selected for an RS application.

Check fitment for your specific vehicle (model, year, engine) before ordering.

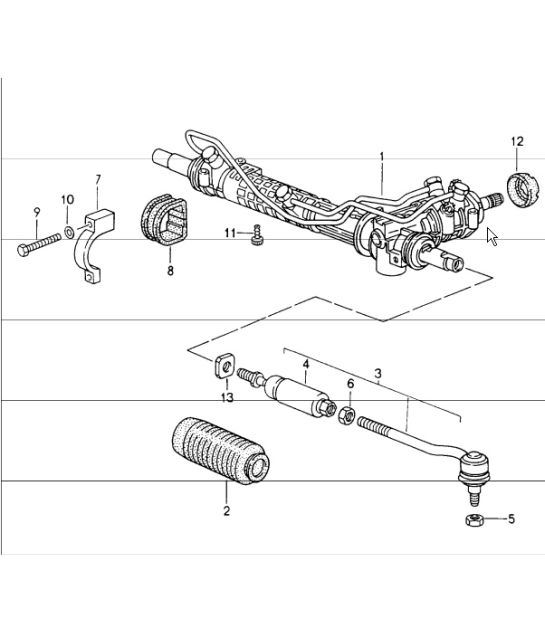

Diagram: 403-00, item 1 (99334701204); item 2 (993347012DX).

What This Product Does

The rack changes steering-wheel rotation into sideways movement, which the tie rods transmit to the front wheels. Bellows cover the moving rack ends, helping to keep contaminants away from the protected components.

Functions

• Converts rotational steering input into linear travel.
• Transfers rack movement through the tie rods.
• Covers the rack ends with protective bellows.

Technical Details

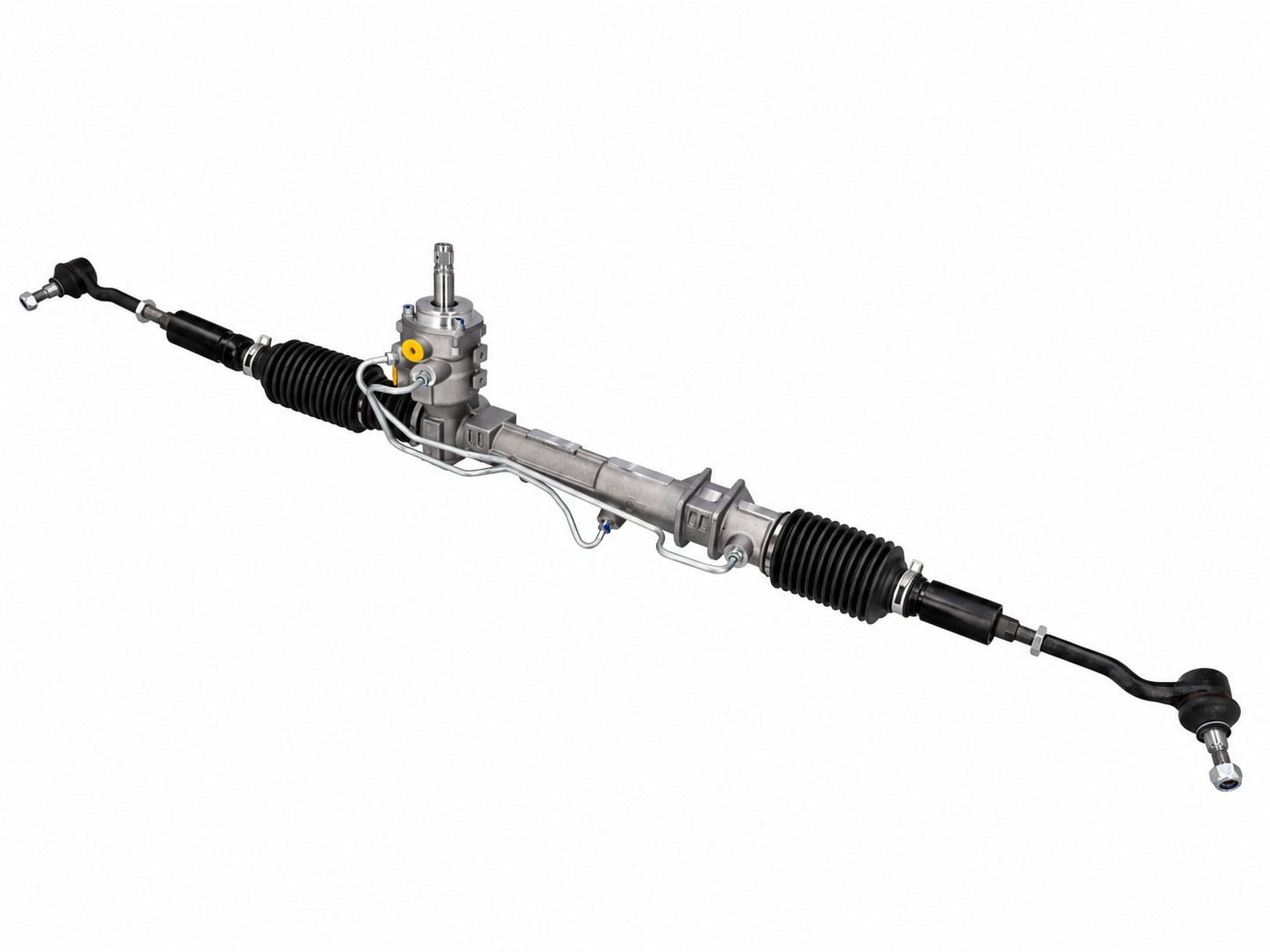

• Supplied assembly: new steering rack, tie rods and bellows.
• Drive configuration: Right Hand Drive (RHD).
• Internal diagram references: 99334701204 and 993347012DX.
• Diagram notes for both references specify associated positions 7, 8, 9 and 10, plus pressure line 99334745804. These notes do not establish that those additional components are included.

Symptoms of Fault

• Hydraulic fluid leakage or repeated fluid loss.
• Split steering gaiters.
• Heavy steering at idle or unequal effort between directions.
• Poor steering-wheel return towards centre.
• Noise at idle or during steering.
• Judder, looseness or knocking through the wheel.
• Partial or complete loss of steering assistance.

Similar symptoms can originate in the pump, joints, bushes or suspension. Electrical steering problems require separate diagnosis rather than assuming that rack replacement will resolve them.

Why Replacement Matters

Renewing a diagnosed worn or leaking rack addresses deterioration within the assembly. Pump replacement alongside the rack is strongly recommended: circulating swarf can damage either component. Scoring or metal contamination found when an exchange rack is inspected indicates debris within the system, so the pump should also be assessed and replaced as advised.

FAQs

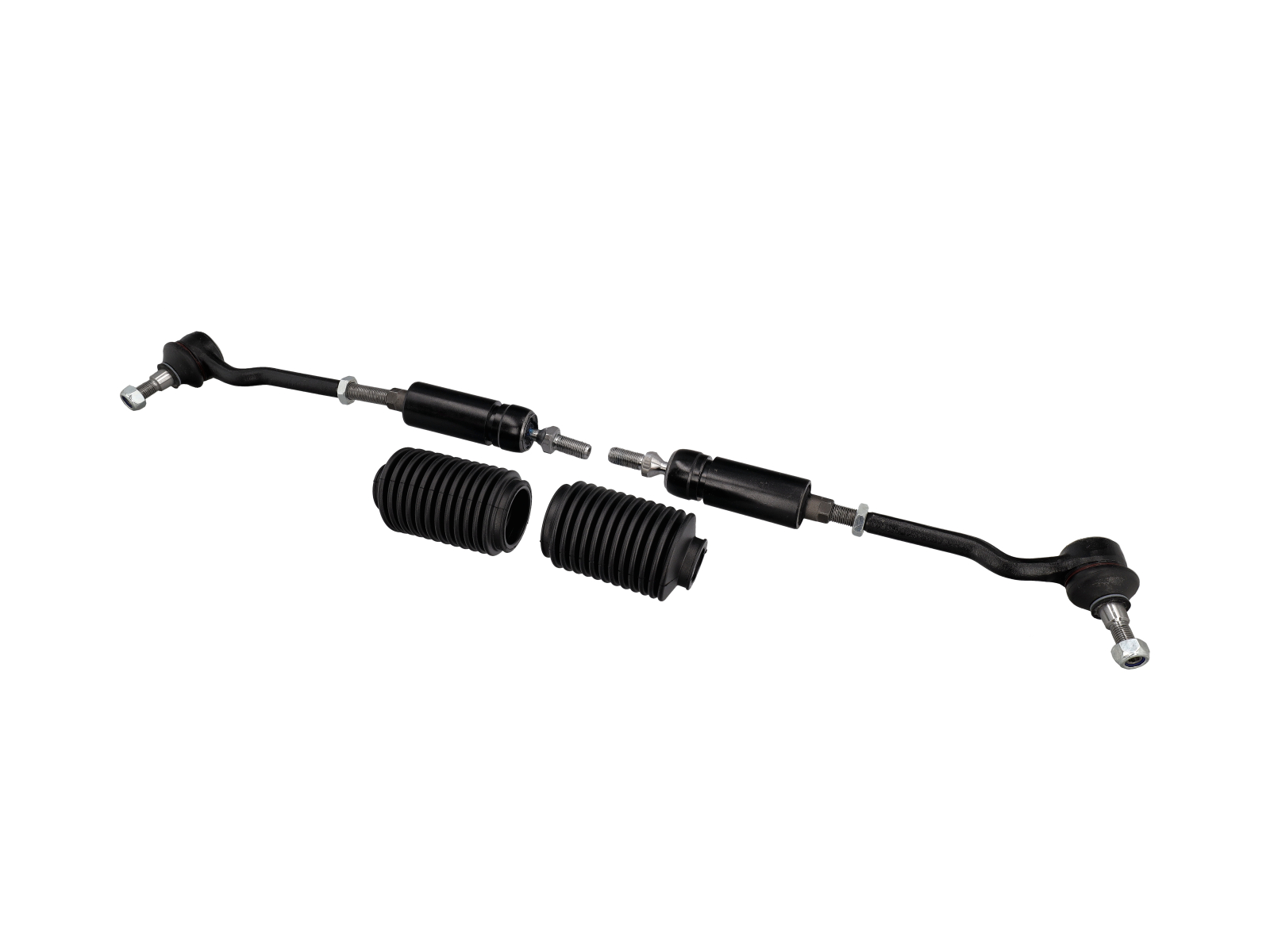

Are tie rods and bellows supplied?
Yes, both are included with this assembly.

Is wheel alignment needed afterwards?
Arrange wheel alignment following installation.

What else should be checked?
Inspect the pump, fluid, pipework, mounts and related joints. Follow the correct flushing and refilling procedure, using the specified fluid.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99334701204
