Wiring Harness / Cables

DME wiring harness loom.

Fits:
Porsche 911 3.2 Carrera - 1984 to 1985

DME harness for Carrera 3.2

Complete harness with 35PIN ECU/DME connector to Motronic Box

• Female connector to injector harness (chassis part is NLA and needs to be re-used from your old harness)

Connectors for:
• Cylinder head temp sensor
• Reference mark sensor
• Speed sensor
• Oxygen sensor
• Test connector
• Air flow sensor
• Idle speed positioner
• Idle speed switch
• Throttle valve switch
• RPM signal/Shift light
• Altitude sensor

Comes with detailed connection diagram.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

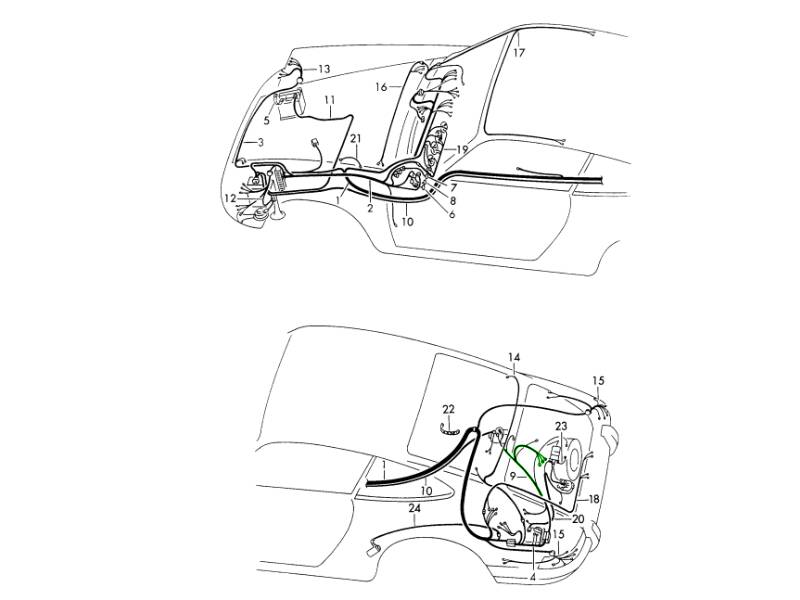

Click 'Zoom in' for large parts diagram.
Diagram ref no 1A

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161217307

The product you are viewing cross references to these numbers

The OE Match engine harness for Bosch alternator replaces the engine wiring on Porsche 911 1970–71 models with the 2 Pole connector arrangement. It is supplied with new connectors, housings, connector boots and an engine tin square grommet for engine wiring repairs and restoration. Manufactured to original specs.

Fits

• Porsche 911 1970–71 — for Bosch alternator with 2 Pole connector.

  Check fitment for your specific vehicle (model, year, engine) before ordering. Confirm the alternator type and connector arrangement, particularly if the charging system has been changed previously.

  What Is This Part?

This is the engine wiring harness for the Bosch alternator installation, grouping the relevant electrical wiring into an organised loom. Its connectors and housings provide the connection points, while the boots cover the terminal areas and the square grommet protects the wiring where it passes through the engine tin. The harness is manufactured to original specifications and made in Canada. It provides a replacement option when the existing loom has deteriorated or accumulated repairs that make further local repairs impractical.

What Does This Part Do?

• Connects the engine wiring: Provides the wiring arrangement for the specified Bosch alternator application.
• Groups the circuits: Keeps the engine wiring together as a loom rather than separate, unsupported wires.
• Provides connection points: New connectors and housings replace the corresponding ageing connection components.
• Covers terminal areas: Connector boots provide covering around the electrical connections.
• Protects the engine tin passage: The square grommet separates the wiring from the edge of its opening.

  Why Replace This Part?

Engine wiring can deteriorate through age, heat, vibration and abrasion. Cracked insulation, fractured wires or corroded connections can interrupt a circuit or introduce resistance, potentially contributing to intermittent electrical faults or poor charging. Replacement is appropriate when inspection and testing identify damage within the harness, rather than simply because a charging fault is present.

A replacement loom may also be useful during restoration when the original wiring has widespread deterioration, unsuitable joins or damaged connector housings. Check the battery, earth connections, alternator and regulator as part of diagnosis so that a fault elsewhere is not mistaken for harness failure.

When to Replace This Part?

• Damaged insulation: Cracking, brittleness, chafing or exposed conductors are visible.
• Heat damage: Wiring, boots or connector housings show melting or scorching; investigate the cause before fitting a replacement.
• Deteriorated connections: Terminals are corroded, loose or no longer retained properly in their housings.
• Confirmed circuit faults: Electrical testing identifies a broken conductor or excessive resistance in the loom.
• Unsuitable previous repairs: Multiple damaged or poorly secured joins make dependable local repair impractical.
• Removal reveals damage: Engine or alternator work exposes worn wiring or a damaged engine tin grommet.

  Where Is This Part Fitted?

Location: In the rear engine compartment, forming part of the engine wiring arrangement for the Bosch alternator installation. The supplied square grommet fits at the wiring passage through the engine tin.

Technical Details

• Alternator application: Bosch.
• Connector arrangement: 2 Pole connector.
• Included connection components: New connectors, housings and connector boots.
• Included grommet: Engine tin square grommet.
• Specification: Manufactured to original specifications.
• Country of manufacture: Canada.

  FAQs

• Does poor charging prove that the harness needs replacing? No. Check the battery, alternator, regulator, earth connections and wiring, then replace the component shown to be faulty.
• Should I repair the existing loom or replace it? An isolated fault may be repairable. Widespread insulation damage, corroded connections or numerous unsuitable joins can justify replacing the harness.

  Product Summary

• Product: Engine harness for Bosch alternator.
• Brand: OE Match.
• Application: Porsche 911 1970–71 with 2 Pole connector.
• Purpose: Replacement of deteriorated or damaged engine wiring.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201600

The product you are viewing cross references to these numbers

This OE Match engine harness for Motorola alternator applications connects the engine electrical circuits on Porsche 911 models from 1970–71. It provides a replacement wiring assembly when the existing loom has deteriorated or suffered damage.

Fits

• Porsche 911 1970–71 — with Motorola alternator.

  These broader model classifications do not extend this harness's application beyond Porsche 911 1970–71 with a Motorola alternator. Confirm the alternator currently fitted, particularly if the charging system has previously been changed.

  Check fitment for your specific vehicle (model, year, engine) before ordering.

  Diagram ref no 20

  What Is This Part?

This is the engine wiring loom specified for the Motorola alternator installation. The harness forms the electrical connection between the engine and the engine-compartment fuse-panel wiring, grouping individual circuits into a routed assembly. Its conductors and connections carry electricity between the connected components and the vehicle wiring. During restoration or engine work, its condition should be assessed alongside the terminals, earth connections and surrounding wiring.

What Does This Part Do?

• Connects engine wiring: Links the engine electrical circuits to the engine-compartment wiring connection.
• Serves the Motorola installation: Provides the engine harness application specified for this alternator arrangement.
• Groups individual circuits: Keeps the engine wiring together as a loom for routing and connection.
• Replaces deteriorated wiring: Allows a damaged engine harness to be renewed as an assembly rather than retaining multiple unreliable repairs.

  Why Replace This Part?

Engine-bay heat, vibration and age can leave insulation brittle, damage conductors or loosen connections. Corroded or poorly secured terminals can introduce electrical resistance, causing voltage loss and intermittent charging faults. Replacement may be appropriate where inspection confirms widespread deterioration, damaged connections or previous repairs that cannot be put right satisfactorily.

A charging warning or flat battery does not establish that the harness is faulty. Check battery condition, earth straps, alternator connections and charging-system operation before deciding which component needs replacing. A sound harness does not need automatic replacement whenever the alternator is removed.

When to Replace This Part?

• Cracked insulation: Brittle, split or missing covering exposes the conductors.
• Heat damage: Melted insulation, discolouration or burnt connections require investigation.
• Damaged wiring: Chafed, cut or fractured conductors are found during inspection.
• Corroded terminals: Connections are damaged or no longer make secure electrical contact.
• Confirmed electrical loss: Continuity or voltage-drop testing identifies a fault within the harness.
• Unsatisfactory previous repairs: Multiple damaged joins or altered connections make reliable repair impractical.

  Where Is This Part Fitted?

Location: In the rear engine compartment, running between the engine electrical connections and the engine-compartment fuse-panel harness. During fitting, check routing and supports so the loom is not stretched, trapped or left rubbing against adjacent parts. Disconnect the battery before disturbing alternator electrical connections.

Technical Details

• Country of manufacture: Canada.
• Electrical application: Engine harness for Motorola alternator installation.

  FAQs

• Should I replace the harness for a charging fault alone? No. Inspect the wiring and connections, then test the charging system to establish the cause.
• Can an individual damaged wire be repaired? A localised defect may be repairable using suitable automotive wiring methods. Widespread insulation damage or corrosion may justify harness replacement.

  Product Summary

• Product: Engine harness for Motorola alternator.
• Brand: OE Match.
• Purpose: Connects engine electrical circuits to the engine-compartment wiring.
• Manufacture: Made in Canada.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201700

The product you are viewing cross references to these numbers

OE Match engine wiring loom for Porsche 911 K-jet applications from 1974–75. Manufactured in Canada for replacement or restoration work involving the engine wiring.

Fits

• Porsche 911 1974-75



Check fitment for your specific vehicle (model, year, engine) before ordering.

What This Product Does

The loom groups the engine's electrical connections into an organised assembly. It carries electrical supplies and signals between connected components, providing the wiring paths needed for their operation. This is a wiring harness, not an alternator or generator.

Functions

• Connects engine electrical components through a grouped wiring assembly.
• Carries power and electrical signals through the connected circuits.
• Replaces an existing engine loom affected by deterioration or unsuitable previous repairs.



Technical Details

• Brand: OE Match.
• Part reference: 91161201731.
• Application type: K-jet engine wiring.
• Country of manufacture: Canada.



Symptoms of Fault

• Starting or running faults that occur intermittently.
• Electrical operation changing when wiring is moved.
• Cracked, hardened or melted insulation around the engine.
• Corroded terminals or damaged connector housings.
• Voltage loss across a damaged wire or connection.
• Repeated fuse failures requiring investigation.



These observations can also have other causes. Inspect the wiring and test the affected circuit before deciding that the harness needs replacement.

Why Replacement Matters

Ageing insulation, fractured conductors and corroded connections can interrupt electrical circuits. Replacing a deteriorated loom addresses damaged wiring as an assembly rather than adding further joins to extensively repaired sections. Check battery connections, earth straps and adjoining connectors as part of the same diagnosis.

FAQs

• What should I check before choosing this harness?
  Confirm the vehicle year, K-jet application, existing wiring arrangement and part reference. Compare the connectors with those on the original loom.
• Does an intermittent fault prove the loom is defective?
  No. Test circuit continuity, supplies and earth connections, and inspect terminals before replacing parts.
• Can an existing loom be repaired instead?
  A localised defect may be repairable. Widespread insulation damage, corrosion or numerous unreliable joins can make replacement more appropriate.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201731

The product you are viewing cross references to these numbers

Engine wiring harness loom.

Fits:
Porsche 911 3.2 Carrera - 1984 to 1986

Complete engine harness with 14 pole female connector, fan connector, generator boots, backup switch boot, cable entry block etc.

Comes with an 100% as original cable entry boot included.

As original coloured wiring.

Original neoprene terminal sleeves used, (no shrink wrap)

Very high quality flex automotive grade wiring, ISO6722:2002 / DIN72551/6 / EEC directive 2000/53

Gasoline, oil, battery acid, engine coolant resistant.

High flex sleeving is very resistant to solvents and free of halogen, sulphur and phosphorous.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160701600

The product you are viewing cross references to these numbers

Engine wiring harness loom.

Fits:
Porsche 911 SC 1978 to 1983

Complete engine harness.

Connects to 14 pole male connector from tunnel harness and has original colour coded wiring.

Harness will exactly fit like the original and the wire tube and oil resistant tape are as original.

Terminals have neoprene sleeves with new 14 pole female connector and rubber cable entry block, grommet for alternator, rubber boots on alternator connection, CDI connector & boot, green shielded distributor wire / plug etc.

1978 to 1981 version is for the earlier type SC model that has an external voltage regulator.
1983-1983 version is for the later type SC model that has a built in voltage regulator.

Harness comes with our detailed connection diagrams.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

911612016

The product you are viewing cross references to these numbers

Engine wiring harness loom.

Fits:
Porsche 911 turbo - 1978 to 1981 US spec (with Catalytic Converter)

Complete engine harness, including 14 pole connector, rubber boot + protection tube for backup switch cable, alternator connection boots and rubber entry block.

Click 'Zoom in' for large parts diagram.
Diagram ref no 1

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

93061201605

The product you are viewing cross references to these numbers

Engine wiring harness loom.

Fits:

Porsche 911S - 1976

Click 'Zoom in' for large parts diagram.
Diagram ref no 9

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201634

The product you are viewing cross references to these numbers

Engine Wiring Harness.

Porsche 911 Engine Wiring Harness for 1972–1973 911 models. Replaces the full engine electrical loom, connecting alternator, ignition, and sensors. Ensures reliable current flow.

Fits:

• Porsche 911 1972-1973 2.2L / 2.4L / 2.7L RS LWB (F)



Diagram Ref No 9

What This Product Does:

• It connects the engine’s electrical components — alternator, ignition, sensors, and other engine peripherals — back to the fuse panel / engine bay wiring.



Symptoms Of Failure / Damage:

• No or intermittent charging (alternator not powering battery)

• Ignition / spark issues, misfires, dead cylinders

• Shorts, blown fuses in engine circuits
• Corroded / broken connectors, brittle insulation, oil damage leading to open circuits
• Erratic sensor readings or no connection to sensors



Why Replacement Matters:

• Restores electrical integrity in the engine bay — correct connections, reliable voltage paths
• Prevents electrical gremlins, such as random faults, shorts, or voltage drops
• A new harness with fresh connectors, grommets, and insulation resists heat, oil, vibration better than aged wiring

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201720

The product you are viewing cross references to these numbers

OE Match engine wiring harness for the Porsche 911 SC 3.0L, covering the 1982–83 application.

Fits

Porsche 911 1982-83

Check fitment for your specific vehicle (model, year, engine) before ordering.

What This Product Does

The loom groups the engine's electrical wiring, providing connections through which the associated components receive power or transmit signals. It is a wiring assembly, not an alternator, voltage regulator or ignition unit.

Functions

• Connects the engine's electrical circuits.
• Carries electrical supplies and signals between connected components.
• Keeps related wiring together within an engine harness assembly.



Technical Details

• Brand: OE Match.
• Part reference: 91161201604.
• Application: Porsche 911 SC 3.0L, 1982–83.
• Internal diagram description: engine wiring harness; SC application, with an 82-onwards note.



Symptoms of Fault

• Electrical operation that changes when the wiring moves.
• Cracked, hardened or melted insulation around the engine.
• Corroded terminals or damaged connector housings.
• Starting or charging problems associated with excessive circuit resistance.
• Repeated fuse failures or intermittent engine electrical faults.



These symptoms can have several causes. Inspect the battery connections, earth straps and individual circuits before attributing a fault to the harness.

Why Replacement Matters

Renewal may be appropriate where insulation has deteriorated extensively, conductors have fractured or earlier repairs have left unreliable connections. Replacing a confirmed faulty loom addresses the wiring itself rather than repeatedly changing connected components. OE Match focuses on Porsche replacement applications; matching the original reference and vehicle specification remains essential.

FAQs

Can a damaged connection resemble a component failure?
Yes. Poor terminal contact can interrupt an electrical supply or alter a signal, so the connected component may not be responsible.

Should a small damaged section be repaired instead?
A localised fault may be repairable, while extensive deterioration can make harness replacement more appropriate. Have the condition assessed before deciding.

What should be checked before installation?
Compare the original reference, model year, engine specification, connector arrangement and wiring route with the existing loom.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161201604

The product you are viewing cross references to these numbers

SC Style Front Fuel Pump Loom Upgrade – Improved Fuel Pump Wiring Solution

High-quality SC-style front fuel pump loom upgrade, designed to improve the reliability, safety, and performance of the fuel delivery system on classic Porsche 911 models.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera

This upgrade replicates the improved wiring layout found on later 911 SC models, relocating and optimising the fuel pump electrical supply to ensure more consistent voltage delivery and safer operation.

The loom can be integrated into the original ignition circuit, allowing the fuel pump to operate correctly in line with ignition status, enhancing both safety and functionality.

Key Features

• SC-style front fuel pump wiring upgrade
• Improves electrical supply to fuel pump
• Can be wired into original ignition circuit
• Enhances reliability and fuel delivery consistency
• Reduces load on original wiring
• Ideal for classic 911 upgrades and restorations
• High-quality wiring and connectors
• Designed for straightforward installation

Function and Purpose

This loom upgrade improves the performance of the fuel pump circuit.

It helps to:
• Deliver consistent voltage to the fuel pump
• Reduce strain on aging factory wiring
• Improve fuel pump efficiency and reliability
• Enable ignition-controlled pump operation
• Enhance overall system safety

Why Upgrade to SC-Style Fuel Pump Wiring

Early Porsche 911 wiring setups can suffer from voltage drop and reliability issues.

Benefits of this upgrade include:
• Improved fuel pump performance
• More stable electrical supply
• Reduced risk of wiring failure
• Enhanced safety through ignition control
• Modernised system while retaining OEM logic

This makes it a highly recommended upgrade for both restored and regularly driven classic 911s.

Fuel injector wiring harness loom.

Fits:
Porsche 911 3.2 Carrera - 1984 to 1985

Injector harness for 3.2 engine with 6 "quick release" Bosch timer connectors for easy connecting and disconnecting.

6 pole male connector included.

Special order made to order parts please allow 2 – 4 weeks

Handmade to concourse quality.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91160717403

The product you are viewing cross references to these numbers

Fuel pump wiring harness loom.

Fits:
Porsche 911 / 911 S / 911 Carrera 3.0ltr - 1977
Porsche 911 SC - 1978 to 1983

Complete fuel pump harness including relay socket, Weco connectors and Bosch rubber boots for the fuel pump connection.
Fuel pump relay included

Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207214

The product you are viewing cross references to these numbers

Fuel pump wiring harness loom.

Fits:
Porsche 911 3.2 Carrera - 1984 to 1986

Fuel pump harness from the fusebox to front fuel pump.
Grommets and fuel pump connection boots included.
Handmade to concourse quality.

Diagram ref no 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91161207215

The product you are viewing cross references to these numbers

Generator harness 420W.

Fits:
Porsche 912 (1965-68)

Made in Canada.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90261203700

The product you are viewing cross references to these numbers

Generator Wire Lead Rubber Boot.

The OE MATCH Generator Wire Lead Rubber Boot is a replacement protective cover designed for the generator electrical connections on classic Porsche 356 and 912 models. This rubber boot helps insulate and protect the generator wire terminals from moisture, dirt, oil contamination and accidental electrical contact.
Sold Each.
x Required Per Car.

Fits:

• Porsche 356 1950-65
• Porsche 912 1965-69

Diagram Ref No 4

Designed to provide an OE-style fit and appearance, it is ideal for routine maintenance, electrical system repairs and classic Porsche restoration projects.

What This Product Does:

• The generator wire lead rubber boot covers the electrical terminal connections on the generator, helping protect them from environmental exposure and reducing the risk of accidental short circuits.
• It also helps maintain the original appearance of the engine bay while providing an additional layer of protection against dirt, moisture and everyday engine vibration.

Symptoms Of Wear Or Failure:
Over time, exposure to engine heat, oil and age can cause the original rubber boots to deteriorate. Common signs include:

• Cracked or split rubber: Age-related deterioration leaves electrical terminals exposed.
• Hard or brittle material: Loss of flexibility prevents the boot from fitting securely.
• Loose or missing boots: Electrical connections become vulnerable to contamination and accidental contact.
• Oil and dirt contamination: Damaged protective boots allow contaminants to accumulate around the generator terminals.
• Visible electrical corrosion: Moisture exposure may contribute to corrosion around terminal connections.

Why Replacement Matters:

• Replacing worn or damaged generator wire lead rubber boots is a simple but important step in maintaining the reliability and safety of your classic Porsche's electrical system.
• A correctly fitted replacement boot helps protect exposed generator terminals, reduces the risk of accidental short circuits and limits contamination that could contribute to poor electrical connections.
• Replacement also helps preserve the original engine bay appearance, making it particularly beneficial during restoration and preventative maintenance.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

61610938100

The product you are viewing cross references to these numbers
