Caliper and Brake Lines

The OE Match brake hose retaining clip holds the brake hose end fitting in its mounting bracket. It is replacement retaining hardware for the Porsche applications listed below, suitable for attention during brake hose repairs or restoration work.

Fits

• Porsche 914 (1970–1976)
• Porsche 914 1.7–2.0 01/69–02/76
• Porsche 968 3.0L 1992–94
• Porsche 968 Sport 3.0L 1994–95
• Porsche 968 CS 3.0L 1993–95
• Porsche 968 Turbo S 3.0L 1993–94
• Porsche 968 3.0 06/91–11/95
• Porsche 964 (911) C2 1989–93
• Porsche 964 (911) C4 1989–93
• Porsche 964 (911) RS 3.6L 1991–93
• Porsche 964 (911) TURBO 3.3L 1991–93
• Porsche 964 (911) TURBO 3.6L 1991–93
• Porsche 964 3.3–3.6 12/88–06/94
• Porsche 911 1965–1968 2.0L / 912 SWB (F)
• Porsche 911 1968–1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974–1977 2.7L / 1976–77 3.0 Carrera
• Porsche 911 1975–1977 3.0L Turbo (930)
• Porsche 911 1978–1989 3.3L Turbo (930)
• Porsche 911 1984–1986 3.2L
• Porsche 911 1987–1989 3.2L G50
• Porsche 911 1978–1983 3.0L / SC
• Porsche 911 2.0–3.3 01/63–07/89
• Porsche 356B 1959–63
• Porsche 356C 1963–65
• Porsche 356 B/C 1.6 01/59–12/65
• Porsche 912 1.6 01/65–02/70

Check fitment for your specific vehicle (model, year, engine) before ordering.

Required Quantity

• Porsche 911 1970–73: 4 retaining springs in the brake hydraulic assembly.
• Porsche 911 1974–77 without brake booster: 4 retaining springs in the brake-line assembly.
• Porsche 911 1978–83, 1984–86 and 1987–89: 2 retaining springs in the front brake-line assembly and 2 in the rear brake-line assembly.

What Is This Part?
This is the retaining spring used at a brake hose mounting point. The hose end fitting sits in a bracket, and the clip keeps it seated there while the flexible hose accommodates movement. It forms part of the hose mounting arrangement alongside the bracket and connected rigid brake pipe. Its role is mechanical retention; the hydraulic connection itself must also be correctly assembled and checked.

What Does This Part Do?

• Retains the hose fitting: Keeps the end fitting seated in its mounting bracket.
• Restrains unwanted movement: Helps prevent the fitting moving out of its supported position.
• Completes the mounting arrangement: Works with the bracket to secure the hose at the connection to the rigid brake pipe.

Why Replace This Part?
Replace the clip if inspection finds significant corrosion, cracking, distortion or a loss of grip that prevents it retaining the fitting correctly. Damage during removal can also leave a clip unsuitable for refitting. A new clip should be considered on its condition, rather than automatically replaced whenever other brake components are serviced.

If the hose fitting is loose, inspect the bracket and fitting as well as the clip. Worn or damaged supporting parts may prevent secure seating even with replacement retaining hardware.

When to Replace This Part?

• Corrosion: Heavy rust or material loss has weakened the clip.
• Visible damage: The clip is bent, cracked or distorted.
• Poor retention: The clip no longer holds the fitting securely after the mounting arrangement has been checked.
• Missing hardware: The correct retaining clip is absent from a mounting point.
• Removal damage: Inspection during hose replacement shows that the existing clip cannot be refitted securely.

Where Is This Part Fitted?
Location: At the brake hose end fitting where it is retained in a mounting bracket beside the rigid brake pipe connection. Applicable Porsche 911 installations include front and rear brake-line assemblies; the exact mounting points depend on the vehicle.

Product Summary

• Product: Brake hose retaining clip / retainer spring.
• Brand: OE Match.
• Reference: 803611715.
• Purpose: Retains the brake hose fitting in its mounting bracket. ()

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

803611715

The product you are viewing cross references to these numbers

Brake line angle piece.

Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 924 GT 1980-85
Porsche 924S 1986-88
Porsche 944 1982-85
Porsche 914-6/4/1,7 1970-76

Click 'Zoom in' for large parts diagram.
Diagram ref no 23

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135561501

The product you are viewing cross references to these numbers

Brake line angle piece.

Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 924 GT 1980-85
Porsche 924S 1986-88
Porsche 944 1982-85
Porsche 914-6/4/1,7 1970-76

Diagram ref no 23

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90135561501

The product you are viewing cross references to these numbers

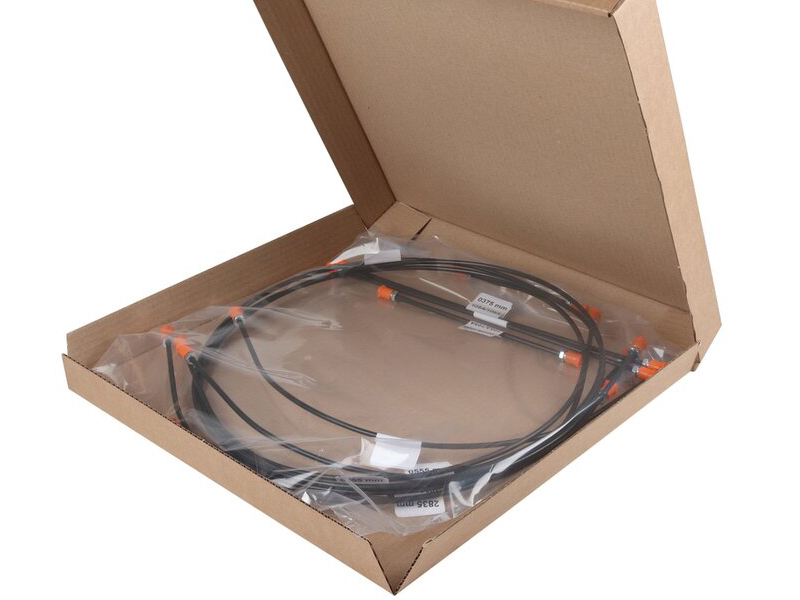

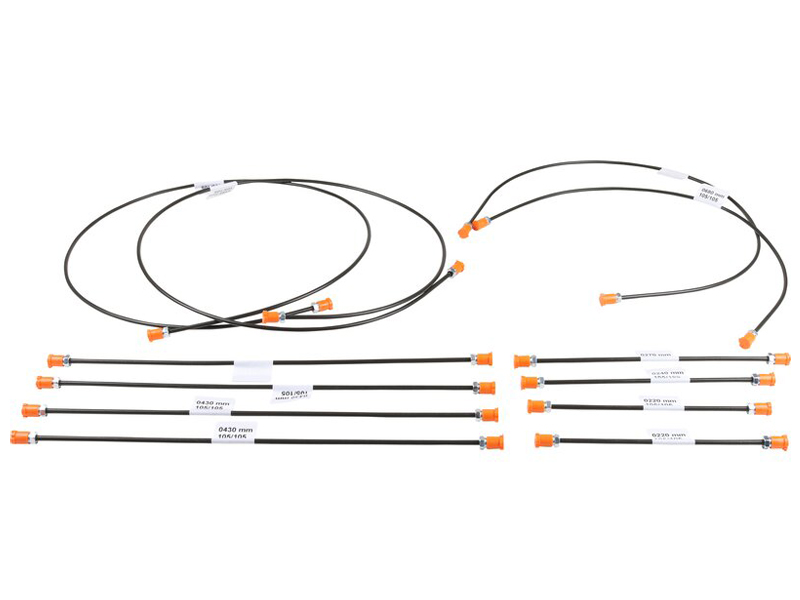

Brake line kit. With 12 lines for 1 vehicle.

Must be bended for correct fitting prior to installation

Fits:
Porsche 914 1.7L-2.0L 01/1969-02/1976

Brake line rubber grommet. EACH. (2 pcs. required per car)

Fits:
Porsche 356 B/C 1.6-2.0 01/59-12/65
Porsche 911 2.0-3.3 01/63-07/89
Porsche 912 1.6 01/65-02/70
Porsche 914 1.7-2.0 01/69-02/76
Porsche 959 2.8 01/86-04/91


Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435565100

The product you are viewing cross references to these numbers

Brake Line Rubber Grommet.

The OE Match Brake Line Rubber Grommet is a replacement protective sleeve used where the vehicle’s rigid brake pipe passes through bodywork or bulkhead openings.
Sold Each.
x2 Required Per Car.

Fits:

• Porsche 356 B/C 1.6-2.0 01/59-12/65
• Porsche 911 2.0-3.3 01/63-07/89
• Porsche 912 1.6 01/65-02/70
• Porsche 914 1.7-2.0 01/69-02/76
• Porsche 959 2.8 01/86-04/91

Its job is simple but important: the rubber grommet separates the metal brake line from the surrounding metal panel, helping prevent direct contact, vibration, abrasion and chafing.

Without an effective grommet, normal vehicle movement and vibration can allow the brake pipe to rub against the edge of the body opening. Over time, this can damage the protective coating on the pipe and potentially wear into the brake line itself.

Replacing hardened, cracked, missing or damaged grommets helps preserve the condition of the hydraulic brake pipe and supports long-term braking-system reliability.

What This Product Does:
The brake line grommet protects the rigid hydraulic brake pipe where it passes through the vehicle body.

It is designed to:

• Prevent direct metal-to-metal contact between the brake pipe and bodywork.
• Cushion the brake line inside the body opening.
• Reduce vibration transmitted into the pipe.
• Help prevent brake-line chafing.
• Protect the brake pipe coating from abrasion.
• Help maintain correct positioning of the brake line.
• Reduce movement where the pipe passes through bulkheads or panels.
• Replace a hardened, cracked or missing original grommet.
• Support long-term hydraulic brake-line integrity.

Although small, the grommet performs an important protective function in a safety-critical braking system.

Symptoms Of Wear Or Failure:
Possible signs of deterioration include:

• Rubber becoming hard or brittle.
• Visible cracking.
• Splitting around the centre opening.
• Grommet becoming loose in the body panel.
• Grommet partially pulling out of its mounting hole.
• Missing sections of rubber.
• Complete loss of the grommet.
• Brake line contacting the edge of the body opening.
• Visible rubbing marks on the brake pipe.
• Worn protective coating on the brake pipe.
• Rust developing where the pipe has been chafing.
• Brake line moving excessively in the opening.
• Squeaking or light rubbing noises where movement is present.
• Grommet deformation caused by age or incorrect installation.

Because the grommet is small and often located in less visible areas, deterioration may only be discovered during brake-line inspection or restoration work.

Why Replacement Matters:
The brake pipe is a safety-critical component.

A damaged or missing grommet may not immediately cause a braking fault, but continued metal-to-metal contact can gradually damage the pipe.

Replacing the grommet helps restore:

• Correct brake-line support.
• Isolation from the vehicle body.
• Protection against chafing.
• Reduced vibration.
• Protection of the pipe’s outer coating.
• Reduced risk of localised corrosion.
• Factory-style brake-line routing.
• Long-term hydraulic system reliability.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435565100

The product you are viewing cross references to these numbers

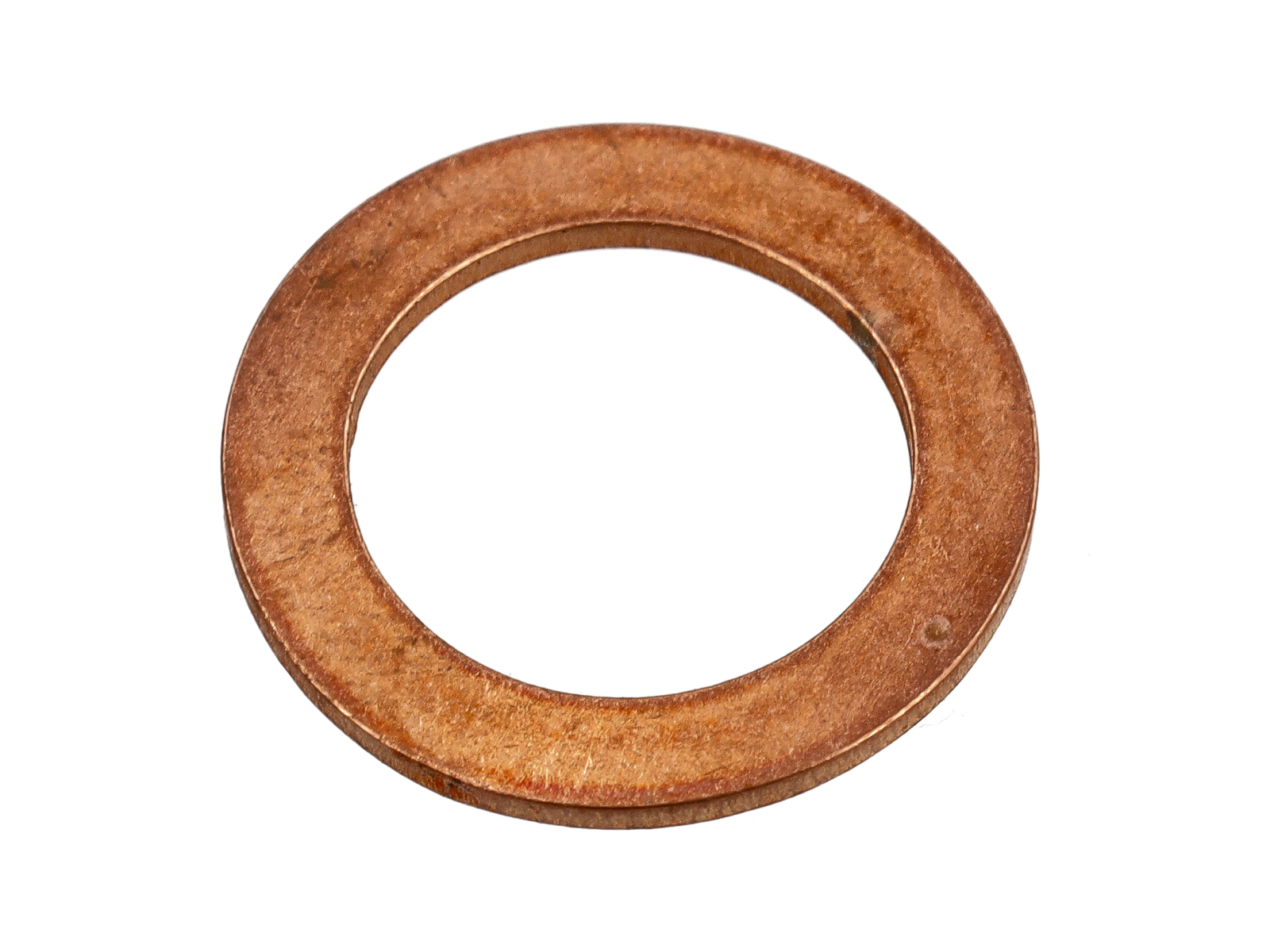

Brake Line Seal 12MM.
Sold Each.

Fits:
Porsche 911 1970>>1973

Porsche 911 1974>>1977
Porsche 911/912 1967>>1969
Porsche 911 Turbo 1975>>1977
Porsche 914 1970>>1976

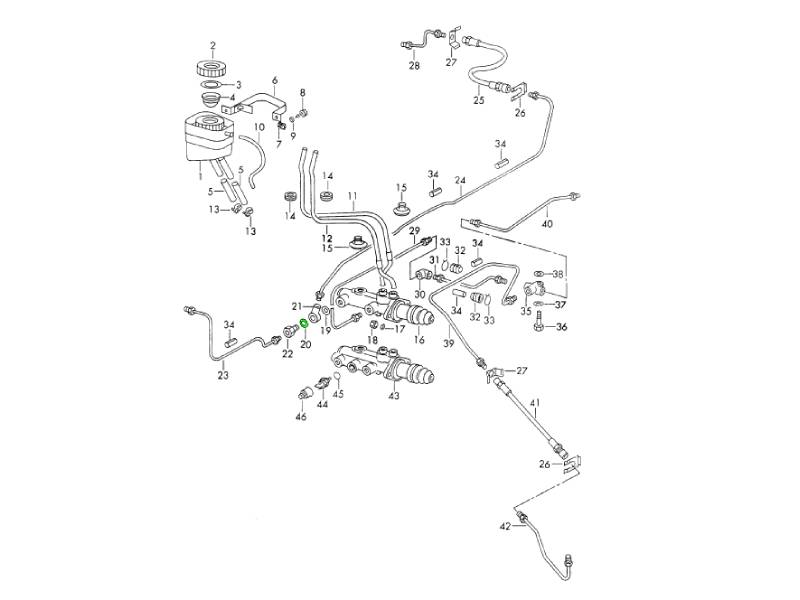

Diagram Ref No 20

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

90435590200

The product you are viewing cross references to these numbers

Connecting line for brake master cylinder, front.
For cars without brake servo

Fits:
For Left Hand Drive Cars (LHD)
Porsche 911 2.0-3.0 08/67-12/77
Porsche 911 turbo 1975-77
Porsche 912 1.6 08/67-02/70
Porsche 914 1.7-2.0 01/69-02/76

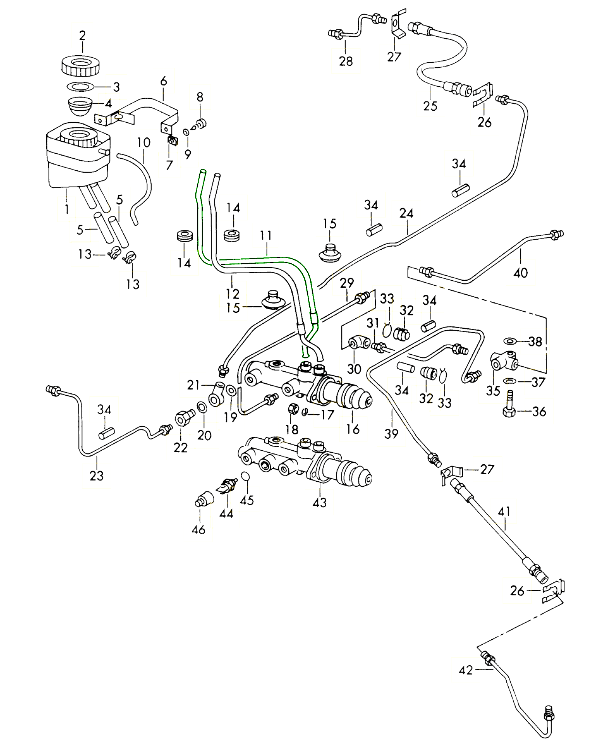

Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG35506100

The product you are viewing cross references to these numbers

Connecting line for brake master cylinder, front.
For cars without brake servo

Fits:
For Left Hand Drive cars (LHD)
Porsche 911 2.0-3.0 08/67-12/77
Porsche 911 turbo 3.0 1975-77
Porsche 912 1.6 08/67-02/70
Porsche 914 1.7-2.0 01/69-02/76

Diagram ref no 11

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG35506100

The product you are viewing cross references to these numbers

Connecting line for brake master cylinder, rear.
For cars without brake servo

Fits:
For Left Hand Drive Cars (LHD)
Porsche 911 2.0-3.0 08/67-12/77
Porsche 911 turbo 3.0 1975-77
Porsche 912 1.6 08/67-02/70
Porsche 914 1.7-2.0 01/69-02/76

Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG35506300

The product you are viewing cross references to these numbers

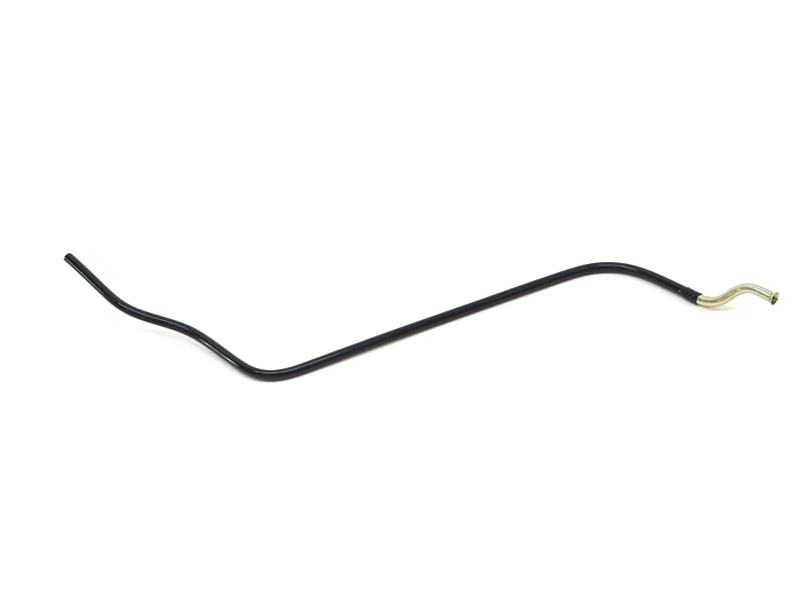

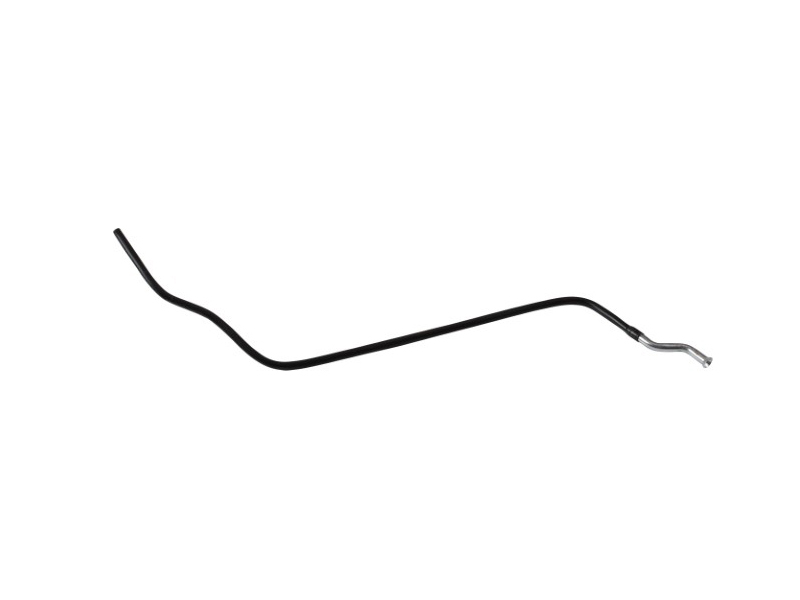

Connecting line for brake master cylinder, rear.
OE Match rear connecting line for the brake master cylinder on left-hand drive Porsche 911, 912, and 914 models without brake servo. This replacement brake hydraulic line helps restore correct brake fluid routing and reliable braking system operation.

Fits:
For Left Hand Drive Cars (LHD), without brake servo
Porsche 911 2.0-3.0  08/1967 - 12/1977
Porsche 911 turbo 3.0 1975 - 1977
Porsche 912 1.6 08/1967 - 02/1970
Porsche 914 1.7-2.0 01/1969 - 02/1976

Diagram ref no 12

The connecting line carries brake fluid from the brake master cylinder into the relevant rear brake hydraulic circuit. A secure, correctly routed brake line is essential for brake pressure transfer, pedal feel, and safe braking performance.

Functions
• Replaces the rear brake master cylinder connecting line
• Suitable for left-hand drive cars
• For vehicles without brake servo
• Carries brake fluid through the hydraulic brake system
• Supports correct brake pressure and pedal feel
• Helps prevent brake fluid leaks from aged or corroded lines
• OE Match replacement for Porsche 911, 912, and 914 brake system repair.

Why Replace This Part?
Brake hydraulic lines can corrode, kink, crack, fatigue, block, or leak due to age, moisture, road dirt, brake fluid contamination, and previous brake work. A faulty connecting line can cause brake fluid loss, soft pedal feel, reduced braking performance, or failed inspection. Replacing the line helps restore safe hydraulic brake operation.

When to Replace This Part
•  Brake fluid is leaking from the master cylinder line area
•  The original brake line is corroded, kinked, blocked, or damaged
•  Brake pedal feel is soft, inconsistent, or poor
•  Brake master cylinder service is being carried out
•  Brake pipes or hydraulic fittings are being renewed
•  The vehicle has failed inspection due to brake pipe condition
•  The car is undergoing Porsche 911, 912, or 914 brake system restoration.

Where it fits on the car
This connecting line fits at the brake master cylinder hydraulic line area on left-hand drive Porsche 911, 912, and 914 models without brake servo. It forms part of the rear brake hydraulic circuit.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PCG35506300

The product you are viewing cross references to these numbers

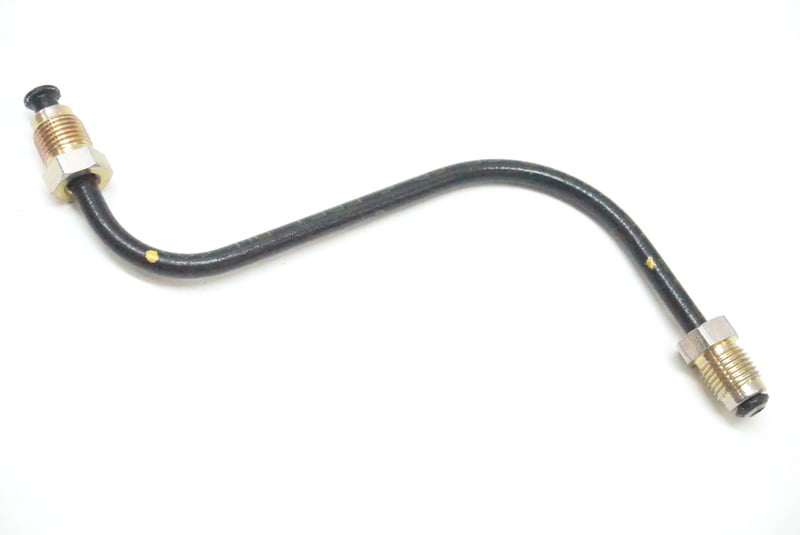

Front caliper to flexi hose brake line by OE Match for Porsche 911 1969–1973 and 914 applications, providing a direct rigid connection between the front flexible hose and brake caliper on suitable models.

What This Product Does This rigid brake line links the front flexible brake hose to the caliper, carrying hydraulic brake fluid under pressure so pedal input is transferred accurately to the caliper pistons.

Functions

• Routes brake fluid from the front flexi hose to the caliper
• Maintains a secure, fixed hydraulic connection at the wheel end
• Helps preserve correct brake line routing and clearance around suspension components
• Supports consistent hydraulic pressure delivery to the caliper

Symptoms of Fault

• Visible corrosion or pitting on the metal brake line
• Signs of fluid seepage at unions or along the pipe
• Rounded or seized fittings when attempting removal
• Kinked or damaged pipe from previous work or impact
• Soft or inconsistent pedal feel linked to hydraulic issues

Why Replacement Matters

Rigid brake lines to the calipers are renewed to address corrosion, damage or poor previous repairs that can compromise hydraulic integrity. On older Porsche 911 and 914 models, replacing aged lines when overhauling calipers, hoses or other brake components helps maintain reliable operation and reduces the risk of leaks caused by rusted or deformed pipework.

Fits

• Porsche 911 & 912 (1965–1989)
• Porsche 911 1965–1968 2.0L / 912 SWB (F)
• Porsche 911 1968–1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 914 (1970–1976)

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435560304

The product you are viewing cross references to these numbers

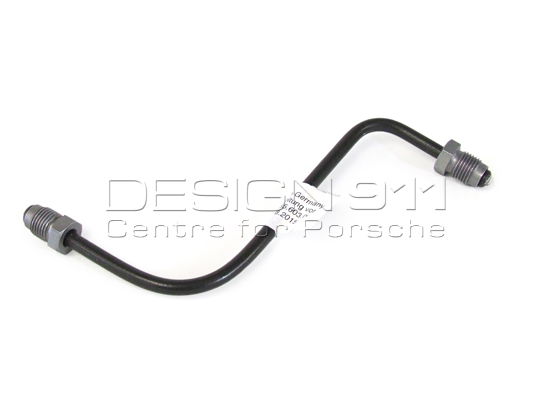

Front Caliper to Flexi Hose Brake Line. Fits: Left or Right.


Porsche 911 1969-73 FRONT
Porsche 914-6 1970-76 FRONT
Porsche 914-4 >>1971 FRONT

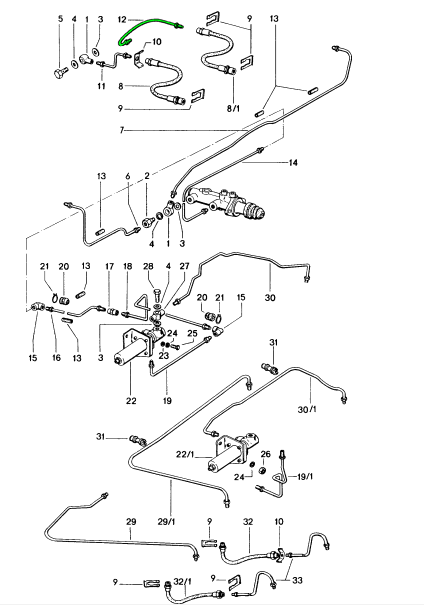

Click 'Zoom in' for large parts diagram.
Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

91435560304

The product you are viewing cross references to these numbers

Retaining Clip For Brake Hose.
The Porsche Brake Hose Retaining Clip is a genuine OEM fastener designed to securely lock the flexible brake hose into its mounting bracket. This small but vital part ensures the brake hose remains firmly in place, preventing movement, rubbing, or kinking that could compromise braking performance.
Sold Each.

Fits:

• Porsche 911 1965-1968 2.0L / 912 SWB (F)
• Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
• Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
• Porsche 911 1978-1983 3.0L / SC
• Porsche 911 1984-1986 3.2L
• Porsche 911 1987-1989 3.2L G50
• Porsche 911 1975-1977 3.0L Turbo (930)
• Porsche 911 1978-1989 3.3L Turbo (930)
• Porsche 964 (911) C2 1989-93
• Porsche 964 (911) C4 1989-93
• Porsche 964 (911) RS 3.6L 1991-93
• Porsche 964 (911) TURBO 3.3L 1991-93
• Porsche 964 (911) TURBO 3.6L 1991-93
• Porsche 968 3.0L 1992-94
• Porsche 968 Sport 3.0L 1994-95
• Porsche 968 CS 3.0L 1993-95
• Porsche 968 Turbo S 3.0L 1993-94
• Porsche 356B 1959-63
• Porsche 356C 1963-65
• Porsche 914 (1970-1976)

What This Product Does:
Keeps the brake hose (flexible line) securely attached to fixed brake line or mounting point, preventing movement, rubbing, or contact with other components.

Symptoms / Signs Of Wear Or Failure:

• The brake hose seems loose or moves when nudged (something should hold it firmly in place).
• Rubbing marks or wear on the hose where it may have been contacting surrounding metal parts.

• Noise or vibration from the brake hose area, especially under braking or road feedback.

• The clip is cracked, broken, or missing upon inspection.

• Hose sagging or misrouted in the wheel well or near suspension components.

Why Replacement Matters:

• Safety: A hose that moves or rubs can wear through its outer sheath, eventually risking a leak or hose failure.

• Durability: Proper routing and secure attachment extend hose life by reducing chafing, bending stress, or vibration fatigue.

• System integrity: Loose brake lines can move under braking, affecting pressure stability or interfering with other components.

• Prevent damage: A sliding or loose hose may damage paint, wiring, or suspension parts.



Diagram Ref No 27

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

803611715

The product you are viewing cross references to these numbers

Rubber grommet for speedometer cable, fuel line and brake line.
This rubber grommet is used for piping, cables or hoses passing through the bulkhead or body panels. It provides a precise fit and retains the factory look and function.
Sold each

Fits:
Porsche 914  1.7L-2.0L 01/1969 - 02/1976
Porsche 928  4.5L-5.4L 09/1979 - 11/1995

Diagram ref no: 25, 5 or 15

• Material: High-grade rubber with good resilience, designed to withstand vibration, thermal cycling and environmental exposure.
• Application: Commonly used on Porsche 914 (1970-76) and Porsche 928 (1978-95) for fuel lines, speedometer cable, brake-fluid reservoir hose routing, or other pass-throughs.
• Function: Forms a protective seal around a cable/hose passage to prevent abrasion, water & dust penetration, and undesirable vibration or noise.

Over time original grommets can become brittle, lose their flexibility or distort due to heat, vibration and exposure. A worn or missing grommet may lead to damaged wiring or hoses, fluid leaks or increased noise and vibration. Replacing the grommet restores reliable sealing, correct fitment and helps maintain the original vehicle integrity.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

111957861

The product you are viewing cross references to these numbers
